Which matched system has the lowest published equipment price?

For a tiny home mini split, Senville AURA 9k 230V (SENA-09HF) has the lowest published equipment price among the matched systems currently shown here at $1,300. Recheck current retailer pages before buying because prices and availability can change.

Use-case guide

Best Mini Splits for a Tiny Home

Compare compact mini splits for tiny-home whole-dwelling comfort and electrical limits.

Size this room Open finder

Matched systems: 6

Recommended BTU Range

Sizing range

6k to 12k BTU/h

Sub-400 sq ft good-insulation frame for modern tiny-home builds. The frame models 200 to 399 sq ft; use the calculator CTA for actual dimensions, climate, ceiling height, windows, and insulation.

Calculator

Planning Notes

Whole-Dwelling Single Zone

Tiny homes often use one indoor head for the whole dwelling, so door layout, lofts, and airflow paths matter more than in a simple bedroom.

single vs multi-zone guide

115V Service Constraints

Small services can make 115V equipment attractive, but the full electrical load still needs a circuit and panel check.

electrical lookup

Moisture Management

Small air volumes respond quickly, so oversizing can hurt humidity control and comfort.

sizing calculator

Mounting

Non-standard walls, lofts, trailers, and compact framing can make the mount and line-set path as important as capacity.

DIY vs professional guide

Matched Systems

Our top pickRank 1

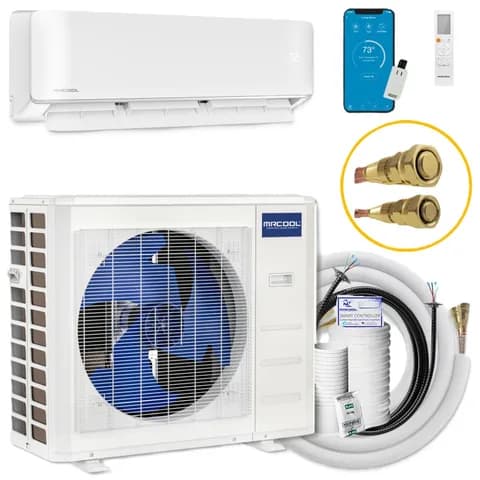

MRCOOL DIY 5th Gen 9k single-zone mini-split system with indoor wall unit, outdoor condenser, and line set

MRCOOL / DIY 5th Generation

MRCOOL DIY 5th Gen 9,000 BTU (115V)

Why it fits

The tiny-home default: 115V service compatibility (many tiny homes run 30A/120V service), the group's smallest indoor head, and a DIY pre-charged line set that matches owner-built construction. 9k is ample for any code-size tiny home envelope.

Cooling

9,000BTU/h

Heating

10,000BTU/h

Efficiency

SEER2 23.6 / HSPF2 11.5

Electrical

115V / DIY-marketed

Low ambient

-13F

Noise and controls

Indoor 43.0/39.5/33.5/24.0/18.0 dB(A)

Data completeness: 85%

Verified Jul 2026

30 source records

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect

$2,329 / Fresh price - checked Jul 18, 2026

Rank 2

Mitsubishi Electric / M-Series FS

Mitsubishi Electric M-Series FS 9k 230V (MSZ-FS09NA / MUZ-FS09NAH)

Cooling

9,000BTU/h

Heating

9,600BTU/h

Efficiency

SEER2 29.8 / HSPF2 10

Electrical

230V / Professional install

Low ambient

-13F

Noise and controls

Indoor cooling 20-23-29-36-40; heating 20-24-29-39-42 / Wi-Fi

Data completeness: 100%

Verified Jul 2026

49 source records

Rank 3

Mitsubishi Electric / M-Series GS

Mitsubishi Electric M-Series GS 9k 230V (MSZ-GS09NA / MUZ-GS09NA)

Cooling

9,000BTU/h

Heating

10,900BTU/h

Efficiency

SEER2 28.4 / HSPF2 10.9

Electrical

230V / Professional install

Low ambient

-4F

Noise and controls

Indoor cooling 19-22-30-37-43; heating 19-22-30-37-43 / Wi-Fi

Data completeness: 100%

Verified Jul 2026

45 source records

Rank 4

Mitsubishi Electric / M-Series GS

Mitsubishi Electric M-Series GS Hyper-Heating 9k 230V (MSZ-GS09NA / MUZ-GS09NAHZ)

Cooling

9,000BTU/h

Heating

9,600BTU/h

Efficiency

SEER2 28.4 / HSPF2 9.6

Electrical

230V / Professional install

Low ambient

-13F

Noise and controls

Indoor cooling 19-22-30-37-43; heating 19-22-30-37-43 / Wi-Fi

Data completeness: 100%

Verified Jul 2026

49 source records

Rank 5

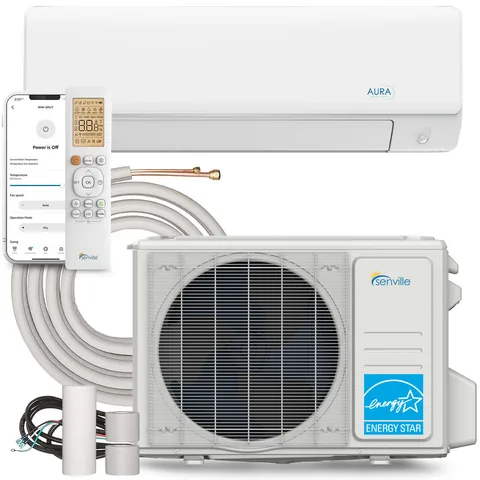

Senville / AURA

Senville AURA 9k 230V (SENA-09HF)

Why it fits

For tiny homes wired with 240V service that prioritize off-grid-adjacent efficiency - the HSPF2 12.5 rating stretches limited winter power further, and -22F rated heating covers four-season siting.

Cooling

9,000BTU/h

Heating

12,000BTU/h

Efficiency

SEER2 27.4 / HSPF2 12.5

Electrical

230V / Professional install

Low ambient

-22F

Noise and controls

Indoor 45/37/31/23 dB(A) / Wi-Fi

Data completeness: 85%

Verified Jul 2026

29 source records

Rank 6

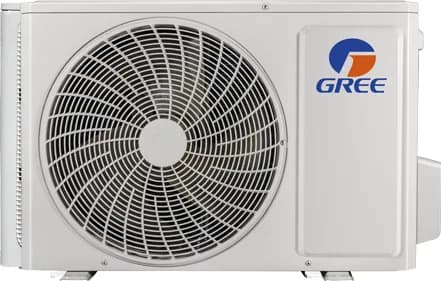

GREE / Vireo R32

GREE Vireo R32 9,000 BTU (230V)

Cooling

9,100BTU/h

Heating

10,500BTU/h

Efficiency

SEER2 26 / HSPF2 10.4

Electrical

230V / Professional install

Low ambient

-22F

Noise and controls

Indoor 20 - 41 / Wi-Fi

Data completeness: 98%

Verified Jul 2026

53 source records

Current Retail Options

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Senville AURA 9k 230V (SENA-09HF)

Check price at Senville

$1,300 / Fresh price - checked Jul 18, 2026

GREE Vireo R32 9,000 BTU (230V)

Check price at HVACDirect

$2,103 / Fresh price - checked Jul 21, 2026

Equipment And Installed Cost Ranges

Equipment: $800 to $1,600
DIY installed: $1,520 to $4,615
Pro installed: $2,795 to $7,815

Equipment: $900 to $1,900
DIY installed: $1,670 to $5,015
Pro installed: $3,145 to $8,615

12k

Equipment: $1,000 to $2,400
DIY installed: $1,820 to $5,665
Pro installed: $3,495 to $9,665

Common Mistakes

Oversizing a tiny home and creating short cycles.
Ignoring total electrical service limits.
Assuming a standard wall-mount path fits non-standard framing.

Frequently asked questions

Which is the best tiny home mini split?: For a tiny home mini split, our top pick is MRCOOL DIY 5th Gen 9,000 BTU (115V). The tiny-home default: 115V service compatibility (many tiny homes run 30A/120V service), the group's smallest indoor head, and a DIY pre-charged line set that matches owner-built construction.
Which matched system has the lowest published equipment price?: For a tiny home mini split, Senville AURA 9k 230V (SENA-09HF) has the lowest published equipment price among the matched systems currently shown here at $1,300. Recheck current retailer pages before buying because prices and availability can change.

Sources

Calculator sources

Room-sizing calculator methodretrieved 2026-07-18
SplitAtlas installation-cost methodologyretrieved 2026-07-18
SplitAtlas planning-range methodologyretrieved 2026-07-18
SplitAtlas editorial cost estimateretrieved 2026-07-18

System sources

AHRI: AHRI certificate 214779340 for VIR09HP230V1R32AO / VIR09HP230V1R32AHfor GREE Vireo R32 9,000 BTU (230V)
Covers cooling capacity, heating capacity, HSPF2, SEER2; retrieved Jul 21, 2026
GREE Comfort: GREE Vireo R32 submittal 9MBH 230Vfor GREE Vireo R32 9,000 BTU (230V)
Covers voltage range, indoor noise, Wi-Fi support, low-ambient heating; retrieved Jul 21, 2026
HVACDirect: HVACDirect product page GREE Vireo R32 9,000 BTU (230V)for GREE Vireo R32 9,000 BTU (230V)
Covers price; retrieved Jul 21, 2026
HVACDirect: HVACDirect product page DIY-09-HP-WM-115D25-Ofor MRCOOL DIY 5th Gen 9,000 BTU (115V)
Covers low-ambient heating; retrieved Jul 18, 2026
MRCOOL: MRCOOL R454B DIY-5 submittalfor MRCOOL DIY 5th Gen 9,000 BTU (115V)
Covers voltage, indoor noise, cooling capacity, heating capacity, HSPF2 and more; retrieved Jul 18, 2026
AHRI: AHRI Directory Air-Source Heat Pumps record ref 209832202for Mitsubishi Electric M-Series FS 9k 230V (MSZ-FS09NA / MUZ-FS09NAH)
Covers HSPF2, SEER2; retrieved Jul 20, 2026
Mitsubishi Electric Trane HVAC US: MSZ-FS09NA & MUZ-FS09NAH submittalfor Mitsubishi Electric M-Series FS 9k 230V (MSZ-FS09NA / MUZ-FS09NAH)
Covers voltage range, indoor noise, Wi-Fi support, cooling capacity, heating capacity and more; retrieved Jul 20, 2026
