Best Mini Splits for a Garage

Find source-backed single-zone mini splits for garage heating and cooling.

Size this roomOpen finder
Matched systems
6

Recommended BTU Range

Sizing range

12k to 36k BTU/h

Garage frame with poor-insulation and garage load adjustments. The frame models 300 to 700 sq ft; use the calculator CTA for actual dimensions, climate, ceiling height, windows, and insulation.

Calculator

Planning Notes

Insulation Honesty

An uninsulated garage is a load problem first. Size up only after you account for the wall, door, ceiling, and air-leakage penalty; insulating first can be the better move.

sizing calculator

Heating Priority

If the garage is used through winter, published low-ambient heating matters more than a broad cooling claim.

cold-weather performance guide

Electrical Reality

Many garages have limited panel headroom. A 115V path can be useful, but every mini split still needs electrical review for the actual circuit.

electrical lookup

DIY Fit

Garage installs are a common DIY-kit use case because routing is often simpler than finished living space, while electrical and permit work remain separate decisions.

DIY vs professional guide

Matched Systems

Our top pickRank 1

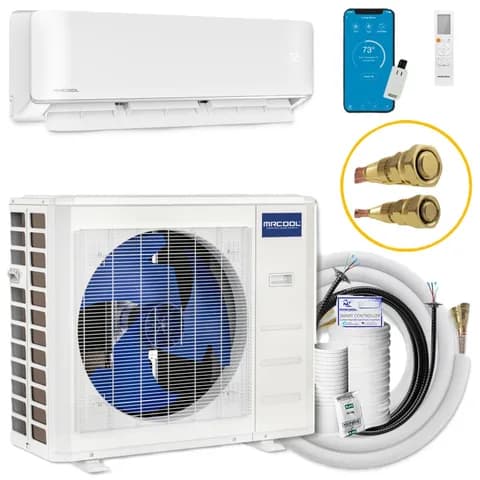

MRCOOL DIY 5th Gen 24k single-zone mini-split system with indoor wall unit, outdoor condenser, and line set

MRCOOL / DIY 5th Generation

MRCOOL DIY 5th Gen 24k marketed / 23,000 BTU rated (230V)

Why it fits

The pick for a full two-car or uninsulated garage, where capacity is the whole problem. One honest footnote our database surfaces: it certifies 23,000 Btu/h of cooling, not a round 24,000 - size against the certified number. Self-installable line set, 230V circuit required.

Cooling

23,000BTU/h

Heating

23,000BTU/h

Efficiency

SEER2 22.7 / HSPF2 9.5

Electrical

230V / DIY-marketed

Low ambient

-13F

Noise and controls

Indoor 54.0/48.0/43.0/33.5/20.0 dB(A)
Data completeness: 85%
Verified Jul 2026

30 source records

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect

$3,329 / Fresh price - checked Jul 18, 2026

Rank 2
MRCOOL DIY 5th Gen 18k single-zone mini-split system with indoor wall unit, outdoor condenser, and line set

MRCOOL / DIY 5th Generation

MRCOOL DIY 5th Gen 18,000 BTU (230V)

Why it fits

Garages are leaky, unconditioned volumes - capacity and cold-start ability decide it. 18k covers a two-car garage's typical load, it is rated to heat down to -13F, and MRCOOL's DIY line set suits the exposed-stud installs garages usually offer.

Cooling

18,000BTU/h

Heating

18,000BTU/h

Efficiency

SEER2 22.5 / HSPF2 11.5

Electrical

230V / DIY-marketed

Low ambient

-13F

Noise and controls

Indoor 54.5/44.5/40.5/30.5/19.0 dB(A)
Data completeness: 85%
Verified Jul 2026

30 source records

Rank 3

MRCOOL / DIY 5th Gen Hyper Heat

MRCOOL DIY Hyper Heat 5th Gen 18,000 BTU (230V)

Cooling

18,000BTU/h

Heating

18,000BTU/h

Efficiency

SEER2 21.2 / HSPF2 11

Electrical

230V / DIY-marketed

Low ambient

-22F

Noise and controls

Indoor 54.5 / 45 / 40 / 30.5 / 20.5 dB(A) / Wi-Fi
Data completeness: 98%
Verified Jul 2026

39 source records

Rank 4
MRCOOL DIY 5th Gen 12k single-zone mini-split system with indoor wall unit, outdoor condenser, and line set

MRCOOL / DIY 5th Generation

MRCOOL DIY 5th Gen 12,000 BTU (115V)

Why it fits

For single-car or well-sealed garages where running a new 230V circuit is the dealbreaker - the only matched garage-capable unit that runs on 115V. Size honestly: an uninsulated garage can need double the nominal BTU guidance.

Cooling

12,000BTU/h

Heating

12,000BTU/h

Efficiency

SEER2 23.5 / HSPF2 10.2

Electrical

115V / DIY-marketed

Low ambient

-13F

Noise and controls

Indoor 43.0/39.5/33.5/24.0/18.0 dB(A)
Data completeness: 88%
Verified Jul 2026

31 source records

Rank 5

MRCOOL / DIY 5th Gen Hyper Heat

MRCOOL DIY Hyper Heat 5th Gen 12,000 BTU (230V)

Cooling

12,000BTU/h

Heating

12,000BTU/h

Efficiency

SEER2 23.5 / HSPF2 10

Electrical

230V / DIY-marketed

Low ambient

-22F

Noise and controls

Indoor 45.5 / 40 / 34 / 22.5 / 18 dB(A) / Wi-Fi
Data completeness: 98%
Verified Jul 2026

39 source records

Rank 6

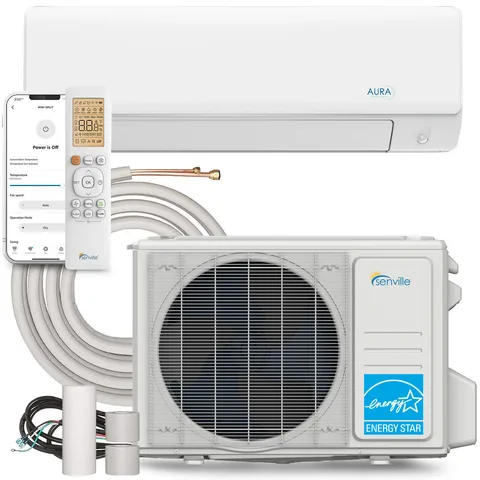

Senville AURA 24k mini-split heat pump indoor wall unit and outdoor condenser

Senville / AURA

Senville AURA 24k 230V (SENA-24HF)

Cooling

24,000BTU/h

Heating

29,000BTU/h

Efficiency

SEER2 21 / HSPF2 13.5

Electrical

230V / Professional install

Low ambient

-22F

Noise and controls

Indoor 27-54.5 dB(A) / Wi-Fi
Data completeness: 80%
Verified Jul 2026

27 source records

Current Retail Options

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

MRCOOL DIY 5th Gen 18,000 BTU (230V)

Check price at HVACDirect

$2,909 / Fresh price - checked Jul 18, 2026

MRCOOL DIY Hyper Heat 5th Gen 18,000 BTU (230V)

Check price at HVACDirect

$3,173 / Fresh price - checked Jul 20, 2026

MRCOOL DIY 5th Gen 12,000 BTU (115V)

Check price at HVACDirect

$2,359 / Fresh price - checked Jul 18, 2026

MRCOOL DIY Hyper Heat 5th Gen 12,000 BTU (230V)

Check price at HVACDirect

$2,532 / Fresh price - checked Jul 20, 2026

Senville AURA 24k 230V (SENA-24HF)

Check price at Senville

$1,800 / Fresh price - checked Jul 18, 2026

Equipment And Installed Cost Ranges

12k
Equipment
$1,000 to $2,400
DIY installed
$1,820 to $5,665
Pro installed
$3,495 to $9,665
18k
Equipment
$1,400 to $3,200
DIY installed
$2,320 to $6,715
Pro installed
$4,295 to $11,515
24k
Equipment
$1,800 to $4,200
DIY installed
$2,870 to $8,015
Pro installed
$5,145 to $13,615

Common Mistakes

  • Sizing from square footage alone without the garage insulation adjustment.
  • Treating a 115V label as proof the existing garage circuit is usable.
  • Buying for cooling only when winter shop heat is the primary use.

Frequently asked questions

Which is the best garage mini split?
For a garage mini split, our top pick is MRCOOL DIY 5th Gen 24k marketed / 23,000 BTU rated (230V). The pick for a full two-car or uninsulated garage, where capacity is the whole problem.
Which matched system has the lowest published equipment price?
For a garage mini split, Senville AURA 24k 230V (SENA-24HF) has the lowest published equipment price among the matched systems currently shown here at $1,800. Recheck current retailer pages before buying because prices and availability can change.
