Klimaire / Klimaire KIWQ-KOIQ DIY

Klimaire DIY 23k R-454B 230V Mini-Split

Certified capacity
23,000 BTU/h[1]
SEER2
23 SEER2[10]
Heating floor
-13 F[1]
Voltage
230 V[1]
Install path
DIY install

The 24,000 BTU DIY head is the cold-weather muscle of the KIWQ/KOIQ line: SEER2 23, EER2 11.7, HSPF2 9.5, R-454B, 230V, and cold-climate designated. Its heating curve is remarkably flat, at 25,000 BTU at 47F, 21,000 BTU at 17F, and 18,600 BTU at 5F. Precharged quick-connect line sets make even this 2-ton unit a realistic self-install.

1 zoneDIY installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

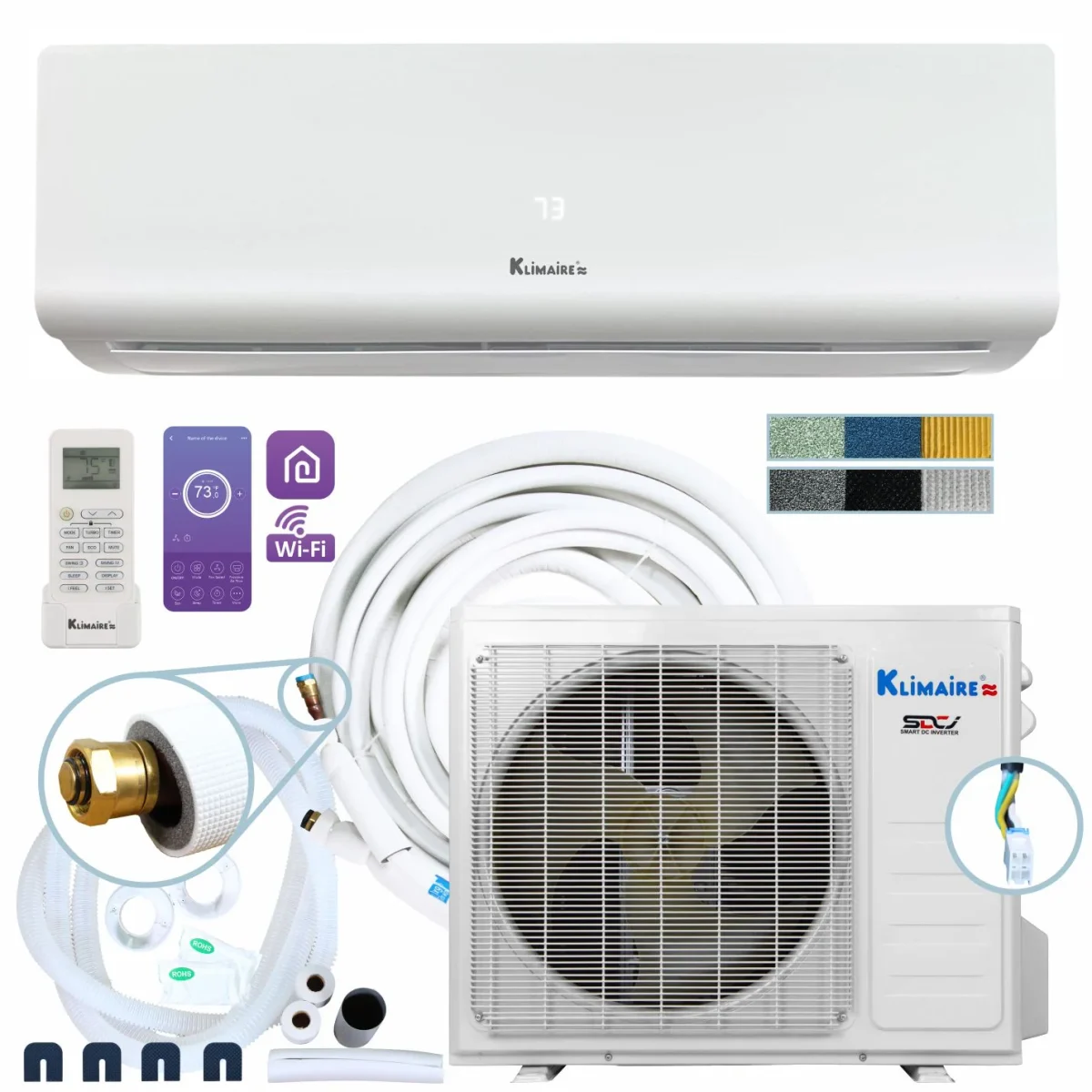

Klimaire KIWQ-KOIQ DIY 23,000 BTU R-454B 208-230V (KIWQ24H2-45T / KOIQ24H2-45T) mini-split heat pump indoor wall unit and outdoor condenser kit

Image: Klimaire

Data completeness: 98%
Last sourced
Aug 17, 2026

SplitAtlas score

8.4 / 10

Methodology
Cooling efficiencyAbove average

(23.0 SEER2) among 24k systems

Heating efficiencyBelow average

(9.5 HSPF2) among 24k systems

Cold-weather performanceBelow average

(74.4% heat retained at 5F; -13 F heating floor) among 24k systems

NoiseTop 10%

(-50 dBA indoor min / 54 dBA outdoor) among 24k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Installation accessibilityBelow average

(DIY-marketed; 25 ft precharged; 25 ft included line set) across the catalogue

Feature setTop 10%

(8 verified features) across the catalogue

Documentation & partsBottom quartile

(9 manuals; 51 error-code rows) across the catalogue

Key ratings

Rated cooling

23,000BTU/h[1]

Rated heating

25,000BTU/h[1]

Best-fit use cases

Ideal for a large open living space or small addition in a genuinely cold climate where an owner wants strong low-temp heat and is comfortable self-installing on 230V.

Where this system ranks

Buyer review snapshot

Best for / skip if

Best for

  • High-efficiency shortlists; SEER2 is 23.

Install difficulty

DIY install path, electrical work likely
  • Electrical: 230V; MCA 17 A; breaker/fuse 25 A.
  • Line set: Quick-connect line connections; precharged 25 ft; included 25 ft; max 65 ft.

Alternatives

Availability and price context

We could not verify a current retail price for this model. We could not find a published consumer price for this model when we last checked on 2026-08-17.

Source date

Model data sourced
Aug 17, 2026
Page reviewed
Jul 23, 2026
Source-backed records
12
Newest source retrieved
Aug 17, 2026

Warranty tiers

Warranty: 3 years parts as standard; 5 years parts and 7 years compressor if registered residential use within 45 days.

Review methodology

Strengths

  • Exceptional cold-climate hold: 21,000 BTU at 17F is only a slight step down from 25,000 BTU at 47F, and it still puts out 18,600 BTU at 5F.
  • Delivers 2-ton capacity through a DIY quick-connect line set, sparing the owner a vacuum pump and refrigerant handling.
  • SEER2 23 on current R-454B keeps efficiency high for a large unit sold at value-brand prices.

Weaknesses

  • Not ENERGY STAR certified, and Klimaire's parts and service reach is narrower than premium competitors.
  • A 2-ton DIY install is more line set and weight to manage, and you carry commissioning and warranty duties yourself.

Climate suitability

Minimum heating ambient
-13 F[1]
Rated heating at 5F
18,600 BTU/h[9]
Rated heating at 17F
21,000 BTU/h[8]
Rated heating at 47F
25,000 BTU/h[1]

Specifications

Show
Manufacturer
Klimaire
Brand
Klimaire
Product line
Klimaire KIWQ-KOIQ DIY
Model number
KIWQ24H2-45T indoor / KOIQ24H2-45T outdoor
Indoor unit model
KIWQ24H2-45T
Outdoor unit model
KOIQ24H2-45T
Number of zones
1
Max indoor units
not published
Rated cooling capacity
23,000 BTU/h[1]
Rated heating capacity
25,000 BTU/h[1]
Voltage
230 V[1]
MCA
17 A[1]
Maximum fuse or breaker size
25 A[1]
Breaker needed
not published
SEER2
23 SEER2[10]
EER2
11.7 EER2[5]
HSPF2 (Region 4)
9.5 HSPF2[7]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
1.8 COP[4]
Minimum outdoor heating temperature
-13 F[1]
Minimum outdoor cooling temperature
5 F[1]
Maximum outdoor temperature
131 F[1]
Indoor noise range
34-50 dB(A)[1]
Outdoor noise rating
54 dBA[1]
Indoor weight
30.9 lb[1]
Outdoor weight
104.7 lb[1]
Refrigerant
R-454B[1]
Refrigerant charge
not published
Manufacturer coverage
1,500 sq ft[1]
Line-set size
1/4 in liquid / 1/2 in suction
Included line-set length
25 ft[1]
Maximum line-set length
65 ft[1]
Max line set per indoor
not published
Maximum elevation difference
49 ft[1]
Max height between indoor units
not published
Wi-Fi support
supported[1]
Energy Star status
Not ENERGY STAR certified[6]
AHRI certification number
218067071[3]
Warranty
Standard: 3 yr parts (base residential coverage); Best case: 5 yr parts / 7 yr compressor (registered residential use within 45 days). DIY Mini-Split Systems: 5 years parts / 7 years compressor when registered for residential use within 45 days; base coverage is 3 years parts; commercial use is 3 years parts and compressor.
Install path
DIY install
Retail price
We could not find a published consumer price for this model when we last checked on 2026-08-17.
Available retailers
not published
Manual links
AHRI public directory record 218067071, Klimaire KIWQ-KOIQ DIY brochure, ENERGY STAR exact check 218067071, KIWQ/KOIQ 2026 Installation and Users Manual, Klimaire mini-split wall-mount collection, 24,000 BTU KIWQ-KOIQ DIY Series Do-It-Yourself High Wall-Mounted Ductless Mini Split Heat Pump Air Conditioner with E-Z Kuick Connect Kit, Klimaire KIWQ-KOIQ DIY product page quick-connect documentation, HVACDirect exact Klimaire offer check klimaire-kiwq-koiq-diy-24k-218067071-230v, Klimaire warranty information
Specification sheet
not published
Last sourced date
Aug 17, 2026

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
17 A[1]
Breaker needed
not published
Maximum breaker size
25 A[1]
Maximum fuse size
25 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
16 AWG, 4-conductor connection wiring[1]

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
1/2 in[1]
Line connection type
Quick-connect line connections[2]
Precharged length
25 ft[1]
Included line-set length
25 ft[1]
Maximum line-set length
65 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
43.19 x 13.07 x 8.74 in[1]
Outdoor dimensions
38.5 x 16.57 x 31.61 in[1]
Indoor weight
30.9 lb[1]
Outdoor weight
104.7 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Klimaire KIWQ-KOIQ DIY 23,000 BTU R-454B 208-230V (KIWQ24H2-45T / KOIQ24H2-45T) myself, or do I need a pro?
Klimaire KIWQ-KOIQ DIY 23,000 BTU R-454B 208-230V (KIWQ24H2-45T / KOIQ24H2-45T) is sold as a DIY-installable system with a pre-charged 25 ft line set, so no refrigerant handling or vacuum pump is required for a standard install. The electrical circuit is the part that is not DIY: plan on a licensed electrician for the dedicated circuit, and check whether your local permit office requires a permit for the install.
Will the Klimaire KIWQ-KOIQ DIY 23,000 BTU R-454B 208-230V (KIWQ24H2-45T / KOIQ24H2-45T) keep heating in a cold winter?
The manufacturer publishes 18,600 BTU/h of heating output at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 9.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Klimaire KIWQ-KOIQ DIY 23,000 BTU R-454B 208-230V (KIWQ24H2-45T / KOIQ24H2-45T) need?
Published electrical requirements: 230 V voltage, 17 A minimum circuit ampacity, and 25 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 65 ft, and the included line set comes pre-charged for 25 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the Klimaire KIWQ-KOIQ DIY 23,000 BTU R-454B 208-230V (KIWQ24H2-45T / KOIQ24H2-45T) carry?
The manufacturer publishes these warranty tiers: Standard: 3 yr parts (base residential coverage); Best case: 5 yr parts / 7 yr compressor (registered residential use within 45 days). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
