MRCOOL DIY 5th Gen 24k 230V Mini-Split

Certified capacity
23,000 BTU/h[1]
SEER2
22.7 SEER2[1]
Heating floor
-13 F[2]
Voltage
208/230V[1]
Install path
DIY install

The 24k DIY covers large open plans, with one honest footnote: its certified cooling rating is 23,000 Btu/h, not a round 24,000 - the "24k" is marketing shorthand. Everything else follows the DIY line playbook: pre-charged line set, public documentation, 230V circuit.

1 zoneDIY installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

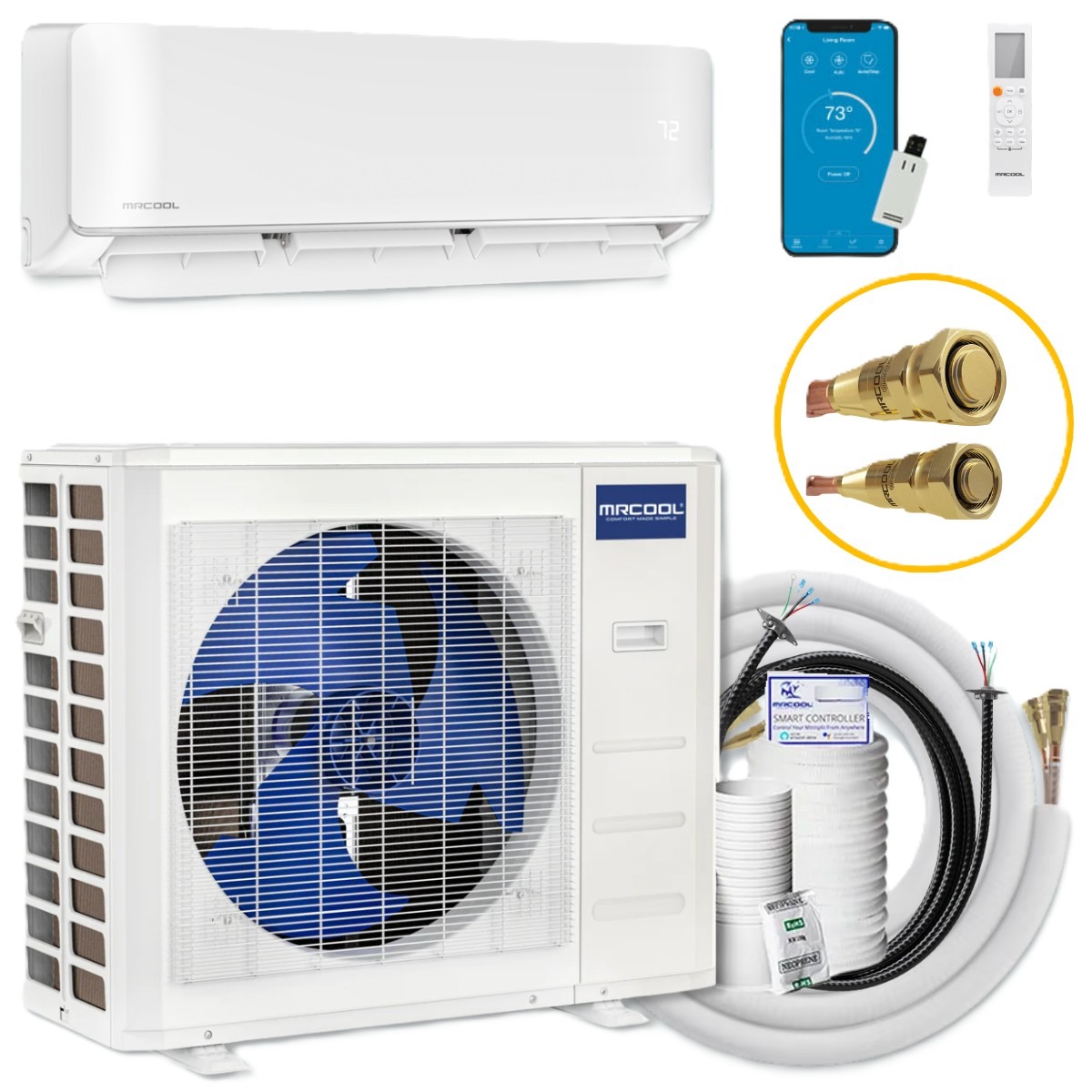

MRCOOL DIY 5th Gen 24k single-zone mini-split system with indoor wall unit, outdoor condenser, and line set

Image: HVACDirect

Data completeness: 88%
Last sourced
Aug 17, 2026

SplitAtlas score

8.3 / 10

Methodology
Cooling efficiencyAbove average

(22.7 SEER2) among 24k systems

Heating efficiencyBelow average

(9.5 HSPF2) among 24k systems

Cold-weather performanceBelow average

(-13 F heating floor) among 24k systems

NoiseTop 10%

(20 dBA indoor min / 58.5 dBA outdoor) among 24k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Installation accessibilityBottom quartile

(DIY-marketed; 25 ft precharged; 25 ft included line set) across the catalogue

Documentation & partsTop 10%

(2 manuals; spec sheet; 50 error-code rows; parts channel) across the catalogue

Key ratings

Rated cooling

23,000BTU/h[1]

Rated heating

23,000BTU/h[1]

Best-fit use cases

Large open-plan spaces and whole-small-home applications where a single wall unit can cover the load and the owner wants to self-install.

Where this system ranks

Buyer review snapshot

Best for / skip if

Best for

  • High-efficiency shortlists; SEER2 is 22.7.

Install difficulty

DIY install path, electrical work likely
  • Electrical: 208/230V; MCA 24 A; breaker/fuse 25 A.
  • Line set: Quick-connect line connections; precharged 25 ft; included 25 ft.

Alternatives

Availability and price context

  • Sold at Amazon. Open the listing for today's price and stock.
  • Last seen at HVACDirect on Jul 27, 2026: $3,329.00. Open the listing for today's price.

Source date

Model data sourced
Aug 17, 2026
Page reviewed
Jul 18, 2026
Source-backed records
4
Newest source retrieved
Aug 17, 2026

Warranty tiers

Base
5 yr parts / 7 yr compressor - standard coverage

The score uses Base. Additional published terms are shown for reference and not counted in the score.

Review methodology

Strengths

  • Big-space coverage with a genuine self-install path.
  • Same complete documentation and quick-connect system as the smaller DIY units.

Weaknesses

  • Certified capacity is 23,000 Btu/h - size against the certified number, not the model name.
  • 230V dedicated circuit required, and at this capacity the circuit sizing deserves a careful electrician conversation.
  • Mid-pack certified efficiency for its class.

Climate suitability

Minimum heating ambient
-13 F[2]
Certified heating at 5F
not published
Rated heating at 17F
not published
Rated heating at 47F
not published

Specifications

Show
Manufacturer
MRCOOL
Brand
MRCOOL
Product line
DIY 5th Generation
Model number
DIY-24-HP-WMAH-230D25-O indoor / DIY-24-HP-C-230D25-O outdoor
Indoor unit model
DIY-24-HP-WMAH-230D25-O
Outdoor unit model
DIY-24-HP-C-230D25-O
Number of zones
1
Max indoor units
not published
Rated cooling capacity
23,000 BTU/h[1]
Rated heating capacity
23,000 BTU/h[1]
Voltage
208/230V[1]
MCA
24 A[1]
Maximum fuse or breaker size
25 A[1]
Breaker needed
not published
SEER2
22.7 SEER2[1]
EER2
12.7 EER2[1]
HSPF2 (Region 4)
9.5 HSPF2[1]
HSPF2 (Region 5)
7.1 HSPF2[1]
COP
not published
COP at 47F
not published
COP at 5F
not published
Minimum outdoor heating temperature
-13 F[2]
Minimum outdoor cooling temperature
not published
Maximum outdoor temperature
not published
Indoor noise range
54.0/48.0/43.0/33.5/20.0 dB(A)[1]
Outdoor noise rating
58.5 dBA[1]
Indoor weight
35.93 lb[2]
Outdoor weight
122.8 lb[2]
Refrigerant
R-454B[1]
Refrigerant charge
67.37 oz[1]
Manufacturer coverage
1,050 sq ft[1]
Line-set size
3/8 in liquid / 5/8 in suction
Included line-set length
25 ft[1]
Maximum line-set length
not published
Max line set per indoor
not published
Maximum elevation difference
not published
Max height between indoor units
not published
Wi-Fi support
not published
Energy Star status
ENERGY STAR certified[2]
AHRI certification number
216032547[2]
Warranty
Base: 5 yr parts / 7 yr compressor (standard coverage). Score uses Base.. 5-year parts plus 7-year compressor standard; lifetime via paid Care Kit only.
Install path
DIY install
Retail price
last seen at HVACDirect on Jul 27, 2026: $3,329.00
Available retailers
Amazon, HVACDirect
Manual links
MRCOOL DIY Series Single-Zone Mini-Split System Installation & Owner's Manual, MRCOOL R454B DIY-5 submittal
Specification sheet
MRCOOL R454B DIY-5 submittal
Last sourced date
Aug 17, 2026

Retail purchase context

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price on Amazon
Check price at HVACDirect

Reference-only price

Last seen at HVACDirect on Jul 27, 2026: $3,329

Parts and filters

Fits MRCOOL DIY 5th Gen 24k marketed / 23,000 BTU rated (230V). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

filter-washable
