Klimaire / KMIP-KIWP DIY Series
Klimaire DIY 27k R-454B 208/230V 3-Zone Mini-Split
The Klimaire KMIP-KIWP DIY Series 3-Zone 27k runs three heads off one 208/230V outdoor unit at a certified nominal SEER2 24, EER2 12, HSPF2 10.5 on current R-454B refrigerant. From the DIY-oriented line, heating starts at 28,000 BTU at 47F and falls off in the cold to 22,400 BTU at 17F and 19,800 BTU at 5F, a normal falloff pattern.
The SEER2 of 24 is high for a value brand; professional installation is still recommended. It is not ENERGY STAR certified and sits below the top premium brands on brand and dealer support.
Dealer-quoted.
Refrigerant generation
R-454B - current-generation refrigerant
Need this installed?
Get installation quotes

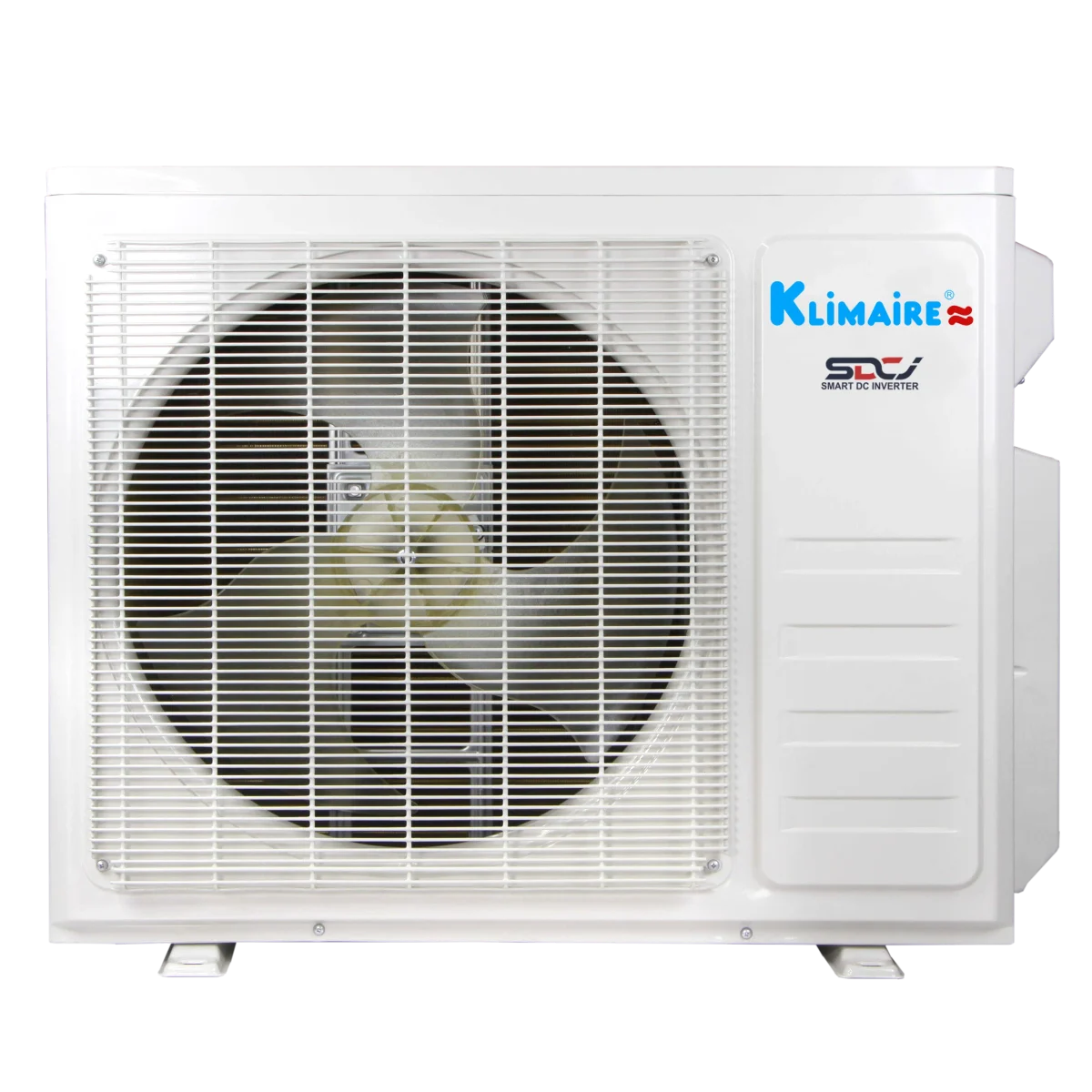

Image: Klimaire
- Last sourced
- Jul 29, 2026
SplitAtlas score
8.3 / 10
(24.0 SEER2) among 24k systems
(10.5 HSPF2) among 24k systems
(5F certified capacity: 70.7% of the 47F rating; -13 F heating floor) among 24k systems
(5 yr parts / 7 yr compressor) across the catalogue
(4 verified features) across the catalogue
(7 manuals; spec sheet) across the catalogue
Key ratings
Best-fit use cases
A three-room home in a milder climate wanting high-SEER2 24 value cooling and standard heating that eases in the cold, professionally installed.
Where this system ranks
Buyer review snapshot
Best for / skip if
Best for
- 3-zone projects in the 24k outdoor capacity class.
- High-efficiency shortlists; SEER2 is 24.
Install difficulty
- Electrical: 230V; MCA 18 A; breaker/fuse 30 A.
- Line set: Quick-connect line connections; precharged 74 ft; max 197 ft.
- 3-zone condenser; indoor-head matching and branch layout are part of the job.
Alternatives
- ACiQ Multi-Zone Extreme Series 3-Zone 27,000 BTU R-454B 208/230V (ACIQ-27Z-HH-M4C)
9.0 score / 27k / SEER2 23 / -22 F heating floor / 230V
Exact destination at HVACDirect: $3,499.99, checked Jul 29, 2026
- ACiQ Multi-Zone Standard Series 3-Zone 27,000 BTU R-454B 208/230V (ES-27Z-M4C)
8.6 score / 27k / SEER2 25 / -13 F heating floor / 230V
Exact destination at HVACDirect: $2,049.99, checked Jul 29, 2026
- ACiQ Multi-Zone Essentials 3-Zone 24,000 BTU R-32 208/230V (ACIQ-24Z-E-M3)
8.6 score / 24k / SEER2 23 / -13 F heating floor / 230V
Exact destination at HVACDirect: $1,253.80, checked Jul 29, 2026
Availability and price context
- Sold at Amazon. Open the listing for today's price and stock.
Source date
- Model data sourced
- Jul 29, 2026
- Page reviewed
- Jul 29, 2026
- Source-backed records
- 4
- Newest source retrieved
- Jul 29, 2026
Warranty tiers
- Registered
- 5 yr parts / 7 yr compressor - registration/installation terms
The score uses Registered. Additional published terms are shown for reference and not counted in the score.
Model context
- Structured ratings
- Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -13 F.
Strengths
- Certified nominal SEER2 24 / EER2 12 / HSPF2 10.5 on current R-454B refrigerant.
- High SEER2 24 for a value brand.
- Three zones from one condenser cover a small floor.
- Current low-GWP R-454B refrigerant at a value price.
Weaknesses
- Heating falls off in the cold - 28,000 BTU at 47F down to 22,400 BTU at 17F and 19,800 BTU at 5F.
- Professional installation still recommended despite the DIY-oriented line; dealer-quoted.
- Not ENERGY STAR certified and below the top premium brands on brand/dealer support.
Climate suitability
- Minimum heating ambient
- -13 F[1]
- Certified heating at 5F
- 19,800 BTU/hNon-Ducted Indoor Units[2]
- Rated heating at 17F
- 22,400 BTU/hNon-Ducted Indoor Units[2]
- Rated heating at 47F
- 28,000 BTU/hNon-Ducted Indoor Units[2]
Specifications
ShowHide
- Manufacturer
- Klimaire
- Brand
- Klimaire
- Product line
- KMIP-KIWP DIY Series
- Model number
- KMIP327-H225-4
- Indoor unit model
- Depends on the indoor units you choose
- Outdoor unit model
- KMIP327-H225-4
- Number of zones
- 3
- Max indoor units
- 3 units[1]
- Rated cooling capacity
- 27,000 BTU/hNon-Ducted Indoor Units[2]
- Rated heating capacity
- 28,000 BTU/hNon-Ducted Indoor Units[2]
- Voltage
- 230 V[1]
- MCA
- 18 A[1]
- Maximum fuse or breaker size
- 30 A[1]
- Breaker needed
- not published
- SEER2
- 24 SEER2Non-Ducted Indoor Units[2]
- EER2
- 12 EER2Non-Ducted Indoor Units[2]
- HSPF2 (Region 4)
- 10.5 HSPF2Non-Ducted Indoor Units[2]
- HSPF2 (Region 5)
- Varies by indoor-unit combination
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- not published
- Minimum outdoor heating temperature
- -13 F[1]
- Minimum outdoor cooling temperature
- 5 F[1]
- Maximum outdoor temperature
- 131 F[1]
- Indoor noise range
- Depends on the indoor units you choose
- Outdoor noise rating
- 62 dBA[1]
- Indoor weight
- Depends on the indoor units you choose
- Outdoor weight
- 119 lb[1]
- Refrigerant
- R-454B[2]
- Refrigerant charge
- 77.6 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 3 x 1/4 in liquid / 2 x 3/8 in suction
- Included line-set length
- Depends on the indoor units you choose
- Maximum line-set length
- 197 ft[1]
- Max line set per indoor
- 98 ft[1]
- Maximum elevation difference
- 49 ft[1]
- Max height between indoor units
- 33 ft[1]
- Wi-Fi support
- Depends on the indoor units you choose
- Energy Star status
- Not ENERGY STAR certified[3]
- AHRI certification number
- 218067073Non-Ducted Indoor Units[2]
- Warranty
- Registered: 5 yr parts / 7 yr compressor (registration/installation terms). Score uses Registered.. 7-year compressor, 5-year parts warranty with Klimaire registration/installation terms.
- Install path
- DIY install
- Retail price
- not published
- Available retailers
- Amazon
- Manual links
- AHRI public detail 218067073, Klimaire KIWP-KMIP Technical Specifications, ENERGY STAR exact lookup 218067073, Klimaire KIWP-KMIP DIY user and installation manual, Klimaire KMIP-KIWP DIY Series official product page for KMIP327-H225-4, Klimaire KIWP-KMIP DIY technical specifications
- Specification sheet
- Klimaire KIWP-KMIP DIY technical specifications
- Last sourced date
- Jul 29, 2026
Retail purchase context
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
Compatible indoor units
This is an outdoor unit. You choose its indoor heads separately - up to the maximum this condenser supports - and you can mix room sizes and styles across the zones. The models below are the heads this unit is documented to pair with.
Wall-mounted air handlers
9k, 12k, 18k
Model numbers
- 9k: KIWP09H2-41T
- 12k: KIWP12H2-41T
- 18k: KIWP18H2-41T
Sizing note: do not just add up the rooms. Multi-zone condensers have a maximum total connected capacity, and connecting more head capacity than the unit is rated for is a common installer mistake that hurts efficiency and comfort. Match total head capacity to the condenser's rating.
Installation considerations
ShowHide
- Liquid line
- 3 x 1/4 in[1]
- Suction line
- 2 x 3/8 in[1]
- Line connection type
- Quick-connect line connections[1]
- Precharged length
- 74 ft[1]
- Included line-set length
- Depends on the indoor units you choose
- Maximum line-set length
- 197 ft[1]
- Max line set per indoor
- 98 ft[1]
- Max height between indoor units
- 33 ft[1]
- Indoor dimensions
- Depends on the indoor units you choose
- Outdoor dimensions
- 38-1/2 x 16-5/8 x 31-5/8 in[1]
- Indoor weight
- Depends on the indoor units you choose
- Outdoor weight
- 119 lb[1]
- Drain size
- not published
Related systems and guides
- More Klimaire systems
- Klimaire KMHR Hyper Heat 26k HZ R-454B 208/230V 4-Zone Mini-Split
- Mitsubishi M-Series PEAD Horizontal Ducted 30k Concealed Ducted R-454B 208/230V Mini-Split
- Klimaire 35k R-32 230V Mini-Split
- Friedrich Floating Air Pro X 27k R-454B 208/230V 3-Zone Mini-Split
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- DIY vs professional mini split installation
- Klimaire mini split review: is Klimaire any good?
- The best multi-zone mini splits of 2026
- The best 3-zone mini splits of 2026
- How to size a multi-zone mini split
- Not every multi-zone condenser lets you mix head types
- How much does a multi-zone mini split cost?
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- One room won't heat or cool on a multi-zone mini split
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split making loud noise
- Mini split lights blinking
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the Klimaire KMIP-KIWP DIY Series 3-Zone 27,000 BTU R-454B 208/230V (KMIP327-H225-4) myself, or do I need a pro?
- Klimaire KMIP-KIWP DIY Series 3-Zone 27,000 BTU R-454B 208/230V (KMIP327-H225-4) is sold as a DIY-installable system. The electrical circuit is the part that is not DIY: plan on a licensed electrician for the dedicated circuit, and check whether your local permit office requires a permit for the install.
- Will the Klimaire KMIP-KIWP DIY Series 3-Zone 27,000 BTU R-454B 208/230V (KMIP327-H225-4) keep heating in a cold winter?
- The AHRI/ENERGY STAR certification lists 19,800 BTU/h of heating capacity at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 10.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the Klimaire KMIP-KIWP DIY Series 3-Zone 27,000 BTU R-454B 208/230V (KMIP327-H225-4) need?
- Published electrical requirements: 230 V voltage, 18 A minimum circuit ampacity, and 30 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length from the outdoor unit to one indoor head is 98 ft. The combined piping limit across all heads is 197 ft. The outdoor unit's factory charge covers up to 74 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
- What warranty does the Klimaire KMIP-KIWP DIY Series 3-Zone 27,000 BTU R-454B 208/230V (KMIP327-H225-4) carry?
- The manufacturer publishes these warranty tiers: Registered: 5 yr parts / 7 yr compressor (registration/installation terms). Score uses Registered.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
