SplitAtlas

Daikin / ATMOSPHERA R-32

Daikin ATMOSPHERA 18k R-32 208/230V Mini-Split

Certified capacity
18,000 BTU/h[3]
SEER2
22.7 SEER2[3]
Heating floor
-13 F[2]
Voltage
208/230V[1]
Install path
Professional install

The Daikin Atmosphera 18k scales the premium line to 1.5 tons: SEER2 22.7, EER2 12.5, HSPF2 10 on R-32, holding a full 21,600 BTU of heat from 47F down to 5F. It is a strong primary heat source for a large room in a cold climate, with efficiency stepping toward the middle of the pack as capacity rises.

1 zoneProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

Dealer-installation warranty note

Buying online can keep warranty coverage when a compliant Daikin dealer installs the system; confirm that installation path before purchase.

Installation condition: The unit must be installed by a dealer adhering to all applicable federal, state, and local codes, policies, and licensing requirements.

Dealer path: Daikin dealer or contractor channel with compliant installation; Daikin directs owners to local dealers for quotes, service, and parts.

Paid link

$4,334 / Checked Jul 23, 2026

$4,334 at HVACDirect

This system's warranty depends on licensed installation — get quotes from installers in your area.

Get installation quotes
Error Codes

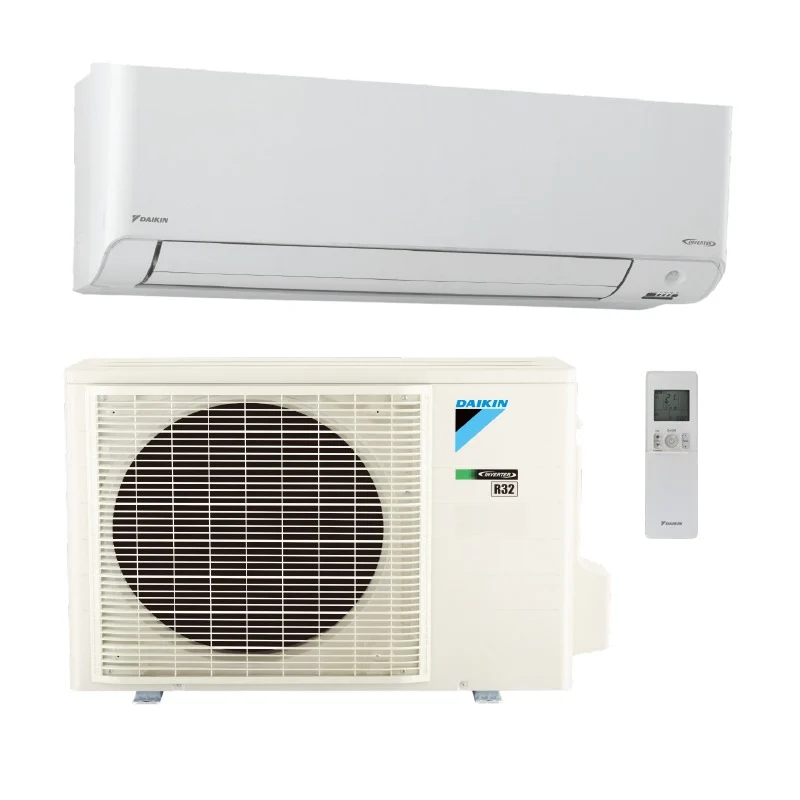

Daikin ATMOSPHERA 18,000 BTU R-32 208/230V (FTXM18WVJU9 / RXM18WVJU9) mini-split heat pump indoor wall unit and outdoor condenser

Image: HVACDirect

Data completeness: 100%
Last sourced
Jul 23, 2026

SplitAtlas score

8.3 / 10

Methodology
Cooling efficiencyAbove average

(22.7 SEER2) among 18k systems

Heating efficiencyBelow average

(10.0 HSPF2) among 18k systems

Cold-weather performanceTop quartile

(5F certified capacity: 100% of the 47F rating; -13 F heating floor) among 18k systems

NoiseBottom quartile

(32 dBA indoor min / 55 dBA outdoor) among 18k systems

WarrantyTop 10%

(12 yr parts, no separate compressor term) across the catalogue

Feature setBottom quartile

(2 verified features) across the catalogue

Price-to-performanceBottom quartile

($4,334 median retail) among 18k systems

Documentation & partsTop quartile

(9 manuals; spec sheet; parts channel) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

Key ratings

Rated cooling

18,000BTU/h[3]

Rated heating

21,600BTU/h[3]

Buyer review snapshot

Best for / skip if

Best for

  • High-efficiency shortlists; SEER2 is 22.7.

Install difficulty

Professional install
  • Electrical: 208/230V; MCA 18.8 A; breaker/fuse 20 A.
  • Line set: connection type not sourced; precharged 49.25 ft; max 98.5 ft.

Alternatives

Availability and price context

  • Last seen at HVACDirect on Jul 23, 2026: $4,334.00. Open the listing for today's price. Warranty condition: The unit must be installed by a dealer adhering to all applicable federal, state, and local codes, policies, and licensing requirements.

Purchase channel policy

Daikin's warranty policy allows the internet-purchase path when the equipment is installed by a dealer following applicable code, policy, and licensing requirements.

Warranty impact
Warranty coverage is lost for consumer internet purchases only when the dealer-installation exception is not satisfied.
Installation condition
The unit must be installed by a dealer adhering to all applicable federal, state, and local codes, policies, and licensing requirements.
Authorized channel
Daikin dealer or contractor channel with compliant installation; Daikin directs owners to local dealers for quotes, service, and parts.

Buying online can keep warranty coverage when a compliant Daikin dealer installs the system; confirm that installation path before purchase.

Compare online-purchase warranty rules by brand

Source: Daikin Comfort Technologies North America, Inc.: Standard Warranty - Internet Sales Policy for Warranty; retrieved Aug 13, 2026.

Source date

Model data sourced
Jul 23, 2026
Page reviewed
Jul 23, 2026
Source-backed records
5
Newest source retrieved
Jul 23, 2026

Warranty tiers

Registered
12 yr parts / no separate compressor term - timely registered residential all-parts coverage

The score uses Registered. Additional published terms are shown for reference and not counted in the score.

Review methodology

Model context

Install path
This is professional-install equipment; the listed price is for the equipment, so add installation labor. The Buyer review snapshot covers the brand's rules on online purchases.

Strengths

  • Holds a full 21,600 BTU of heat down to 5F - heavy, dependable deep-cold output.
  • SEER2 22.7 with current R-32 refrigerant.
  • Daikin dealer network and reliability reputation.

Weaknesses

  • SEER2 is below the smaller Atmosphera models - the efficiency premium is largest at 9k/12k.

Climate suitability

Minimum heating ambient
-13 F[2]
Certified heating at 5F
21,600 BTU/h[3]
Rated heating at 17F
15,400 BTU/h[3]
Rated heating at 47F
21,600 BTU/h[3]

Specifications

Show
Manufacturer
Daikin
Brand
Daikin
Product line
ATMOSPHERA R-32
Model number
FTXM18WVJU9 indoor / RXM18WVJU9 outdoor
Indoor unit model
FTXM18WVJU9
Outdoor unit model
RXM18WVJU9
Number of zones
1
Max indoor units
not published
Rated cooling capacity
18,000 BTU/h[3]
Rated heating capacity
21,600 BTU/h[3]
Voltage
208/230V[1]
MCA
18.8 A[1]
Maximum fuse or breaker size
20 A[1]
Breaker needed
not published
SEER2
22.7 SEER2[3]
EER2
12.5 EER2[3]
HSPF2 (Region 4)
10 HSPF2[3]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
1.75 COP[3]
Minimum outdoor heating temperature
-13 F[2]
Minimum outdoor cooling temperature
14 F[2]
Maximum outdoor temperature
115 F[2]
Indoor noise range
cooling 33-49; heating 32-49 dB(A)[2]
Outdoor noise rating
55 dBA[2]
Indoor weight
33 lb[2]
Outdoor weight
132 lb[2]
Refrigerant
R-32[3]
Refrigerant charge
not published
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 1/2 in suction
Included line-set length
Daikin professional single-zone systems publish field-supplied line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
98.5 ft[1]
Max line set per indoor
not published
Maximum elevation difference
82 ft[1]
Max height between indoor units
not published
Wi-Fi support
Wi-Fi support depends on the selected indoor controller, accessory, or bundle; Daikin does not specify it as a uniform built-in feature for this system.
Energy Star status
Not ENERGY STAR certified[3]
AHRI certification number
212494259[3]
Warranty
Registered: 12 yr parts / no separate compressor term (timely registered residential all-parts coverage). Score uses Registered.. Registered residential Daikin ductless coverage is up to 12 years all parts when registered on time; commercial coverage is shorter. No separate longer compressor-only term was found in the PWD DMST WZS warranty statement.
Install path
Professional install
Retail price
$4,334.00
Available retailers
HVACDirect
Manual links
AHRI certificate 212494259, AHRI public detail 212494259, ENERGY STAR exact row lookup for AHRI 212494259, Daikin ATMOSPHERA R-32 installation manual, Daikin ATMOSPHERA product page, Daikin ATMOSPHERA R-32 product brochure, HVACDirect exact product page for RXM18WVJU9 / FTXM18WVJU9, Daikin ATMOSPHERA R-32 engineering manual EDUS042208A, Daikin PWD DMST WZS limited warranty statement
Specification sheet
Daikin ATMOSPHERA R-32 engineering manual EDUS042208A
Last sourced date
Jul 23, 2026

Retail purchase context

Dealer-installation warranty note

Buying online can keep warranty coverage when a compliant Daikin dealer installs the system; confirm that installation path before purchase.

Installation condition: The unit must be installed by a dealer adhering to all applicable federal, state, and local codes, policies, and licensing requirements.

Dealer path: Daikin dealer or contractor channel with compliant installation; Daikin directs owners to local dealers for quotes, service, and parts.

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Dealer-installation warranty note

Buying online can keep warranty coverage when a compliant Daikin dealer installs the system; confirm that installation path before purchase.

$4,334 at HVACDirect

$4,334 / Checked Jul 23, 2026

Parts and filters

Fits Daikin ATMOSPHERA 18,000 BTU R-32 208/230V (FTXM18WVJU9 / RXM18WVJU9). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

filter-deodorizing

Daikin titanium apatite deodorizing filter without frame

Fits
Daikin ATMOSPHERA 18,000 BTU R-32 208/230V (FTXM18WVJU9 / RXM18WVJU9)
OEM part number
KAF970A46
Filter care
Replace every 3 years; vacuum every 6 months in between; if heavily soiled, soak in lukewarm water for 10 to 15 minutes and shade-dry.
Fit note
Fits FTXM18WVJU9 / RXM18WVJU9. Daikin publishes this OEM filter part number. HVACDirect's exact-part page was out of stock when checked; Amazon lists the part from My Filter Company.
Source
Daikin ATMOSPHERA R-32 Engineering Data, 13. Options - 13.1 Option List, page p. 130 (Titanium apatite deodorizing filter (without frame) KAF970A46)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price on Amazon

wired-controller

Daikin wired remote controller

Fits
Daikin ATMOSPHERA 18,000 BTU R-32 208/230V (FTXM18WVJU9 / RXM18WVJU9)
OEM part number
BRC944B2
Fit note
Fits FTXM18WVJU9 / RXM18WVJU9. Manufacturer documentation publishes this OEM part number for this model family. HVACDirect was verified as a live exact-part page on 2026-08-01.
Source
Daikin ATMOSPHERA R-32 Engineering Data, 13. Options - 13.1 Option List, page p. 130 (Wired remote controller BRC944B2)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect

remote-control-cord

Daikin wired remote controller cord, 9.8 ft

Fits
Daikin ATMOSPHERA 18,000 BTU R-32 208/230V (FTXM18WVJU9 / RXM18WVJU9)
OEM part number
BRCW901A03
Fit note
Fits FTXM18WVJU9 / RXM18WVJU9. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Daikin dealer with the model and serial number.
Source
Daikin ATMOSPHERA R-32 Engineering Data, 13. Options - 13.1 Option List, page p. 130 (Length 9.8 ft (3 m) BRCW901A03)

control-interface

Daikin wiring adaptor for timer clock or remote controller

Fits
Daikin ATMOSPHERA 18,000 BTU R-32 208/230V (FTXM18WVJU9 / RXM18WVJU9)
OEM part number
KRP413BB1S
Fit note
Fits FTXM18WVJU9 / RXM18WVJU9. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Daikin dealer with the model and serial number.
Source
Daikin ATMOSPHERA R-32 Engineering Data, 13. Options - 13.1 Option List, page p. 130 (KRP413BB1S)

drain-plug

Daikin outdoor unit drain plug

Fits
Daikin ATMOSPHERA 18,000 BTU R-32 208/230V (FTXM18WVJU9 / RXM18WVJU9)
OEM part number
KKP937A4
Fit note
Fits FTXM18WVJU9 / RXM18WVJU9. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Daikin dealer with the model and serial number.
Source
Daikin ATMOSPHERA R-32 Engineering Data, 13. Options - 13.1 Option List, page p. 130 (Drain plug KKP937A4)

drain-pan-heater

Daikin outdoor unit drain pan heater

Fits
Daikin ATMOSPHERA 18,000 BTU R-32 208/230V (FTXM18WVJU9 / RXM18WVJU9)
OEM part number
KEH063A4E(A)
Fit note
Fits FTXM18WVJU9 / RXM18WVJU9. Manufacturer options list publishes this accessory for the matching class. No live HVACDirect exact-part offer was found; source through an authorized Daikin dealer with the model and serial number.
Source
Daikin ATMOSPHERA R-32 Engineering Data, 13. Options - 13.1 Option List, page p. 130 (Drain pan heater ★2 KEH094A41E KEH063A4E(A))
Find this model's filterReplacement Parts & Filters

Electrical requirements

Show
Voltage
not published
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
18.8 A[1]
Breaker needed
not published
Maximum breaker size
not published
Maximum fuse size
20 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
1/2 in[1]
Line connection type
not published
Precharged length
49.25 ft[1]
Included line-set length
Daikin professional single-zone systems publish field-supplied line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
98.5 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
11-3/4 x 43-5/16 x 10-13/16 in[2]
Outdoor dimensions
28-15/16 x 34-1/4 x 12-5/8 in[2]
Indoor weight
33 lb[2]
Outdoor weight
132 lb[2]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Daikin ATMOSPHERA 18,000 BTU R-32 208/230V (FTXM18WVJU9 / RXM18WVJU9) myself, or do I need a pro?
Daikin ATMOSPHERA 18,000 BTU R-32 208/230V (FTXM18WVJU9 / RXM18WVJU9) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Daikin ATMOSPHERA 18,000 BTU R-32 208/230V (FTXM18WVJU9 / RXM18WVJU9) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 21,600 BTU/h of heating capacity at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 10 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Daikin ATMOSPHERA 18,000 BTU R-32 208/230V (FTXM18WVJU9 / RXM18WVJU9) need?
Published electrical requirements: 208/230V voltage, 18.8 A minimum circuit ampacity, and 20 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 98.5 ft. The outdoor unit's factory charge covers up to 49.25 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
What warranty does the Daikin ATMOSPHERA 18,000 BTU R-32 208/230V (FTXM18WVJU9 / RXM18WVJU9) carry?
The manufacturer publishes these warranty tiers: Registered: 12 yr parts / no separate compressor term (timely registered residential all-parts coverage). Score uses Registered.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. Daikin Comfort Technologies North America, Inc.: FTXM09WVJU9 & RXM09WVJU9 Daikin ATMOSPHERA engineering dataSourced - manufacturer technical document

    Covers Frequency, electrical_spec.guaranteed_voltage_range, Maximum fuse size, Minimum circuit ampacity, Phase, Voltage range and more

  2. Daikin Comfort Technologies North America, Inc.: Daikin ATMOSPHERA R-32 product brochureSourced - manufacturer technical document

    Covers Indoor dimensions, Indoor noise range, Indoor weight, Outdoor dimensions, Outdoor noise rating, Outdoor weight and more

  3. Air-Conditioning, Heating, and Refrigeration Institute: AHRI public detail 212494259 for FTXM18WVJU9 / RXM18WVJU9Sourced - AHRI directory

    Covers AHRI certification number, performance_spec.cold_climate_designation, Rated cooling capacity, COP at 5F, EER2, Energy Star status and more

  4. Daikin Comfort Technologies North America, Inc.: Daikin ATMOSPHERA product pageSourced - manufacturer product page

    Covers system.lifecycle_status

  5. Daikin Comfort Technologies North America, Inc.: Daikin PWD DMST WZS limited warranty statementSourced - manufacturer technical document

    Covers Legacy compressor warranty value, Legacy warranty value, Registered compressor warranty status, Registered warranty conditions, Registered parts warranty, Warranty notes

Last updated

Jul 23, 2026
