Pioneer / Diamante Essenza

Pioneer Diamante Essenza 35k R-32 208/230V Mini-Split

Certified capacity
35,000 BTU/h[4]
SEER2
17 SEER2[4]
Heating floor
5 F[2]
Voltage
230 V[1]
Install path
Professional install

The Essenza 36k certifies 35,000 BTU and is the largest single-zone system Pioneer makes - and also the least efficient, at SEER2 17 with a +5F heating floor. That combination matters at 3 tons: this unit will run long hours and every efficiency point shows up on the bill.

Before buying it, price two smaller Quantum Ultra systems against it. You often land close on equipment, gain independent room control, and stop paying the SEER2 17 penalty.

1 zoneProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

Paid link

$1,888 / Fresh price - checked Jul 24, 2026

Check price at Pioneer

Need this installed?

Get installation quotes
Error Codes

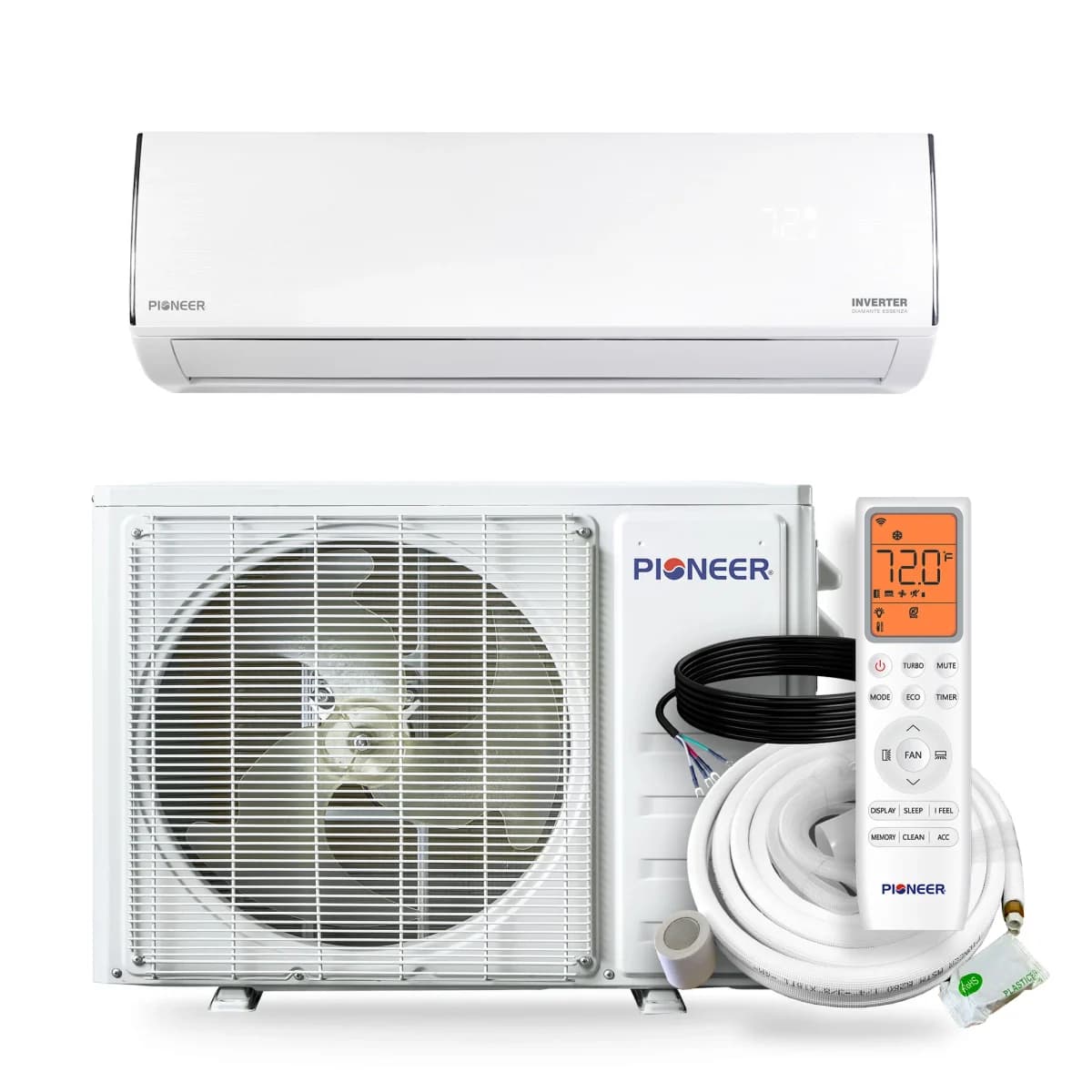

Pioneer Diamante Essenza 35,000 BTU R-32 208/230V (WT036GLUI17HLD / YN036GLUI17RPD) mini-split heat pump indoor wall unit and outdoor condenser

Image: Pioneer

Data completeness: 100%
Last sourced
Jul 24, 2026

SplitAtlas score

7.4 / 10

Methodology
Cooling efficiencyBottom quartile

(17.0 SEER2) among 36k systems

Heating efficiencyBottom quartile

(8.5 HSPF2) among 36k systems

Cold-weather performanceBottom quartile

(50.8% heat retained at 5F; 5 F heating floor) among 36k systems

NoiseBottom quartile

(39 dBA indoor min / 63 dBA outdoor) among 36k systems

Feature setBelow average

(4 verified features) across the catalogue

Price-to-performanceTop quartile

($1,888 median retail) across the catalogue

Documentation & partsTop quartile

(6 manuals; spec sheet; 57 error-code rows) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

Key ratings

Rated cooling

35,000BTU/h[4]

Rated heating

35,400BTU/h[4]

Buyer review snapshot

Best for / skip if

Skip if

  • Top-efficiency cooling is the priority; SEER2 is 17.

Install difficulty

Professional install
  • Electrical: 230V; breaker/fuse 35 A.
  • Line set: connection type not sourced; included 16 ft; max 100 ft.

Alternatives

Availability and price context

  • Verified current price: $1,888.00 at Pioneer; availability in_stock; checked Jul 24, 2026.

Source date

Model data sourced
Jul 24, 2026
Page reviewed
Jul 23, 2026
Source-backed records
5
Newest source retrieved
Jul 24, 2026

Warranty tiers

Warranty: Up to 5-year Pioneer warranty for registered eligible Diamante Essenza systems.

Review methodology

Strengths

  • The most capacity Pioneer offers in a single system.

Weaknesses

  • Certifies 35,000 BTU, not 36,000.
  • SEER2 17 at 3 tons is the worst running-cost position in the range.
  • Rated only to +5F - not a heating system.

Climate suitability

Minimum heating ambient
5 F[2]
Rated heating at 5F
18,000 BTU/h[4]
Rated heating at 17F
20,400 BTU/h[4]
Rated heating at 47F
35,400 BTU/h[4]

Specifications

Show
Manufacturer
Pioneer
Brand
Pioneer
Product line
Diamante Essenza
Model number
WT036GLUI17HLD indoor / YN036GLUI17RPD outdoor
Indoor unit model
WT036GLUI17HLD
Outdoor unit model
YN036GLUI17RPD
Number of zones
1
Max indoor units
not published
Rated cooling capacity
35,000 BTU/h[4]
Rated heating capacity
35,400 BTU/h[4]
Voltage
230 V[1]
MCA
not published - manufacturer specifies 35 A breaker
Maximum fuse or breaker size
35 A[1]
Breaker needed
35 A[1]
SEER2
17 SEER2[4]
EER2
9.5 EER2[4]
HSPF2 (Region 4)
8.5 HSPF2[4]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
1.8 COP[4]
Minimum outdoor heating temperature
5 F[2]
Minimum outdoor cooling temperature
54 F[2]
Maximum outdoor temperature
122 F[2]
Indoor noise range
55/52/46/41/39 dB(A)[2]
Outdoor noise rating
63 dBA[1]
Indoor weight
38.6 lb[1]
Outdoor weight
105.8 lb[1]
Refrigerant
R-32[4]
Refrigerant charge
not published
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 5/8 in suction
Included line-set length
16 ft[1]
Maximum line-set length
100 ft[2]
Max line set per indoor
not published
Maximum elevation difference
65 ft[2]
Max height between indoor units
not published
Wi-Fi support
supported[3]
Energy Star status
Not ENERGY STAR certified[5]
AHRI certification number
217048738[4]
Warranty
Up to 5-year Pioneer warranty for registered eligible Diamante Essenza systems.
Install path
Professional install
Retail price
$1,888.00
Available retailers
Pioneer
Manual links
WYT036GLUI17RL AHRI certificate, WYT036GLUI17RL EnergyGuide, WYT17 installation manual, WYT17 service manual, WYT036GLUI17RL submittal sheet, WYT17 technical brochure
Specification sheet
WYT036GLUI17RL submittal sheet
Last sourced date
Jul 24, 2026

Retail purchase context

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at Pioneer

$1,888 / Fresh price - checked Jul 24, 2026

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
not published - manufacturer specifies 35 A breaker
Breaker needed
35 A[1]
Maximum breaker size
35 A[1]
Maximum fuse size
35 A[1]
Maximum cooling current
14.6 A[2]
Maximum heating current
13.2 A[2]
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
5/8 in[1]
Line connection type
not published
Precharged length
not published
Included line-set length
16 ft[1]
Maximum line-set length
100 ft[2]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
46-7/8 x 10-1/4 x 14-1/4 in[1]
Outdoor dimensions
38-1/2 x 16-1/2 x 31-5/8 in[1]
Indoor weight
38.6 lb[1]
Outdoor weight
105.8 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Pioneer Diamante Essenza 35,000 BTU R-32 208/230V (WT036GLUI17HLD / YN036GLUI17RPD) myself, or do I need a pro?
Pioneer Diamante Essenza 35,000 BTU R-32 208/230V (WT036GLUI17HLD / YN036GLUI17RPD) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Pioneer Diamante Essenza 35,000 BTU R-32 208/230V (WT036GLUI17HLD / YN036GLUI17RPD) keep heating in a cold winter?
The manufacturer publishes 18,000 BTU/h of heating output at 5F. Rated heating operation extends down to 5 F. Certified heating efficiency is 8.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Pioneer Diamante Essenza 35,000 BTU R-32 208/230V (WT036GLUI17HLD / YN036GLUI17RPD) need?
Published electrical requirements: 230 V voltage, not published - manufacturer specifies 35 A breaker minimum circuit ampacity, and 35 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 100 ft, and the included line set comes pre-charged for 16 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.

Data sources

Show
  1. Pioneer Mini Split: Diamante Essenza WYT036GLUI17RL product pageSourced - manufacturer product page

    Covers Breaker needed, Frequency, Maximum breaker size, Maximum fuse size, Phase, Voltage and more

  2. Pioneer / Parker Davis HVAC International, Inc.: WYT036GLUI17RL submittal sheetSourced - manufacturer technical document

    Covers Maximum cooling current, Maximum heating current, Indoor noise range, Maximum elevation difference, Maximum line-set length, Minimum outdoor cooling temperature and more

  3. Pioneer Mini Split: Pioneer wall-mounted mini-split model comparison guideSourced - manufacturer product page

    Covers Wi-Fi support, Legacy compressor warranty value, Legacy warranty value, Warranty notes

  4. Air-Conditioning, Heating, and Refrigeration Institute: AHRI Appendix M1 public row for YN036GLUI17RPD / WT036GLUI17HLDSourced - AHRI directory

    Covers AHRI certification number, performance_spec.cold_climate_designation, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity and more

  5. ENERGY STAR: ENERGY STAR exact row check for AHRI 217048738Sourced - Energy Star listing

    Covers Energy Star status
