LG / ARTCOOL Deluxe R-32

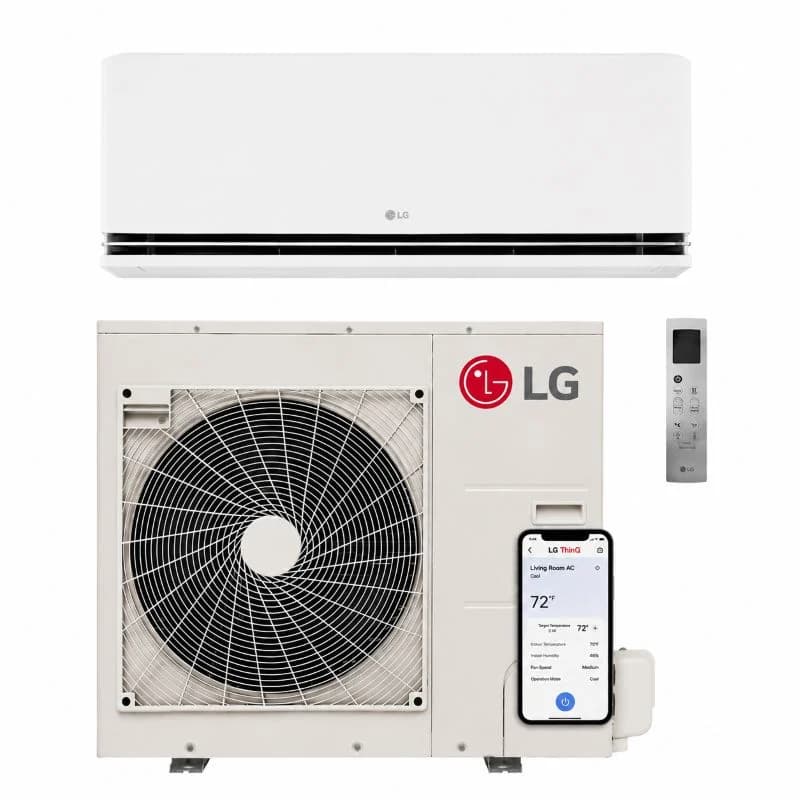

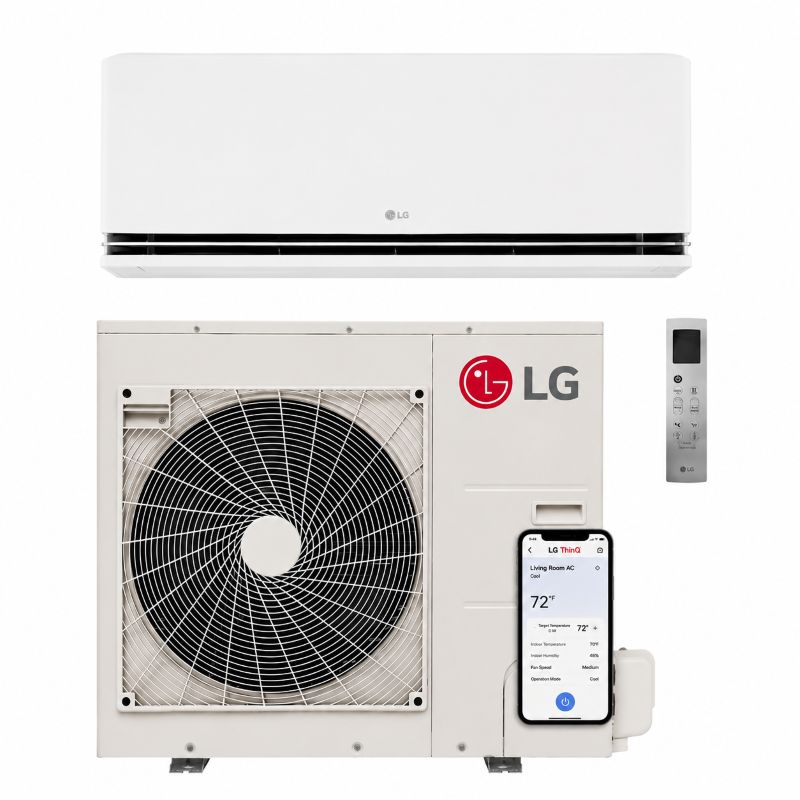

LG ARTCOOL Deluxe 9k R-32 230V Mini-Split
The LG Art Cool Deluxe 9k is the top of LG's single-zone line and highly efficient for a 9k unit: SEER2 27, EER2 15.8, HSPF2 13.5, on current R-32 refrigerant, behind LG's signature metal-finish designer indoor head. It heats at 11,000 BTU at 47F and 7,000 BTU at 17F.
LG's own submittal caps 5F output at 7,700 BTU, below the certified 5F rating, so treat its deep-cold capacity as unconfirmed. Efficiency and looks in one package, at LG's highest 9k single-zone price.
Refrigerant generation
R-32 - current-generation refrigerant
This system's warranty depends on licensed installation — get quotes from installers in your area.
Get installation quotes
Image: HVACDirect
- Last sourced
- Jul 23, 2026
SplitAtlas score
not yet rated - data incomplete
- no scoring run is available
Key ratings
Best-fit use cases
A visible bedroom, office, or living space where the owner wants high efficiency and a premium designer look. For primary heat in a deep-cold climate, confirm the 5F capacity with LG before relying on it.
Buyer review snapshot
Best for / skip if
Best for
- Top efficiency shortlists; SEER2 is 27.
Install difficulty
- Electrical: 208/230V; MCA 10 A; breaker/fuse 15 A.
- Line set: connection type not sourced; precharged 24.6 ft; max 65.6 ft.
Availability and price context
- Last seen at HVACDirect on Jul 23, 2026: $2,017.00. Open the listing for today's price. Warranty condition: The online source must be expressly authorized by LG; the system must also satisfy LG's qualified-system installation terms.
Purchase channel policy
LG allows the online-purchase path only when the online source is expressly authorized by LG; an online purchase from a non-authorized source voids the limited warranty.
- Warranty impact
- The limited warranty is void and LG has no liability when the system is purchased online from a source not expressly authorized by LG.
- Installation condition
- The online source must be expressly authorized by LG; the system must also satisfy LG's qualified-system installation terms.
- Authorized channel
- Expressly authorized LG source with qualified installation by a trained, licensed HVAC contractor under LG warranty terms.
Buying online can keep warranty coverage only when the seller is expressly authorized by LG; confirm that status and the qualified installation path before purchase.
Compare online-purchase warranty rules by brand
Source: LG Electronics U.S.A., Inc.: LG R32 Residential / Light Commercial Systems Warranty Card; retrieved Aug 15, 2026.
Source date
- Model data sourced
- Jul 23, 2026
- Page reviewed
- Jul 23, 2026
- Source-backed records
- 5
- Newest source retrieved
- Sep 13, 2026
Warranty tiers
- Base
- 5 yr parts / 7 yr compressor - standard coverage
- Registered
- 10 yr parts / 10 yr compressor - registration within 60 days of startup, by an installer with current LG training and an HVAC license
The score uses Registered. Additional published terms are shown for reference and not counted in the score.
Strengths
- SEER2 27 / HSPF2 13.5, with the HSPF2 among the highest we list for a 9k unit.
- Still makes 7,000 BTU at 17F, close to two-thirds of its 47F output.
- Designer metal-finish indoor head; current R-32 refrigerant.
Weaknesses
- LG's most expensive single-zone option at this size.
- Professional installation required for warranty; not a DIY unit.
- The design premium is real - the plainer High-Efficiency and Mega lines cost noticeably less if looks are not a priority.
Climate suitability
- Minimum heating ambient
- -31 F[1]
- Certified heating at 5F
- not published[4]disputed
- Maximum heating at 5F (manufacturer)
- 7,700 BTU/h[1]
- Rated heating at 17F
- 7,000 BTU/h[2]
- Rated heating at 47F
- 11,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- LG
- Brand
- LG
- Product line
- ARTCOOL Deluxe R-32
- Model number
- KNSAL091A indoor / KUSAL091A outdoor
- Indoor unit model
- KNSAL091A
- Outdoor unit model
- KUSAL091A
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 9,000 BTU/h[2]
- Rated heating capacity
- 11,000 BTU/h[2]
- Voltage
- 208/230V[1]
- MCA
- 10 A[1]
- Maximum fuse or breaker size
- 15 A[1]
- Breaker needed
- not published
- SEER2
- 27 SEER2[2]
- EER2
- 15.8 EER2[2]
- HSPF2 (Region 4)
- 13.5 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 2.05 COP[2]
- Minimum outdoor heating temperature
- -31 F[1]
- Minimum outdoor cooling temperature
- 14 F[1]
- Maximum outdoor temperature
- 118 F[1]
- Indoor noise range
- cooling 21-42; heating 27-42 dB(A)[1]
- Outdoor noise rating
- 50 dBA[1]
- Indoor weight
- 24.3 lb[1]
- Outdoor weight
- 99.2 lb[1]
- Refrigerant
- R-32[2]
- Refrigerant charge
- 40.64 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- LG publishes field-supplied flared line sizes, standard/pre-charge length, and line limits; no included consumer line-set length is published for the professional system.
- Maximum line-set length
- 65.6 ft[1]
- Max line set per indoor
- not published
- Maximum elevation difference
- 39.4 ft[1]
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 216368959[2]
- Warranty
- Base: 5 yr parts / 7 yr compressor (standard coverage); Registered: 10 yr parts / 10 yr compressor (registration within 60 days of startup, by an installer with current LG training and an HVAC license). Score uses Registered.. Standard 5-year parts and 7-year compressor coverage; qualified registered installations extend to 10 years total parts and compressor coverage.
- Install path
- Professional install
- Retail price
- last seen at HVACDirect on Jul 23, 2026: $2,017.00
- Available retailers
- HVACDirect
- Manual links
- AHRI Directory public detail record 216368959, ENERGY STAR exact-match query for KUSAL091A/KNSAL091A, LG ARTCOOL Deluxe R-32 engineering manual, LG ARTCOOL Deluxe R-32 installation manual, LG HVAC API product metadata KSSAL091A, HVACDirect exact product page KSSAL091A, KSSAL091A LG ARTCOOL Deluxe R-32 submittal, LG R32 Residential / Light Commercial Systems Warranty Card
- Specification sheet
- KSSAL091A LG ARTCOOL Deluxe R-32 submittal
- Last sourced date
- Jul 23, 2026
Retail purchase context
Dealer-installation warranty note
Buying online can keep warranty coverage only when the seller is expressly authorized by LG; confirm that status and the qualified installation path before purchase.
Installation condition: The online source must be expressly authorized by LG; the system must also satisfy LG's qualified-system installation terms.
Dealer path: Expressly authorized LG source with qualified installation by a trained, licensed HVAC contractor under LG warranty terms.
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
Dealer-installation warranty note
Buying online can keep warranty coverage only when the seller is expressly authorized by LG; confirm that status and the qualified installation path before purchase.
Last seen at HVACDirect on Jul 23, 2026: $2,017
Electrical requirements
ShowHide
- Voltage
- not published
- Voltage range
- 208/230V[1]
- Phase
- 1[1]
- Frequency
- 60 Hz[1]
- MCA
- 10 A[1]
- Breaker needed
- not published
- Maximum breaker size
- 15 A[1]
- Maximum fuse size
- not published
- Maximum cooling current
- not published
- Maximum heating current
- not published
- Manufacturer wire notes
- 14 AWG minimum four-conductor indoor-outdoor connection cable; field supplied[1]
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 3/8 in[1]
- Line connection type
- not published
- Precharged length
- 24.6 ft[1]
- Included line-set length
- LG publishes field-supplied flared line sizes, standard/pre-charge length, and line limits; no included consumer line-set length is published for the professional system.
- Maximum line-set length
- 65.6 ft[1]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- not published
- Outdoor dimensions
- not published
- Indoor weight
- 24.3 lb[1]
- Outdoor weight
- 99.2 lb[1]
- Drain size
- not published
Related systems and guides
- More LG systems
- LG 4-Way Ceiling Cassette 9k Four-Way Cassette R-32 208/230V Mini-Split
- LG ARTCOOL Mirror 9k R-32 230V Mini-Split
- LG 1-Way Ceiling Cassette 9k One-Way Cassette R-32 208/230V Mini-Split
- LG High Efficiency 9k R-32 230V Mini-Split
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- LG mini split review: is LG any good?
- The best 9,000 BTU mini splits of 2026
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- The mini split defrost cycle, explained
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- LG mini split not heating
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split Wi-Fi not connecting
- Mini split remote not working
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the LG ARTCOOL Deluxe R-32 9,000 BTU (230V) myself, or do I need a pro?
- LG ARTCOOL Deluxe R-32 9,000 BTU (230V) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the LG ARTCOOL Deluxe R-32 9,000 BTU (230V) keep heating in a cold winter?
- Rated heating operation extends down to -31 F. Certified heating efficiency is 13.5 HSPF2. Match that published heating floor against your climate's design temperature - below the low-ambient rating, output can fall off or the system can pause to protect itself.
- What electrical circuit does the LG ARTCOOL Deluxe R-32 9,000 BTU (230V) need?
- Published electrical requirements: 208/230V voltage, 10 A minimum circuit ampacity, and 15 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 65.6 ft. The outdoor unit's factory charge covers up to 24.6 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
- What warranty does the LG ARTCOOL Deluxe R-32 9,000 BTU (230V) carry?
- The manufacturer publishes these warranty tiers: Base: 5 yr parts / 7 yr compressor (standard coverage); Registered: 10 yr parts / 10 yr compressor (registration within 60 days of startup, by an installer with current LG training and an HVAC license). Score uses Registered.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
