Pioneer / Diamante Pro
Pioneer Diamante Pro 18k R-454B 208/230V Mini-Split
The Diamante Pro 18k is the best-value point in this line: SEER2 21, the highest in Diamante Pro, on current R-454B with 18,000 BTU certified. For an open-plan space or an insulated garage in a moderate climate it is genuinely well-matched. The limit is the -4F heating floor - this is not a cold-climate system, and the Quantum Ultra 18k at SEER2 23 and -13F is the upgrade if winter matters.
Refrigerant generation
R-454B - current-generation refrigerant
Paid link
$1,138 / Fresh price - checked Jul 24, 2026
Need this installed?
Get installation quotes

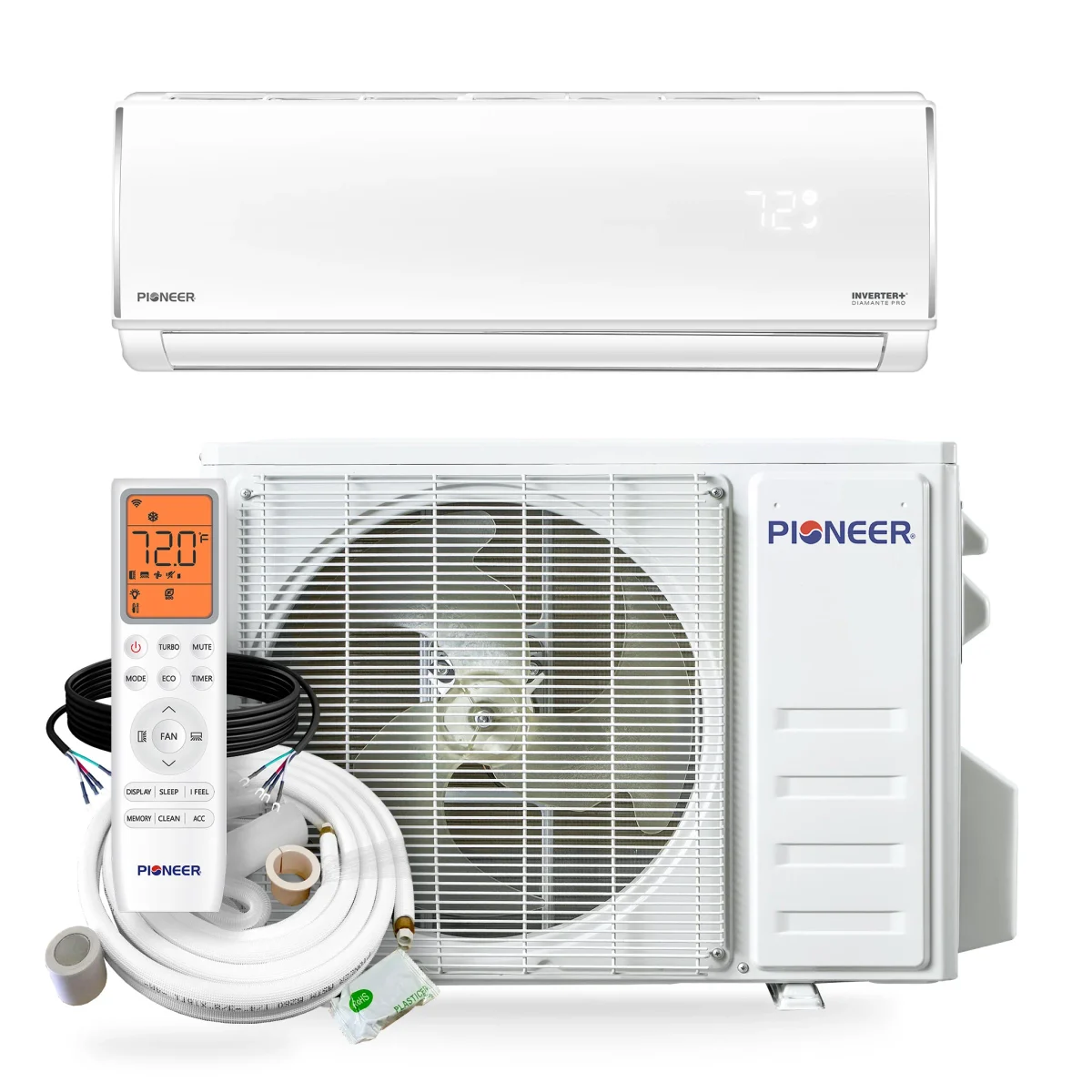

Image: Pioneer
- Last sourced
- Jul 24, 2026
SplitAtlas score
7.6 / 10
(21.0 SEER2) among 18k systems
(9.5 HSPF2) among 18k systems
(69.4% heat retained at 5F; -4 F heating floor) among 18k systems
(32 dBA indoor min / 55 dBA outdoor) among 18k systems
(4 verified features) across the catalogue
($1,138 median retail) among 18k systems
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
Key ratings
Buyer review snapshot
Install difficulty
- Electrical: 230V; breaker/fuse 20 A.
- Line set: connection type not sourced; included 16 ft; max 65 ft.
Alternatives
- Blueridge XS6 Max Efficiency 18,000 BTU R-454B 208/230V (BXS6A18WM0 / BXS6A18UC0)
9.0 score / 18k / SEER2 25.6 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $2,359.00, checked Jul 24, 2026
- Senville ELITE 18,000 BTU R-454B 208/230V (SENE-18EL-IHH / SENE-18EL-OH)
8.9 score / 18k / SEER2 25.6 / -22 F heating floor / 187-253V
Exact destination at Senville: $1,899.99, checked Jul 24, 2026
- ACiQ Standard 18,000 BTU R-454B 208/230V (ACIQ-18WS-HP230C / ACIQ-18ZS-HP230C)
8.8 score / 18k / SEER2 24 / -13 F heating floor / 230V
Exact destination at HVACDirect: $1,299.99, checked Jul 26, 2026
Availability and price context
- Verified current price: $1,138.00 at Pioneer; availability in_stock; checked Jul 24, 2026.
Source date
- Model data sourced
- Jul 24, 2026
- Page reviewed
- Jul 23, 2026
- Source-backed records
- 5
- Newest source retrieved
- Jul 24, 2026
Warranty tiers
Warranty: Up to 5-year Pioneer warranty for registered eligible Diamante Pro systems.
Strengths
- SEER2 21, the strongest efficiency in the Diamante Pro line.
- A full certified 18,000 BTU on current R-454B.
Weaknesses
- -4F heating floor rules it out for genuine cold.
- Thin dealer support; budget a qualified installer.
Climate suitability
- Minimum heating ambient
- -4 F[2]
- Rated heating at 5F
- 12,500 BTU/h[4]
- Rated heating at 17F
- 13,000 BTU/h[4]
- Rated heating at 47F
- 18,000 BTU/h[4]
Specifications
ShowHide
- Manufacturer
- Pioneer
- Brand
- Pioneer
- Product line
- Diamante Pro
- Model number
- WT018GLSI20HLF indoor / YN018GLSI20RPF outdoor
- Indoor unit model
- WT018GLSI20HLF
- Outdoor unit model
- YN018GLSI20RPF
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 18,000 BTU/h[4]
- Rated heating capacity
- 18,000 BTU/h[4]
- Voltage
- 230 V[1]
- MCA
- not published - manufacturer specifies 20 A breaker
- Maximum fuse or breaker size
- 20 A[1]
- Breaker needed
- 20 A[1]
- SEER2
- 21 SEER2[4]
- EER2
- 10.5 EER2[4]
- HSPF2 (Region 4)
- 9.5 HSPF2[4]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.8 COP[4]
- Minimum outdoor heating temperature
- -4 F[2]
- Minimum outdoor cooling temperature
- 5 F[2]
- Maximum outdoor temperature
- 122 F[2]
- Indoor noise range
- 49/47/42/37/32 dB(A)[2]
- Outdoor noise rating
- 55 dBA[1]
- Indoor weight
- 27.6 lb[1]
- Outdoor weight
- 70.5 lb[1]
- Refrigerant
- R-454B[4]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- 16 ft[1]
- Maximum line-set length
- 65 ft[2]
- Max line set per indoor
- not published
- Maximum elevation difference
- 50 ft[2]
- Max height between indoor units
- not published
- Wi-Fi support
- supported[3]
- Energy Star status
- Not ENERGY STAR certified[5]
- AHRI certification number
- 217048744[4]
- Warranty
- Up to 5-year Pioneer warranty for registered eligible Diamante Pro systems.
- Install path
- Professional install
- Retail price
- $1,138.00
- Available retailers
- Pioneer
- Manual links
- WYT018GLSI20RL AHRI certificate, WYT018GLSI20RL EnergyGuide, WYT20 installation manual, WYT20 service manual, WYT018GLSI20RL submittal sheet, WYT20 technical brochure
- Specification sheet
- WYT018GLSI20RL submittal sheet
- Last sourced date
- Jul 24, 2026
Retail purchase context
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
$1,138 / Fresh price - checked Jul 24, 2026
Electrical requirements
ShowHide
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 3/8 in[1]
- Line connection type
- not published
- Precharged length
- not published
- Included line-set length
- 16 ft[1]
- Maximum line-set length
- 65 ft[2]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 39-3/4 x 9 x 12-3/8 in[1]
- Outdoor dimensions
- 34 x 13-3/4 x 23-3/4 in[1]
- Indoor weight
- 27.6 lb[1]
- Outdoor weight
- 70.5 lb[1]
- Drain size
- not published
Related systems and guides
- More Pioneer systems
- Perfect Aire Quick Connect 18k
- Quantum Hyperformance 18k
- Pioneer 17k model
- Panasonic Project Series High Wall 18k 230V
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Pioneer mini split review: is Pioneer any good?
- The best 18,000 BTU mini splits of 2026
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- R-32 vs R-454B: the mini split refrigerant change explained
- What size mini split do I need for a garage?
- Mini splits for a workshop or shop
- Why your "24,000 BTU" mini split isn't 24,000 BTU
- Pioneer mini split not cooling
- Mini split remote not working
- Mini split Wi-Fi not connecting
- Mini split weak airflow
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the Pioneer Diamante Pro 18,000 BTU R-454B 208/230V (WT018GLSI20HLF / YN018GLSI20RPF) myself, or do I need a pro?
- Pioneer Diamante Pro 18,000 BTU R-454B 208/230V (WT018GLSI20HLF / YN018GLSI20RPF) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the Pioneer Diamante Pro 18,000 BTU R-454B 208/230V (WT018GLSI20HLF / YN018GLSI20RPF) keep heating in a cold winter?
- The manufacturer publishes 12,500 BTU/h of heating output at 5F. Rated heating operation extends down to -4 F. Certified heating efficiency is 9.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the Pioneer Diamante Pro 18,000 BTU R-454B 208/230V (WT018GLSI20HLF / YN018GLSI20RPF) need?
- Published electrical requirements: 230 V voltage, not published - manufacturer specifies 20 A breaker minimum circuit ampacity, and 20 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 65 ft, and the included line set comes pre-charged for 16 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
Data sources
ShowHide
- Pioneer Mini Split: Diamante Pro WYT018GLSI20RL product pageSourced - manufacturer product page
Covers Breaker needed, Frequency, Maximum breaker size, Maximum fuse size, Phase, Voltage and more
- Pioneer / Parker Davis HVAC International, Inc.: WYT018GLSI20RL submittal sheetSourced - manufacturer technical document
Covers Maximum cooling current, Maximum heating current, Indoor noise range, Maximum elevation difference, Maximum line-set length, Minimum outdoor cooling temperature and more
- Pioneer Mini Split: Pioneer wall-mounted mini-split model comparison guideSourced - manufacturer product page
Covers Wi-Fi support, Legacy compressor warranty value, Legacy warranty value, Warranty notes
- Air-Conditioning, Heating, and Refrigeration Institute: AHRI Appendix M1 public row for YN018GLSI20RPF / WT018GLSI20HLFSourced - AHRI directory
Covers AHRI certification number, performance_spec.cold_climate_designation, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity and more
- ENERGY STAR: ENERGY STAR exact row check for AHRI 217048744Sourced - Energy Star listing
Covers Energy Star status
Last updated
Jul 23, 2026
