Panasonic / Project Series High Wall
Panasonic Project High Wall 18k R-454B 208/230V Mini-Split
The Project Series 18k is a well-rounded 1.5-ton: SEER2 24 / EER2 13.5 / HSPF2 11.1 on R-454B, rated to -13F, with 13,000 BTU of heat at 5F. It posts strong efficiency for an 18k system and holds Panasonic's heating-forward character at a larger size.
Refrigerant generation
R-454B - current-generation refrigerant
Need this installed?
Get installation quotes

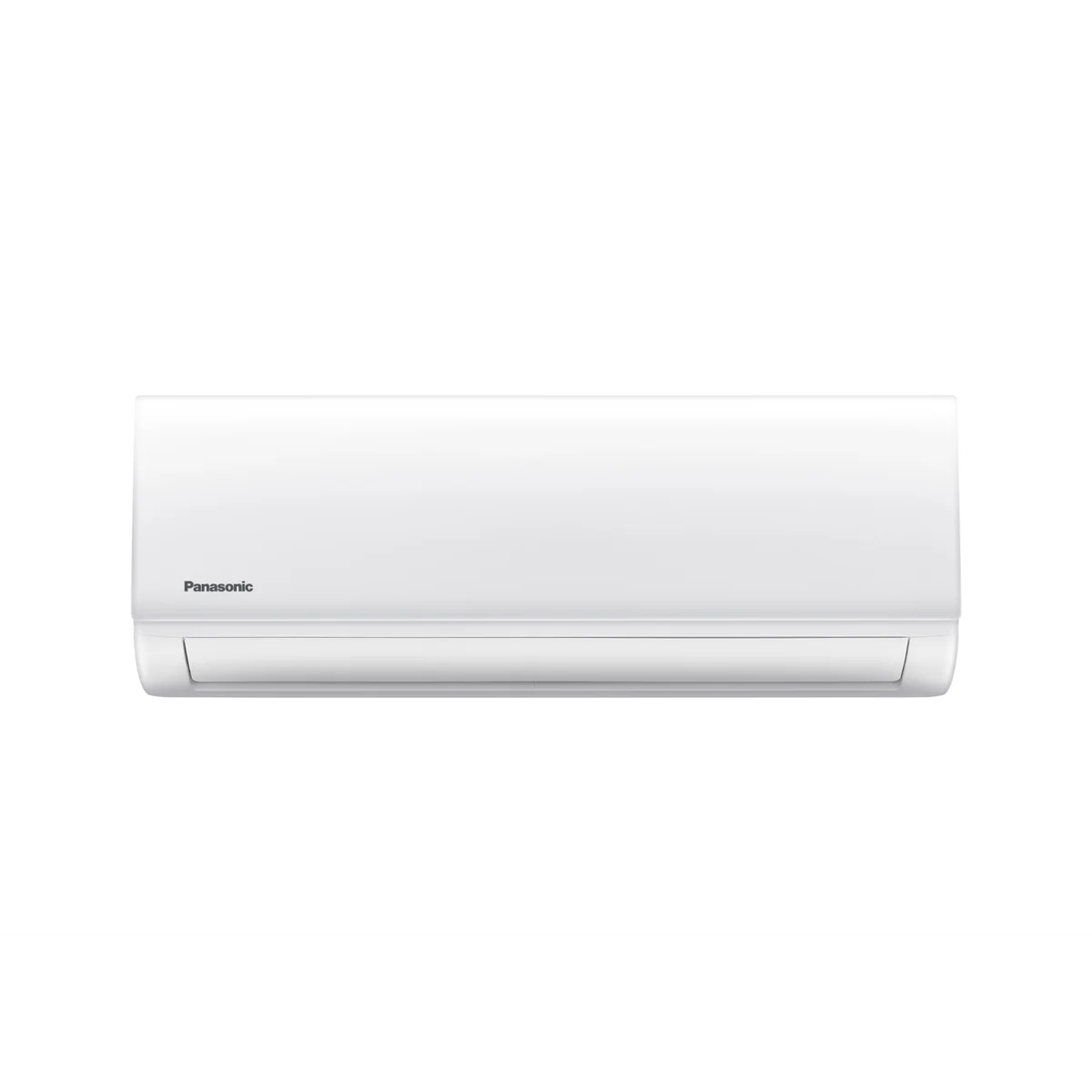

Image: Panasonic
- Last sourced
- Jul 23, 2026
SplitAtlas score
8.9 / 10
(24.0 SEER2) among 18k systems
(11.1 HSPF2) among 18k systems
(5F certified capacity: 72.2% of the 47F rating; -13 F heating floor) among 18k systems
(26 dBA indoor min / 59 dBA outdoor) among 18k systems
(7 verified features) across the catalogue
(10 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Key ratings
Best-fit use cases
A large living room or open area in a cold-capable climate where the buyer wants high all-around efficiency at 1.5 tons without premium-brand pricing.
Buyer review snapshot
Best for / skip if
Best for
- High-efficiency shortlists; SEER2 is 24.
Install difficulty
- Electrical: 230V; MCA 18 A; breaker/fuse 20 A.
- Line set: connection type not sourced; max 98.4 ft.
Alternatives
- Blueridge XS6 Max Efficiency 18,000 BTU R-454B 208/230V (BXS6A18WM0 / BXS6A18UC0)
9.2 score / 18k / SEER2 25.6 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $2,359.00, checked Jul 24, 2026
- Senville ELITE 18,000 BTU R-454B 208/230V (SENE-18EL-IHH / SENE-18EL-OH)
9.0 score / 18k / SEER2 25.6 / -22 F heating floor / 187-253V
Exact destination at Senville: $1,899.99, checked Jul 24, 2026
- ACiQ Standard 18,000 BTU R-454B 208/230V (ACIQ-18WS-HP230C / ACIQ-18ZS-HP230C)
9.0 score / 18k / SEER2 24 / -13 F heating floor / 230V
Exact destination at HVACDirect: $1,299.99, checked Jul 26, 2026
Availability and price context
This system needs a professional install, so its real price is an installed quote that depends on your home. We don't link to a listing for this exact model; get installation quotes to price it.
Source date
- Model data sourced
- Jul 23, 2026
- Page reviewed
- Jul 23, 2026
- Source-backed records
- 4
- Newest source retrieved
- Jul 23, 2026
Strengths
- SEER2 24 with HSPF2 11.1 - strong on both cooling and heating for its size.
- -13F rated heating on low-GWP R-454B; 13,000 BTU at 5F.
Weaknesses
- Rated to -13F is strong, but not the -22F range of the dedicated cold-climate flagships (Fujitsu XLTH+, Bosch Max Performance).
- Professional installation required; price it with an installed quote.
Climate suitability
- Minimum heating ambient
- -13 F[1]
- Certified heating at 5F
- 13,000 BTU/h[3]
- Rated heating at 17F
- 15,000 BTU/h[3]
- Rated heating at 47F
- 18,000 BTU/h[3]
Specifications
ShowHide
- Manufacturer
- Panasonic
- Brand
- Panasonic
- Product line
- Project Series High Wall
- Model number
- CS-YM18CKUW indoor / CU-YM18CBUC outdoor
- Indoor unit model
- CS-YM18CKUW
- Outdoor unit model
- CU-YM18CBUC
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 18,000 BTU/h[3]
- Rated heating capacity
- 18,000 BTU/h[3]
- Voltage
- 230 V[1]
- MCA
- 18 A[1]
- Maximum fuse or breaker size
- 20 A[1]
- Breaker needed
- not published
- SEER2
- 24 SEER2[3]
- EER2
- 13.5 EER2[3]
- HSPF2 (Region 4)
- 11.1 HSPF2[3]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- 3.81 COP[1]
- COP at 5F
- 2.35 COP[3]
- Minimum outdoor heating temperature
- -13 F[1]
- Minimum outdoor cooling temperature
- -13 F[1]
- Maximum outdoor temperature
- 122 F[1]
- Indoor noise range
- 26.0-45.0 dB(A)[1]
- Outdoor noise rating
- 59 dBA[1]
- Indoor weight
- 30.42 lb[1]
- Outdoor weight
- 92.59 lb[1]
- Refrigerant
- R-454B[1]
- Refrigerant charge
- 47.97 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 1/2 in suction
- Included line-set length
- Panasonic Project Series High Wall professional-install sources publish refrigerant piping size, maximum length, and height difference, but no included line set.
- Maximum line-set length
- 98.4 ft[1]
- Max line set per indoor
- not published
- Maximum elevation difference
- 65.6 ft[1]
- Max height between indoor units
- not published
- Wi-Fi support
- not supported[2]
- Energy Star status
- ENERGY STAR certified[4]
- AHRI certification number
- 218027962[3]
- Warranty
- not published
- Install path
- Professional install
- Retail price
- Installed quote only
- Available retailers
- not published
- Manual links
- AHRI certificate 218027962, AHRI public directory record 218027962, ENERGY STAR record 4520551 for CU-YM18CBUC / CS-YM18CKUW, Panasonic Project Series High Wall 18,000 BTU submittal extracted text, Panasonic Project Series catalog extracted text, Panasonic Project Series High Wall manufacturer page snapshot, Panasonic Project Series Heat Pump Solutions catalog, Panasonic Project Series High Wall 18,000 BTU submittal
- Specification sheet
- Panasonic Project Series Heat Pump Solutions catalog
- Last sourced date
- Jul 23, 2026
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 1/2 in[1]
- Line connection type
- not published
- Precharged length
- not published
- Included line-set length
- Panasonic Project Series High Wall professional-install sources publish refrigerant piping size, maximum length, and height difference, but no included line set.
- Maximum line-set length
- 98.4 ft[1]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 42-5/8 x 9-3/16 x 13-1/4 in[1]
- Outdoor dimensions
- 35-1/16 x 13-7/16 x 26-1/2 in[1]
- Indoor weight
- 30.42 lb[1]
- Outdoor weight
- 92.59 lb[1]
- Drain size
- not published
