Pioneer / Diamante Pro
Pioneer Diamante Pro 24k R-454B 208/230V Mini-Split
The Diamante Pro 24k holds SEER2 21 at 2 tons, which is a decent showing for a value-tier system at this capacity. It suits a large open room in a moderate climate. Two caveats worth weighing: the -4F heating floor makes it a poor cold-climate choice, and at this capacity a single head has to move a lot of air through one point - a two-zone Quantum Ultra multi-zone often conditions a large space more evenly for a comparable outlay.
Refrigerant generation
R-454B - current-generation refrigerant
Paid link
$1,438 / Fresh price - checked Jul 24, 2026
Need this installed?
Get installation quotes

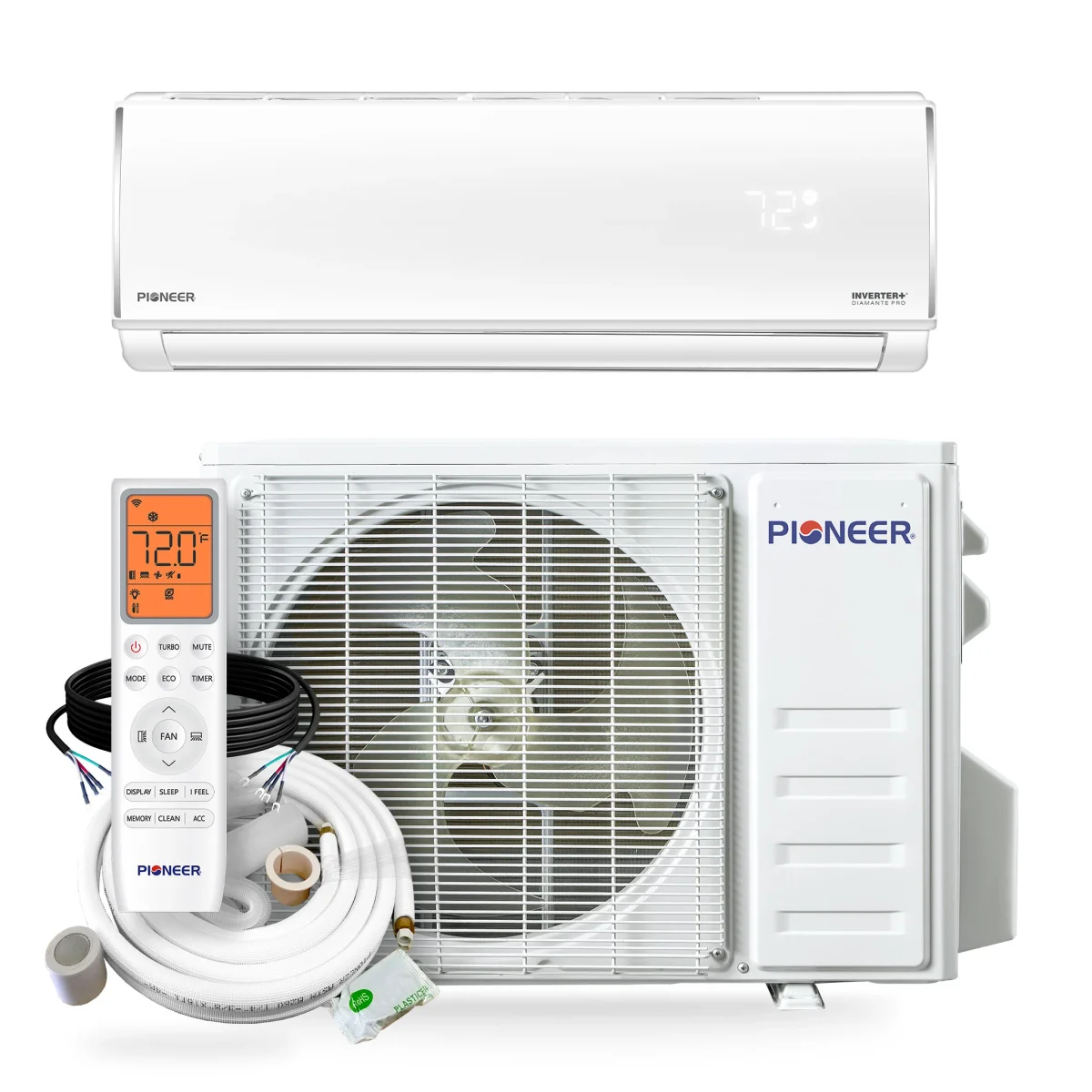

Image: Pioneer
- Last sourced
- Jul 24, 2026
SplitAtlas score
7.6 / 10
(21.0 SEER2) among 24k systems
(9.5 HSPF2) among 24k systems
(65% heat retained at 5F; -4 F heating floor) among 24k systems
(36 dBA indoor min / 58 dBA outdoor) among 24k systems
(4 verified features) across the catalogue
($1,438 median retail) among 24k systems
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
Key ratings
Buyer review snapshot
Install difficulty
- Electrical: 230V; breaker/fuse 25 A.
- Line set: connection type not sourced; included 16 ft; max 65 ft.
Alternatives
- GREE Sapphire R32 24,000 BTU R-32 208/230V (SAP24HP230V1R32AH / SAP24HP230V1R32AO)
8.8 score / 22k / SEER2 27 / -22 F heating floor / 230V
Exact destination at HVACDirect: $4,318.00, checked Jul 24, 2026
- Blueridge XS3 High Efficiency 24,000 BTU R-454B 208/230V (BXAFA24WM0 / BXS3A24SC0)
8.8 score / 24k / SEER2 23 / -13 F heating floor / 230V
Exact destination at Alpine Home Air: $1,939.00, checked Jul 24, 2026
- Senville ELITE 24,000 BTU R-454B 208/230V (SENE-24EL-IHH / SENE-24EL-OH)
8.7 score / 24k / SEER2 25 / -22 F heating floor / 187-253V
Exact destination at Senville: $2,099.99, checked Jul 24, 2026
Availability and price context
- Verified current price: $1,438.00 at Pioneer; availability in_stock; checked Jul 24, 2026.
Source date
- Model data sourced
- Jul 24, 2026
- Page reviewed
- Jul 23, 2026
- Source-backed records
- 5
- Newest source retrieved
- Jul 24, 2026
Warranty tiers
Warranty: Up to 5-year Pioneer warranty for registered eligible Diamante Pro systems.
Strengths
- SEER2 21 sustained at 2 tons, on current R-454B.
Weaknesses
- -4F heating floor; Quantum Ultra 24k holds -13F.
- One head at 2 tons can leave a big room unevenly conditioned - consider zoning.
Climate suitability
- Minimum heating ambient
- -4 F[2]
- Rated heating at 5F
- 15,600 BTU/h[4]
- Rated heating at 17F
- 17,900 BTU/h[4]
- Rated heating at 47F
- 24,000 BTU/h[4]
Specifications
ShowHide
- Manufacturer
- Pioneer
- Brand
- Pioneer
- Product line
- Diamante Pro
- Model number
- WT024GLSI20HLF indoor / YN024GLSI20RPF outdoor
- Indoor unit model
- WT024GLSI20HLF
- Outdoor unit model
- YN024GLSI20RPF
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 24,000 BTU/h[4]
- Rated heating capacity
- 24,000 BTU/h[4]
- Voltage
- 230 V[1]
- MCA
- not published - manufacturer specifies 25 A breaker
- Maximum fuse or breaker size
- 25 A[1]
- Breaker needed
- 25 A[1]
- SEER2
- 21 SEER2[4]
- EER2
- 10.5 EER2[4]
- HSPF2 (Region 4)
- 9.5 HSPF2[4]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 2.1 COP[4]
- Minimum outdoor heating temperature
- -4 F[2]
- Minimum outdoor cooling temperature
- 5 F[2]
- Maximum outdoor temperature
- 122 F[2]
- Indoor noise range
- 52/50/44/38/36 dB(A)[2]
- Outdoor noise rating
- 58 dBA[1]
- Indoor weight
- 36.4 lb[1]
- Outdoor weight
- 88.2 lb[1]
- Refrigerant
- R-454B[4]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 1/2 in suction
- Included line-set length
- 16 ft[1]
- Maximum line-set length
- 65 ft[2]
- Max line set per indoor
- not published
- Maximum elevation difference
- 50 ft[2]
- Max height between indoor units
- not published
- Wi-Fi support
- supported[3]
- Energy Star status
- Not ENERGY STAR certified[5]
- AHRI certification number
- 217048745[4]
- Warranty
- Up to 5-year Pioneer warranty for registered eligible Diamante Pro systems.
- Install path
- Professional install
- Retail price
- $1,438.00
- Available retailers
- Pioneer
- Manual links
- WYT024GLSI20RL AHRI certificate, WYT024GLSI20RL EnergyGuide, WYT20 installation manual, WYT20 service manual, WYT024GLSI20RL submittal sheet, WYT20 technical brochure
- Specification sheet
- WYT024GLSI20RL submittal sheet
- Last sourced date
- Jul 24, 2026
Retail purchase context
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
$1,438 / Fresh price - checked Jul 24, 2026
Electrical requirements
ShowHide
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 1/2 in[1]
- Line connection type
- not published
- Precharged length
- not published
- Included line-set length
- 16 ft[1]
- Maximum line-set length
- 65 ft[2]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 46-7/8 x 10-1/4 x 14-1/4 in[1]
- Outdoor dimensions
- 36-1/2 x 14-7/8 x 27-1/2 in[1]
- Indoor weight
- 36.4 lb[1]
- Outdoor weight
- 88.2 lb[1]
- Drain size
- not published
Related systems and guides
- More Pioneer systems
- Perfect Aire comparison model
- Pioneer 230 V option
- Pioneer 23k model
- Panasonic 230 V option
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Pioneer mini split review: is Pioneer any good?
- The best 24,000 BTU mini splits of 2026
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- R-32 vs R-454B: the mini split refrigerant change explained
- What size mini split do I need for a garage?
- Mini splits for a workshop or shop
- Mini splits for high or vaulted ceilings
- Pioneer mini split not cooling
- Mini split remote not working
- Mini split Wi-Fi not connecting
- Mini split lights blinking
- Mini split making loud noise
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the Pioneer Diamante Pro 24,000 BTU R-454B 208/230V (WT024GLSI20HLF / YN024GLSI20RPF) myself, or do I need a pro?
- Pioneer Diamante Pro 24,000 BTU R-454B 208/230V (WT024GLSI20HLF / YN024GLSI20RPF) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the Pioneer Diamante Pro 24,000 BTU R-454B 208/230V (WT024GLSI20HLF / YN024GLSI20RPF) keep heating in a cold winter?
- The manufacturer publishes 15,600 BTU/h of heating output at 5F. Rated heating operation extends down to -4 F. Certified heating efficiency is 9.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the Pioneer Diamante Pro 24,000 BTU R-454B 208/230V (WT024GLSI20HLF / YN024GLSI20RPF) need?
- Published electrical requirements: 230 V voltage, not published - manufacturer specifies 25 A breaker minimum circuit ampacity, and 25 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 65 ft, and the included line set comes pre-charged for 16 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
