ACiQ Essentials 9k R-32 208/230V Mini-Split
This is the 230V version of ACiQ's 9,000 BTU Essentials unit, and the higher voltage buys a small efficiency bump to 21 SEER2 and 12.5 EER2 while HSPF2 holds at 9.5. Refrigerant is low-GWP R-32, and heating tracks the 115V sibling closely: 10,000 BTU at 47F, 9,800 BTU at 17F, and 8,000 BTU at 5F. It suits a room already served by a 230V line where you want the most cooling efficiency the Essentials tier offers.
Refrigerant generation
R-32 - current-generation refrigerant
Paid link
$760 / Checked Jul 26, 2026
Need this installed?
Get installation quotes

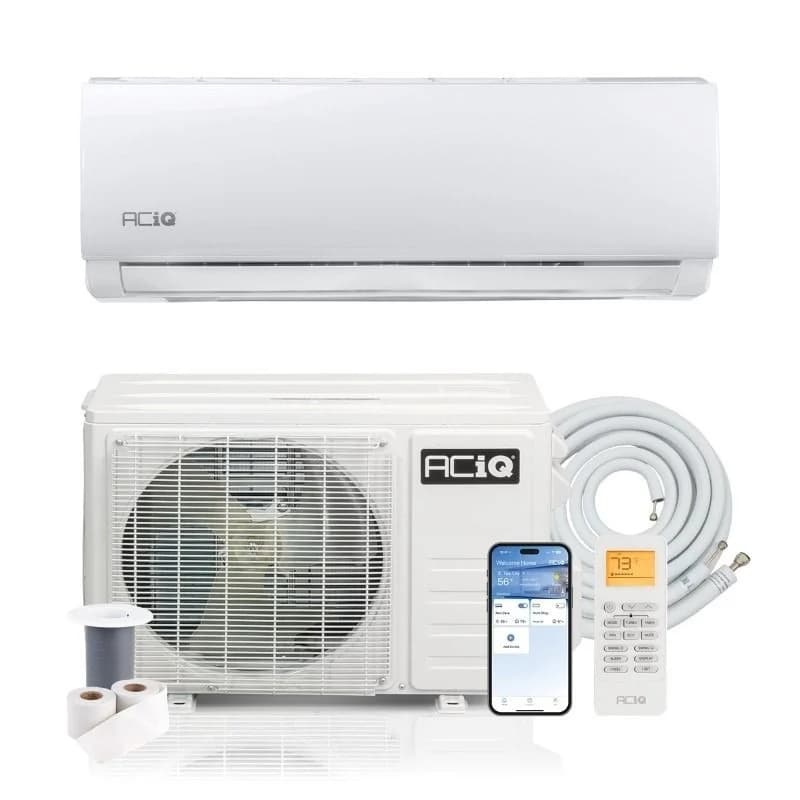

Image: HVACDirect
- Last sourced
- Jul 26, 2026
SplitAtlas score
7.6 / 10
(21.0 SEER2) among <=9k systems
(9.5 HSPF2) among <=9k systems
(5F certified capacity: 80% of the 47F rating; -4 F heating floor) among <=9k systems
(4 yr parts / 6 yr compressor) across the catalogue
(3 verified features) across the catalogue
($760 median retail) among <=9k systems
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
Key ratings
Buyer review snapshot
Install difficulty
- Electrical: 230V; MCA 10 A; breaker/fuse 15 A.
- Line set: connection type not sourced; precharged 16 ft; included 16 ft.
Alternatives
- Blueridge XS6 Max Efficiency 9,000 BTU R-454B 208/230V (BXS6A09WM0 / BXS6A09UC0)
8.9 score / 9k / SEER2 33.3 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $1,689.00, checked Jul 24, 2026
- Senville ELITE 9,000 BTU R-454B 208/230V (SENE-09EL-IHH / SENE-09EL-OH)
8.9 score / 9k / SEER2 33.3 / -22 F heating floor / 187-253V
Exact destination at Senville: $1,599.99, checked Jul 24, 2026
- Blueridge XS5 All Climate Plus 9,000 BTU R-454B 208/230V (BXAFA09WM0 / BXS5A09UC0)
8.7 score / 9k / SEER2 27.4 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $1,359.00, checked Jul 24, 2026
Availability and price context
- Last seen at HVACDirect on Jul 26, 2026: $759.99. Open the listing for today's price.
Source date
- Model data sourced
- Jul 26, 2026
- Page reviewed
- Jul 26, 2026
- Source-backed records
- 3
- Newest source retrieved
- Jul 26, 2026
Warranty tiers
- Registered
- 4 yr parts / 6 yr compressor - published per-line terms with online registration
The score uses Registered. Additional published terms are shown for reference and not counted in the score.
Strengths
- 12.5 EER2 is the strongest peak-cooling efficiency in the Essentials range - it pays off in hot climates with long AC seasons.
- Heat holds within a whisker of full output down to 17F, so shoulder-season and cold-snap performance is dependable.
- Priced and sold direct through HVACDirect, keeping the buying path simple.
Weaknesses
- No ENERGY STAR certification, so rebate programs keyed to that label are off the table.
- Value-brand backing means fewer local techs are already familiar with the line than with the big premium names.
Climate suitability
- Minimum heating ambient
- -4 F[1]
- Certified heating at 5F
- 8,000 BTU/h[2]
- Rated heating at 17F
- 9,800 BTU/h[2]
- Rated heating at 47F
- 10,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- ACiQ
- Brand
- ACiQ
- Product line
- ACiQ Essentials
- Model number
- ACIQ-K09W-W-32-HP230B indoor / ACIQ-K09Z-32-HP230B outdoor
- Indoor unit model
- ACIQ-K09W-W-32-HP230B
- Outdoor unit model
- ACIQ-K09Z-32-HP230B
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 9,000 BTU/h[2]
- Rated heating capacity
- 10,000 BTU/h[2]
- Voltage
- 230 V[1]
- MCA
- 10 A[1]
- Maximum fuse or breaker size
- 15 A[1]
- Breaker needed
- not published
- SEER2
- 21 SEER2[2]
- EER2
- 12.5 EER2[2]
- HSPF2 (Region 4)
- 9.5 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.8 COP[2]
- Minimum outdoor heating temperature
- -4 F[1]
- Minimum outdoor cooling temperature
- 5 F[1]
- Maximum outdoor temperature
- 127 F[1]
- Indoor noise range
- not published
- Outdoor noise rating
- 53 dBA[1]
- Indoor weight
- not published
- Outdoor weight
- 62.8 lb[1]
- Refrigerant
- R-32[2]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- 16 ft[1]
- Maximum line-set length
- not published
- Max line set per indoor
- not published
- Maximum elevation difference
- not published
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- Not ENERGY STAR certified[3]
- AHRI certification number
- 218451494[2]
- Warranty
- Registered: 4 yr parts / 6 yr compressor (published per-line terms with online registration). Score uses Registered.. 6-year compressor / 4-year parts with online registration
- Install path
- Professional install
- Retail price
- $759.99
- Available retailers
- HVACDirect
- Manual links
- AHRI public directory record 218451494, ENERGY STAR exact check 218451494, 9,000 BTU ACiQ Essentials 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V HVACDirect installation resources listing, 9,000 BTU ACiQ Essentials 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V, 9,000 BTU ACiQ Essentials 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V HVACDirect product specification grid
- Specification sheet
- 9,000 BTU ACiQ Essentials 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V HVACDirect product specification grid
- Last sourced date
- Jul 26, 2026
Retail purchase context
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
$760 / Checked Jul 26, 2026
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 3/8 in[1]
- Line connection type
- not published
- Precharged length
- 16 ft[1]
- Included line-set length
- 16 ft[1]
- Maximum line-set length
- not published
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- not published
- Outdoor dimensions
- 30.98 x 19.61 x 11.42 in[1]
- Indoor weight
- not published
- Outdoor weight
- 62.8 lb[1]
- Drain size
- not published
Related systems and guides
- More ACiQ systems
- ACiQ Essentials 9k R-32 115V Mini-Split
- ACiQ Essentials 9k R-454B 115V Mini-Split
- Panasonic EXTERIOS Z 9k R-32 208/230V Mini-Split
- ACiQ Essentials 9k R-454B 208/230V Mini-Split
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- ACiQ mini split review: is ACiQ any good?
- The best 9,000 BTU mini splits of 2026
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- R-32 vs R-454B: the mini split refrigerant change explained
- Mini split for a hot upstairs
- Mini splits for an ADU or tiny home
- Mini split vs baseboard heat
- Mini split remote not working
- Mini split Wi-Fi not connecting
- Mini split condensate pump problems
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the ACiQ Essentials 9,000 BTU R-32 208/230V (ACIQ-K09W-W-32-HP230B / ACIQ-K09Z-32-HP230B) myself, or do I need a pro?
- ACiQ Essentials 9,000 BTU R-32 208/230V (ACIQ-K09W-W-32-HP230B / ACIQ-K09Z-32-HP230B) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the ACiQ Essentials 9,000 BTU R-32 208/230V (ACIQ-K09W-W-32-HP230B / ACIQ-K09Z-32-HP230B) keep heating in a cold winter?
- The AHRI/ENERGY STAR certification lists 8,000 BTU/h of heating capacity at 5F. Rated heating operation extends down to -4 F. Certified heating efficiency is 9.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the ACiQ Essentials 9,000 BTU R-32 208/230V (ACIQ-K09W-W-32-HP230B / ACIQ-K09Z-32-HP230B) need?
- Published electrical requirements: 230 V voltage, 10 A minimum circuit ampacity, and 15 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- What warranty does the ACiQ Essentials 9,000 BTU R-32 208/230V (ACIQ-K09W-W-32-HP230B / ACIQ-K09Z-32-HP230B) carry?
- The manufacturer publishes these warranty tiers: Registered: 4 yr parts / 6 yr compressor (published per-line terms with online registration). Score uses Registered.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
