Fujitsu / AIRSTAGE Altair 300

Fujitsu AIRSTAGE Altair 300 24k R-32 208/230V Mini-Split

Certified capacity
22,000 BTU/h[3]
SEER2
20 SEER2[3]
Heating floor
5 F[1]
Voltage
208/230V[1]
Install path
Professional install

The Altair 300 24k tops Fujitsu's entry tier at 2 tons: SEER2 20 / EER2 10.5 / HSPF2 9 on R-32, 16,000 BTU of heat at 5F. It is the budget Fujitsu for a large room, with a heads-up that this size is not ENERGY STAR certified.

1 zoneProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

Error Codes

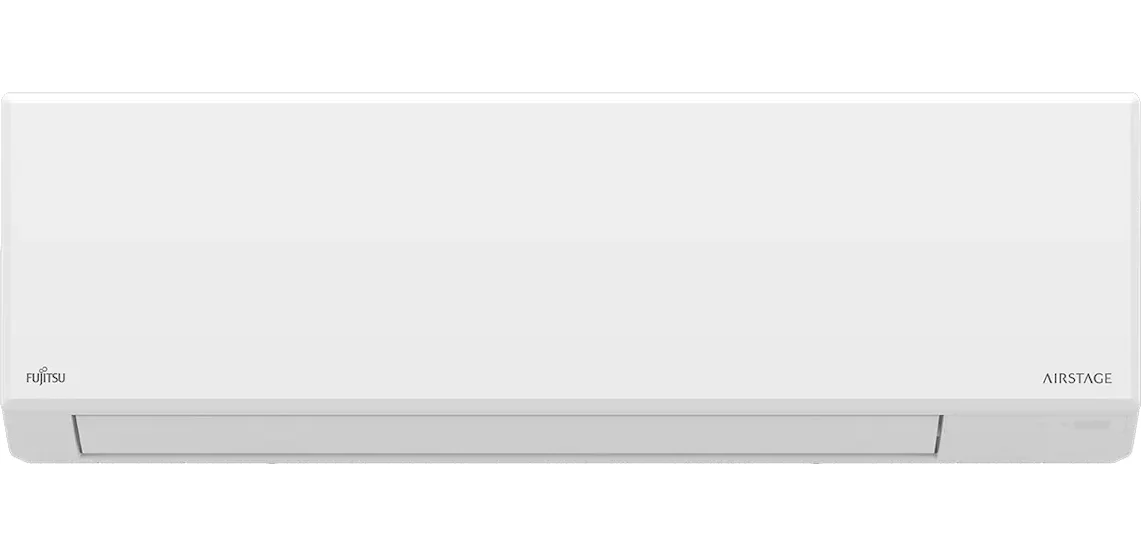

Fujitsu AIRSTAGE Altair 300 24,000 BTU R-32 208/230V (ASUH24KNAS / AOUH24KNAS1)

Image: Fujitsu

Data completeness: 100%
Last sourced
Jul 23, 2026

SplitAtlas score

8.1 / 10

Methodology
Cooling efficiencyBottom quartile

(20.0 SEER2) among 24k systems

Heating efficiencyBelow average

(9.0 HSPF2) among 24k systems

Cold-weather performanceBottom quartile

(66.7% heat retained at 5F; 5 F heating floor) among 24k systems

NoiseTop 10%

(-49 dBA indoor min / 55 dBA outdoor) among 24k systems

WarrantyTop quartile

(12 yr parts / 12 yr compressor) across the catalogue

Documentation & partsTop quartile

(9 manuals; spec sheet; parts channel) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    quote-only - no retail price to evaluate

Key ratings

Rated cooling

22,000BTU/h[3]

Rated heating

24,000BTU/h[3]

Best-fit use cases

A large open area in a mild-to-moderate climate for a value buyer who wants 2 tons of the Fujitsu name and does not need ENERGY STAR eligibility.

Buyer review snapshot

Install difficulty

Professional install
  • Electrical: 208/230V; MCA 17.8 A; breaker/fuse 20 A.
  • Line set: connection type not sourced; precharged 49 ft; max 82 ft.

Alternatives

Availability and price context

We could not verify a current retail price for this model. We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-23.

Purchase channel policy

Fujitsu/GENERAL says online retail sales of its products are not authorized; buyers should treat public online carts as outside the approved purchase channel.

Warranty consequence
Warranty becomes null and void for online purchases.
Authorized channel
Authorized local distributor or contractor channel; password-protected distributor sites are for qualified technicians.

Any online offer for this brand should be treated as a warranty-risk warning, not a recommendation.

Compare online-purchase warranty rules by brand

Source: Fujitsu General America, Inc.: GENERAL AIRSTAGE MINI-SPLITS FAQ - online purchase policy; retrieved Aug 12, 2026.

Source date

Model data sourced
Jul 23, 2026
Page reviewed
Jul 23, 2026
Source-backed records
5
Newest source retrieved
Jul 23, 2026

Warranty tiers

Warranty: 5 years parts and 7 years compressor as standard; 12 years parts and compressor if Fujitsu Elite contractor installation and registration.

Review methodology

Strengths

  • 2 tons of Fujitsu capacity at the value price; 16,000 BTU of heat at 5F.
  • R-32 refrigerant; Fujitsu dealer network and support.

Weaknesses

  • NOT ENERGY STAR certified, and SEER2 20 / HSPF2 9 is the entry tier.
  • 230V and professional installation; size honestly to a genuinely large room.

Climate suitability

Minimum heating ambient
5 F[1]
Rated heating at 5F
16,000 BTU/h[3]
Rated heating at 17F
14,800 BTU/h[3]
Rated heating at 47F
24,000 BTU/h[3]

Specifications

Show
Manufacturer
Fujitsu
Brand
Fujitsu
Product line
AIRSTAGE Altair 300
Model number
ASUH24KNAS indoor / AOUH24KNAS1 outdoor
Indoor unit model
ASUH24KNAS
Outdoor unit model
AOUH24KNAS1
Number of zones
1
Max indoor units
not published
Rated cooling capacity
22,000 BTU/h[3]
Rated heating capacity
24,000 BTU/h[3]
Voltage
208/230V[1]
MCA
17.8 A[1]
Maximum fuse or breaker size
20 A[1]
Breaker needed
not published
SEER2
20 SEER2[3]
EER2
10.5 EER2[3]
HSPF2 (Region 4)
9 HSPF2[3]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
3.4 COP[1]
COP at 5F
2.2 COP[3]
Minimum outdoor heating temperature
5 F[1]
Minimum outdoor cooling temperature
50 F[1]
Maximum outdoor temperature
122 F[1]
Indoor noise range
cooling 31-49; heating 32-48 dB(A)[1]
Outdoor noise rating
55 dBA[1]
Indoor weight
28 lb[1]
Outdoor weight
79 lb[1]
Refrigerant
R-32[1]
Refrigerant charge
42 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 1/2 in suction
Included line-set length
Fujitsu publishes factory pre-charge length and flared line sizes; the installer supplies the line set.
Maximum line-set length
82 ft[1]
Max line set per indoor
not published
Maximum elevation difference
66 ft[1]
Max height between indoor units
not published
Wi-Fi support
supported[1]
Energy Star status
Not ENERGY STAR certified[4]
AHRI certification number
217617836[3]
Warranty
Standard: 5 yr parts / 7 yr compressor (out-of-box residential coverage); Best case: 12 yr parts / 12 yr compressor (Fujitsu Elite contractor installation and registration). 10-year parts and compressor warranty when registered within 60 days for residential installation; 12-year parts and compressor tier when installed by a Fujitsu Elite contractor; 7-year compressor/5-year parts out-of-the-box warranty.
Install path
Professional install
Retail price
We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-23.
Available retailers
not published
Manual links
AHRI certificate 217617836, AHRI public directory record 217617836, ENERGY STAR exact-row absence record for ASUH24KNAS / AOUH24KNAS1, AOUH24KNAS1 installation manual, ASUH24KNAS installation manual, Fujitsu Connect product record AOUH24KNAS1, Fujitsu Connect product record ASUH24KNAS, Fujitsu AIRSTAGE Altair 300 wall-mounted R-32 product page, ASUH24KNAS / AOUH24KNAS1 submittal
Specification sheet
ASUH24KNAS / AOUH24KNAS1 submittal
Last sourced date
Jul 23, 2026

Parts and filters

Fits Fujitsu AIRSTAGE Altair 300 24,000 BTU R-32 208/230V (ASUH24KNAS / AOUH24KNAS1). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

remote-control

Fujitsu factory wireless remote controller

Fits
Fujitsu AIRSTAGE Altair 300 24,000 BTU R-32 208/230V (ASUH24KNAS / AOUH24KNAS1)
Fit note
Fits ASUH24KNAS / AOUH24KNAS1. The submittal states that the wireless remote controller is included but does not publish an orderable replacement part number. Source through Fujitsu support or an authorized dealer with the model and serial number.
Source
Fujitsu AIRSTAGE ASUH09KNAS / AOUH09KNAS1 Submittal, Features, page p. 1 (Wireless remote controller included with the indoor unit)

smart-controller-module

Fujitsu Wi-Fi Adapter, USB type

Fits
Fujitsu AIRSTAGE Altair 300 24,000 BTU R-32 208/230V (ASUH24KNAS / AOUH24KNAS1)
OEM part number
UTY-TFSXH4
Fit note
Fits ASUH24KNAS / AOUH24KNAS1. Manufacturer documentation publishes this OEM part number for this model family. t255 lookup on 2026-08-12 checked HVACDirect exact/search results, Amazon exact-listing search, public exact-part search, and Fujitsu/GENERAL's online-sales FAQ; no public exact destination with a current price from HVACDirect, Amazon, or a Fujitsu-authorized online parts seller was found. HVACDirect direct fetches were Cloudflare-blocked where exact pages existed, and Fujitsu/GENERAL's own FAQ says public online retail sales are not authorized. Source through an authorized Fujitsu contractor/distributor with the model and serial number.
Source
Fujitsu AIRSTAGE ASUH09KNAS / AOUH09KNAS1 Submittal, ACCESSORIES, page p. 4 (UTY-TFSXH4 Wi-Fi Adapter (WiFi Interface Module USB Type))

ir-wifi-controller

Fujitsu Intesis IR Wireless AC Cloud Control Interface

Fits
Fujitsu AIRSTAGE Altair 300 24,000 BTU R-32 208/230V (ASUH24KNAS / AOUH24KNAS1)
OEM part number
FJ-IR-WIFI-1NA
Fit note
Fits ASUH24KNAS / AOUH24KNAS1. Manufacturer documentation publishes this OEM part number for this model family. t255 lookup on 2026-08-12 checked HVACDirect exact/search results, Amazon exact-listing search, public exact-part search, and Fujitsu/GENERAL's online-sales FAQ; no public exact destination with a current price from HVACDirect, Amazon, or a Fujitsu-authorized online parts seller was found. HVACDirect direct fetches were Cloudflare-blocked where exact pages existed, and Fujitsu/GENERAL's own FAQ says public online retail sales are not authorized. Source through an authorized Fujitsu contractor/distributor with the model and serial number.
Source
Fujitsu AIRSTAGE ASUH09KNAS / AOUH09KNAS1 Submittal, ACCESSORIES, page p. 4 (FJ-IR-WIFI-1NA Intesis IR Wireless AC Cloud Control Interface (Intesis Home app))
Replacement Parts & Filters

Electrical requirements

Show
Voltage
not published
Voltage range
208/230V[1]
Phase
single-phase[2]
Frequency
60 Hz[1]
MCA
17.8 A[1]
Breaker needed
not published
Maximum breaker size
20 A[1]
Maximum fuse size
not published
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
1/2 in[1]
Line connection type
not published
Precharged length
49 ft[1]
Included line-set length
Fujitsu publishes factory pre-charge length and flared line sizes; the installer supplies the line set.
Maximum line-set length
82 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
11 x 38-9/16 x 9-7/16 in[1]
Outdoor dimensions
24-7/8 x 31-7/16 x 11-7/16 in[1]
Indoor weight
28 lb[1]
Outdoor weight
79 lb[1]
Drain size
17/32 in I.D.; 5/8 to 21/32 in O.D.[1]

Related systems and guides

Frequently asked questions

Can I install the Fujitsu AIRSTAGE Altair 300 24,000 BTU R-32 208/230V (ASUH24KNAS / AOUH24KNAS1) myself, or do I need a pro?
Fujitsu AIRSTAGE Altair 300 24,000 BTU R-32 208/230V (ASUH24KNAS / AOUH24KNAS1) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Fujitsu AIRSTAGE Altair 300 24,000 BTU R-32 208/230V (ASUH24KNAS / AOUH24KNAS1) keep heating in a cold winter?
The manufacturer publishes 16,000 BTU/h of heating output at 5F. Rated heating operation extends down to 5 F. Certified heating efficiency is 9 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Fujitsu AIRSTAGE Altair 300 24,000 BTU R-32 208/230V (ASUH24KNAS / AOUH24KNAS1) need?
Published electrical requirements: 208/230V voltage, 17.8 A minimum circuit ampacity, and 20 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 82 ft, and the included line set comes pre-charged for 49 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the Fujitsu AIRSTAGE Altair 300 24,000 BTU R-32 208/230V (ASUH24KNAS / AOUH24KNAS1) carry?
The manufacturer publishes these warranty tiers: Standard: 5 yr parts / 7 yr compressor (out-of-box residential coverage); Best case: 12 yr parts / 12 yr compressor (Fujitsu Elite contractor installation and registration). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. Fujitsu General America, Inc.: ASUH24KNAS & AOUH24KNAS1 submittalSourced - manufacturer technical document

    Covers Frequency, electrical_spec.guaranteed_voltage_range, Maximum breaker size, Minimum circuit ampacity, Voltage range, Drain size and more

  2. Fujitsu General America, Inc.: AOUH24KNAS1 installation manualSourced - manufacturer technical document

    Covers Phase

  3. AHRI Directory: AHRI public directory record 217617836Sourced - AHRI directory

    Covers AHRI certification number, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity, HSPF2 (Region 4) and more

  4. ENERGY STAR: ENERGY STAR certified mini-split row for ASUH24KNAS / AOUH24KNAS1Sourced - Energy Star listing

    Covers Energy Star status

  5. Fujitsu General America, Inc.: Fujitsu AIRSTAGE Altair 300 wall-mounted R-32 product pageSourced - manufacturer product page

    Covers Best-case compressor warranty, Best-case warranty conditions, Best-case parts warranty, Legacy compressor warranty value, Legacy warranty value, Standard compressor warranty and more
