Carrier / Infinity 38MPRA/40MPHA legacy

Carrier Infinity Legacy 22k A/A R-410A 208/230V Mini-Split

Certified capacity
22,000 BTU/h[2]
SEER2
23.5 SEER2[2]
Heating floor
No model-specific value is published on the current Carrier consumer listing
Voltage
230 V[1]
Install path
Professional install

This legacy 24,000 BTU Infinity set (38MPRA / 40MPHA) uses older R-410A on 230V, rated 23.5 SEER2, 13.7 EER2, and 10.5 HSPF2. Certified heating is 24,000 BTU at 47F, dipping to 15,400 BTU at 17F, then recovering to 23,400 BTU at 5F. It is not ENERGY STAR certified and not cold-climate designated.

1 zoneProfessional installLegacy
Error Codes

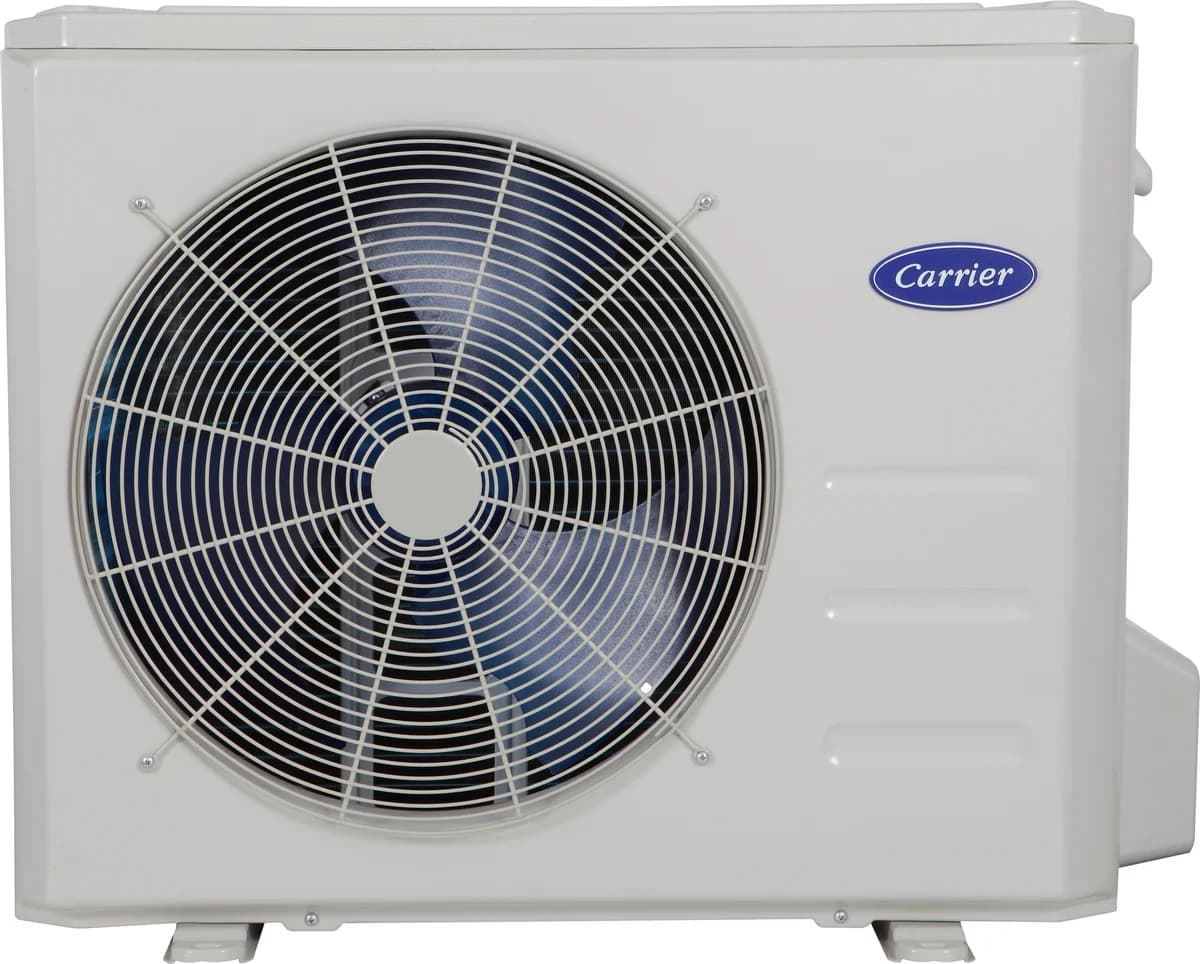

Carrier Infinity 38MPRA/40MPHA legacy 22,000 BTU R-410A 208/230V (40MPHAQ24XA3 / 38MPRAQ24AA3)

Image: Carrier

Data completeness: 100%
Last sourced
Jul 27, 2026

SplitAtlas score

8.7 / 10

Methodology
Cooling efficiencyTop quartile

(23.5 SEER2) among 24k systems

Heating efficiencyAbove average

(10.5 HSPF2) among 24k systems

Cold-weather performanceTop quartile

(97.5% heat retained at 5F) among 24k systems

WarrantyAbove average

(10 yr parts / 10 yr compressor) across the catalogue

Feature setBottom quartile

(2 verified features) across the catalogue

Documentation & partsBelow average

(6 manuals; spec sheet) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    quote-only - no retail price to evaluate

Key ratings

Rated cooling

22,000BTU/h[2]

Rated heating

24,000BTU/h[2]

Buyer review snapshot

Best for / skip if

Best for

  • High-efficiency shortlists; SEER2 is 23.5.

Skip if

  • You are shopping for a current-generation recommendation; catalog lifecycle is LEGACY.

Install difficulty

Professional install
  • Electrical: 230V.

Alternatives

Availability and price context

We could not verify a current retail price for this model. We could not find a published consumer price for this model when we last checked on 2026-07-27.

Purchase channel policy

Carrier's ductless warranty excludes products purchased over the Internet; buyers should treat public online carts as outside the warranty-covered purchase channel.

Warranty consequence
Warranty coverage does not apply to any product purchased over the Internet.
Authorized channel
Licensed HVAC technician installation with defective parts returned to the distributor through a registered servicing dealer; not an internet purchase.

Any online offer for this brand should be treated as a warranty-risk warning, not a recommendation.

Compare online-purchase warranty rules by brand

Source: Carrier Corporation: CAC/BDP Limited Warranty Certificate - Limited Warranty for Ductless Split Units; retrieved Aug 15, 2026.

Source date

Model data sourced
Jul 27, 2026
Page reviewed
Jul 27, 2026
Source-backed records
3
Newest source retrieved
Jul 27, 2026

Warranty tiers

Warranty: 10 years parts and no separate compressor term published as standard.

Review methodology

Strengths

  • Big legacy capacity with certified 5F output rebounding to 23,400 BTU, near its 47F rating.
  • Supported by Carrier's established dealer and warranty network for older equipment.

Weaknesses

  • Built on phased-down R-410A; the current R-454B Infinity 27 24k is the modern equivalent to consider.
  • No ENERGY STAR or cold-climate certification, and the mid-range dip at 17F is an atypical certified pattern.

Climate suitability

Minimum heating ambient
No model-specific value is published on the current Carrier consumer listing
Rated heating at 5F
23,400 BTU/h[2]
Rated heating at 17F
15,400 BTU/h[2]
Rated heating at 47F
24,000 BTU/h[2]

Specifications

Show
Manufacturer
Carrier
Brand
Carrier
Product line
Infinity 38MPRA/40MPHA legacy
Model number
40MPHAQ24XA3 indoor / 38MPRAQ24AA3 outdoor
Indoor unit model
40MPHAQ24XA3
Outdoor unit model
38MPRAQ24AA3
Number of zones
1
Max indoor units
not published
Rated cooling capacity
22,000 BTU/h[2]
Rated heating capacity
24,000 BTU/h[2]
Voltage
230 V[1]
MCA
No model-specific value is published on the current Carrier consumer listing
Maximum fuse or breaker size
No model-specific value is published on the current Carrier consumer listing
Breaker needed
not published
SEER2
23.5 SEER2[2]
EER2
13.7 EER2[2]
HSPF2 (Region 4)
10.5 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
1.94 COP[2]
Minimum outdoor heating temperature
No model-specific value is published on the current Carrier consumer listing
Minimum outdoor cooling temperature
No model-specific value is published on the current Carrier consumer listing
Maximum outdoor temperature
No model-specific value is published on the current Carrier consumer listing
Indoor noise range
No model-specific value is published on the current Carrier consumer listing
Outdoor noise rating
No model-specific value is published on the current Carrier consumer listing
Indoor weight
No model-specific value is published on the current Carrier consumer listing
Outdoor weight
No model-specific value is published on the current Carrier consumer listing
Refrigerant
R-410A[2]
Refrigerant charge
not published
Manufacturer coverage
not published
Line-set size
No model-specific value is published on the current Carrier consumer listing liquid / No model-specific value is published on the current Carrier consumer listing suction
Included line-set length
Professional installations use separately selected line sets
Maximum line-set length
No model-specific value is published on the current Carrier consumer listing
Max line set per indoor
not published
Maximum elevation difference
No model-specific value is published on the current Carrier consumer listing
Max height between indoor units
not published
Wi-Fi support
No model-specific value is published on the current Carrier consumer listing
Energy Star status
Not ENERGY STAR certified[3]
AHRI certification number
202463635[2]
Warranty
Standard: 10 yr parts / no separate compressor term (eligible timely registered residential installation). Consumer Choice Warranty: 10-year parts-only or 5-year parts plus 3-year labor for eligible timely registered residential installations; terms and participating dealer requirements apply.
Install path
Professional install
Retail price
We could not find a published consumer price for this model when we last checked on 2026-07-27.
Available retailers
not published
Manual links
AHRI public directory record 202463635, ENERGY STAR exact check 202463635, Infinity 38MPRA/40MPHA legacy installation documentation locator, Carrier Infinity 38MPR legacy R-410A heat pump, HVACDirect exact Carrier offer check carrier-infinity-38mpra-40mpha-legacy-24k-r410a-230v, AHRI Appendix M1 public detail 202463635
Specification sheet
AHRI Appendix M1 public detail 202463635
Last sourced date
Jul 27, 2026

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
No model-specific value is published on the current Carrier consumer listing
Breaker needed
not published
Maximum breaker size
No model-specific value is published on the current Carrier consumer listing
Maximum fuse size
No model-specific value is published on the current Carrier consumer listing
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
No model-specific value is published on the current Carrier consumer listing
Suction line
No model-specific value is published on the current Carrier consumer listing
Line connection type
not published
Precharged length
not published
Included line-set length
Professional installations use separately selected line sets
Maximum line-set length
No model-specific value is published on the current Carrier consumer listing
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
No model-specific value is published on the current Carrier consumer listing
Outdoor dimensions
No model-specific value is published on the current Carrier consumer listing
Indoor weight
No model-specific value is published on the current Carrier consumer listing
Outdoor weight
No model-specific value is published on the current Carrier consumer listing
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Carrier Infinity 38MPRA/40MPHA legacy 22,000 BTU R-410A 208/230V (40MPHAQ24XA3 / 38MPRAQ24AA3) myself, or do I need a pro?
Carrier Infinity 38MPRA/40MPHA legacy 22,000 BTU R-410A 208/230V (40MPHAQ24XA3 / 38MPRAQ24AA3) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Carrier Infinity 38MPRA/40MPHA legacy 22,000 BTU R-410A 208/230V (40MPHAQ24XA3 / 38MPRAQ24AA3) keep heating in a cold winter?
The manufacturer publishes 23,400 BTU/h of heating output at 5F. Certified heating efficiency is 10.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Carrier Infinity 38MPRA/40MPHA legacy 22,000 BTU R-410A 208/230V (40MPHAQ24XA3 / 38MPRAQ24AA3) need?
Published electrical requirements: 230 V voltage, No model-specific value is published on the current Carrier consumer listing minimum circuit ampacity, and No model-specific value is published on the current Carrier consumer listing maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is No model-specific value is published on the current Carrier consumer listing. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the Carrier Infinity 38MPRA/40MPHA legacy 22,000 BTU R-410A 208/230V (40MPHAQ24XA3 / 38MPRAQ24AA3) carry?
The manufacturer publishes these warranty tiers: Standard: 10 yr parts / no separate compressor term (eligible timely registered residential installation). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. Carrier Corporation: Carrier Infinity 38MPRB legacy R-410A heat pumpSourced - manufacturer product page

    Covers Frequency, Phase, Voltage, Voltage range, Legacy warranty value, Standard compressor warranty status and more

  2. Air-Conditioning, Heating, and Refrigeration Institute: AHRI Appendix M1 public detail for 38MPRAQ24AA3 / 40MPHAQ24XA3Sourced - AHRI directory

    Covers AHRI certification number, performance_spec.cold_climate_designation, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity and more

  3. ENERGY STAR: ENERGY STAR exact row check for AHRI 202463635Sourced - Energy Star listing

    Covers Energy Star status
