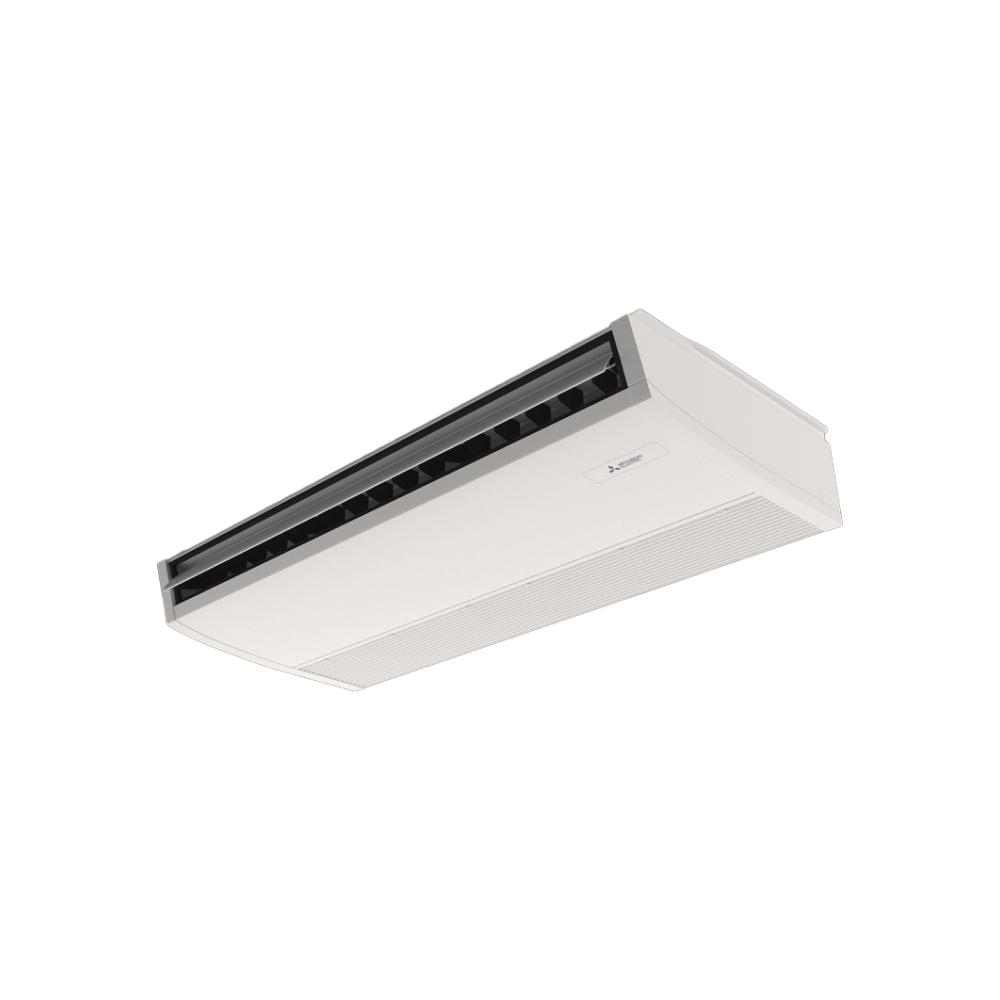

Mitsubishi P-Series PCA Ceiling-Suspended 24k Ceiling Suspended 208/230V Mini-Split
The P-Series PCA Ceiling-Suspended 24k is the visible P-Series ceiling-suspended option for open rooms, shops, and commercial-style spaces without a usable wall or ceiling-cassette bay. It certifies at 21,800 BTU cooling, 28,000 BTU at 47F, and 11,600 BTU at 5F.
The catch is appearance and application. A ceiling-suspended head is practical and serviceable, but it looks commercial, hangs in the room, and needs a dealer to size clearances and condensate routing correctly.
Refrigerant generation
R-454B - current-generation refrigerant
Need this installed?
Get installation quotes
- Last sourced
- Aug 5, 2026
SplitAtlas score
7.6 / 10
(20.2 SEER2) among 24k systems
(9.3 HSPF2) among 24k systems
(5F certified capacity: 41.4% of the 47F rating; -4 F heating floor) among 24k systems
(33 dBA indoor min / 52 dBA outdoor) among 24k systems
(5 yr parts / 7 yr compressor) across the catalogue
(3 verified features) across the catalogue
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Key ratings
Buyer review snapshot
Install difficulty
- Electrical: 230V; MCA 22 A; breaker/fuse 37 A maximum (calculated recommendation: 35 A is the nearest standard breaker size at or below that maximum).
- Line set: connection type not sourced; precharged 165 ft; max 165 ft.
Alternatives
- Blueridge XS3 High Efficiency 24,000 BTU R-454B 208/230V (BXAFA24WM0 / BXS3A24SC0)
8.9 score / 24k / SEER2 23 / -13 F heating floor / 230V
Exact destination at Alpine Home Air: $1,939.00, checked Jul 24, 2026
- ACiQ Extreme 24,000 BTU R-454B 208/230V (ACIQ-24W-HH-MD / ACIQ-24ZPL-HP230C)
8.8 score / 24k / SEER2 21 / -22 F heating floor / 230V
Exact destination at HVACDirect: $2,399.99, checked Jul 26, 2026
- Senville ELITE 24,000 BTU R-454B 208/230V (SENE-24EL-IHH / SENE-24EL-OH)
8.7 score / 24k / SEER2 25 / -22 F heating floor / 187-253V
Exact destination at Senville: $2,099.99, checked Jul 24, 2026
Availability and price context
This Mitsubishi Electric system is sold through dealers, so its price comes as an installed quote that depends on your home. Get installation quotes to price it.
Source date
- Model data sourced
- Aug 5, 2026
- Page reviewed
- Aug 2, 2026
- Source-backed records
- 3
- Newest source retrieved
- Aug 5, 2026
Warranty tiers
- Base
- 5 yr parts / 7 yr compressor - licensed HVAC contractor installation
The score uses Base. Additional published terms are shown for reference and not counted in the score.
Model context
- Mitsubishi dealer channel
- Mitsubishi Electric equipment is sold through its dealer network; installed price depends on the local contractor.
- Install path
- This is professional-install equipment; price it with an installed quote.
Strengths
- 20.2 SEER2 / 12 EER2 / 9.3 HSPF2 certified efficiency.
- 21,800 BTU visible ceiling-mounted capacity for open rooms without wall space.
- 15,300 BTU at 17F and 11,600 BTU at 5F give real heating numbers to size against.
Weaknesses
- Not AHRI cold-climate designated; 5F heat falls to 11,600 BTU, so size carefully in northern winters.
- Ceiling-suspended heads are visible and commercial-looking compared with recessed cassettes.
Climate suitability
- Minimum heating ambient
- -4 F[1]
- Certified heating at 5F
- 11,600 BTU/h[2]
- Maximum heating at 5F (manufacturer)
- 11,600 BTU/h[1]
- Rated heating at 17F
- 15,300 BTU/h[2]
- Rated heating at 47F
- 28,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- Mitsubishi Electric
- Brand
- Mitsubishi Electric
- Product line
- P-Series PCA Ceiling-Suspended
- Model number
- PCA-AK24NL-U1 indoor / PUZ-AH24NL-U1 outdoor
- Indoor unit model
- PCA-AK24NL-U1
- Outdoor unit model
- PUZ-AH24NL-U1
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 21,800 BTU/h[2]
- Rated heating capacity
- 28,000 BTU/h[2]
- Voltage
- 230 V[1]
- MCA
- 22 A[1]
- Maximum fuse or breaker size
- 37 A[1]
Calculated recommendation: 35 A is the nearest standard breaker size at or below the published 37 A maximum.
- Breaker needed
- not published
- SEER2
- 20.2 SEER2[2]
- EER2
- 12 EER2[2]
- HSPF2 (Region 4)
- 9.3 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- 3.4 COP[1]
- COP at 5F
- 2 COP[2]
- Minimum outdoor heating temperature
- -4 F[1]
- Minimum outdoor cooling temperature
- 23 F[1]
- Maximum outdoor temperature
- 115 F[1]
- Indoor noise range
- cooling 33 , 35 , 37 , 40; heating 33 , 35 , 37 , 40[1]
- Outdoor noise rating
- 52 dBA[1]
- Indoor weight
- 71 lb[1]
- Outdoor weight
- 155 lb[1]
- Refrigerant
- R-454B[1]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- 3/8 in liquid / 5/8 in suction
- Included line-set length
- Mitsubishi submittals publish line-size and maximum/precharged piping data; the installing contractor supplies the line set.
- Maximum line-set length
- 165 ft[1]
- Max line set per indoor
- not published
- Maximum elevation difference
- 100 ft[1]
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- ENERGY STAR certified[2]
- AHRI certification number
- 215712180[2]
- Warranty
- Base: 5 yr parts / 7 yr compressor (licensed HVAC contractor installation). Score uses Base.. METUS residential warranty terms list a standard 5-year parts and 7-year compressor term when installed by a licensed HVAC contractor, with enhanced registered coverage available under program conditions.
- Install path
- Professional install
- Retail price
- Installed quote only
- Available retailers
- not published
- Manual links
- AHRI public detail 215712180, BT79A139H03.pdf, MitsubishiPro product record PCA-AK24NL, MitsubishiPro product record PUZ-AH24NL, PCA-AK24NL / PUZ-AH24NL Mitsubishi Electric submittal, METUS Residential M-Series, P-Series and SMART MULTI Limited Warranty Statement
- Specification sheet
- PCA-AK24NL / PUZ-AH24NL Mitsubishi Electric submittal
- Last sourced date
- Aug 5, 2026
Electrical requirements
ShowHide
- Voltage
- 230 V[1]
- Voltage range
- not published
- Phase
- 1[1]
- Frequency
- 60 Hz[1]
- MCA
- 22 A[1]
- Breaker needed
- not published
- Maximum breaker size
- 37 A[1]
Calculated recommendation: 35 A is the nearest standard breaker size at or below the published 37 A maximum.
- Maximum fuse size
- 37 A[1]
Calculated recommendation: 35 A is the nearest standard fuse size at or below the published 37 A maximum.
- Maximum cooling current
- not published
- Maximum heating current
- not published
- Manufacturer wire notes
- 14 AWG indoor-outdoor[1]
Installation considerations
ShowHide
- Liquid line
- 3/8 in[1]
- Suction line
- 5/8 in[1]
- Line connection type
- not published
- Precharged length
- 165 ft[1]
- Included line-set length
- Mitsubishi submittals publish line-size and maximum/precharged piping data; the installing contractor supplies the line set.
- Maximum line-set length
- 165 ft[1]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 50-3/8 x 26-3/4 x 9-1/16 in[1]
- Outdoor dimensions
- 37-13/32 x 14 x 37-1/8 in[1]
- Indoor weight
- 71 lb[1]
- Outdoor weight
- 155 lb[1]
- Drain size
