LG / ARTCOOL Premier R-32
LG ARTCOOL Premier 24k R-32 230V Mini-Split
The LG Art Cool Premier 24k tops the designer line at 2 tons: SEER2 23, EER2 13, HSPF2 10.2 on R-32, with 24,000 BTU of heat at 47F and 15,800 BTU at 17F. Its certified 5F rating conflicts with LG's submittal, which lists at most 14,780 BTU at 5F. It conditions a large space from a premium designer head, with efficiency stepping down as expected at this capacity.
Refrigerant generation
R-32 - current-generation refrigerant
This system's warranty depends on licensed installation — get quotes from installers in your area.
Get installation quotes

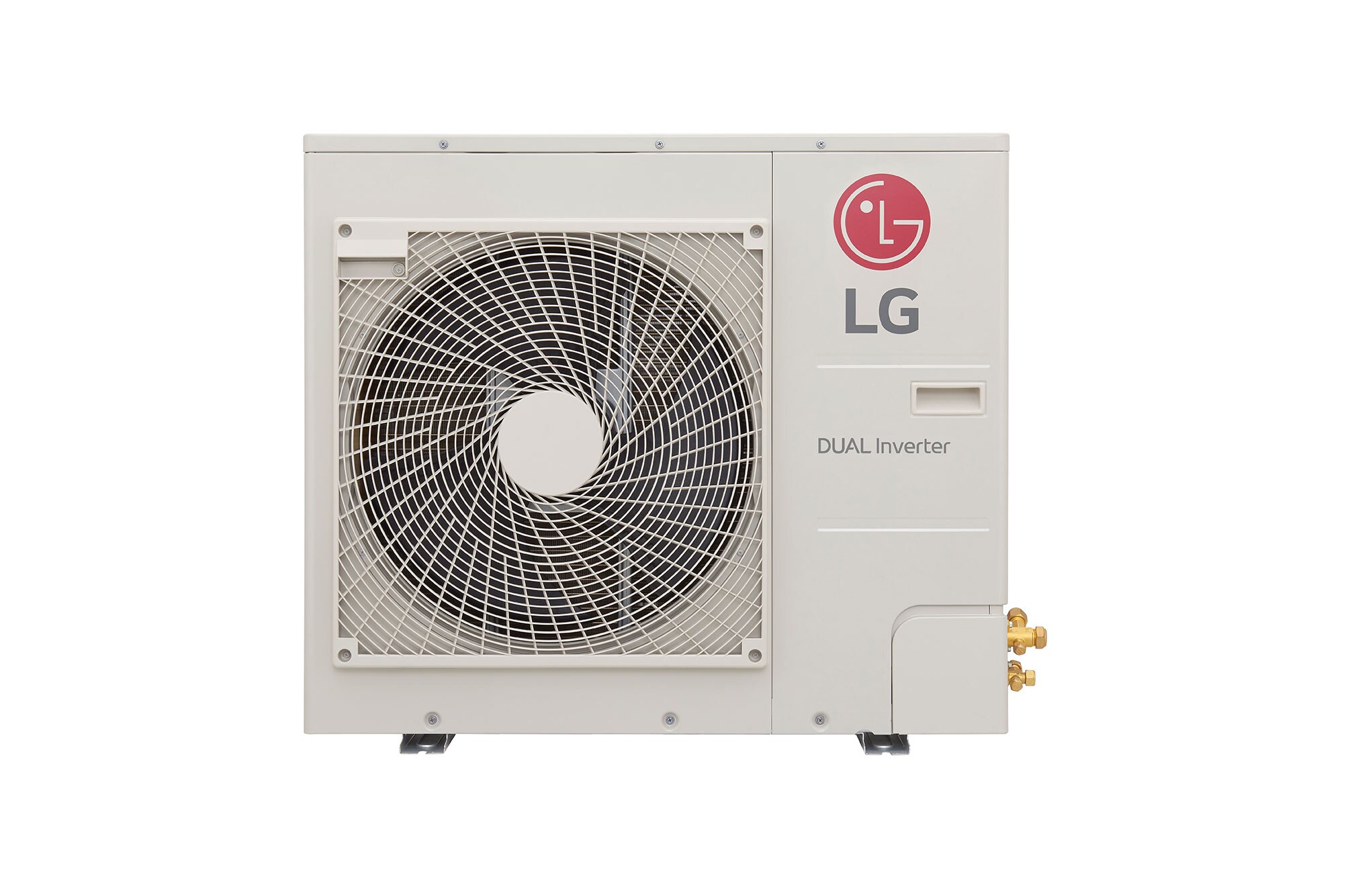

Image: LG
- Last sourced
- Jul 23, 2026
SplitAtlas score
not yet rated - data incomplete
- no scoring run is available
Key ratings
Best-fit use cases
A large living/dining area wanting 2 tons behind LG's designer styling, in a climate where the coldest nights are rare or covered by backup heat.
Buyer review snapshot
Best for / skip if
Best for
- High-efficiency shortlists; SEER2 is 23.
Install difficulty
- Electrical: 208/230V; MCA 17 A; breaker/fuse 19 A maximum (no standard breaker size fits; check the nameplate with your electrician).
- Line set: connection type not sourced; precharged 24.6 ft; max 164 ft.
Availability and price context
- Last seen at HVACDirect on Jul 23, 2026: $3,276.00. Open the listing for today's price. Warranty condition: The online source must be expressly authorized by LG; the system must also satisfy LG's qualified-system installation terms.
Purchase channel policy
LG allows the online-purchase path only when the online source is expressly authorized by LG; an online purchase from a non-authorized source voids the limited warranty.
- Warranty impact
- The limited warranty is void and LG has no liability when the system is purchased online from a source not expressly authorized by LG.
- Installation condition
- The online source must be expressly authorized by LG; the system must also satisfy LG's qualified-system installation terms.
- Authorized channel
- Expressly authorized LG source with qualified installation by a trained, licensed HVAC contractor under LG warranty terms.
Buying online can keep warranty coverage only when the seller is expressly authorized by LG; confirm that status and the qualified installation path before purchase.
Compare online-purchase warranty rules by brand
Source: LG Electronics U.S.A., Inc.: LG R32 Residential / Light Commercial Systems Warranty Card; retrieved Aug 15, 2026.
Source date
- Model data sourced
- Jul 23, 2026
- Page reviewed
- Jul 23, 2026
- Source-backed records
- 5
- Newest source retrieved
- Sep 13, 2026
Warranty tiers
- Base
- 5 yr parts / 7 yr compressor - standard coverage
- Registered
- 10 yr parts / 10 yr compressor - registration within 60 days of startup, by an installer with current LG training and an HVAC license
The score uses Registered. Additional published terms are shown for reference and not counted in the score.
Model context
- Install path
- This is professional-install equipment; the listed price is for the equipment, so add installation labor. The Buyer review snapshot covers the brand's rules on online purchases.
Strengths
- 24,000 BTU at 47F and 15,800 BTU at 17F - solid output at 2 tons.
- SEER2 23 - solid efficiency for the size; current R-32 refrigerant.
- Designer Premier indoor head.
Weaknesses
- At 2 tons, also price a zoned multi-head design for a large area.
Climate suitability
- Minimum heating ambient
- -13 F[1]
- Certified heating at 5F
- not published[4]disputed
- Maximum heating at 5F (manufacturer)
- 14,780 BTU/h[1]
- Rated heating at 17F
- 15,800 BTU/h[2]
- Rated heating at 47F
- 24,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- LG
- Brand
- LG
- Product line
- ARTCOOL Premier R-32
- Model number
- KNSAL241A indoor / KUSAL241A outdoor
- Indoor unit model
- KNSAL241A
- Outdoor unit model
- KUSAL241A
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 22,000 BTU/h[2]
- Rated heating capacity
- 24,000 BTU/h[2]
- Voltage
- 208/230V[1]
- MCA
- 17 A[1]
- Maximum fuse or breaker size
- 19 A[1]
No standard breaker size fits between this unit's published limits. Check the nameplate with your electrician.
- Breaker needed
- not published
- SEER2
- 23 SEER2[2]
- EER2
- 13 EER2[2]
- HSPF2 (Region 4)
- 10.2 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.9 COP[2]
- Minimum outdoor heating temperature
- -13 F[1]
- Minimum outdoor cooling temperature
- 14 F[1]
- Maximum outdoor temperature
- 118 F[1]
- Indoor noise range
- cooling 30-49; heating 40-49 dB(A)[1]
- Outdoor noise rating
- 56 dBA[1]
- Indoor weight
- 37.7 lb[1]
- Outdoor weight
- 135.4 lb[1]
- Refrigerant
- R-32[2]
- Refrigerant charge
- 65.28 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 3/8 in liquid / 5/8 in suction
- Included line-set length
- LG publishes field-supplied flared line sizes, standard/pre-charge length, and line limits; no included consumer line-set length is published for the professional system.
- Maximum line-set length
- 164 ft[1]
- Max line set per indoor
- not published
- Maximum elevation difference
- 98.4 ft[1]
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 215828273[2]
- Warranty
- Base: 5 yr parts / 7 yr compressor (standard coverage); Registered: 10 yr parts / 10 yr compressor (registration within 60 days of startup, by an installer with current LG training and an HVAC license). Score uses Registered.. Standard 5-year parts and 7-year compressor coverage; qualified registered installations extend to 10 years total parts and compressor coverage.
- Install path
- Professional install
- Retail price
- last seen at HVACDirect on Jul 23, 2026: $3,276.00
- Available retailers
- HVACDirect
- Manual links
- AHRI Directory public detail record 215828273, ENERGY STAR exact-match query for KUSAL241A/KNSAL241A, LG ARTCOOL Premier R-32 engineering manual, LG ARTCOOL Premier R-32 installation manual, LG HVAC API product metadata KSSAL241A, HVACDirect exact product page KSSAL241A, KSSAL241A LG ARTCOOL Premier R-32 submittal, LG R32 Residential / Light Commercial Systems Warranty Card
- Specification sheet
- KSSAL241A LG ARTCOOL Premier R-32 submittal
- Last sourced date
- Jul 23, 2026
Retail purchase context
Dealer-installation warranty note
Buying online can keep warranty coverage only when the seller is expressly authorized by LG; confirm that status and the qualified installation path before purchase.
Installation condition: The online source must be expressly authorized by LG; the system must also satisfy LG's qualified-system installation terms.
Dealer path: Expressly authorized LG source with qualified installation by a trained, licensed HVAC contractor under LG warranty terms.
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
Dealer-installation warranty note
Buying online can keep warranty coverage only when the seller is expressly authorized by LG; confirm that status and the qualified installation path before purchase.
Last seen at HVACDirect on Jul 23, 2026: $3,276
Electrical requirements
ShowHide
- Voltage
- not published
- Voltage range
- 208/230V[1]
- Phase
- 1[1]
- Frequency
- 60 Hz[1]
- MCA
- 17 A[1]
- Breaker needed
- not published
- Maximum breaker size
- 19 A[1]
No standard breaker size fits between this unit's published limits. Check the nameplate with your electrician.
- Maximum fuse size
- not published
- Maximum cooling current
- not published
- Maximum heating current
- not published
- Manufacturer wire notes
- 14 AWG minimum four-conductor indoor-outdoor connection cable; field supplied[1]
Installation considerations
ShowHide
- Liquid line
- 3/8 in[1]
- Suction line
- 5/8 in[1]
- Line connection type
- not published
- Precharged length
- 24.6 ft[1]
- Included line-set length
- LG publishes field-supplied flared line sizes, standard/pre-charge length, and line limits; no included consumer line-set length is published for the professional system.
- Maximum line-set length
- 164 ft[1]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- not published
- Outdoor dimensions
- not published
- Indoor weight
- 37.7 lb[1]
- Outdoor weight
- 135.4 lb[1]
- Drain size
- not published
