LG Extended Piping 36k R-32 230V Mini-Split
The LG Extended Piping 36k is the largest single-zone in LG's lineup at 3 tons, with extended line-length support: SEER2 20, EER2 10, HSPF2 8.5 on R-32, and 35,200 BTU of heat at 47F falling to 21,400 BTU at 17F; LG's submittal lists at most 21,620 BTU at 5F. It exists to condition a big space from one head placed far from its outdoor unit; at 3 tons a zoned system is usually the smarter design.
Refrigerant generation
R-32 - current-generation refrigerant
This system's warranty depends on licensed installation — get quotes from installers in your area.
Get installation quotes

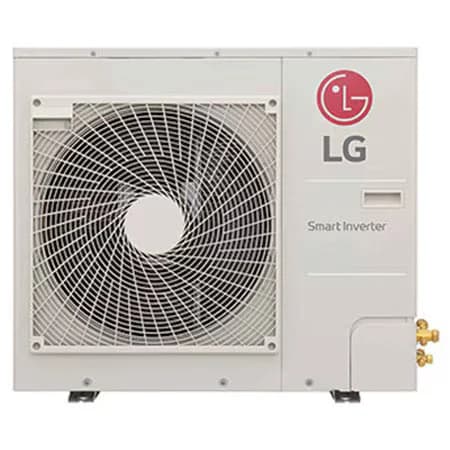

Image: LG
- Last sourced
- Jul 23, 2026
SplitAtlas score
not yet rated - data incomplete
- no scoring run is available
Key ratings
Buyer review snapshot
Install difficulty
- Electrical: 208/230V; MCA 23 A; breaker/fuse 30 A.
- Line set: connection type not sourced; precharged 24.6 ft; max 164 ft.
Availability and price context
- Last seen at HVACDirect on Jul 23, 2026: $4,041.00. Open the listing for today's price. Warranty condition: The online source must be expressly authorized by LG; the system must also satisfy LG's qualified-system installation terms.
Purchase channel policy
LG allows the online-purchase path only when the online source is expressly authorized by LG; an online purchase from a non-authorized source voids the limited warranty.
- Warranty impact
- The limited warranty is void and LG has no liability when the system is purchased online from a source not expressly authorized by LG.
- Installation condition
- The online source must be expressly authorized by LG; the system must also satisfy LG's qualified-system installation terms.
- Authorized channel
- Expressly authorized LG source with qualified installation by a trained, licensed HVAC contractor under LG warranty terms.
Buying online can keep warranty coverage only when the seller is expressly authorized by LG; confirm that status and the qualified installation path before purchase.
Compare online-purchase warranty rules by brand
Source: LG Electronics U.S.A., Inc.: LG R32 Residential / Light Commercial Systems Warranty Card; retrieved Aug 15, 2026.
Source date
- Model data sourced
- Jul 23, 2026
- Page reviewed
- Jul 23, 2026
- Source-backed records
- 4
- Newest source retrieved
- Sep 13, 2026
Warranty tiers
- Base
- 5 yr parts / 7 yr compressor - standard coverage
- Registered
- 10 yr parts / 10 yr compressor - registration within 60 days of startup, by an installer with current LG training and an HVAC license
The score uses Registered. Additional published terms are shown for reference and not counted in the score.
Strengths
- 35,200 BTU at 47F - the most capacity in LG's single-zone line.
- Extended line-run support for difficult outdoor placement; current R-32 refrigerant.
Weaknesses
- SEER2 20 / EER2 10 - the EER2 is the lowest in LG's line; not ENERGY STAR certified.
- Specialty 3-ton product; professional installation required, and a zoned multi-head is usually a better fit for a space this large.
Climate suitability
- Minimum heating ambient
- -4 F[1]
- Certified heating at 5F
- not published[3]disputed
- Maximum heating at 5F (manufacturer)
- 21,620 BTU/h[1]
- Rated heating at 17F
- 21,400 BTU/h[2]
- Rated heating at 47F
- 35,200 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- LG
- Brand
- LG
- Product line
- Extended Piping R-32
- Model number
- KNSAP361A indoor / KUSAP361A outdoor
- Indoor unit model
- KNSAP361A
- Outdoor unit model
- KUSAP361A
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 33,000 BTU/h[2]
- Rated heating capacity
- 35,200 BTU/h[2]
- Voltage
- 208/230V[1]
- MCA
- 23 A[1]
- Maximum fuse or breaker size
- 30 A[1]
- Breaker needed
- not published
- SEER2
- 20 SEER2[2]
- EER2
- 10 EER2[2]
- HSPF2 (Region 4)
- 8.5 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.7 COP[2]
- Minimum outdoor heating temperature
- -4 F[1]
- Minimum outdoor cooling temperature
- 14 F[1]
- Maximum outdoor temperature
- 118 F[1]
- Indoor noise range
- cooling 33-51; heating 43-51 dB(A)[1]
- Outdoor noise rating
- 58 dBA[1]
- Indoor weight
- 40.8 lb[1]
- Outdoor weight
- 147.9 lb[1]
- Refrigerant
- R-32[2]
- Refrigerant charge
- 70.496 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 3/8 in liquid / 5/8 in suction
- Included line-set length
- LG publishes field-supplied flared line sizes, standard/pre-charge length, and line limits; no included consumer line-set length is published for the professional system.
- Maximum line-set length
- 164 ft[1]
- Max line set per indoor
- not published
- Maximum elevation difference
- 98.4 ft[1]
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- Not ENERGY STAR certified[2]
- AHRI certification number
- 215735332[2]
- Warranty
- Base: 5 yr parts / 7 yr compressor (standard coverage); Registered: 10 yr parts / 10 yr compressor (registration within 60 days of startup, by an installer with current LG training and an HVAC license). Score uses Registered.. Standard 5-year parts and 7-year compressor coverage; qualified registered installations extend to 10 years total parts and compressor coverage.
- Install path
- Professional install
- Retail price
- last seen at HVACDirect on Jul 23, 2026: $4,041.00
- Available retailers
- HVACDirect
- Manual links
- AHRI Directory public detail record 215735332, ENERGY STAR exact-match query for KUSAP361A/KNSAP361A, LG Extended Piping R-32 engineering manual, LG Extended Piping R-32 installation manual, LG HVAC API product metadata KSSAP361A, HVACDirect exact product page KSSAP361A, KSSAP361A LG Extended Piping R-32 submittal, LG R32 Residential / Light Commercial Systems Warranty Card
- Specification sheet
- KSSAP361A LG Extended Piping R-32 submittal
- Last sourced date
- Jul 23, 2026
Retail purchase context
Dealer-installation warranty note
Buying online can keep warranty coverage only when the seller is expressly authorized by LG; confirm that status and the qualified installation path before purchase.
Installation condition: The online source must be expressly authorized by LG; the system must also satisfy LG's qualified-system installation terms.
Dealer path: Expressly authorized LG source with qualified installation by a trained, licensed HVAC contractor under LG warranty terms.
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
Dealer-installation warranty note
Buying online can keep warranty coverage only when the seller is expressly authorized by LG; confirm that status and the qualified installation path before purchase.
Last seen at HVACDirect on Jul 23, 2026: $4,041
Electrical requirements
ShowHide
- Voltage
- not published
- Voltage range
- 208/230V[1]
- Phase
- 1[1]
- Frequency
- 60 Hz[1]
- MCA
- 23 A[1]
- Breaker needed
- not published
- Maximum breaker size
- 30 A[1]
- Maximum fuse size
- not published
- Maximum cooling current
- not published
- Maximum heating current
- not published
- Manufacturer wire notes
- 14 AWG minimum four-conductor indoor-outdoor connection cable; field supplied[1]
Installation considerations
ShowHide
- Liquid line
- 3/8 in[1]
- Suction line
- 5/8 in[1]
- Line connection type
- not published
- Precharged length
- 24.6 ft[1]
- Included line-set length
- LG publishes field-supplied flared line sizes, standard/pre-charge length, and line limits; no included consumer line-set length is published for the professional system.
- Maximum line-set length
- 164 ft[1]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- not published
- Outdoor dimensions
- not published
- Indoor weight
- 40.8 lb[1]
- Outdoor weight
- 147.9 lb[1]
- Drain size
- not published
Related systems and guides
- More LG systems
- GREE Vireo+ Ultra 36k R-410A 208/230V Mini-Split
Previous generation
- Midea Easy Pro Extreme Heat 33k R-454B 208/230V Mini-Split
- LG Multi F 36k R-32 208/230V 4-Zone Mini-Split
- LG Mid Static Ducted 36k R-32 208/230V Mini-Split
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- LG mini split review: is LG any good?
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- R-32 vs R-454B: the mini split refrigerant change explained
- What size mini split do I need for a garage?
- Mini splits for a workshop or shop
- Mini splits for high or vaulted ceilings
- Mini splits for a pole barn or metal building
- LG mini split not heating
- Mini split remote not working
- Mini split Wi-Fi not connecting
- Mini split leaking water
- Mini split not heating
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the LG Extended Piping R-32 36,000 BTU (230V) myself, or do I need a pro?
- LG Extended Piping R-32 36,000 BTU (230V) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the LG Extended Piping R-32 36,000 BTU (230V) keep heating in a cold winter?
- Rated heating operation extends down to -4 F. Certified heating efficiency is 8.5 HSPF2. Match that published heating floor against your climate's design temperature - below the low-ambient rating, output can fall off or the system can pause to protect itself.
- What electrical circuit does the LG Extended Piping R-32 36,000 BTU (230V) need?
- Published electrical requirements: 208/230V voltage, 23 A minimum circuit ampacity, and 30 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 164 ft. The outdoor unit's factory charge covers up to 24.6 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
- What warranty does the LG Extended Piping R-32 36,000 BTU (230V) carry?
- The manufacturer publishes these warranty tiers: Base: 5 yr parts / 7 yr compressor (standard coverage); Registered: 10 yr parts / 10 yr compressor (registration within 60 days of startup, by an installer with current LG training and an HVAC license). Score uses Registered.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
