GREE Vireo+ Ultra 36k R-410A 208/230V Mini-Split

Certified capacity
33,000 BTU/h[2]
SEER2
18 SEER2[2]
Heating floor
-31 F[3]
Voltage
230 V[1]
Install path
Professional install

The Gree Vireo+ Ultra 36k (R-410A) is a discontinued 3-ton unit: SEER2 18, EER2 10.25, HSPF2 8.5, holding 34,600 BTU at 47F to 34,000 BTU at 5F - remarkable deep-cold retention. R-410A and phased out; new buyers should choose a current R-32 system or a zoned design.

1 zoneProfessional installLegacy

This system's warranty depends on licensed installation — get quotes from installers in your area.

Get installation quotes
Error Codes

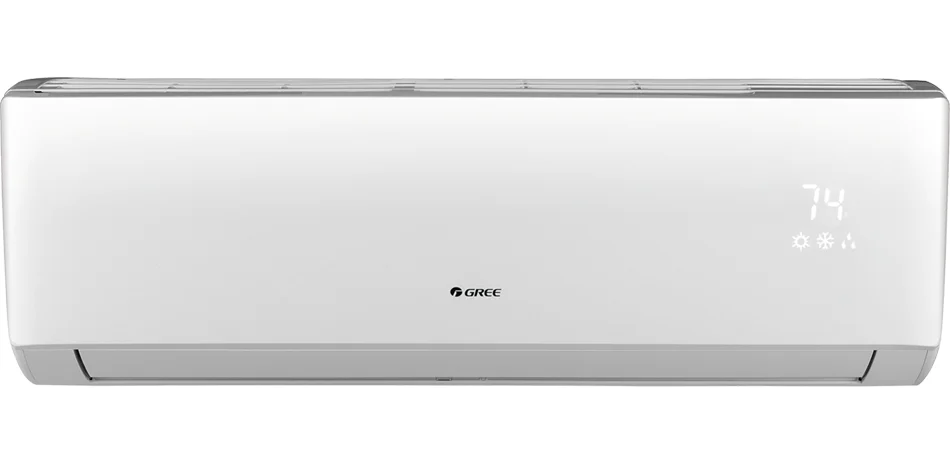

GREE Vireo+ Ultra 36,000 BTU R-410A 208/230V (VIRU36HP230V1AH / VIRU36HP230V1AO)

Image: GREE

Data completeness: 95%
Last sourced
Jul 24, 2026

SplitAtlas score

7.6 / 10

Methodology
Cooling efficiencyBottom quartile

(18.0 SEER2) among 36k systems

Heating efficiencyBottom quartile

(8.5 HSPF2) among 36k systems

Cold-weather performanceTop quartile

(98.3% heat retained at 5F; -31 F heating floor) among 36k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Feature setBottom quartile

(2 verified features) across the catalogue

Documentation & partsTop quartile

(10 manuals; spec sheet; parts channel) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

33,000BTU/h[2]

Rated heating

34,600BTU/h[2]

Buyer review snapshot

Best for / skip if

Skip if

  • You are shopping for a current-generation recommendation; catalog lifecycle is LEGACY.

Install difficulty

Professional flared-line install
  • Electrical: 230V; MCA 30 A; breaker/fuse 50 A.
  • Line set: Flared line connections; precharged 25 ft; max 165 ft.

Alternatives

Availability and price context

We could not verify a current retail price for this model. We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-24.

Purchase channel policy

GREE publishes an online/retail warranty-claim path for equipment purchased online, Home Depot, or Lowes rather than treating online purchase as a warranty voidance.

Warranty impact
Online purchase changes the claim path: routine parts use GREE's online claim form, while compressor failures and refrigerant leaks require tech-support confirmation before the online claim.
Installation condition
Warranty claims for online/retail purchases must be completed by a contractor after an on-site diagnosis, with required documentation such as purchase receipt or installation invoice and data-plate photos.
Authorized channel
GREE distributor path for distributor purchases; GREE online warranty claim form for equipment purchased online, Home Depot, or Lowes; GREE Select dealer installation and registration for the 10-year extended warranty.

GREE online purchases have a manufacturer-published warranty path, but buyers should keep purchase and installation documents and use a licensed HVAC contractor for diagnosis and claims.

Compare online-purchase warranty rules by brand

Source: GREE Comfort: How Does the GREE Warranty Work? Coverage, Claims, and 10-Year Extension Guide; retrieved Aug 15, 2026.

Source date

Model data sourced
Jul 24, 2026
Page reviewed
Jul 23, 2026
Source-backed records
4
Newest source retrieved
Jul 24, 2026

Warranty tiers

Warranty: 5 years parts and 7 years compressor as standard.

Review methodology

Strengths

  • Holds ~34,000 BTU of heat at 5F - outstanding deep-cold output at 3 tons.
  • Maximum single-zone capacity in the discontinued Vireo+ line.

Weaknesses

  • R-410A phase-out; no current R-32 36k single-zone replacement.
  • SEER2 18; thin support network; consider a zoned design.

Climate suitability

Minimum heating ambient
-31 F[3]
Rated heating at 5F
34,000 BTU/h[2]
Rated heating at 17F
27,800 BTU/h[2]
Rated heating at 47F
34,600 BTU/h[2]

Specifications

Show
Manufacturer
GREE
Brand
GREE
Product line
Vireo+ Ultra
Model number
VIRU36HP230V1AH indoor / VIRU36HP230V1AO outdoor
Indoor unit model
VIRU36HP230V1AH
Outdoor unit model
VIRU36HP230V1AO
Number of zones
1
Max indoor units
not published
Rated cooling capacity
33,000 BTU/h[2]
Rated heating capacity
34,600 BTU/h[2]
Voltage
230 V[1]
MCA
30 A[1]
Maximum fuse or breaker size
50 A[1]
Breaker needed
not published
SEER2
18 SEER2[2]
EER2
10.25 EER2[2]
HSPF2 (Region 4)
8.5 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
1.55 COP[2]
Minimum outdoor heating temperature
-31 F[3]
Minimum outdoor cooling temperature
0 F[3]
Maximum outdoor temperature
115 F[3]
Indoor noise range
not published
Outdoor noise rating
not published
Indoor weight
42 lb[1]
Outdoor weight
254 lb[1]
Refrigerant
R-410A[2]
Refrigerant charge
not published
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 5/8 in suction
Included line-set length
GREE professional single-zone systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
165 ft[1]
Max line set per indoor
not published
Maximum elevation difference
100 ft[1]
Max height between indoor units
not published
Wi-Fi support
supported[1]
Energy Star status
Not ENERGY STAR certified[2]
AHRI certification number
203373091[2]
Warranty
Standard: 5 yr parts / 7 yr compressor (eligible residential system). Standard residential GREE single-zone mini-split warranty is 5 years parts and 7 years compressor for eligible units.
Install path
Professional install
Retail price
We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-24.
Available retailers
not published
Manual links
AHRI public detail VIRU36HP230V1AO / VIRU36HP230V1AH, ENERGY STAR exact row lookup for VIRU36HP230V1AO / VIRU36HP230V1AH, GREE Vireo+ Ultra extended ratings, GREE Vireo+ Ultra installation/owner manual, GREE current Vireo+ Ultra product/catalog page, GREE Vireo+ Ultra sales brochure, HVACDirect exact search for VIRU36HP230V1AO / VIRU36HP230V1AH, GREE Vireo+ Ultra service manual, GREE Vireo+ Ultra 36k submittal, GREE DFS warranty statement for units installed after 2021-12-31
Specification sheet
GREE Vireo+ Ultra 36k submittal
Last sourced date
Jul 24, 2026

Parts and filters

Fits GREE Vireo+ Ultra 36,000 BTU R-410A 208/230V (VIRU36HP230V1AH / VIRU36HP230V1AO). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

filter-washable

Indoor washable filter assembly

Fits
GREE Vireo+ Ultra 36,000 BTU R-410A 208/230V (VIRU36HP230V1AH / VIRU36HP230V1AO)
OEM part number
1112210601
Fit note
Fits VIRU36HP230V1AH / VIRU36HP230V1AO. GREE publishes this orderable filter sub-assembly code in the Vireo+ Ultra service parts table; no HVACDirect exact 1112210601 page was verified.
Source
GREE Vireo+ Ultra Service Manual, Indoor unit parts list, page p. 83 (3 Filter Sub-Assy 1112210601 1112210602 2)

remote-control

Remote controller

Fits
GREE Vireo+ Ultra 36,000 BTU R-410A 208/230V (VIRU36HP230V1AH / VIRU36HP230V1AO)
OEM part number
305001000085
Fit note
Fits VIRU36HP230V1AH / VIRU36HP230V1AO. GREE publishes 305001000085 as the remote-controller part code for both Vireo+ Ultra capacities; no HVACDirect exact remote part page was verified.
Source
GREE Vireo+ Ultra Service Manual, Indoor unit parts list, page p. 83 (40 Remote Controller 305001000085 1)

main-control-board

Indoor main board

Fits
GREE Vireo+ Ultra 36,000 BTU R-410A 208/230V (VIRU36HP230V1AH / VIRU36HP230V1AO)
OEM part number
30138001017
Fit note
Fits VIRU36HP230V1AH / VIRU36HP230V1AO. GREE publishes 30138001017 as the Vireo+ Ultra indoor main-board part code; no HVACDirect exact board page was verified.
Source
GREE Vireo+ Ultra Service Manual, Indoor unit parts list, page p. 83 (36 Main Board 30138001017 1)

display-board

Indoor display board

Fits
GREE Vireo+ Ultra 36,000 BTU R-410A 208/230V (VIRU36HP230V1AH / VIRU36HP230V1AO)
OEM part number
30565277
Fit note
Fits VIRU36HP230V1AH / VIRU36HP230V1AO. GREE publishes 30565277 as the Vireo+ Ultra display-board part code; no HVACDirect exact display-board page was verified.
Source
GREE Vireo+ Ultra Service Manual, Indoor unit parts list, page p. 83 (37 Display Board 30565277 1)

wired-controller

XE71 wired wall controller

Fits
GREE Vireo+ Ultra 36,000 BTU R-410A 208/230V (VIRU36HP230V1AH / VIRU36HP230V1AO)
OEM part number
XE71
Fit note
Fits VIRU36HP230V1AH / VIRU36HP230V1AO where the GREE submittal lists the XE71 wired controller option. HVACDirect was verified as a live exact GREE XE71 product page on 2026-08-01; its retailer model/SKU is MC20700970.
Source
GREE Vireo+ Ultra 36,000 BTU R-410A 208/230V (VIRU36HP230V1AH / VIRU36HP230V1AO) Submittal, Controller options, page p. 1 (XE71)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect

wired-controller

XK76 wired wall controller

Fits
GREE Vireo+ Ultra 36,000 BTU R-410A 208/230V (VIRU36HP230V1AH / VIRU36HP230V1AO)
OEM part number
XK76
Fit note
Fits VIRU36HP230V1AH / VIRU36HP230V1AO where the GREE submittal lists XK76 as an optional wired-controller interface. The closest HVACDirect XE-76 page was not attached because the page title and model text did not cleanly verify the same XK76 part number.
Source
GREE Vireo+ Ultra 36,000 BTU R-410A 208/230V (VIRU36HP230V1AH / VIRU36HP230V1AO) Submittal, Wired controller interface, page p. 1 (Wired Controller Interface (XE71 or XK76 optional) Yes)

line-set-installation-kit

25 ft flared line-set installation kit - 1/4 x 5/8

Fits
GREE Vireo+ Ultra 36,000 BTU R-410A 208/230V (VIRU36HP230V1AH / VIRU36HP230V1AO)
Fit note
Fits VIRU36HP230V1AH / VIRU36HP230V1AO by the 1/4 x 5/8 flared line-set dimensions in the GREE submittal. The HVACDirect page was verified live on 2026-08-01 as an exact-dimension 25 ft install-kit page, not a GREE OEM exact-part listing.
Source
GREE Vireo+ Ultra 36,000 BTU R-410A 208/230V (VIRU36HP230V1AH / VIRU36HP230V1AO) Submittal, Refrigerant pipe connections, page p. 1 (Connections in 1/4 - 5/8)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect
Replacement Parts & Filters

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
30 A[1]
Breaker needed
not published
Maximum breaker size
50 A[1]
Maximum fuse size
50 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
5/8 in[1]
Line connection type
Flared line connections[1]
Precharged length
25 ft[1]
Included line-set length
GREE professional single-zone systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
165 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
53 3/16 x 12 5/8 x 10 in[1]
Outdoor dimensions
43 5/8 x 43 1/2 x 17 5/16 in[1]
Indoor weight
42 lb[1]
Outdoor weight
254 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the GREE Vireo+ Ultra 36,000 BTU R-410A 208/230V (VIRU36HP230V1AH / VIRU36HP230V1AO) myself, or do I need a pro?
GREE Vireo+ Ultra 36,000 BTU R-410A 208/230V (VIRU36HP230V1AH / VIRU36HP230V1AO) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the GREE Vireo+ Ultra 36,000 BTU R-410A 208/230V (VIRU36HP230V1AH / VIRU36HP230V1AO) keep heating in a cold winter?
The manufacturer publishes 34,000 BTU/h of heating output at 5F. Rated heating operation extends down to -31 F. Certified heating efficiency is 8.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the GREE Vireo+ Ultra 36,000 BTU R-410A 208/230V (VIRU36HP230V1AH / VIRU36HP230V1AO) need?
Published electrical requirements: 230 V voltage, 30 A minimum circuit ampacity, and 50 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 165 ft, and the included line set comes pre-charged for 25 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the GREE Vireo+ Ultra 36,000 BTU R-410A 208/230V (VIRU36HP230V1AH / VIRU36HP230V1AO) carry?
The manufacturer publishes these warranty tiers: Standard: 5 yr parts / 7 yr compressor (eligible residential system). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. GREE Comfort: GREE Vireo+ Ultra 36k submittalSourced - manufacturer technical document

    Covers Frequency, electrical_spec.indoor_mca_amps, Maximum breaker size, Maximum fuse size, Minimum circuit ampacity, Phase and more

  2. Air-Conditioning, Heating, and Refrigeration Institute: AHRI public detail for VIRU36HP230V1AO / VIRU36HP230V1AHSourced - AHRI directory

    Covers AHRI certification number, performance_spec.cold_climate_designation, Rated cooling capacity, COP at 5F, EER2, Energy Star status and more

  3. GREE Comfort: GREE current Vireo+ Ultra product/catalog pageSourced - manufacturer product page

    Covers Minimum outdoor cooling temperature, Minimum outdoor heating temperature, performance_spec.max_ambient_heating_temp_f, Maximum outdoor temperature

  4. GREE Comfort: GREE DFS warranty statement for units installed after 2021-12-31Sourced - manufacturer technical document

    Covers Legacy compressor warranty value, Legacy warranty value, Standard compressor warranty, Standard warranty conditions, Standard parts warranty, Warranty notes
