LG / Multi F LGRED R-32

LG Multi F LGRED 18k R-32 208/230V 2-Zone Mini-Split

Certified capacity
18,000 BTU/h[2]
SEER2
20 SEER2[2]
Heating floor
-13 F[1]
Voltage
230 V[1]
Install path
Professional install

The LG Multi F LGRED 2-Zone 18k (KUMXA181A) is the cold-climate version of LG's two-zone: the same two-head, 18k, R-32 platform, upgraded with LGRED (LG's Red) low-temperature heating that holds output far into deep cold. It carries a certified nominal SEER2 of 20 (EER2 13.5, HSPF2 9.8), is ENERGY STAR certified, and is stocked at retail. For two rooms where winter matters, this is the LG two-zone to buy over the standard Multi F.

2 zonesProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

Dealer-installation warranty note

Buying online can keep warranty coverage only when the seller is expressly authorized by LG; confirm that status and the qualified installation path before purchase.

Installation condition: The online source must be expressly authorized by LG; the system must also satisfy LG's qualified-system installation terms.

Dealer path: Expressly authorized LG source with qualified installation by a trained, licensed HVAC contractor under LG warranty terms.

Paid link

$2,709 / Checked Jul 28, 2026

$2,709 at HVACDirect

This system's warranty depends on licensed installation — get quotes from installers in your area.

Get installation quotes
Error Codes

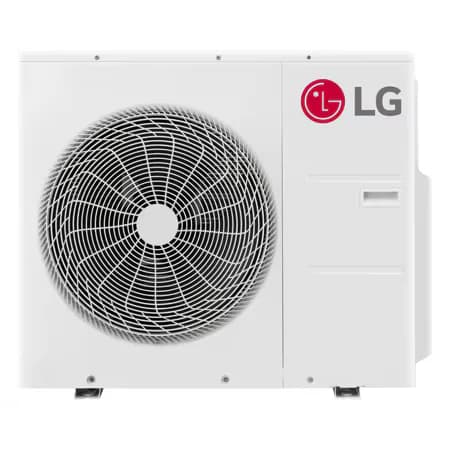

LG Multi F LGRED 2-Zone 18,000 BTU R-32 208/230V (KUMXA181A)

Image: LG

Data completeness: 97%
Last sourced
Jul 28, 2026

SplitAtlas score

8.2 / 10

Methodology
Cooling efficiencyBelow average

(20.0 SEER2) among 18k systems

Heating efficiencyBelow average

(9.8 HSPF2) among 18k systems

Cold-weather performanceAbove average

(5F certified capacity: 90% of the 47F rating; -13 F heating floor) among 18k systems

WarrantyTop quartile

(10 yr parts / 10 yr compressor) across the catalogue

Feature setTop quartile

(6 verified features) across the catalogue

Price-to-performanceBottom quartile

($2,709 median retail) among 18k systems

Documentation & partsBelow average

(7 manuals; spec sheet) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

Key ratings

Rated cooling

18,000BTU/hNon-Ducted Indoor Units[2]

Rated heating

22,000BTU/hNon-Ducted Indoor Units[2]

Buyer review snapshot

Best for / skip if

Best for

  • 2-zone projects in the 18k outdoor capacity class.

Install difficulty

Complex professional install
  • Electrical: 230V; MCA 22.7 A; breaker/fuse 30 A.
  • Line set: connection type not sourced; precharged 82 ft; max 164 ft.
  • 2-zone condenser; indoor-head matching and branch layout are part of the job.

Alternatives

Availability and price context

  • Last seen at HVACDirect on Jul 28, 2026: $2,709.00. Open the listing for today's price. Warranty condition: The online source must be expressly authorized by LG; the system must also satisfy LG's qualified-system installation terms.

Purchase channel policy

LG allows the online-purchase path only when the online source is expressly authorized by LG; an online purchase from a non-authorized source voids the limited warranty.

Warranty impact
The limited warranty is void and LG has no liability when the system is purchased online from a source not expressly authorized by LG.
Installation condition
The online source must be expressly authorized by LG; the system must also satisfy LG's qualified-system installation terms.
Authorized channel
Expressly authorized LG source with qualified installation by a trained, licensed HVAC contractor under LG warranty terms.

Buying online can keep warranty coverage only when the seller is expressly authorized by LG; confirm that status and the qualified installation path before purchase.

Compare online-purchase warranty rules by brand

Source: LG Electronics U.S.A., Inc.: LG R32 Residential / Light Commercial Systems Warranty Card; retrieved Aug 15, 2026.

Source date

Model data sourced
Jul 28, 2026
Page reviewed
Jul 28, 2026
Source-backed records
4
Newest source retrieved
Jul 28, 2026

Warranty tiers

Base
5 yr parts / 7 yr compressor - standard coverage
Registered
10 yr parts / 10 yr compressor - registration within 60 days of startup, by an installer with current LG training and an HVAC license

The score uses Registered. Additional published terms are shown for reference and not counted in the score.

Review methodology

Model context

Install path
This is professional-install equipment; the listed price is for the equipment, so add installation labor. The Buyer review snapshot covers the brand's rules on online purchases.
Structured ratings
Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-32. Minimum heating ambient: -13 F.
Installation context
Multi-zone low-load behavior depends on the indoor heads and how many zones are calling at once.

Strengths

  • LGRED low-temperature heating - LG's cold-climate technology that sustains heating in deep cold.
  • Certified nominal SEER2 20 / EER2 13.5 / HSPF2 9.8, ENERGY STAR certified.
  • Buyable equipment on current R-32; two rooms from one outdoor unit.
  • LG inverter reliability and dealer service.

Weaknesses

  • Lower rated SEER2 than the standard Multi F 2-zone - you trade a little seasonal-cooling efficiency for the cold-climate heating.
  • Two zones only; larger cold-climate homes need a bigger LGRED condenser.

Climate suitability

Minimum heating ambient
-13 F[1]
Certified heating at 5F
19,800 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 17F
13,900 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 47F
22,000 BTU/hNon-Ducted Indoor Units[2]

Specifications

Show
Manufacturer
LG
Brand
LG
Product line
Multi F LGRED R-32
Model number
KUMXA181A
Indoor unit model
Depends on the indoor units you choose
Outdoor unit model
KUMXA181A
Number of zones
2
Max indoor units
2 units[1]
Rated cooling capacity
18,000 BTU/hNon-Ducted Indoor Units[2]
Rated heating capacity
22,000 BTU/hNon-Ducted Indoor Units[2]
Voltage
230 V[1]
MCA
22.7 A[1]
Maximum fuse or breaker size
30 A[1]
Breaker needed
not published
SEER2
20 SEER2Non-Ducted Indoor Units[2]
EER2
13.5 EER2Non-Ducted Indoor Units[2]
HSPF2 (Region 4)
9.8 HSPF2Non-Ducted Indoor Units[2]
HSPF2 (Region 5)
Varies by indoor-unit combination
COP
not published
COP at 47F
not published
COP at 5F
1.85 COPNon-Ducted Indoor Units[2]
Minimum outdoor heating temperature
-13 F[1]
Minimum outdoor cooling temperature
14 F[1]
Maximum outdoor temperature
118 F[1]
Indoor noise range
Depends on the indoor units you choose
Outdoor noise rating
54 dBA[1]
Indoor weight
Depends on the indoor units you choose
Outdoor weight
147.7 lb[1]
Refrigerant
R-32[2]
Refrigerant charge
not published
Manufacturer coverage
not published
Line-set size
1/4 in x 2 liquid / 3/8 in x 2 suction
Included line-set length
Depends on the indoor units you choose
Maximum line-set length
164 ft[1]
Max line set per indoor
82 ft[1]
Maximum elevation difference
49.2 ft[1]
Max height between indoor units
24.6 ft[1]
Wi-Fi support
Depends on the indoor units you choose
Energy Star status
ENERGY STAR certified[3]
AHRI certification number
214848473Non-Ducted Indoor Units[2]
Warranty
Base: 5 yr parts / 7 yr compressor (standard coverage); Registered: 10 yr parts / 10 yr compressor (registration within 60 days of startup, by an installer with current LG training and an HVAC license). Score uses Registered.. Standard 5-year parts and 7-year compressor coverage; qualified registered installations extend to 10 years total parts and compressor coverage.
Install path
Professional install
Retail price
$2,709.00
Available retailers
HVACDirect
Manual links
AHRI public detail 214848473, LG Multi F LGRED R-32 combination data manual, ENERGY STAR exact row 214848473, LG Multi F LGRED R-32 current DDepot product page, KUMXA181A LG Multi F LGRED R-32 submittal, LG R32 Residential / Light Commercial Systems Warranty Card
Specification sheet
KUMXA181A LG Multi F LGRED R-32 submittal
Last sourced date
Jul 28, 2026

Retail purchase context

Dealer-installation warranty note

Buying online can keep warranty coverage only when the seller is expressly authorized by LG; confirm that status and the qualified installation path before purchase.

Installation condition: The online source must be expressly authorized by LG; the system must also satisfy LG's qualified-system installation terms.

Dealer path: Expressly authorized LG source with qualified installation by a trained, licensed HVAC contractor under LG warranty terms.

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Dealer-installation warranty note

Buying online can keep warranty coverage only when the seller is expressly authorized by LG; confirm that status and the qualified installation path before purchase.

$2,709 at HVACDirect

$2,709 / Checked Jul 28, 2026

Compatible indoor units

This is an outdoor unit. You choose its indoor heads separately - up to the maximum this condenser supports - and you can mix room sizes and styles across the zones. The models below are the heads this unit is documented to pair with.

  • Concealed ducteds

    9k, 12k

    Model numbers
    • 9k: KNMKB091A
    • 9k: KNUJB091A
    • 12k: KNMKB121A
    • 12k: KNUJB121A

  • Four-way ceiling cassettes

    7k, 9k, 12k

    Model numbers
    • 7k: KNMDB071A
    • 9k: KNUDB091A
    • 12k: KNUDB121A

  • One-way ceiling cassettes

    7k, 9k, 12k

    Model numbers
    • 7k: KNMFB071A
    • 9k: KNUFB091A
    • 12k: KNUFB121A

Sizing note: do not just add up the rooms. Multi-zone condensers have a maximum total connected capacity, and connecting more head capacity than the unit is rated for is a common installer mistake that hurts efficiency and comfort. Match total head capacity to the condenser's rating.

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
22.7 A[1]
Breaker needed
not published
Maximum breaker size
30 A[1]
Maximum fuse size
not published
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in x 2[1]
Suction line
3/8 in x 2[1]
Line connection type
not published
Precharged length
82 ft[1]
Included line-set length
Depends on the indoor units you choose
Maximum line-set length
164 ft[1]
Max line set per indoor
82 ft[1]
Max height between indoor units
24.6 ft[1]
Indoor dimensions
Depends on the indoor units you choose
Outdoor dimensions
32.844 x 37.406 x 13 in[1]
Indoor weight
Depends on the indoor units you choose
Outdoor weight
147.7 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the LG Multi F LGRED 2-Zone 18,000 BTU R-32 208/230V (KUMXA181A) myself, or do I need a pro?
LG Multi F LGRED 2-Zone 18,000 BTU R-32 208/230V (KUMXA181A) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the LG Multi F LGRED 2-Zone 18,000 BTU R-32 208/230V (KUMXA181A) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 19,800 BTU/h of heating capacity at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 9.8 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the LG Multi F LGRED 2-Zone 18,000 BTU R-32 208/230V (KUMXA181A) need?
Published electrical requirements: 230 V voltage, 22.7 A minimum circuit ampacity, and 30 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length from the outdoor unit to one indoor head is 82 ft. The combined piping limit across all heads is 164 ft. The outdoor unit's factory charge covers up to 82 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
What warranty does the LG Multi F LGRED 2-Zone 18,000 BTU R-32 208/230V (KUMXA181A) carry?
The manufacturer publishes these warranty tiers: Base: 5 yr parts / 7 yr compressor (standard coverage); Registered: 10 yr parts / 10 yr compressor (registration within 60 days of startup, by an installer with current LG training and an HVAC license). Score uses Registered.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
