Midea / Midea Elevate Max
Midea Elevate Max 18k R-454B 208/230V Mini-Split
The largest Max head scales the hyper-heat idea to 1.5 tons: certified heating of 20,000 BTU at 47F, 19,300 BTU at 17F and 22,600 BTU at 5F on R-454B. It backs that with a very high 15.2 HSPF2, plus 24.5 SEER2 and 14.0 EER2. For a unit this size, more capacity at 5F than at 47F is exactly what a cold-climate buyer wants.
1 zoneProfessional installCurrent
Refrigerant generation
R-454B - current-generation refrigerant
Need this installed?
Get installation quotes

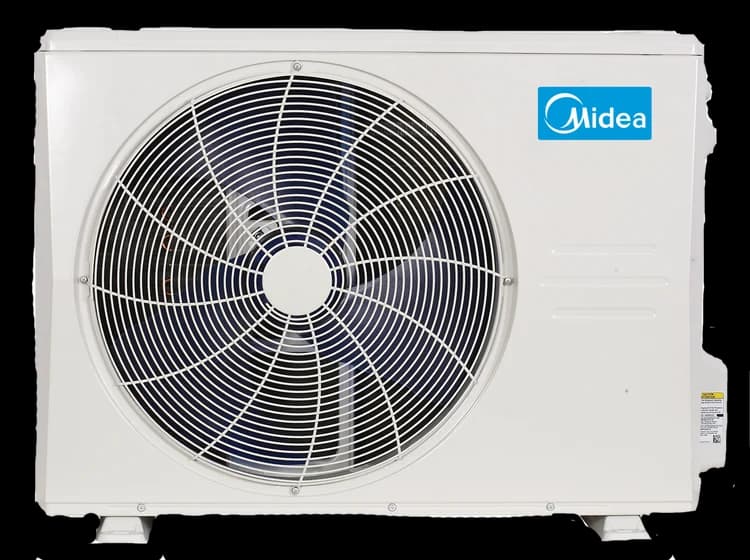

Image: Midea Ductless
Data completeness: 100%
- Last sourced
- Jul 27, 2026
SplitAtlas score
9.2 / 10
Cooling efficiencyTop quartile
(24.5 SEER2) among 18k systems
Heating efficiencyTop 10%
(15.2 HSPF2) among 18k systems
Cold-weather performanceTop quartile
(5F certified capacity: 100% of the 47F rating; -22 F heating floor) among 18k systems
WarrantyAbove average
(10 yr parts, no separate compressor term) across the catalogue
Feature setAbove average
(5 verified features) across the catalogue
Documentation & partsBelow average
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Key ratings
Best-fit use cases
Ideal for a large room or open area in a severe-winter climate where a buyer wants substantial deep-cold heat with seasonal heating efficiency among the highest we list at this size.
Buyer review snapshot
Best for / skip if
Best for
- High-efficiency shortlists; SEER2 is 24.5.
Install difficulty
Professional install
- Electrical: 230V.
- Line set: connection type not sourced; max 98 ft.
Availability and price context
This system needs a professional install, so its real price is an installed quote that depends on your home. We don't link to a listing for this exact model; get installation quotes to price it.
Source date
- Model data sourced
- Jul 27, 2026
- Page reviewed
- Jul 27, 2026
- Source-backed records
- 3
- Newest source retrieved
- Jul 27, 2026
Warranty tiers
- Registered
- 10 yr parts / no separate compressor term - timely registration
The score uses Registered. Additional published terms are shown for reference and not counted in the score.
Model context
- Structured ratings
- Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -22 F.
Strengths
- 22,600 BTU certified at 5F, above its 47F rating - real deep-cold capacity at 1.5 tons.
- Excellent 15.2 HSPF2 for a head this large, meaning low seasonal heating cost.
- ENERGY STAR certified, cold-climate designated, low-GWP R-454B.
Weaknesses
- 24.5 SEER2 is the lowest of the Max heads, so its cooling efficiency, while good, is not class-leading.
- Larger capacity means a bigger 230V install job.
Climate suitability
- Minimum heating ambient
- -22 F[1]
- Certified heating at 5F
- 22,600 BTU/h[2]
- Rated heating at 17F
- 19,300 BTU/h[2]
- Rated heating at 47F
- 20,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- Midea
- Brand
- Midea
- Product line
- Midea Elevate Max
- Model number
- D5FPHAH18XAK indoor / D5CPRAH18AA outdoor
- Indoor unit model
- D5FPHAH18XAK
- Outdoor unit model
- D5CPRAH18AA
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 18,000 BTU/h[2]
- Rated heating capacity
- 20,000 BTU/h[2]
- Voltage
- 230 V[1]
- MCA
- Not published for this model
- Maximum fuse or breaker size
- Not published for this model
- Breaker needed
- not published
- SEER2
- 24.5 SEER2[2]
- EER2
- 14 EER2[2]
- HSPF2 (Region 4)
- 15.2 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 2.34 COP[2]
- Minimum outdoor heating temperature
- -22 F[1]
- Minimum outdoor cooling temperature
- -22 F[1]
- Maximum outdoor temperature
- 122 F[1]
- Indoor noise range
- Not published for this model
- Outdoor noise rating
- 57 dBA[1]
- Indoor weight
- Not published for this model
- Outdoor weight
- Not published for this model
- Refrigerant
- R-454B[2]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- Not published for this model liquid / Not published for this model suction
- Included line-set length
- Professional installations use separately selected line sets
- Maximum line-set length
- 98 ft[1]
- Max line set per indoor
- not published
- Maximum elevation difference
- Not published for this model
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 215413298[2]
- Warranty
- Registered: 10 yr parts / no separate compressor term (timely registration). Score uses Registered.. 10-year parts limited warranty upon timely registration
- Install path
- Professional install
- Retail price
- Installed quote only
- Available retailers
- not published
- Manual links
- ENERGY STAR exact check 215413298, Elevate Max installation documentation listing, Elevate Max high-wall indoor product page, Midea Elevate Max Single-Zone Heat Pump, AHRI Appendix M1 public detail 215413298
- Specification sheet
- AHRI Appendix M1 public detail 215413298
- Last sourced date
- Jul 27, 2026
Electrical requirements
ShowHide
- Voltage
- 230 V[1]
- Voltage range
- 208/230V[1]
- Phase
- 1[1]
- Frequency
- 60 Hz[1]
- MCA
- Not published for this model
- Breaker needed
- not published
- Maximum breaker size
- Not published for this model
- Maximum fuse size
- Not published for this model
- Maximum cooling current
- not published
- Maximum heating current
- not published
- Manufacturer wire notes
- not published
Installation considerations
ShowHide
- Liquid line
- Not published for this model
- Suction line
- Not published for this model
- Line connection type
- not published
- Precharged length
- not published
- Included line-set length
- Professional installations use separately selected line sets
- Maximum line-set length
- 98 ft[1]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- Not published for this model
- Outdoor dimensions
- Not published for this model
- Indoor weight
- Not published for this model
- Outdoor weight
- Not published for this model
- Drain size
- not published
Related systems and guides
- More Midea systems
- Midea Elevate High Heat 18k R-454B 208/230V Mini-Split
- Midea Essence 18k R-454B 208/230V Mini-Split
- Midea Elevate 18k R-454B 208/230V Mini-Split
- Mitsubishi M-Series GS 18k 230V Mini-Split
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- Midea mini split review: is Midea any good?
- The best 18,000 BTU mini splits of 2026
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- The mini split defrost cycle, explained
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split remote not working
- Mini split outdoor unit not running
- Mini split making loud noise
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the Midea Elevate Max 18,000 BTU R-454B 208/230V (D5FPHAH18XAK / D5CPRAH18AA) myself, or do I need a pro?
- Midea Elevate Max 18,000 BTU R-454B 208/230V (D5FPHAH18XAK / D5CPRAH18AA) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the Midea Elevate Max 18,000 BTU R-454B 208/230V (D5FPHAH18XAK / D5CPRAH18AA) keep heating in a cold winter?
- The AHRI/ENERGY STAR certification lists 22,600 BTU/h of heating capacity at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 15.2 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the Midea Elevate Max 18,000 BTU R-454B 208/230V (D5FPHAH18XAK / D5CPRAH18AA) need?
- Published electrical requirements: 230 V voltage. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 98 ft. Measure the planned routing before ordering.
- What warranty does the Midea Elevate Max 18,000 BTU R-454B 208/230V (D5FPHAH18XAK / D5CPRAH18AA) carry?
- The manufacturer publishes these warranty tiers: Registered: 10 yr parts / no separate compressor term (timely registration). Score uses Registered.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
Data sources
ShowHide
- Midea America Corp.: Midea Elevate Max Single-Zone Heat PumpSourced - manufacturer product page
Covers Frequency, Phase, Voltage, Voltage range, Maximum line-set length, Outdoor noise rating and more
- Air-Conditioning, Heating, and Refrigeration Institute: AHRI Appendix M1 public detail for D5CPRAH18AA / D5FPHAH18XAKSourced - AHRI directory
Covers AHRI certification number, performance_spec.cold_climate_designation, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity and more
- ENERGY STAR: ENERGY STAR exact row check for AHRI 215413298Sourced - Energy Star listing
Covers Energy Star status
Last updated
Jul 27, 2026
