MRCOOL DIY 5th Gen 18k 3-Zone Mini-Split

Certified capacity
Varies by indoor-unit combination
SEER2
Varies by indoor-unit combination
Heating floor
-13 F[4]
Voltage
208/230V[1]
Install path
DIY install

The MRCOOL DIY 3-Zone 18k is the entry point into whole-home ductless you can install yourself. One 208-230V condenser feeds up to three indoor heads, and because it is part of MRCOOL's DIY line, it uses the same Quick Connect line sets as the single-zone units - the no-vacuum, no-refrigerant-license approach - rather than field-charged copper. What it deliberately does not carry is a single efficiency rating: SEER2 on any multi-zone system depends on which indoor heads you attach, so we show the head options instead of printing one misleading number.

3 zonesDIY installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

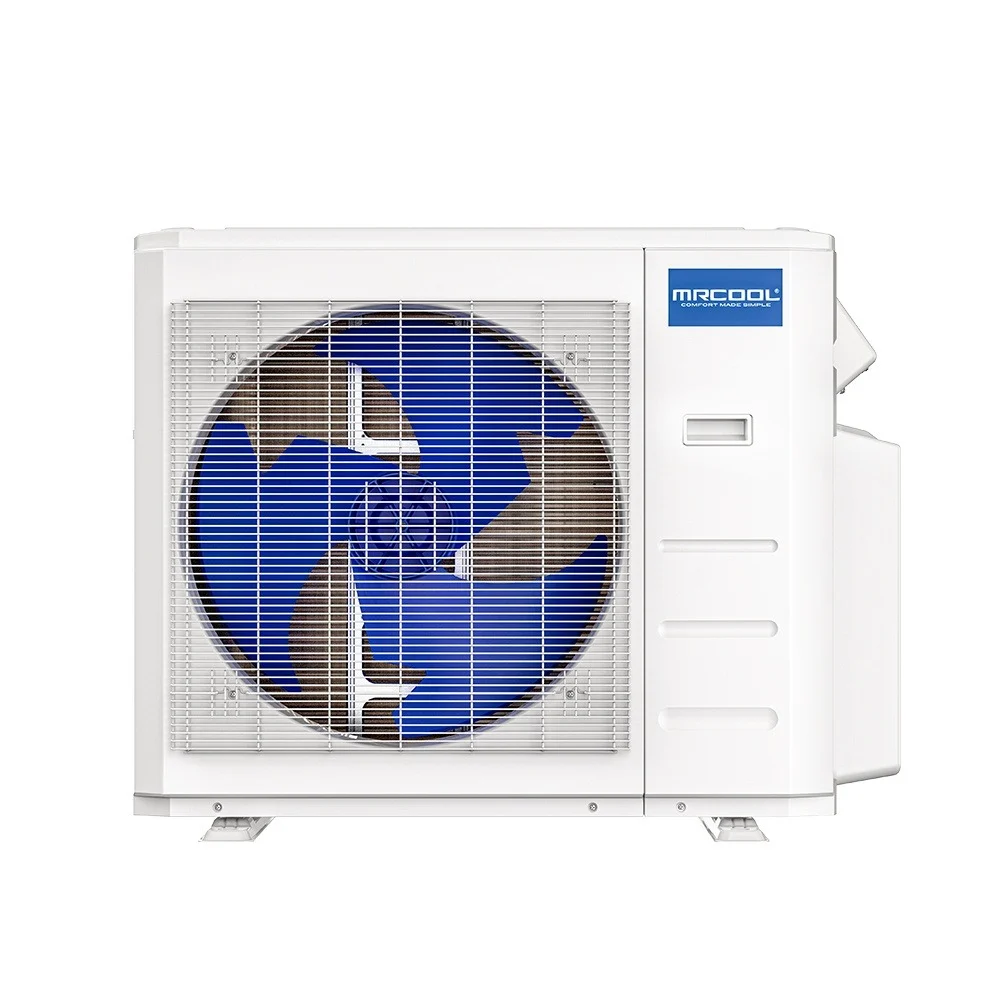

MRCOOL DIY 5th Gen Multi-Zone 18k 3-zone outdoor condenser

Image: HVACDirect

Data completeness: 97%
Last sourced
Aug 17, 2026

SplitAtlas score

not yet rated - data incomplete

Methodology
  • scored 2 of 9 applicable categories, need at least 5

Key ratings

Rated cooling

Varies by indoor-unit combination

Rated heating

Varies by indoor-unit combination

Best-fit use cases

A single floor, a small home, or a three-room addition where one outdoor location and one electrical circuit matter more than squeezing out a certified efficiency number - and where the owner is comfortable routing a few line sets to save the multi-zone install labor.

Buyer review snapshot

Install difficulty

DIY multi-zone with planning load
  • Electrical: 208/230V; MCA 16 A; breaker/fuse 20 A.
  • Line set: Quick-connect line connections; max 172 ft.
  • 3-zone condenser; indoor-head matching and branch layout are part of the job.

Availability and price context

  • Last seen at HVACDirect on Jul 20, 2026: $1,555.00. Open the listing for today's price.
  • Sold at Amazon. Open the listing for today's price and stock.

Source date

Model data sourced
Aug 17, 2026
Page reviewed
Jul 20, 2026
Source-backed records
5
Newest source retrieved
Aug 17, 2026

Review methodology

Strengths

  • One outdoor unit covers up to three rooms, mixing head styles - wall cassettes and one-way ceiling cassettes, 6k through 18k - across zones.
  • DIY-installable: MRCOOL Quick Connect line sets, and the 5-year parts / 7-year compressor warranty does not disclaim self-installation (unlike the dealer-only pro brands).
  • Modest electrical load for a 3-zone system: 16 A minimum circuit ampacity on a single 208-230V circuit.
  • Rated to operate down to -13F.
  • R-454B refrigerant - the current lower-GWP generation.

Weaknesses

  • No published combination efficiency rating. MRCOOL's AHRI certificate names the outdoor unit and indoor type, not the exact head set, so we will not attach a SEER2 to a configuration it was not certified for. Efficiency shoppers who want a certified number are better served by a single-zone unit.
  • Multi-zone is a bigger DIY job than a single head: three line sets to route, three heads to mount and balance. Capable, but not a one-afternoon install.
  • Like all multi-zone condensers, it runs less efficiently when only one small zone is calling - a real part-load penalty versus separate single-zone systems.
  • Do not size it by adding up the rooms; respect the condenser's total connectable capacity (see the sizing note on the page).

Climate suitability

Minimum heating ambient
-13 F[4]
Certified heating at 5F
Varies by indoor-unit combination
Rated heating at 17F
Varies by indoor-unit combination
Rated heating at 47F
Varies by indoor-unit combination

Specifications

Show
Manufacturer
MRCOOL
Brand
MRCOOL
Product line
DIY 5th Gen Multi-Zone
Model number
DIY-MULTI3-18HP230D-O
Indoor unit model
Depends on the indoor units you choose
Outdoor unit model
DIY-MULTI3-18HP230D-O
Number of zones
3
Max indoor units
3 units[1]
Rated cooling capacity
Varies by indoor-unit combination
Rated heating capacity
Varies by indoor-unit combination
Voltage
208/230V[1]
MCA
16 A[1]
Maximum fuse or breaker size
20 A[1]
Breaker needed
not published
SEER2
Varies by indoor-unit combination
EER2
Varies by indoor-unit combination
HSPF2 (Region 4)
Varies by indoor-unit combination
HSPF2 (Region 5)
Varies by indoor-unit combination
COP
not published
COP at 47F
not published
COP at 5F
not published
Minimum outdoor heating temperature
-13 F[4]
Minimum outdoor cooling temperature
-13 F[4]
Maximum outdoor temperature
122 F[4]
Indoor noise range
Depends on the indoor units you choose
Outdoor noise rating
60 dBA[1]
Indoor weight
Depends on the indoor units you choose
Outdoor weight
101.63 lb[1]
Refrigerant
R-454B[1]
Refrigerant charge
61.73 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 3/8 in suction
Included line-set length
Depends on the indoor units you choose
Maximum line-set length
172 ft[4]
Max line set per indoor
75 ft[4]
Maximum elevation difference
33 ft[4]
Max height between indoor units
24 ft[4]
Wi-Fi support
Depends on the indoor units you choose
Energy Star status
not published
AHRI certification number
Varies by indoor-unit combination
Warranty
not published
Install path
DIY install
Retail price
last seen at HVACDirect on Jul 20, 2026: $1,555.00
Available retailers
HVACDirect, Amazon
Manual links
AHRI certificate for DIY-MULTI3-18HP230D-O, MRCOOL DIY Series Multi-Zone Mini-Split System Installation & Owner's Manual, MRCOOL R-454B Compatibility, MRCOOL DIY 5th Gen Multi-Zone 18k 3-Zone Outdoor Unit MRCOOL support article, MRCOOL DIY 5th Gen Multi-Zone brochure
Specification sheet
MRCOOL DIY 5th Gen Multi-Zone brochure
Last sourced date
Aug 17, 2026

Retail purchase context

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect

Reference-only price

Last seen at HVACDirect on Jul 20, 2026: $1,555

Check price on Amazon

Compatible indoor units

This is an outdoor unit. You choose its indoor heads separately - up to the maximum this condenser supports - and you can mix room sizes and styles across the zones. The models below are the heads this unit is documented to pair with.

  • One-way ceiling cassettes

    6k, 9k, 12k, 18k

    Model numbers
    • 6k: DIYCASSETTE06HP-230D25-O
    • 9k: DIYCASSETTE09HP-230D25-O
    • 12k: DIYCASSETTE12HP-230D25-O
    • 18k: DIYCASSETTE18HP-230D25-O

  • Wall-mounteds

    6k, 9k, 12k

    Model numbers
    • 6k: DIY-06-HP-WMAH-230D25-O
    • 9k: DIY-09-HP-WMAH-230D25-O
    • 12k: DIY-12-HP-WMAH-230D25-O

Sizing note: do not just add up the rooms. Multi-zone condensers have a maximum total connected capacity, and connecting more head capacity than the unit is rated for is a common installer mistake that hurts efficiency and comfort. Match total head capacity to the condenser's rating.

Parts and filters

Fits MRCOOL DIY 5th Gen Multi-Zone 18k 3-Zone Outdoor Unit. Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

smart-thermostat

MRCOOL Smart Wi-Fi Mini Stat

Fits
MRCOOL DIY 5th Gen Multi-Zone 18k 3-Zone Outdoor Unit
OEM part number
MST05
Fit note
Fits DIY-MULTI3-18HP230D-O. Use with compatible connected MRCOOL mini-split indoor heads where a wall-mounted smart control is desired. HVACDirect was verified as a live exact-part page on 2026-08-01; verify each indoor head before ordering.
Source
MRCOOL Mini-Stats, MRCOOL Mini Stats, page article (MST05)

quick-connect-line-set

25 ft Quick Connect precharged line set - 1/4 x 3/8

Fits
MRCOOL DIY 5th Gen Multi-Zone 18k 3-Zone Outdoor Unit
OEM part number
DIY25-1438-O
Fit note
Fits DIY-MULTI3-18HP230D-O. Match line-set size to the connected indoor head and port. Use this 1/4 x 3/8 R-454B Quick Connect line set for compatible 6k, 9k, and 12k MRCOOL DIY indoor heads. HVACDirect was verified as a live exact-part page on 2026-08-01.
Source
MRCOOL 5th Gen R-454B DIY Line Set 1/4 - 3/8, DIY 5th Gen 6k, 9k & 12k, page article (DIY25-1438-O)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect
Replacement Parts & Filters

Electrical requirements

Show
Voltage
not published
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
16 A[1]
Breaker needed
not published
Maximum breaker size
not published
Maximum fuse size
20 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in[3]
Suction line
3/8 in[3]
Line connection type
Quick-connect line connections[2]
Precharged length
not published
Included line-set length
Depends on the indoor units you choose
Maximum line-set length
172 ft[4]
Max line set per indoor
75 ft[4]
Max height between indoor units
24 ft[4]
Indoor dimensions
Depends on the indoor units you choose
Outdoor dimensions
35.04 x 13.46 x 26.50 in[1]
Indoor weight
Depends on the indoor units you choose
Outdoor weight
101.63 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the MRCOOL DIY 5th Gen Multi-Zone 18k 3-Zone Outdoor Unit myself, or do I need a pro?
MRCOOL DIY 5th Gen Multi-Zone 18k 3-Zone Outdoor Unit is sold as a DIY-installable system. The electrical circuit is the part that is not DIY: plan on a licensed electrician for the dedicated circuit, and check whether your local permit office requires a permit for the install.
Will the MRCOOL DIY 5th Gen Multi-Zone 18k 3-Zone Outdoor Unit keep heating in a cold winter?
Rated heating operation extends down to -13 F. Match that published heating floor against your climate's design temperature - below the low-ambient rating, output can fall off or the system can pause to protect itself.
What electrical circuit does the MRCOOL DIY 5th Gen Multi-Zone 18k 3-Zone Outdoor Unit need?
Published electrical requirements: 208/230V voltage, 16 A minimum circuit ampacity, and 20 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length from the outdoor unit to one indoor head is 75 ft. The combined piping limit across all heads is 172 ft. Measure the planned routing before ordering.
