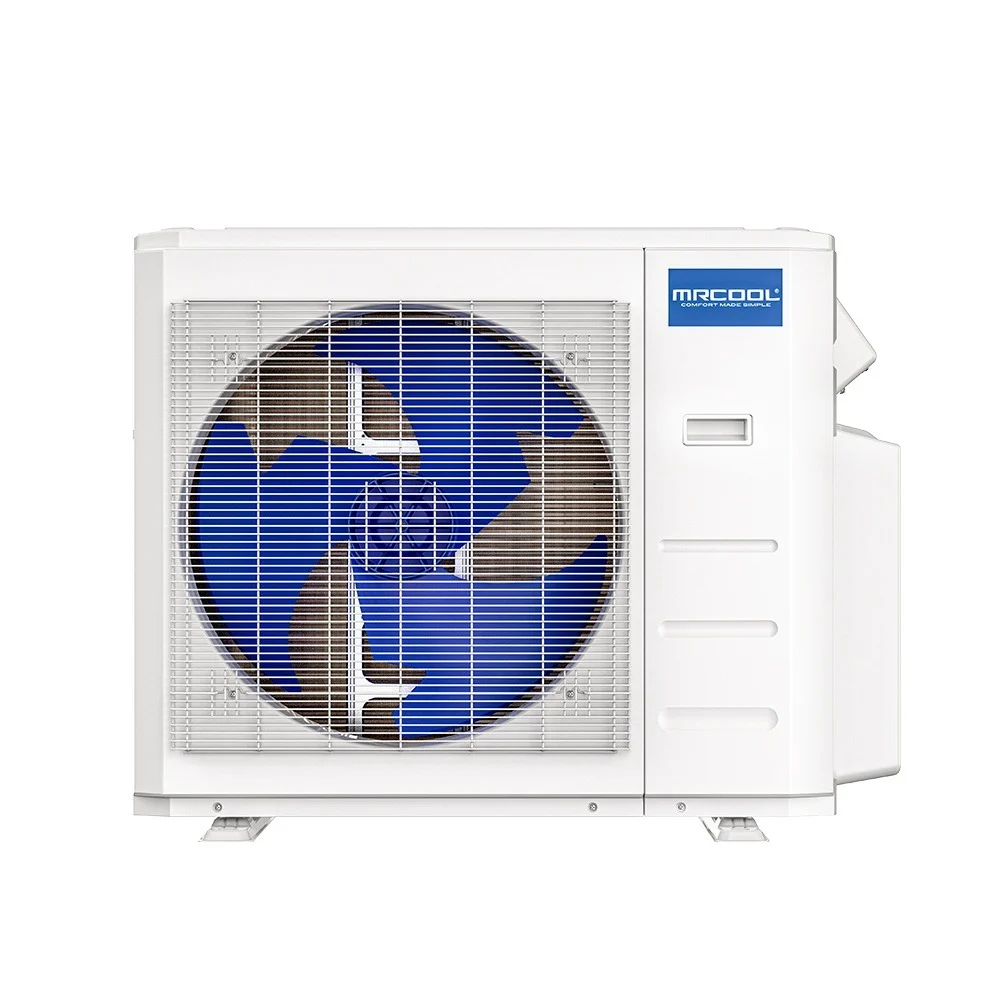

MRCOOL DIY 5th Gen Multi-Zone 27k 4-Zone Outdoor Unit

Model data is drawn from manufacturer, retailer, and certification sources. Missing specifications remain marked as not published.

4 zoneDIY installDIY-marketedCurrent
Data completeness: 97%
Last verified
Jul 20, 2026

SplitAtlas score

not yet rated - data incomplete

Methodology
  • no scoring run is available

1. Summary

The DIY 4-Zone 27k steps the same self-install multi-zone formula up to four indoor heads and 27,000 BTU of nominal outdoor capacity. It is the size most whole-small-home projects land on: enough zones for the main living spaces plus two bedrooms, still on a single 208-230V condenser with MRCOOL's Quick Connect line sets and the DIY-friendly 5/7-year warranty.

Rated cooling

Certified per indoor-unit combination, not per outdoor unit

Rated heating

Certified per indoor-unit combination, not per outdoor unit

2. Best-fit use cases

A small whole home or a well-defined four-room zone plan (living area plus bedrooms) where one condenser, one circuit, and self-install economics win over per-room single-zone systems.

3. Key specifications

Manufacturer
MRCOOL
Brand
MRCOOL
Product line
DIY 5th Gen Multi-Zone
Model number
DIY-MULTI4-27HP230D-O
Indoor unit model
Indoor heads are selected separately on a multi-zone system
Outdoor unit model
DIY-MULTI4-27HP230D-O
Number of zones
4
Max indoor units
4 unitsVerified - manufacturer technical document
Rated cooling capacity
Certified per indoor-unit combination, not per outdoor unit
Rated heating capacity
Certified per indoor-unit combination, not per outdoor unit
Voltage
208-230VVerified - manufacturer technical document
MCA
23 AVerified - manufacturer technical document
Maximum fuse or breaker size
25 AVerified - manufacturer technical document
Breaker needed
not published
SEER2
Certified per indoor-unit combination, not per outdoor unit
EER2
Certified per indoor-unit combination, not per outdoor unit
HSPF2 (Region 4)
Certified per indoor-unit combination, not per outdoor unit
HSPF2 (Region 5)
Certified per indoor-unit combination, not per outdoor unit
COP
not published
COP at 47F
not published
COP at 5F
not published
Minimum outdoor heating temperature
-13 FVerified - manufacturer technical document
Minimum outdoor cooling temperature
-13 FVerified - manufacturer technical document
Maximum outdoor temperature
122 FVerified - manufacturer technical document
Indoor noise range
Indoor heads are selected separately on a multi-zone system
Outdoor noise rating
61 dBAVerified - manufacturer technical document
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
140.21 lbVerified - manufacturer technical document
Refrigerant
R-454BVerified - manufacturer technical document
Refrigerant charge
84.66 ozVerified - manufacturer technical document
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 3/8 in suction
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
221 ftVerified - manufacturer technical document
Max line set per indoor
75 ftVerified - manufacturer technical document
Maximum elevation difference
33 ftVerified - manufacturer technical document
Max height between indoor units
24 ftVerified - manufacturer technical document
Wi-Fi support
Indoor heads are selected separately on a multi-zone system
Energy Star status
not published
AHRI certification number
Certified per indoor-unit combination, not per outdoor unit
Warranty
5 years parts / 7 years compressor
DIY installation status
DIY-marketed
Retail price
$2,100.00
Installation type
DIY install
Available retailers
HVACDirect
Manual links
AHRI certificate for DIY-MULTI4-27HP230D-O, MRCOOL DIY Series Multi-Zone Installation & Owner's Manual, MRCOOL R-454B Compatibility, MRCOOL DIY 5th Gen Multi-Zone 27k 4-Zone Outdoor Unit MRCOOL support article, MRCOOL DIY 5th Gen Multi-Zone brochure
Specification sheet
MRCOOL DIY 5th Gen Multi-Zone brochure
Last verified date
Jul 20, 2026

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect

$2,100 / Fresh price - checked Jul 20, 2026

Compatible indoor units

This is an outdoor unit. You choose its indoor heads separately - up to the maximum this condenser supports - and you can mix room sizes and styles across the zones. The models below are the heads this unit is documented to pair with.

  • Hybrid air handlers

    24k

    Model numbers
    • 24k: DIY-24-HP-MUAH-230D25-O

  • One-way ceiling cassettes

    6k, 9k, 12k, 18k

    Model numbers
    • 6k: DIYCASSETTE06HP-230D25-O
    • 9k: DIYCASSETTE09HP-230D25-O
    • 12k: DIYCASSETTE12HP-230D25-O
    • 18k: DIYCASSETTE18HP-230D25-O

  • Wall-mounted air handlers

    6k, 9k, 12k, 18k

    Model numbers
    • 6k: DIY-06-HP-WMAH-230D25-O
    • 9k: DIY-09-HP-WMAH-230D25-O
    • 12k: DIY-12-HP-WMAH-230D25-O
    • 18k: DIY-18-HP-WMAH-230D25-O

Sizing note: do not just add up the rooms. Multi-zone condensers have a maximum total connected capacity, and connecting more head capacity than the unit is rated for is a common installer mistake that hurts efficiency and comfort. Match total head capacity to the condenser's rating.

4. Strengths

  • Up to four zones from one condenser, freely mixing head sizes and wall/cassette styles per room.
  • DIY install path (Quick Connect line sets); warranty does not disclaim self-installation.
  • R-454B; rated to operate down to -13F.
  • One outdoor unit and one circuit for a four-room retrofit that would otherwise mean four separate systems.

5. Weaknesses

  • No certified combination SEER2 (the multi-zone reality - see the page for why); efficiency shoppers who want a number should compare single-zone units.
  • 23 A minimum circuit ampacity - confirm your panel has the capacity before counting on a DIY install.
  • A four-line-set install is real work; capable DIYer territory, not beginner.
  • Part-load efficiency penalty when only one zone runs.

6. Climate suitability

Minimum heating ambient
-13 FVerified - manufacturer technical document
Rated heating at 5F
Certified per indoor-unit combination, not per outdoor unit
Rated heating at 17F
Certified per indoor-unit combination, not per outdoor unit
Rated heating at 47F
Certified per indoor-unit combination, not per outdoor unit

7. Electrical requirements

Voltage
not published
Voltage range
208-230VVerified - manufacturer technical document
Phase
1Verified - manufacturer technical document
Frequency
60 HzVerified - manufacturer technical document
MCA
23 AVerified - manufacturer technical document
Breaker needed
not published
Maximum breaker size
not published
Maximum fuse size
25 AVerified - manufacturer technical document
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

8. Installation considerations

Liquid line
1/4 inVerified - manufacturer product page
Suction line
3/8 inVerified - manufacturer product page
Precharged length
not published
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
221 ftVerified - manufacturer technical document
Max line set per indoor
75 ftVerified - manufacturer technical document
Max height between indoor units
24 ftVerified - manufacturer technical document
Indoor dimensions
Indoor heads are selected separately on a multi-zone system
Outdoor dimensions
37.24 x 16.14 x 31.89 inVerified - manufacturer technical document
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
140.21 lbVerified - manufacturer technical document
Drain size
not published

9. Operating-cost estimate

not published

10. Comparable models

not published

Frequently asked questions

Can I install the MRCOOL DIY 5th Gen Multi-Zone 27k 4-Zone Outdoor Unit myself, or do I need a pro?
MRCOOL DIY 5th Gen Multi-Zone 27k 4-Zone Outdoor Unit is sold as a DIY-installable system. The electrical circuit is the part that is not DIY: plan on a licensed electrician for the dedicated circuit, and check whether your local permit office requires a permit for the install.
Will the MRCOOL DIY 5th Gen Multi-Zone 27k 4-Zone Outdoor Unit keep heating in a cold winter?
Rated heating operation extends down to -13 F. Match that published heating floor against your climate's design temperature - below the low-ambient rating, output can fall off or the system can pause to protect itself.
What electrical circuit does the MRCOOL DIY 5th Gen Multi-Zone 27k 4-Zone Outdoor Unit need?
Published electrical requirements: 208-230V voltage, 23 A minimum circuit ampacity, and 25 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 221 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the MRCOOL DIY 5th Gen Multi-Zone 27k 4-Zone Outdoor Unit carry?
The manufacturer publishes 5 years parts coverage and 7 years compressor coverage. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
