Pioneer / Diamante Essenza
Pioneer Diamante Essenza 11.5k R-32 208/230V Mini-Split
The Essenza 12k is Pioneer's cheapest way into a 1-ton room, and the price is the whole argument. SEER2 17 is the lowest efficiency Pioneer sells, and rated heating stops at +5F - so this is a cooling unit that happens to have a heat pump attached.
In a hot climate where winter is incidental that is a reasonable trade. Anywhere with a real winter, the Diamante Pro 12k costs modestly more and holds -4F, and Quantum Ultra holds -13F.
Refrigerant generation
R-32 - current-generation refrigerant
Paid link
$738 / Fresh price - checked Jul 24, 2026
Need this installed?
Get installation quotes

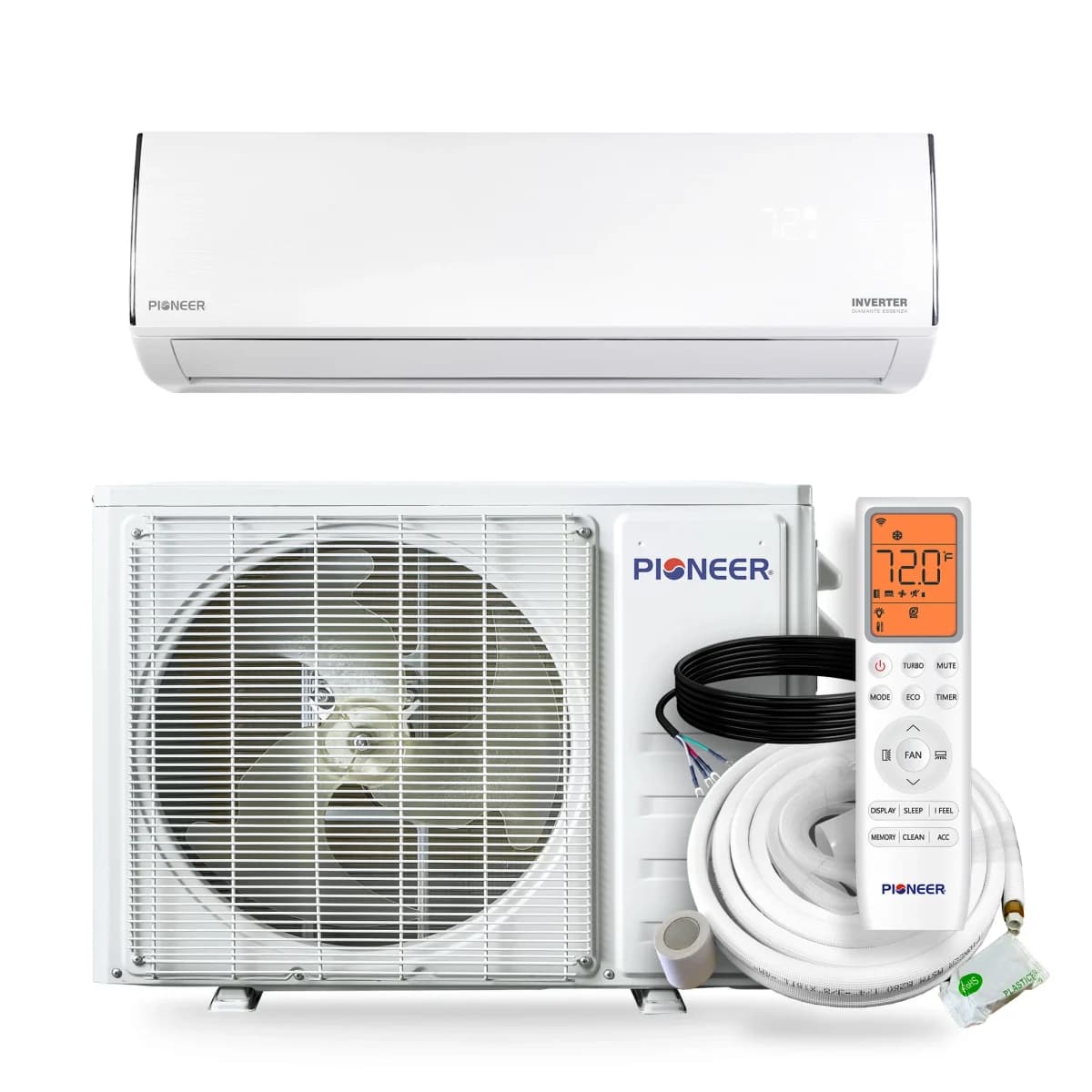

Image: Pioneer
- Last sourced
- Jul 24, 2026
SplitAtlas score
7.2 / 10
(17.0 SEER2) among 12k systems
(8.5 HSPF2) among 12k systems
(60.9% heat retained at 5F; 5 F heating floor) among 12k systems
(33 dBA indoor min / 55 dBA outdoor) among 12k systems
(4 verified features) across the catalogue
($738 median retail) among 12k systems
(6 manuals; spec sheet; 57 error-code rows) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
Key ratings
Buyer review snapshot
Best for / skip if
Skip if
- Top-efficiency cooling is the priority; SEER2 is 17.
Install difficulty
- Electrical: 230V; breaker/fuse 15 A.
- Line set: connection type not sourced; included 16 ft; max 50 ft.
Alternatives
- Daikin ATMOSPHERA 12,000 BTU R-32 208/230V (FTXM12WVJU9 / RXM12WVJU9)
9.0 score / 12k / SEER2 25.2 / -13 F heating floor / 208/230V
Exact destination at HVACDirect: $2,848.00, checked Jul 23, 2026
- Blueridge XS6 Max Efficiency 12,000 BTU R-454B 208/230V (BXS6A12WM0 / BXS6A12UC0)
8.9 score / 12k / SEER2 29.4 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $1,979.00, checked Jul 24, 2026
- Senville ELITE 12,000 BTU R-454B 208/230V (SENE-12EL-IHH / SENE-12EL-OH)
8.9 score / 12k / SEER2 29.4 / -22 F heating floor / 187-253V
Exact destination at Senville: $1,699.99, checked Jul 24, 2026
Availability and price context
- Verified current price: $738.00 at Pioneer; availability in_stock; checked Jul 24, 2026.
Source date
- Model data sourced
- Jul 24, 2026
- Page reviewed
- Jul 23, 2026
- Source-backed records
- 5
- Newest source retrieved
- Jul 24, 2026
Warranty tiers
Warranty: Up to 5-year Pioneer warranty for registered eligible Diamante Essenza systems.
Strengths
- Lowest entry price in the Pioneer range for a 1-ton room.
- Current R-32 refrigerant, so no phase-down exposure on future service.
Weaknesses
- SEER2 17 is the weakest efficiency Pioneer offers - you pay it back monthly.
- Rated only to +5F. Do not buy this for heating.
Climate suitability
- Minimum heating ambient
- 5 F[2]
- Rated heating at 5F
- 7,000 BTU/h[4]
- Rated heating at 17F
- 8,100 BTU/h[4]
- Rated heating at 47F
- 11,500 BTU/h[4]
Specifications
ShowHide
- Manufacturer
- Pioneer
- Brand
- Pioneer
- Product line
- Diamante Essenza
- Model number
- WT012GLUI17HLD indoor / YN012GLUI17RPD outdoor
- Indoor unit model
- WT012GLUI17HLD
- Outdoor unit model
- YN012GLUI17RPD
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 11,500 BTU/h[4]
- Rated heating capacity
- 11,500 BTU/h[4]
- Voltage
- 230 V[1]
- MCA
- not published - manufacturer specifies 15 A breaker
- Maximum fuse or breaker size
- 15 A[1]
- Breaker needed
- 15 A[1]
- SEER2
- 17 SEER2[4]
- EER2
- 9.5 EER2[4]
- HSPF2 (Region 4)
- 8.5 HSPF2[4]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.75 COP[4]
- Minimum outdoor heating temperature
- 5 F[2]
- Minimum outdoor cooling temperature
- 54 F[2]
- Maximum outdoor temperature
- 122 F[2]
- Indoor noise range
- 45/42/39/35/33 dB(A)[2]
- Outdoor noise rating
- 55 dBA[1]
- Indoor weight
- 16.5 lb[1]
- Outdoor weight
- 50.7 lb[1]
- Refrigerant
- R-32[4]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- 16 ft[1]
- Maximum line-set length
- 50 ft[2]
- Max line set per indoor
- not published
- Maximum elevation difference
- 33 ft[2]
- Max height between indoor units
- not published
- Wi-Fi support
- supported[3]
- Energy Star status
- Not ENERGY STAR certified[5]
- AHRI certification number
- 217048735[4]
- Warranty
- Up to 5-year Pioneer warranty for registered eligible Diamante Essenza systems.
- Install path
- Professional install
- Retail price
- $738.00
- Available retailers
- Pioneer
- Manual links
- WYT012GLUI17RL AHRI certificate, WYT012GLUI17RL EnergyGuide, WYT17 installation manual, WYT17 service manual, WYT012GLUI17RL submittal sheet, WYT17 technical brochure
- Specification sheet
- WYT012GLUI17RL submittal sheet
- Last sourced date
- Jul 24, 2026
Retail purchase context
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
$738 / Fresh price - checked Jul 24, 2026
Electrical requirements
ShowHide
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 3/8 in[1]
- Line connection type
- not published
- Precharged length
- not published
- Included line-set length
- 16 ft[1]
- Maximum line-set length
- 50 ft[2]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 30-1/2 x 7-7/8 x 9-3/4 in[1]
- Outdoor dimensions
- 31 x 11-1/2 x 19-3/8 in[1]
- Indoor weight
- 16.5 lb[1]
- Outdoor weight
- 50.7 lb[1]
- Drain size
- not published
Related systems and guides
- More Pioneer systems
- Pioneer 11.5k model
- GE Appliances GE Altitude 11.8k 230V
- Pioneer 115 V option
- Panasonic 11.5k model
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Pioneer mini split review: is Pioneer any good?
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- R-32 vs R-454B: the mini split refrigerant change explained
- Mini split for a hot upstairs
- Mini splits for an ADU or tiny home
- How to read a mini split spec sheet
- Can you run a mini split on solar power?
- Pioneer mini split not cooling
- Mini split remote not working
- Mini split Wi-Fi not connecting
- Mini split outdoor unit not running
- Mini split not cooling
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the Pioneer Diamante Essenza 11,500 BTU R-32 208/230V (WT012GLUI17HLD / YN012GLUI17RPD) myself, or do I need a pro?
- Pioneer Diamante Essenza 11,500 BTU R-32 208/230V (WT012GLUI17HLD / YN012GLUI17RPD) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the Pioneer Diamante Essenza 11,500 BTU R-32 208/230V (WT012GLUI17HLD / YN012GLUI17RPD) keep heating in a cold winter?
- The manufacturer publishes 7,000 BTU/h of heating output at 5F. Rated heating operation extends down to 5 F. Certified heating efficiency is 8.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the Pioneer Diamante Essenza 11,500 BTU R-32 208/230V (WT012GLUI17HLD / YN012GLUI17RPD) need?
- Published electrical requirements: 230 V voltage, not published - manufacturer specifies 15 A breaker minimum circuit ampacity, and 15 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 50 ft, and the included line set comes pre-charged for 16 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
