Pioneer / Diamante Pro
Pioneer Diamante Pro 12k R-454B 115V Mini-Split
The Diamante Pro 12k on 115V covers a large bedroom or living room without a new circuit, which is its whole appeal. SEER2 20 and -4F rated heating are a real step above the Essenza line at this size.
The honest comparison is the Quantum Ultra 12k 115V: same circuit, SEER2 23, and -13F rated heating. If the room is one you actually heat, that is the better system and the gap is not large.
Refrigerant generation
R-454B - current-generation refrigerant
Paid link
$888 / Fresh price - checked Jul 24, 2026
Need this installed?
Get installation quotes

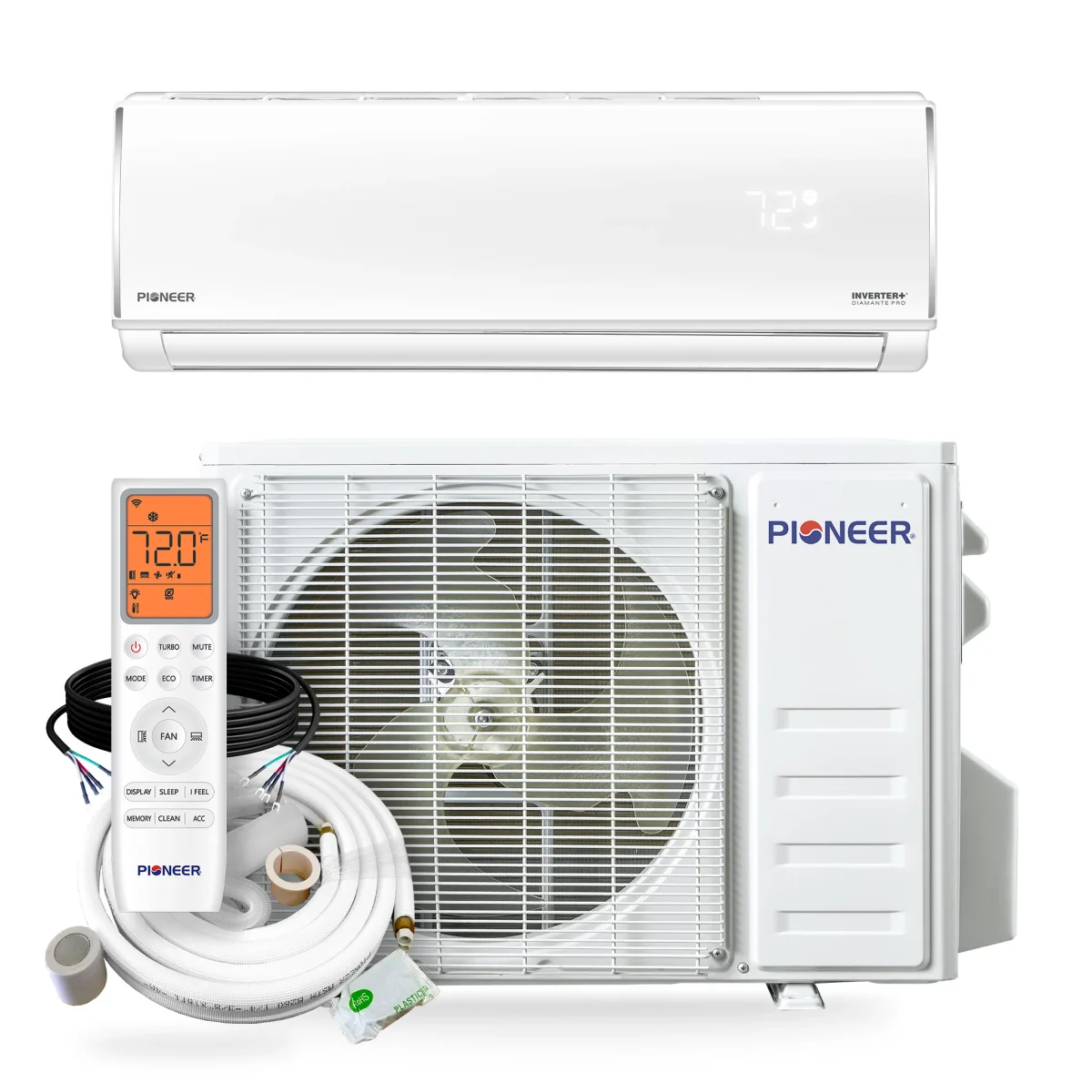

Image: Pioneer
- Last sourced
- Jul 24, 2026
SplitAtlas score
7.6 / 10
(20.0 SEER2) among 12k systems
(9.5 HSPF2) among 12k systems
(75% heat retained at 5F; -4 F heating floor) among 12k systems
(28 dBA indoor min / 55 dBA outdoor) among 12k systems
(4 verified features) across the catalogue
($888 median retail) among 12k systems
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
Key ratings
Buyer review snapshot
Install difficulty
- Electrical: 115V; breaker/fuse 25 A.
- Line set: connection type not sourced; included 16 ft; max 50 ft.
Alternatives
- Daikin ATMOSPHERA 12,000 BTU R-32 208/230V (FTXM12WVJU9 / RXM12WVJU9)
9.0 score / 12k / SEER2 25.2 / -13 F heating floor / 208/230V
Exact destination at HVACDirect: $2,848.00, checked Jul 23, 2026
- Blueridge XS6 Max Efficiency 12,000 BTU R-454B 208/230V (BXS6A12WM0 / BXS6A12UC0)
8.9 score / 12k / SEER2 29.4 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $1,979.00, checked Jul 24, 2026
- Senville ELITE 12,000 BTU R-454B 208/230V (SENE-12EL-IHH / SENE-12EL-OH)
8.9 score / 12k / SEER2 29.4 / -22 F heating floor / 187-253V
Exact destination at Senville: $1,699.99, checked Jul 24, 2026
Availability and price context
- Verified current price: $888.00 at Pioneer; availability in_stock; checked Jul 24, 2026.
Source date
- Model data sourced
- Jul 24, 2026
- Page reviewed
- Jul 23, 2026
- Source-backed records
- 5
- Newest source retrieved
- Jul 24, 2026
Warranty tiers
Warranty: Up to 5-year Pioneer warranty for registered eligible Diamante Pro systems.
Strengths
- Runs on a standard 115V circuit at 1 ton.
- SEER2 20 and -4F, clearly ahead of Essenza.
Weaknesses
- Quantum Ultra 12k is also 115V, more efficient and holds -13F.
- 115V inrush on a shared circuit can trip other loads.
Climate suitability
- Minimum heating ambient
- -4 F[2]
- Rated heating at 5F
- 9,000 BTU/h[4]
- Rated heating at 17F
- 10,000 BTU/h[4]
- Rated heating at 47F
- 12,000 BTU/h[4]
Specifications
ShowHide
- Manufacturer
- Pioneer
- Brand
- Pioneer
- Product line
- Diamante Pro
- Model number
- WT012ALSI20HLF indoor / YN012ALSI20RPF outdoor
- Indoor unit model
- WT012ALSI20HLF
- Outdoor unit model
- YN012ALSI20RPF
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 12,000 BTU/h[4]
- Rated heating capacity
- 12,000 BTU/h[4]
- Voltage
- 115 V[1]
- MCA
- not published - manufacturer specifies 25 A breaker
- Maximum fuse or breaker size
- 25 A[1]
- Breaker needed
- 25 A[1]
- SEER2
- 20 SEER2[4]
- EER2
- 10.5 EER2[4]
- HSPF2 (Region 4)
- 9.5 HSPF2[4]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.8 COP[4]
- Minimum outdoor heating temperature
- -4 F[2]
- Minimum outdoor cooling temperature
- 5 F[2]
- Maximum outdoor temperature
- 122 F[2]
- Indoor noise range
- 45/42/35/30/28 dB(A)[2]
- Outdoor noise rating
- 55 dBA[1]
- Indoor weight
- 19.8 lb[1]
- Outdoor weight
- 55.1 lb[1]
- Refrigerant
- R-454B[4]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- 16 ft[1]
- Maximum line-set length
- 50 ft[2]
- Max line set per indoor
- not published
- Maximum elevation difference
- 33 ft[2]
- Max height between indoor units
- not published
- Wi-Fi support
- supported[3]
- Energy Star status
- Not ENERGY STAR certified[5]
- AHRI certification number
- 217048742[4]
- Warranty
- Up to 5-year Pioneer warranty for registered eligible Diamante Pro systems.
- Install path
- Professional install
- Retail price
- $888.00
- Available retailers
- Pioneer
- Manual links
- WYT012ALSI20RL AHRI certificate, WYT012ALSI20RL EnergyGuide, WYT20 installation manual, WYT20 service manual, WYT012ALSI20RL submittal sheet, WYT20 technical brochure
- Specification sheet
- WYT012ALSI20RL submittal sheet
- Last sourced date
- Jul 24, 2026
Retail purchase context
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
$888 / Fresh price - checked Jul 24, 2026
Electrical requirements
ShowHide
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 3/8 in[1]
- Line connection type
- not published
- Precharged length
- not published
- Included line-set length
- 16 ft[1]
- Maximum line-set length
- 50 ft[2]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 31-7/8 x 8 x 11-1/2 in[1]
- Outdoor dimensions
- 31 x 11-1/2 x 19-3/8 in[1]
- Indoor weight
- 19.8 lb[1]
- Outdoor weight
- 55.1 lb[1]
- Drain size
- not published
Related systems and guides
- More Pioneer systems
- Perfect Aire Quick Connect 12k 115V
- Pioneer 12k model
- Diamante Essenza 11.5k
- Panasonic Project Series High Wall 12k 230V
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Pioneer mini split review: is Pioneer any good?
- The best 12,000 BTU mini splits of 2026
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- R-32 vs R-454B: the mini split refrigerant change explained
- Mini split for a hot upstairs
- Mini splits for an ADU or tiny home
- How loud is a mini split outdoor unit?
- Pioneer mini split not cooling
- Mini split remote not working
- Mini split Wi-Fi not connecting
- Mini split short cycling
- Your mini split is showing a refrigerant leak code
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the Pioneer Diamante Pro 12,000 BTU R-454B 115V (WT012ALSI20HLF / YN012ALSI20RPF) myself, or do I need a pro?
- Pioneer Diamante Pro 12,000 BTU R-454B 115V (WT012ALSI20HLF / YN012ALSI20RPF) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the Pioneer Diamante Pro 12,000 BTU R-454B 115V (WT012ALSI20HLF / YN012ALSI20RPF) keep heating in a cold winter?
- The manufacturer publishes 9,000 BTU/h of heating output at 5F. Rated heating operation extends down to -4 F. Certified heating efficiency is 9.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the Pioneer Diamante Pro 12,000 BTU R-454B 115V (WT012ALSI20HLF / YN012ALSI20RPF) need?
- Published electrical requirements: 115 V voltage, not published - manufacturer specifies 25 A breaker minimum circuit ampacity, and 25 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 50 ft, and the included line set comes pre-charged for 16 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
