Pioneer / Quantum Ultra Multi-Zone

Pioneer Quantum Ultra 42k R-454B 208/230V 5-Zone Mini-Split

Certified capacity
42,000 BTU/h[3]
SEER2
22 SEER2[3]
Heating floor
-13 F[1]
Voltage
230 V[1]
Install path
Professional install

The Pioneer Quantum Ultra 5-Zone 42k drives five heads from one 208/230V outdoor unit at a certified nominal SEER2 of 22, EER2 11.2, HSPF2 10 on current R-454B refrigerant. Cooling is rated at 42,000 BTU.

Heating starts at 42,000 BTU at 47F and falls off in the cold to 31,000 at 17F and 30,000 at 5F. ENERGY STAR certification and an AHRI cold-climate designation are real advantages at this value price.

Professional installation required and dealer-quoted.

5 zonesProfessional installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

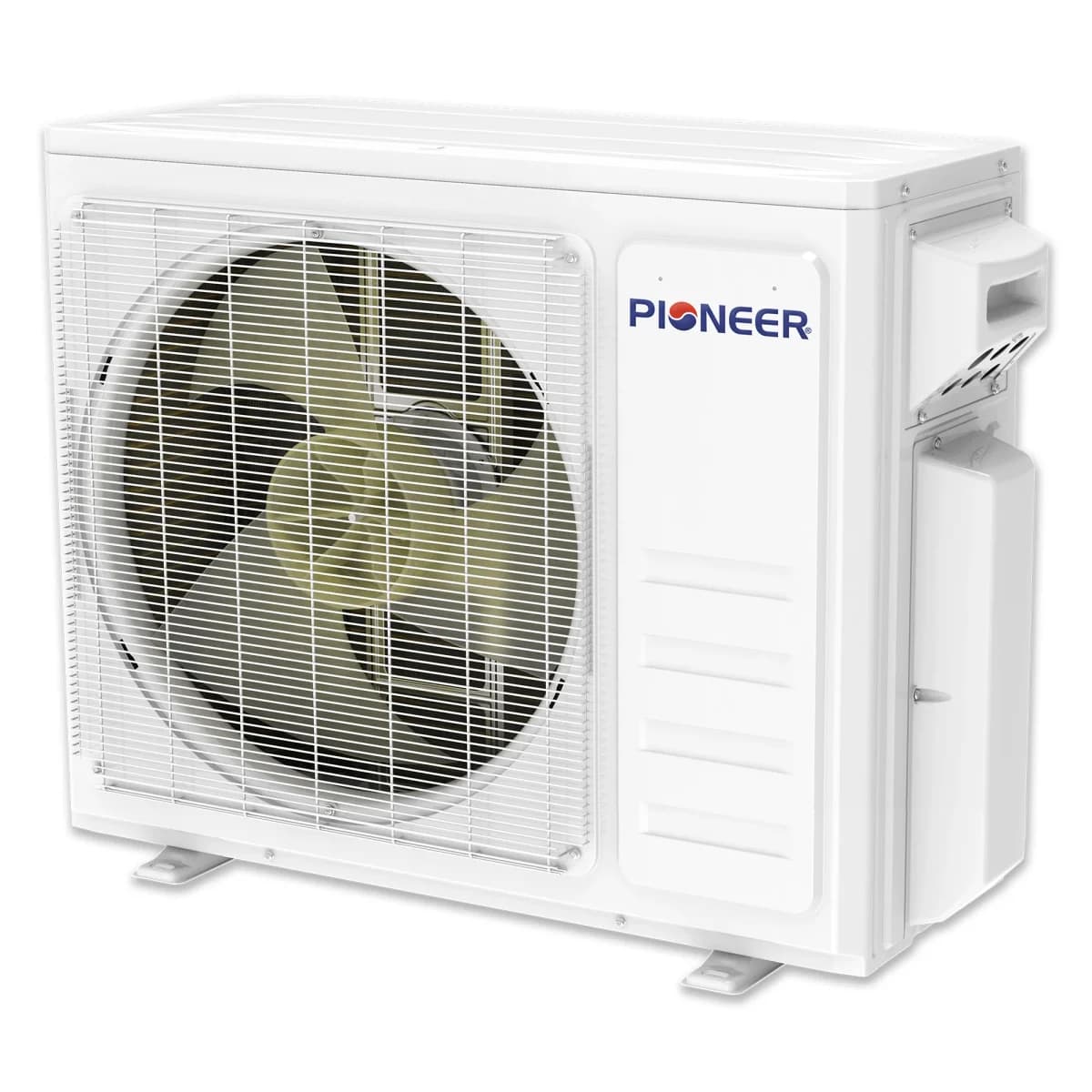

Pioneer Quantum Ultra Multi-Zone 5-Zone 42,000 BTU R-454B 208/230V (YN050GLSI24M5G) multi-zone mini-split heat pump outdoor condenser

Image: Pioneer

Data completeness: 86%
Last sourced
Jul 29, 2026

SplitAtlas score

8.0 / 10

Methodology
Cooling efficiencyAbove average

(22.0 SEER2) among >36k systems

Heating efficiencyBelow average

(10.0 HSPF2) among >36k systems

Cold-weather performanceBottom quartile

(71.4% heat retained at 5F; -13 F heating floor) among >36k systems

WarrantyBottom quartile

(5 yr parts / 5 yr compressor) across the catalogue

Feature setTop quartile

(6 verified features) across the catalogue

Documentation & partsBottom quartile

(8 manuals) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

42,000BTU/hNon-Ducted Indoor Units[3]

Rated heating

42,000BTU/hNon-Ducted Indoor Units[3]

Buyer review snapshot

Best for / skip if

Best for

  • 5-zone projects in the 42k outdoor capacity class.
  • High-efficiency shortlists; SEER2 is 22.

Install difficulty

Complex professional install
  • Electrical: 230V; breaker/fuse 45 A.
  • Line set: connection type not sourced; precharged 125 ft.
  • 5-zone condenser; indoor-head matching and branch layout are part of the job.

Alternatives

Availability and price context

We could not verify a current retail price for this model. We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-29.

Source date

Model data sourced
Jul 29, 2026
Page reviewed
Jul 29, 2026
Source-backed records
4
Newest source retrieved
Jul 29, 2026

Warranty tiers

Warranty: 5 years parts and compressor if registration within 90 days.

Review methodology

Model context

Install path
This is professional-install equipment; no verified current retail offer is attached.
Structured ratings
Certification: ENERGY STAR certified, ENERGY STAR cold-climate certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -13 F.

Strengths

  • Certified nominal SEER2 22 / EER2 11.2 / HSPF2 10 on current R-454B refrigerant.
  • ENERGY STAR certified and AHRI cold-climate designated - strong for a value brand.
  • Five zones from one condenser cover a larger floor.
  • Current low-GWP refrigerant.

Weaknesses

  • Heating falls off in the cold - 42,000 BTU at 47F down to 31,000 at 17F and 30,000 at 5F.
  • Sits below the top premium brands on brand/dealer support.

Climate suitability

Minimum heating ambient
-13 F[1]
Rated heating at 5F
30,000 BTU/hNon-Ducted Indoor Units[3]
Rated heating at 17F
31,000 BTU/hNon-Ducted Indoor Units[3]
Rated heating at 47F
42,000 BTU/hNon-Ducted Indoor Units[3]

Specifications

Show
Manufacturer
Pioneer
Brand
Pioneer
Product line
Quantum Ultra Multi-Zone
Model number
YN050GLSI24M5G
Indoor unit model
Indoor heads are selected separately on a multi-zone system
Outdoor unit model
YN050GLSI24M5G
Number of zones
5
Max indoor units
5 units[1]
Rated cooling capacity
42,000 BTU/hNon-Ducted Indoor Units[3]
Rated heating capacity
42,000 BTU/hNon-Ducted Indoor Units[3]
Voltage
230 V[1]
MCA
not published - manufacturer specifies 45 A breaker
Maximum fuse or breaker size
45 A[1]
Breaker needed
45 A[1]
SEER2
22 SEER2Non-Ducted Indoor Units[3]
EER2
11.2 EER2Non-Ducted Indoor Units[3]
HSPF2 (Region 4)
10 HSPF2Non-Ducted Indoor Units[3]
HSPF2 (Region 5)
Certified per indoor-unit combination, not per outdoor unit
COP
not published
COP at 47F
not published
COP at 5F
not published
Minimum outdoor heating temperature
-13 F[1]
Minimum outdoor cooling temperature
not published
Maximum outdoor temperature
131 F[1]
Indoor noise range
Indoor heads are selected separately on a multi-zone system
Outdoor noise rating
65 dBA[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
174.2 lb[1]
Refrigerant
R-454B[3]
Refrigerant charge
not published
Manufacturer coverage
not published
Line-set size
5 x 1/4 in liquid / 5 x 3/8 in suction
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
not published
Max line set per indoor
Per-circuit line length depends on the selected indoor-unit style and submittal; the outdoor-only product page publishes precharged combined length, not a universal per-indoor maximum.
Maximum elevation difference
not published
Max height between indoor units
Indoor-unit height difference depends on the selected indoor-unit style and submittal; it is not published as a universal outdoor-only product-page value.
Wi-Fi support
Indoor heads are selected separately on a multi-zone system
Energy Star status
ENERGY STAR certified[4]
AHRI certification number
217048771Non-Ducted Indoor Units[3]
Warranty
Best case: 5 yr parts / 5 yr compressor (registration within 90 days). Up to 5-year parts and compressor warranty with Pioneer registration terms.
Install path
Professional install
Retail price
We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-29.
Available retailers
not published
Manual links
AHRI public detail 217048771, ENERGY STAR exact lookup 217048771, Pioneer YNL-24 dimensions and weights, Pioneer YNL-24 lineset diameter selection guide, Pioneer multi-zone allowable zone combinations, Pioneer Quantum Ultra Multi-Zone overview, Pioneer Quantum Ultra Multi-Zone official product page for YN050GLSI24M5G, HVACDirect exact-offer audit for YN050GLSI24M5G
Specification sheet
not published
Last sourced date
Jul 29, 2026

Compatible indoor units

This is an outdoor unit. You choose its indoor heads separately - up to the maximum this condenser supports - and you can mix room sizes and styles across the zones. The models below are the heads this unit is documented to pair with.

  • Ceiling cassettes

    9.5k, 12k, 16k, 23k

    Model numbers
    • 9.5k: CT009GLSILCFHG
    • 12k: CT012GLSILCFHG
    • 16k: CT018GLSILCFHG
    • 23k: CT024GLSILCFHG

  • Concealed ducteds

    9.5k, 11k, 17k, 22k

    Model numbers
    • 9.5k: RT009GLSILCFHG
    • 11k: RT012GLSILCFHG
    • 17k: RT018GLSILCFHG
    • 22k: RT024GLSILCFHG

  • Wall-mounteds

    9k, 12k, 18k, 23k

    Model numbers
    • 9k: WT009GLSI24HLG
    • 12k: WT012GLSI24HLG
    • 18k: WT018GLSI24HLG
    • 23k: WT024GLSI24HLG

Sizing note: do not just add up the rooms. Multi-zone condensers have a maximum total connected capacity, and connecting more head capacity than the unit is rated for is a common installer mistake that hurts efficiency and comfort. Match total head capacity to the condenser's rating.

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
not published - manufacturer specifies 45 A breaker
Breaker needed
45 A[1]
Maximum breaker size
45 A[1]
Maximum fuse size
45 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
5 x 1/4 in[2]
Suction line
5 x 3/8 in[2]
Line connection type
not published
Precharged length
125 ft[1]
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
not published
Max line set per indoor
Per-circuit line length depends on the selected indoor-unit style and submittal; the outdoor-only product page publishes precharged combined length, not a universal per-indoor maximum.
Max height between indoor units
Indoor-unit height difference depends on the selected indoor-unit style and submittal; it is not published as a universal outdoor-only product-page value.
Indoor dimensions
Indoor heads are selected separately on a multi-zone system
Outdoor dimensions
42-1/4 x 18-3/8 x 33-1/2 in[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
174.2 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Pioneer Quantum Ultra Multi-Zone 5-Zone 42,000 BTU R-454B 208/230V (YN050GLSI24M5G) myself, or do I need a pro?
Pioneer Quantum Ultra Multi-Zone 5-Zone 42,000 BTU R-454B 208/230V (YN050GLSI24M5G) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Pioneer Quantum Ultra Multi-Zone 5-Zone 42,000 BTU R-454B 208/230V (YN050GLSI24M5G) keep heating in a cold winter?
The manufacturer publishes 30,000 BTU/h of heating output at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 10 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Pioneer Quantum Ultra Multi-Zone 5-Zone 42,000 BTU R-454B 208/230V (YN050GLSI24M5G) need?
Published electrical requirements: 230 V voltage, not published - manufacturer specifies 45 A breaker minimum circuit ampacity, and 45 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
What warranty does the Pioneer Quantum Ultra Multi-Zone 5-Zone 42,000 BTU R-454B 208/230V (YN050GLSI24M5G) carry?
The manufacturer publishes these warranty tiers: Best case: 5 yr parts / 5 yr compressor (registration within 90 days). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
