Samsung / WindFree Max Heat
Samsung WindFree Max Heat 9k R-32 208/230V Mini-Split
The Samsung WindFree Max Heat 9k is Samsung's cold-climate single-zone, tuned to keep heating in deep cold: SEER2 25, EER2 16.35, HSPF2 10.5 on R-32, with 11,000 BTU at 47F and 8,500 BTU held at 5F. It pairs class-competitive efficiency with WindFree still-air cooling and cold-weather heating in a bedroom-sized unit.
1 zoneProfessional installCurrent
Refrigerant generation
R-32 - current-generation refrigerant
Need this installed?
Get installation quotes

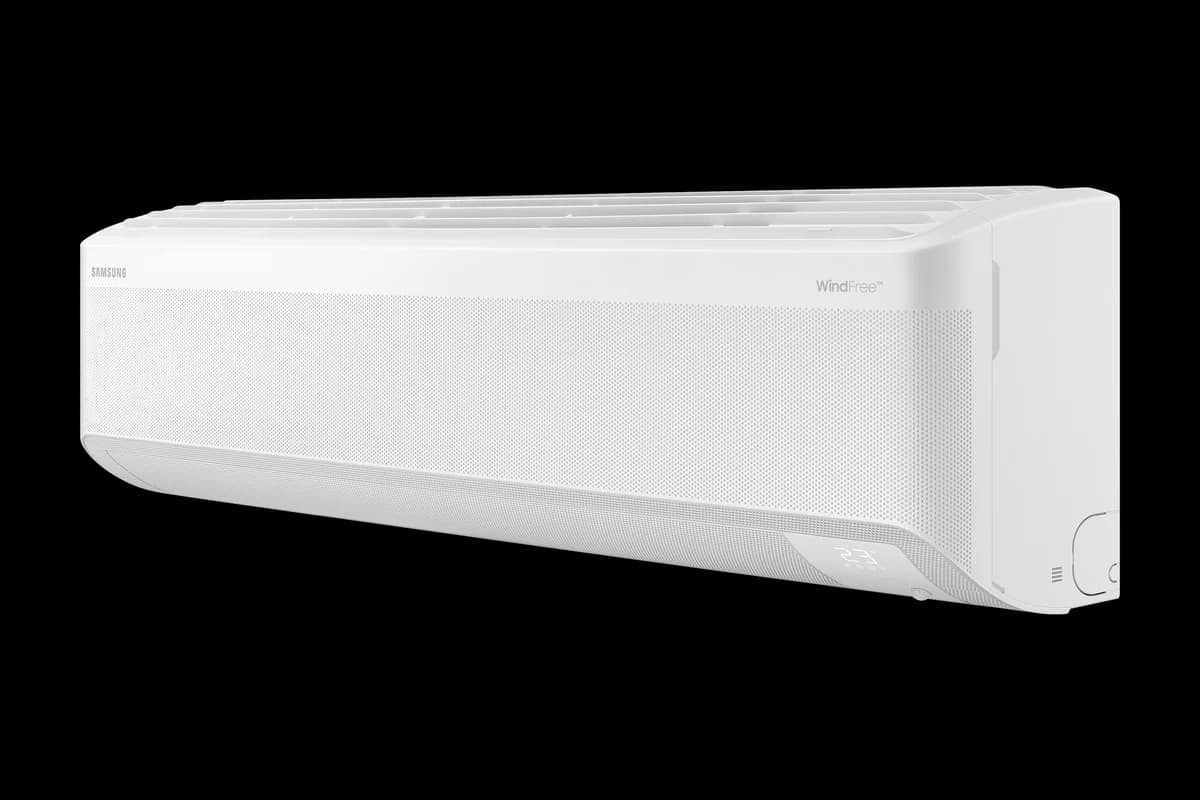

Image: Samsung
Data completeness: 100%
- Last sourced
- Jul 23, 2026
SplitAtlas score
8.9 / 10
Cooling efficiencyAbove average
(25.0 SEER2) among <=9k systems
Heating efficiencyBelow average
(10.5 HSPF2) among <=9k systems
Cold-weather performanceAbove average
(5F certified capacity: 77.3% of the 47F rating; -22 F heating floor) among <=9k systems
NoiseTop 10%
(22 dBA indoor min / 45 dBA outdoor) among <=9k systems
WarrantyTop quartile
(10 yr parts / 10 yr compressor) across the catalogue
Feature setTop 10%
(7 verified features) across the catalogue
Documentation & partsBelow average
(2 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Key ratings
Buyer review snapshot
Best for / skip if
Best for
- Top efficiency shortlists; SEER2 is 25.
Install difficulty
Professional install
- Electrical: 230V; MCA 12 A; breaker/fuse 20 A.
- Line set: connection type not sourced; precharged 24.6 ft; max 66 ft.
Availability and price context
This system needs a professional install, so its real price is an installed quote that depends on your home. We don't link to a listing for this exact model; get installation quotes to price it.
Source date
- Model data sourced
- Jul 23, 2026
- Page reviewed
- Jul 23, 2026
- Source-backed records
- 4
- Newest source retrieved
- Jul 23, 2026
Warranty tiers
- Registered
- 10 yr parts / 10 yr compressor - eligible registered system
The score uses Registered. Additional published terms are shown for reference and not counted in the score.
Model context
- Install path
- This is professional-install equipment; price it with an installed quote.
Strengths
- SEER2 25 / EER2 16.35 - excellent efficiency for a cold-climate 9k.
- Holds 8,500 BTU of heat at 5F; WindFree draft-free cooling.
- Current R-32 refrigerant with Samsung dealer support.
Weaknesses
- No current online retail listing.
Climate suitability
- Minimum heating ambient
- -22 F[1]
- Certified heating at 5F
- 8,500 BTU/h[2]
- Rated heating at 17F
- 9,900 BTU/h[2]
- Rated heating at 47F
- 11,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- Samsung
- Brand
- Samsung
- Product line
- WindFree Max Heat
- Model number
- AR09DXDABWKN indoor / AR09DXDACWKX outdoor
- Indoor unit model
- AR09DXDABWKN
- Outdoor unit model
- AR09DXDACWKX
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 9,000 BTU/h[2]
- Rated heating capacity
- 11,000 BTU/h[2]
- Voltage
- 230 V[1]
- MCA
- 12 A[1]
- Maximum fuse or breaker size
- 20 A[1]
- Breaker needed
- not published
- SEER2
- 25 SEER2[2]
- EER2
- 16.35 EER2[2]
- HSPF2 (Region 4)
- 10.5 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 2.19 COP[2]
- Minimum outdoor heating temperature
- -22 F[1]
- Minimum outdoor cooling temperature
- 0 F[1]
- Maximum outdoor temperature
- 115 F[1]
- Indoor noise range
- 38 / 22 dB(A)[1]
- Outdoor noise rating
- 45 dBA[1]
- Indoor weight
- 23.1 lb[1]
- Outdoor weight
- 71 lb[1]
- Refrigerant
- R-32[2]
- Refrigerant charge
- 34 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- Samsung publishes piping sizes, chargeless/precharged length, and maximum line limits for this professional-install system; a line set is not included.
- Maximum line-set length
- 66 ft[1]
- Max line set per indoor
- not published
- Maximum elevation difference
- 49 ft[1]
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 215399292[2]
- Warranty
- Registered: 10 yr parts / 10 yr compressor (eligible registered system). Score uses Registered.. 10 year warranty with product registration required; conditions apply.
- Install path
- Professional install
- Retail price
- Installed quote only
- Available retailers
- not published
- Manual links
- Samsung RAC R-32 WindFree installation manual, Samsung RAC R-32 technical data book
- Specification sheet
- Samsung RAC R-32 technical data book
- Last sourced date
- Jul 23, 2026
Electrical requirements
ShowHide
- Voltage
- 230 V[1]
- Voltage range
- 208/230V[1]
- Phase
- 1[1]
- Frequency
- 60 Hz[1]
- MCA
- 12 A[1]
- Breaker needed
- not published
- Maximum breaker size
- 20 A[1]
- Maximum fuse size
- not published
- Maximum cooling current
- not published
- Maximum heating current
- not published
- Manufacturer wire notes
- Outdoor unit powers indoor unit; communication AWG 18 or line-specific interconnect per manual[1]
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 3/8 in[1]
- Line connection type
- not published
- Precharged length
- 24.6 ft[1]
- Included line-set length
- Samsung publishes piping sizes, chargeless/precharged length, and maximum line limits for this professional-install system; a line set is not included.
- Maximum line-set length
- 66 ft[1]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 35 x 11-3/4 x 8-7/16 in[1]
- Outdoor dimensions
- 31-1/8 x 21-9/16 x 11-1/4 in[1]
- Indoor weight
- 23.1 lb[1]
- Outdoor weight
- 71 lb[1]
- Drain size
- ID18 or 11/16 in OD[1]
Related systems and guides
- More Samsung systems
- Samsung WindFree IAQ 9k R-32 208/230V Mini-Split
- Samsung WindFree Premium 9k R-32 208/230V Mini-Split
- Pioneer Quantum Ultra 9k One-Way Cassette R-454B 208/230V Mini-Split
- Samsung WindFree Standard 9k R-32 208/230V Mini-Split
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- Samsung mini split review: is Samsung any good?
- The best 9,000 BTU mini splits of 2026
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- The mini split defrost cycle, explained
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- Samsung mini split not heating
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split smells bad
- Mini split weak airflow
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the Samsung WindFree Max Heat 9,000 BTU R-32 208/230V (AR09DXDABWKN / AR09DXDACWKX) myself, or do I need a pro?
- Samsung WindFree Max Heat 9,000 BTU R-32 208/230V (AR09DXDABWKN / AR09DXDACWKX) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the Samsung WindFree Max Heat 9,000 BTU R-32 208/230V (AR09DXDABWKN / AR09DXDACWKX) keep heating in a cold winter?
- The AHRI/ENERGY STAR certification lists 8,500 BTU/h of heating capacity at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 10.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the Samsung WindFree Max Heat 9,000 BTU R-32 208/230V (AR09DXDABWKN / AR09DXDACWKX) need?
- Published electrical requirements: 230 V voltage, 12 A minimum circuit ampacity, and 20 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 66 ft. The outdoor unit's factory charge covers up to 24.6 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
- What warranty does the Samsung WindFree Max Heat 9,000 BTU R-32 208/230V (AR09DXDABWKN / AR09DXDACWKX) carry?
- The manufacturer publishes these warranty tiers: Registered: 10 yr parts / 10 yr compressor (eligible registered system). Score uses Registered.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
