ACiQ / ACiQ Essentials Economy
ACiQ Essentials Economy 11.5k R-32 115V Mini-Split
This unit sits in ACiQ's Essentials Economy tier - the lowest-cost rung in the lineup - as a 12,000 BTU, 115V zone on low-GWP R-32. Ratings are budget-appropriate at 17 SEER2, 9.5 EER2, and 9.5 HSPF2.
Heating measures 11,500 BTU at 47F, easing to 8,000 BTU at 5F. It's the pick when getting a one-ton heat pump in place for the least money is the whole point.
1 zoneProfessional installCurrent
Refrigerant generation
R-32 - current-generation refrigerant
Paid link
$580 / Checked Jul 26, 2026
Need this installed?
Get installation quotes

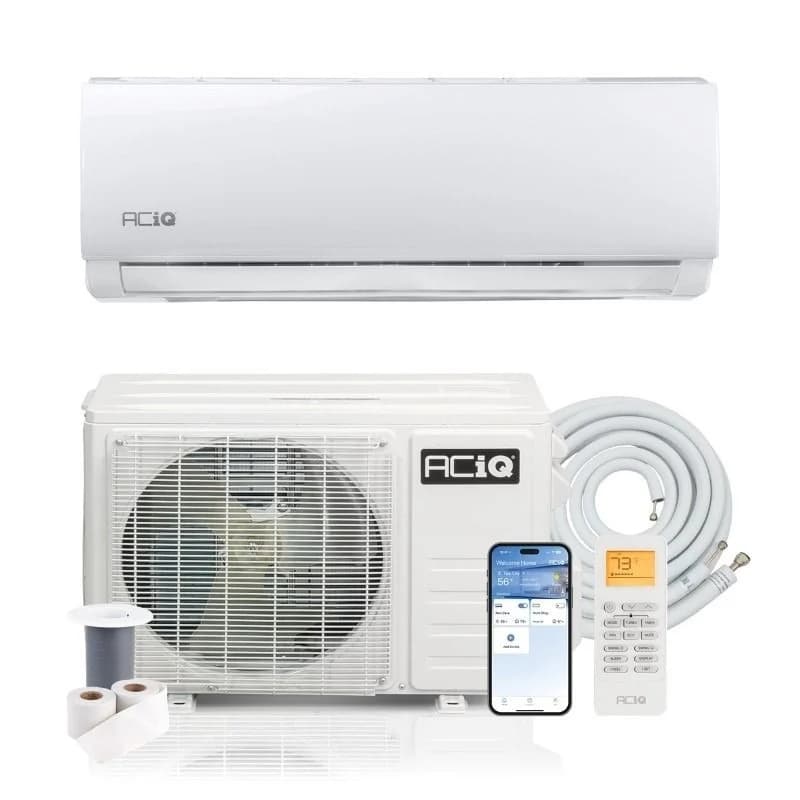

Image: HVACDirect
Data completeness: 85%
- Last sourced
- Jul 26, 2026
SplitAtlas score
7.5 / 10
Cooling efficiencyBottom quartile
(17.0 SEER2) among 12k systems
Heating efficiencyBelow average
(9.5 HSPF2) among 12k systems
Cold-weather performanceBottom quartile
(5F certified capacity: 69.6% of the 47F rating; 5 F heating floor) among 12k systems
WarrantyBottom quartile
(4 yr parts / 6 yr compressor) across the catalogue
Feature setBelow average
(3 verified features) across the catalogue
Price-to-performanceTop 10%
($580 median retail) among 12k systems
Documentation & partsBelow average
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
Key ratings
Buyer review snapshot
Best for / skip if
Skip if
- Top-efficiency cooling is the priority; SEER2 is 17.
Install difficulty
Professional install
- Electrical: 115V; MCA 17 A; breaker/fuse 25 A.
- Line set: connection type not sourced; precharged 16 ft; included 16 ft.
Alternatives
- Blueridge XS6 Max Efficiency 12,000 BTU R-454B 208/230V (BXS6A12WM0 / BXS6A12UC0)
9.0 score / 12k / SEER2 29.4 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $1,979.00, checked Jul 24, 2026
- Senville ELITE 12,000 BTU R-454B 208/230V (SENE-12EL-IHH / SENE-12EL-OH)
8.9 score / 12k / SEER2 29.4 / -22 F heating floor / 187-253V
Exact destination at Senville: $1,699.99, checked Jul 24, 2026
- Daikin ATMOSPHERA 12,000 BTU R-32 208/230V (FTXM12WVJU9 / RXM12WVJU9)
8.9 score / 12k / SEER2 25.2 / -13 F heating floor / 208/230V
Exact destination at HVACDirect: $2,848.00, checked Jul 23, 2026
Availability and price context
- Last seen at HVACDirect on Jul 26, 2026: $579.99. Open the listing for today's price.
Source date
- Model data sourced
- Jul 26, 2026
- Page reviewed
- Jul 26, 2026
- Source-backed records
- 3
- Newest source retrieved
- Jul 26, 2026
Warranty tiers
- Registered
- 4 yr parts / 6 yr compressor - published per-line terms with online registration
The score uses Registered. Additional published terms are shown for reference and not counted in the score.
Strengths
- Lowest entry price in the ACiQ family, and it still plugs into a standard 115V circuit for easy placement.
- Bought direct from HVACDirect, with an online price and ordering path.
Weaknesses
- SEER2 of 17 and EER2 of 9.5 are the softest efficiency numbers in the range, so operating costs run higher than pricier tiers.
- Not ENERGY STAR certified, and value-brand support is thinner than premium competitors.
Climate suitability
- Minimum heating ambient
- 5 F[1]
- Certified heating at 5F
- 8,000 BTU/h[2]
- Rated heating at 17F
- not published
- Rated heating at 47F
- 11,500 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- ACiQ
- Brand
- ACiQ
- Product line
- ACiQ Essentials Economy
- Model number
- ACIQ-KE12W-W-HP115B indoor / ACIQ-KE12Z-HP115B outdoor
- Indoor unit model
- ACIQ-KE12W-W-HP115B
- Outdoor unit model
- ACIQ-KE12Z-HP115B
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 11,500 BTU/h[2]
- Rated heating capacity
- 11,500 BTU/h[2]
- Voltage
- 115 V[1]
- MCA
- 17 A[1]
- Maximum fuse or breaker size
- 25 A[1]
- Breaker needed
- not published
- SEER2
- 17 SEER2[2]
- EER2
- 9.5 EER2[2]
- HSPF2 (Region 4)
- 9.5 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.9 COP[2]
- Minimum outdoor heating temperature
- 5 F[1]
- Minimum outdoor cooling temperature
- 54 F[1]
- Maximum outdoor temperature
- 122 F[1]
- Indoor noise range
- not published
- Outdoor noise rating
- 53 dBA[1]
- Indoor weight
- not published
- Outdoor weight
- 61.73 lb[1]
- Refrigerant
- R-32[2]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- 16 ft[1]
- Maximum line-set length
- not published
- Max line set per indoor
- not published
- Maximum elevation difference
- not published
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- Not ENERGY STAR certified[3]
- AHRI certification number
- 218045389[2]
- Warranty
- Registered: 4 yr parts / 6 yr compressor (published per-line terms with online registration). Score uses Registered.. 6-year compressor / 4-year parts with online registration
- Install path
- Professional install
- Retail price
- $579.99
- Available retailers
- HVACDirect
- Manual links
- AHRI public directory record 218045389, ENERGY STAR exact check 218045389, 12,000 BTU ACiQ Essentials 17 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 115V HVACDirect installation resources listing, 12,000 BTU ACiQ Essentials 17 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 115V, 12,000 BTU ACiQ Essentials 17 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 115V HVACDirect product specification grid
- Specification sheet
- 12,000 BTU ACiQ Essentials 17 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 115V HVACDirect product specification grid
- Last sourced date
- Jul 26, 2026
Retail purchase context
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
$580 at HVACDirect
$580 / Checked Jul 26, 2026
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 3/8 in[1]
- Line connection type
- not published
- Precharged length
- 16 ft[1]
- Included line-set length
- 16 ft[1]
- Maximum line-set length
- not published
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- not published
- Outdoor dimensions
- 30.98 x 19.61 x 11.42 in[1]
- Indoor weight
- not published
- Outdoor weight
- 61.73 lb[1]
- Drain size
- not published
Related systems and guides
- More ACiQ systems
- Mitsubishi M-Series MLZ One-Way Ceiling Cassette 12k One-Way Cassette R-454B 208/230V Mini-Split
- ACiQ Essentials Economy 11.5k R-32 208/230V Mini-Split
- ACiQ Standard Base 9k R-454B 208/230V Mini-Split
- LG 4-Way Ceiling Cassette 11.1k Four-Way Cassette R-32 208/230V Mini-Split
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- ACiQ mini split review: is ACiQ any good?
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- R-32 vs R-454B: the mini split refrigerant change explained
- Mini split for a hot upstairs
- Mini splits for an ADU or tiny home
- Which mini split brands actually tell you what's wrong
- Mini splits for a mobile or manufactured home
- Mini split remote not working
- Mini split Wi-Fi not connecting
- One room won't heat or cool on a multi-zone mini split
- Your mini split is showing a refrigerant leak code
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the ACiQ Essentials Economy 11,500 BTU R-32 115V (ACIQ-KE12W-W-HP115B / ACIQ-KE12Z-HP115B) myself, or do I need a pro?
- ACiQ Essentials Economy 11,500 BTU R-32 115V (ACIQ-KE12W-W-HP115B / ACIQ-KE12Z-HP115B) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the ACiQ Essentials Economy 11,500 BTU R-32 115V (ACIQ-KE12W-W-HP115B / ACIQ-KE12Z-HP115B) keep heating in a cold winter?
- The AHRI/ENERGY STAR certification lists 8,000 BTU/h of heating capacity at 5F. Rated heating operation extends down to 5 F. Certified heating efficiency is 9.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the ACiQ Essentials Economy 11,500 BTU R-32 115V (ACIQ-KE12W-W-HP115B / ACIQ-KE12Z-HP115B) need?
- Published electrical requirements: 115 V voltage, 17 A minimum circuit ampacity, and 25 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- What warranty does the ACiQ Essentials Economy 11,500 BTU R-32 115V (ACIQ-KE12W-W-HP115B / ACIQ-KE12Z-HP115B) carry?
- The manufacturer publishes these warranty tiers: Registered: 4 yr parts / 6 yr compressor (published per-line terms with online registration). Score uses Registered.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
Data sources
ShowHide
- HVACDirect / ACiQ: 12,000 BTU ACiQ Essentials 17 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 115VSourced - manufacturer product page
Covers Frequency, Maximum breaker size, Maximum fuse size, Minimum circuit ampacity, Phase, Voltage and more
- Air-Conditioning, Heating, and Refrigeration Institute: AHRI Appendix M1 public detail for ACIQ-KE12Z-HP115B / ACIQ-KE12W-W-HP115BSourced - AHRI directory
Covers AHRI certification number, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity, HSPF2 (Region 4) and more
- ENERGY STAR: ENERGY STAR exact row check for AHRI 218045389Sourced - Energy Star listing
Covers Energy Star status
Last updated
Jul 26, 2026
