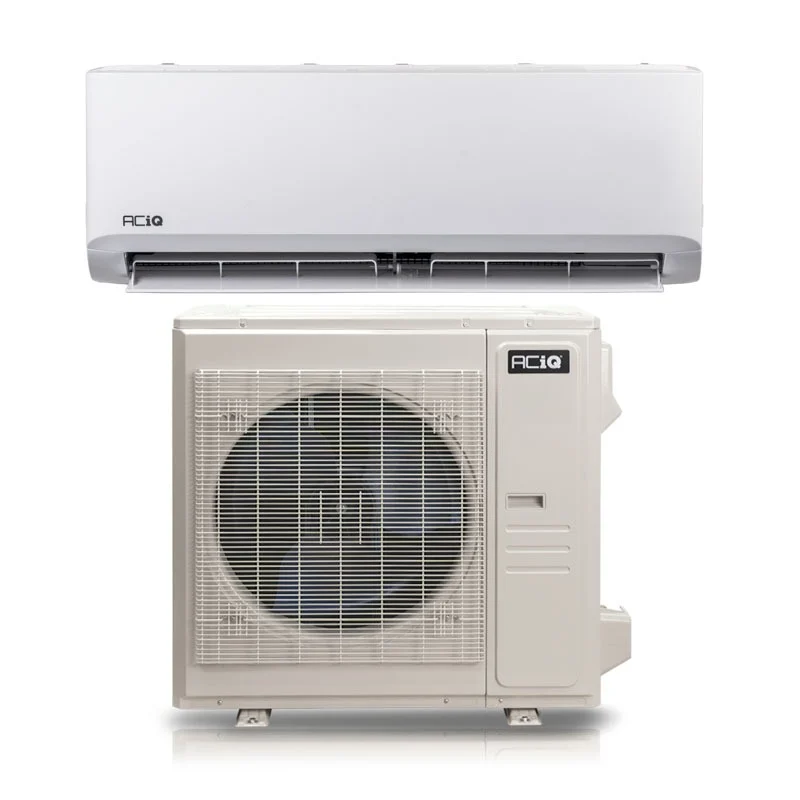

ACiQ Standard Base 36k R-454B 208/230V Mini-Split
The largest Standard Base unit is a 36,000 BTU, 230V, R-454B three-ton zone, and its numbers are the softest in this tier at 18 SEER2, 9 EER2, and 8.5 HSPF2. Notably, it is not ENERGY STAR certified. Heating runs 36,000 BTU at 47F, 24,600 BTU at 17F, and 21,400 BTU at 5F, so raw cold-weather output stays high even as efficiency lags.
Refrigerant generation
R-454B - current-generation refrigerant
Paid link
$2,300 / Checked Jul 26, 2026
Need this installed?
Get installation quotes
Image: HVACDirect
- Last sourced
- Jul 26, 2026
SplitAtlas score
7.8 / 10
(18.0 SEER2) among 36k systems
(8.5 HSPF2) among 36k systems
(5F certified capacity: 59.4% of the 47F rating; -13 F heating floor) among 36k systems
(28 dBA indoor min / 60.5 dBA outdoor) among 36k systems
(7 yr parts / 12 yr compressor) across the catalogue
(3 verified features) across the catalogue
($2,300 median retail) across the catalogue
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
Key ratings
Best-fit use cases
Best for a large open room, shop, or bay on 230V that needs maximum single-head heat output and isn't chasing a rebate or top efficiency.
Buyer review snapshot
Install difficulty
- Electrical: 230V; MCA 33 A; breaker/fuse 35 A.
- Line set: connection type not sourced; precharged 25 ft.
Alternatives
- Cosmo Series 33,600 BTU R-32 208/230V (GWH36ATEXH-D6DN*/I / GWH36ATEXH-D6DNA1G/O)
8.1 score / 33.6k / SEER2 21 / -13 F heating floor / 230V
Exact destination at TOSOT Direct: $2,499.00, checked Jul 24, 2026
- Pioneer Quantum Ultra Four-Way Ceiling Cassette 36,000 BTU R-454B 208/230V (CB036GMSILDFHG / YN036GMSI20RUG)
8.1 score / 36k / SEER2 20 / -13 F heating floor / 230V
Exact destination at Pioneer: $3,873.00, checked Aug 2, 2026
- Blueridge XS2 Core 36,000 BTU R-454B 208/230V (BXS2A36WM0 / BXS2A36SC0)
8.0 score / 36k / SEER2 19.5 / -13 F heating floor / 230V
Exact destination at Alpine Home Air: $2,259.00, checked Jul 24, 2026
Availability and price context
- Last seen at HVACDirect on Jul 26, 2026: $2,299.99. Open the listing for today's price.
Source date
- Model data sourced
- Jul 26, 2026
- Page reviewed
- Jul 26, 2026
- Source-backed records
- 3
- Newest source retrieved
- Jul 26, 2026
Warranty tiers
- Registered
- 7 yr parts / 12 yr compressor - published per-line terms with online registration
The score uses Registered. Additional published terms are shown for reference and not counted in the score.
Strengths
- Holds 24,600 BTU at 17F and 21,400 BTU at 5F, delivering serious heat deep into winter from a single head.
- Three tons of R-454B capacity in a value tier keeps large-space projects affordable.
Weaknesses
- EER2 of 9 and SEER2 of 18 are the weakest in the Standard Base line, and it is not ENERGY STAR certified.
- Value-brand support network is lighter than premium options at this capacity.
Climate suitability
- Minimum heating ambient
- -13 F[1]
- Certified heating at 5F
- 21,400 BTU/h[2]
- Rated heating at 17F
- 24,600 BTU/h[2]
- Rated heating at 47F
- 36,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- ACiQ
- Brand
- ACiQ
- Product line
- ACiQ Standard Base
- Model number
- ACIQ-36W-HP230C indoor / ACIQ-36Z-HP230C outdoor
- Indoor unit model
- ACIQ-36W-HP230C
- Outdoor unit model
- ACIQ-36Z-HP230C
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 36,000 BTU/h[2]
- Rated heating capacity
- 36,000 BTU/h[2]
- Voltage
- 230 V[1]
- MCA
- 33 A[1]
- Maximum fuse or breaker size
- 35 A[1]
- Breaker needed
- not published
- SEER2
- 18 SEER2[2]
- EER2
- 9 EER2[2]
- HSPF2 (Region 4)
- 8.5 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.8 COP[2]
- Minimum outdoor heating temperature
- -13 F[1]
- Minimum outdoor cooling temperature
- -13 F[1]
- Maximum outdoor temperature
- 122 F[1]
- Indoor noise range
- 28 / 56.5 dB(A)[1]
- Outdoor noise rating
- 60.5 dBA[1]
- Indoor weight
- 54.01 lb[1]
- Outdoor weight
- 160.27 lb[1]
- Refrigerant
- R-454B[2]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- 3/8 in liquid / 5/8 in suction
- Included line-set length
- Line set length is selected as an accessory on this HVACDirect system page.
- Maximum line-set length
- not published
- Max line set per indoor
- not published
- Maximum elevation difference
- not published
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- Not ENERGY STAR certified[3]
- AHRI certification number
- 216032332[2]
- Warranty
- Registered: 7 yr parts / 12 yr compressor (published per-line terms with online registration). Score uses Registered.. 12-year compressor / 7-year parts with online registration
- Install path
- Professional install
- Retail price
- $2,299.99
- Available retailers
- HVACDirect
- Manual links
- AHRI public directory record 216032332, ENERGY STAR exact check 216032332, 36,000 BTU ACiQ Standard 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V HVACDirect installation resources listing, 36,000 BTU ACiQ Standard 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V, 36,000 BTU ACiQ Standard 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V HVACDirect product specification grid
- Specification sheet
- 36,000 BTU ACiQ Standard 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V HVACDirect product specification grid
- Last sourced date
- Jul 26, 2026
Retail purchase context
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
$2,300 / Checked Jul 26, 2026
Installation considerations
ShowHide
- Liquid line
- 3/8 in[1]
- Suction line
- 5/8 in[1]
- Line connection type
- not published
- Precharged length
- 25 ft[1]
- Included line-set length
- Line set length is selected as an accessory on this HVACDirect system page.
- Maximum line-set length
- not published
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 49.57 x 14.25 x 11.10 in[1]
- Outdoor dimensions
- 37.24 x 31.89 x 16.14 in[1]
- Indoor weight
- 54.01 lb[1]
- Outdoor weight
- 160.27 lb[1]
- Drain size
- not published
Related systems and guides
- More ACiQ systems
- ACiQ Standard 36k R-454B 208/230V 4-Zone Mini-Split
- Blueridge XM0 Basic 36k R-32 208/230V 4-Zone Mini-Split
- ACiQ Extreme 48k R-454B 208/230V 5-Zone Mini-Split
- ACiQ Extreme 36k R-454B 208/230V 4-Zone Mini-Split
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- ACiQ mini split review: is ACiQ any good?
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- The mini split defrost cycle, explained
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- R-32 vs R-454B: the mini split refrigerant change explained
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split remote not working
- Mini split not cooling
- Mini split lights blinking
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the ACiQ Standard Base 36,000 BTU R-454B 208/230V (ACIQ-36W-HP230C / ACIQ-36Z-HP230C) myself, or do I need a pro?
- ACiQ Standard Base 36,000 BTU R-454B 208/230V (ACIQ-36W-HP230C / ACIQ-36Z-HP230C) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the ACiQ Standard Base 36,000 BTU R-454B 208/230V (ACIQ-36W-HP230C / ACIQ-36Z-HP230C) keep heating in a cold winter?
- The AHRI/ENERGY STAR certification lists 21,400 BTU/h of heating capacity at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 8.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the ACiQ Standard Base 36,000 BTU R-454B 208/230V (ACIQ-36W-HP230C / ACIQ-36Z-HP230C) need?
- Published electrical requirements: 230 V voltage, 33 A minimum circuit ampacity, and 35 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- What warranty does the ACiQ Standard Base 36,000 BTU R-454B 208/230V (ACIQ-36W-HP230C / ACIQ-36Z-HP230C) carry?
- The manufacturer publishes these warranty tiers: Registered: 7 yr parts / 12 yr compressor (published per-line terms with online registration). Score uses Registered.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
