Bosch / Climate 5000 Gen 4 R-454B

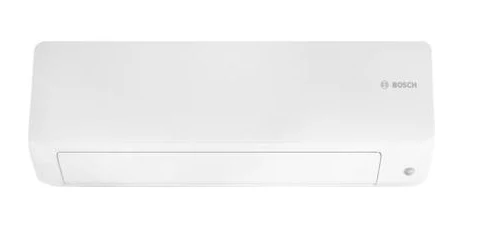

Bosch Climate 5000 Gen 4 24,000 BTU R-454B Max Performance (BMS500-AAU024-1AHWXD / BMS500-AAS024-1CSXHD)
Model data is drawn from manufacturer, retailer, and certification sources. Missing specifications remain marked as not published.
1 zoneProfessional installProfessional installCurrent
Get installation quotes
Free and no obligation. Takes about a minute.
Data completeness: 97%
- Last verified
- Jul 22, 2026
SplitAtlas score
8.8 / 10
Cooling efficiency20.0
Heating efficiency80.9
Cold-weather performance77.6
Noise100.0
Warranty100.0
Feature set42.9
Documentation & parts50.0
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Bosch Climate 5000 Gen 4 24,000 BTU R-454B Max Performance (BMS500-AAU024-1AHWXD / BMS500-AAS024-1CSXHD) review summary
The Max Performance 24k is the cold-climate heavyweight of the whole shared-platform group: rated to -22F, it delivers a huge 29,000 BTU of heat at 47F and actually climbs back up to 24,200 BTU at 5F (above its 17F figure), with a class-leading HSPF2 of 13.5. If you need to heat a large space in a hard-winter climate from a single head, this is the standout.
Rated cooling
24,000BTU/hVerified - AHRI directory
Rated heating
29,000BTU/hVerified - AHRI directory
Bosch Climate 5000 Gen 4 24,000 BTU R-454B Max Performance (BMS500-AAU024-1AHWXD / BMS500-AAS024-1CSXHD) best-fit use cases
A large living area or open floor in a cold climate that needs serious, sustained heat from one head - the strongest single-zone cold-climate heater in the shared-platform brands.
Bosch Climate 5000 Gen 4 24,000 BTU R-454B Max Performance (BMS500-AAU024-1AHWXD / BMS500-AAS024-1CSXHD) specifications
- Manufacturer
- Bosch
- Brand
- Bosch
- Product line
- Climate 5000 Gen 4 R-454B
- Model number
- BMS500-AAU024-1AHWXD indoor / BMS500-AAS024-1CSXHD outdoor
- Indoor unit model
- BMS500-AAU024-1AHWXD
- Outdoor unit model
- BMS500-AAS024-1CSXHD
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 24,000 BTU/hVerified - AHRI directory
- Rated heating capacity
- 29,000 BTU/hVerified - AHRI directory
- Voltage
- 230 VVerified - manufacturer technical document
- MCA
- 24.9 AVerified - manufacturer technical document
- Maximum fuse or breaker size
- 25 AVerified - manufacturer technical document
- Breaker needed
- not published
- SEER2
- 21 SEER2Verified - AHRI directory
- EER2
- 13 EER2Verified - AHRI directory
- HSPF2 (Region 4)
- 13.5 HSPF2Verified - AHRI directory
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- 3.42 COPVerified - manufacturer technical document
- COP at 5F
- 2.34 COPVerified - AHRI directory
- Minimum outdoor heating temperature
- -22 FVerified - manufacturer technical document
- Minimum outdoor cooling temperature
- -22 FVerified - manufacturer technical document
- Maximum outdoor temperature
- 122 FVerified - manufacturer technical document
- Indoor noise range
- 16-54.5 dB(A)Verified - manufacturer technical document
- Outdoor noise rating
- 61.5 dBAVerified - manufacturer technical document
- Indoor weight
- 43.65 lbVerified - manufacturer technical document
- Outdoor weight
- 130.29 lbVerified - manufacturer technical document
- Refrigerant
- R-454BVerified - AHRI directory
- Refrigerant charge
- 63.49 ozVerified - manufacturer technical document
- Manufacturer coverage
- not published
- Line-set size
- 3/8 in liquid / 5/8 in suction
- Included line-set length
- Bosch submittals publish field piping sizes, precharged refrigerant length, and accessory line sets, but do not specify an included line set for these professional-install systems.
- Maximum line-set length
- 164 ftVerified - manufacturer technical document
- Max line set per indoor
- not published
- Maximum elevation difference
- 82 ftVerified - manufacturer technical document
- Max height between indoor units
- not published
- Wi-Fi support
- not published
- Energy Star status
- certifiedVerified - Energy Star listing
- AHRI certification number
- 215223290Verified - AHRI directory
- Warranty
- 10 years parts / 10 years compressor. 10-year compressor / 10-year parts limited residential warranty; terms and field-installed component limits apply.
- DIY installation status
- Professional install
- Retail price
- Exact HVACDirect SKU searches for BMS500-AAS024-1CSXHD, BMS500-AAU024-1AHWXD returned 403 status and no exact product page with visible price on 2026-07-22; no affiliate offer was attached.
- Installation type
- Professional install
- Available retailers
- not published
- Manual links
- AHRI certificate 215223290, AHRI public directory record 215223290, ENERGY STAR record 3554546 for BMS500-AAS024-1CSXHD / BMS500-AAU024-1AHWXD, HVACDirect exact Bosch model search summary, Bosch Climate 5000 Gen 4 Wall Mounted Ductless Split IOM, Air-to-Air R-454B Heat Pump Systems FAQ snapshot, Bosch Climate 5000 R-454B source links manifest, Climate 5000 Ductless System Mini-Split Heat Pump (R-454B Version) manufacturer page snapshot, Bosch heat pump and geothermal warranty documents page snapshot, Bosch Climate 5000 Gen 4 Wall Mounted Ductless Split Service Manual, Bosch Climate 5000 Gen 4 24,000 BTU R-454B Max Performance (BMS500-AAU024-1AHWXD / BMS500-AAS024-1CSXHD) engineering submittal sheet, Bosch Climate 5000 Gen 4 Wall Mounted Ductless Split User Manual
- Specification sheet
- Bosch Climate 5000 Gen 4 24,000 BTU R-454B Max Performance (BMS500-AAU024-1AHWXD / BMS500-AAS024-1CSXHD) engineering submittal sheet
- Last verified date
- Jul 22, 2026
Bosch Climate 5000 Gen 4 24,000 BTU R-454B Max Performance (BMS500-AAU024-1AHWXD / BMS500-AAS024-1CSXHD) strengths
- Enormous cold-weather heating: 29,000 BTU at 47F, 24,200 BTU at 5F, rated to -22F.
- HSPF2 13.5 - among the best seasonal heating efficiency in the catalog.
- Bosch support and 10-year parts / 10-year compressor warranty.
Bosch Climate 5000 Gen 4 24,000 BTU R-454B Max Performance (BMS500-AAU024-1AHWXD / BMS500-AAS024-1CSXHD) weaknesses
- Lower seasonal cooling efficiency (SEER2 21) - a heating-first system.
- Premium price; professional installation required; no confirmed online retail price.
Bosch Climate 5000 Gen 4 24,000 BTU R-454B Max Performance (BMS500-AAU024-1AHWXD / BMS500-AAS024-1CSXHD) climate suitability
- Minimum heating ambient
- -22 FVerified - manufacturer technical document
- Rated heating at 5F
- 24,200 BTU/hVerified - AHRI directory
- Rated heating at 17F
- 22,200 BTU/hVerified - AHRI directory
- Rated heating at 47F
- 29,000 BTU/hVerified - AHRI directory
Bosch Climate 5000 Gen 4 24,000 BTU R-454B Max Performance (BMS500-AAU024-1AHWXD / BMS500-AAS024-1CSXHD) electrical requirements
- Voltage
- 230 VVerified - manufacturer technical document
- Voltage range
- 208/230VVerified - manufacturer technical document
- Phase
- 1Verified - manufacturer technical document
- Frequency
- 60 HzVerified - manufacturer technical document
- MCA
- 24.9 AVerified - manufacturer technical document
- Breaker needed
- not published
- Maximum breaker size
- 25 AVerified - manufacturer technical document
- Maximum fuse size
- 25 AVerified - manufacturer technical document
- Maximum cooling current
- not published
- Maximum heating current
- not published
- Manufacturer wire notes
- not published
Bosch Climate 5000 Gen 4 24,000 BTU R-454B Max Performance (BMS500-AAU024-1AHWXD / BMS500-AAS024-1CSXHD) installation considerations
- Liquid line
- 3/8 inVerified - manufacturer technical document
- Suction line
- 5/8 inVerified - manufacturer technical document
- Precharged length
- 24.6 ftVerified - manufacturer technical document
- Included line-set length
- Bosch submittals publish field piping sizes, precharged refrigerant length, and accessory line sets, but do not specify an included line set for these professional-install systems.
- Maximum line-set length
- 164 ftVerified - manufacturer technical document
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 44.88 x 10.83 x 14.57 inVerified - manufacturer technical document
- Outdoor dimensions
- 37.24 x 16.14 x 31.89 inVerified - manufacturer technical document
- Indoor weight
- 43.65 lbVerified - manufacturer technical document
- Outdoor weight
- 130.29 lbVerified - manufacturer technical document
- Drain size
- not published
