Carrier / Infinity 35

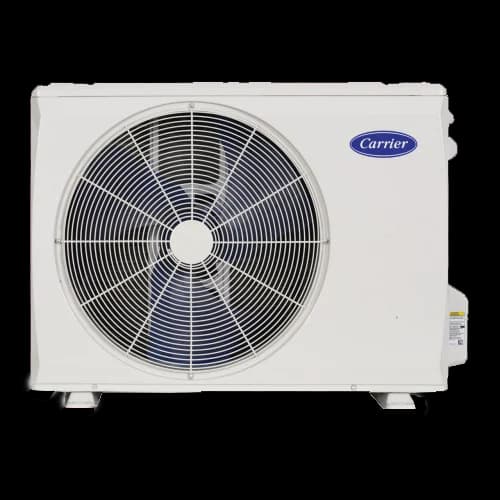

Carrier Infinity 35 12k R-454B 208/230V Mini-Split
The 12,000 BTU Infinity 35 uses R-454B on 230V and posts 29.5 SEER2, 14.3 EER2, and 12.7 HSPF2. Its hyper-heat curve runs 12,000 BTU at 47F, 11,000 BTU at 17F, and 13,500 BTU at 5F. It is ENERGY STAR certified and cold-climate designated.
1 zoneProfessional installCurrent
Refrigerant generation
R-454B - current-generation refrigerant
Image: Carrier
Data completeness: 100%
- Last sourced
- Jul 27, 2026
SplitAtlas score
9.4 / 10
Cooling efficiencyTop 10%
(29.5 SEER2) among 12k systems
Heating efficiencyTop 10%
(12.7 HSPF2) among 12k systems
Cold-weather performanceTop 10%
(100% heat retained at 5F; -22 F heating floor) among 12k systems
WarrantyAbove average
(10 yr parts / 10 yr compressor) across the catalogue
Feature setAbove average
(6 verified features) across the catalogue
Documentation & partsBelow average
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
quote-only - no retail price to evaluate
Key ratings
Best-fit use cases
A great fit for a mid-size room in a cold climate where a buyer wants flagship efficiency and heat that peaks when it is coldest.
Buyer review snapshot
Best for / skip if
Best for
- Top efficiency shortlists; SEER2 is 29.5.
Install difficulty
Professional install
- Electrical: 230V.
Availability and price context
- Warranty warning: Warranty coverage does not apply to any product purchased over the Internet. Online listing: $3,899.99 at HVACDirect; checked Jul 27, 2026; price source is HVACDirect.
Purchase channel policy
Carrier's ductless warranty excludes products purchased over the Internet; buyers should treat public online carts as outside the warranty-covered purchase channel.
- Warranty consequence
- Warranty coverage does not apply to any product purchased over the Internet.
- Authorized channel
- Licensed HVAC technician installation with defective parts returned to the distributor through a registered servicing dealer; not an internet purchase.
Any online offer for this brand should be treated as a warranty-risk warning, not a recommendation.
Compare online-purchase warranty rules by brand
Source: Carrier Corporation: CAC/BDP Limited Warranty Certificate - Limited Warranty for Ductless Split Units; retrieved Aug 15, 2026.
Source date
- Model data sourced
- Jul 27, 2026
- Page reviewed
- Jul 27, 2026
- Source-backed records
- 4
- Newest source retrieved
- Jul 27, 2026
Warranty tiers
Warranty: 10 years parts and no separate compressor term published as standard.
Model context
- Structured ratings
- Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -22 F.
Strengths
- Strong 29.5 SEER2 flagship efficiency in a mainstream 12,000 BTU size.
- Heat rises to 13,500 BTU at 5F, exceeding the 47F rating, a hyper-heat strength for deep cold.
- Cold-climate and ENERGY STAR certified with Carrier's premium support.
Weaknesses
- EER2 of 14.3 and HSPF2 of 12.7 trail the smaller 6k and 9k Infinity 35 heads.
- Flagship pricing over the equivalent Performance or Infinity 27 12k.
Climate suitability
- Minimum heating ambient
- -22 F[1]
- Rated heating at 5F
- 13,500 BTU/h[2]
- Rated heating at 17F
- 11,000 BTU/h[2]
- Rated heating at 47F
- 12,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- Carrier
- Brand
- Carrier
- Product line
- Infinity 35
- Model number
- 45MPHAQ12XA3 indoor / 37MPRAQ12AA3 outdoor
- Indoor unit model
- 45MPHAQ12XA3
- Outdoor unit model
- 37MPRAQ12AA3
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 12,000 BTU/h[2]
- Rated heating capacity
- 12,000 BTU/h[2]
- Voltage
- 230 V[1]
- MCA
- No model-specific value is published on the current Carrier consumer listing
- Maximum fuse or breaker size
- No model-specific value is published on the current Carrier consumer listing
- Breaker needed
- not published
- SEER2
- 29.5 SEER2[2]
- EER2
- 14.3 EER2[2]
- HSPF2 (Region 4)
- 12.7 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 2 COP[2]
- Minimum outdoor heating temperature
- -22 F[1]
- Minimum outdoor cooling temperature
- No model-specific value is published on the current Carrier consumer listing
- Maximum outdoor temperature
- 122 F[1]
- Indoor noise range
- No model-specific value is published on the current Carrier consumer listing
- Outdoor noise rating
- No model-specific value is published on the current Carrier consumer listing
- Indoor weight
- No model-specific value is published on the current Carrier consumer listing
- Outdoor weight
- No model-specific value is published on the current Carrier consumer listing
- Refrigerant
- R-454B[2]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- No model-specific value is published on the current Carrier consumer listing liquid / No model-specific value is published on the current Carrier consumer listing suction
- Included line-set length
- Professional installations use separately selected line sets
- Maximum line-set length
- No model-specific value is published on the current Carrier consumer listing
- Max line set per indoor
- not published
- Maximum elevation difference
- No model-specific value is published on the current Carrier consumer listing
- Max height between indoor units
- not published
- Wi-Fi support
- No model-specific value is published on the current Carrier consumer listing
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 215413143[2]
- Warranty
- Standard: 10 yr parts / no separate compressor term (eligible timely registered residential installation). Consumer Choice Warranty: 10-year parts-only or 5-year parts plus 3-year labor for eligible timely registered residential installations; terms and participating dealer requirements apply.
- Install path
- Professional install
- Retail price
- online listing with warranty risk: $3,899.99
- Available retailers
- HVACDirect
- Manual links
- AHRI public directory record 215413143, ENERGY STAR exact check 215413143, Infinity 35 installation documentation locator, Carrier Infinity 35 Mini Split Heat Pump with Basepan Heater, HVACDirect exact Carrier affiliate offer carrier-infinity-35-12k-r454b-230v, AHRI Appendix M1 public detail 215413143
- Specification sheet
- AHRI Appendix M1 public detail 215413143
- Last sourced date
- Jul 27, 2026
Retail purchase context
Warranty consequence
Warranty coverage does not apply to any product purchased over the Internet.
Any online offer for this brand should be treated as a warranty-risk warning, not a recommendation.
Authorized channel: Licensed HVAC technician installation with defective parts returned to the distributor through a registered servicing dealer; not an internet purchase.
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
Warranty-risk online listing
Listed at HVACDirect: $3,900. Checked Jul 27, 2026; price source HVACDirect.
Electrical requirements
ShowHide
- Voltage
- 230 V[1]
- Voltage range
- 208/230V[1]
- Phase
- 1[1]
- Frequency
- 60 Hz[1]
- MCA
- No model-specific value is published on the current Carrier consumer listing
- Breaker needed
- not published
- Maximum breaker size
- No model-specific value is published on the current Carrier consumer listing
- Maximum fuse size
- No model-specific value is published on the current Carrier consumer listing
- Maximum cooling current
- not published
- Maximum heating current
- not published
- Manufacturer wire notes
- not published
Installation considerations
ShowHide
- Liquid line
- No model-specific value is published on the current Carrier consumer listing
- Suction line
- No model-specific value is published on the current Carrier consumer listing
- Line connection type
- not published
- Precharged length
- not published
- Included line-set length
- Professional installations use separately selected line sets
- Maximum line-set length
- No model-specific value is published on the current Carrier consumer listing
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- No model-specific value is published on the current Carrier consumer listing
- Outdoor dimensions
- No model-specific value is published on the current Carrier consumer listing
- Indoor weight
- No model-specific value is published on the current Carrier consumer listing
- Outdoor weight
- No model-specific value is published on the current Carrier consumer listing
- Drain size
- not published
