Can I install the Daikin Entra R32 9,000 BTU (230V) myself, or do I need a pro?

Daikin Entra R32 9,000 BTU (230V) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.

Will the Daikin Entra R32 9,000 BTU (230V) keep heating in a cold winter?

The manufacturer publishes 4,600 BTU/h of heating output at 5F. Rated heating operation extends down to 5 F. Certified heating efficiency is 9 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.

What electrical circuit does the Daikin Entra R32 9,000 BTU (230V) need?

Published electrical requirements: 208-230 V voltage, 9.3 A minimum circuit ampacity, and 15 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.

How far can the outdoor unit be from the indoor head?

The published maximum line-set length is 65.625 ft, and the included line set comes pre-charged for 32.813 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.

What warranty does the Daikin Entra R32 9,000 BTU (230V) carry?

The manufacturer publishes 10 years parts coverage and 10 years compressor coverage. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

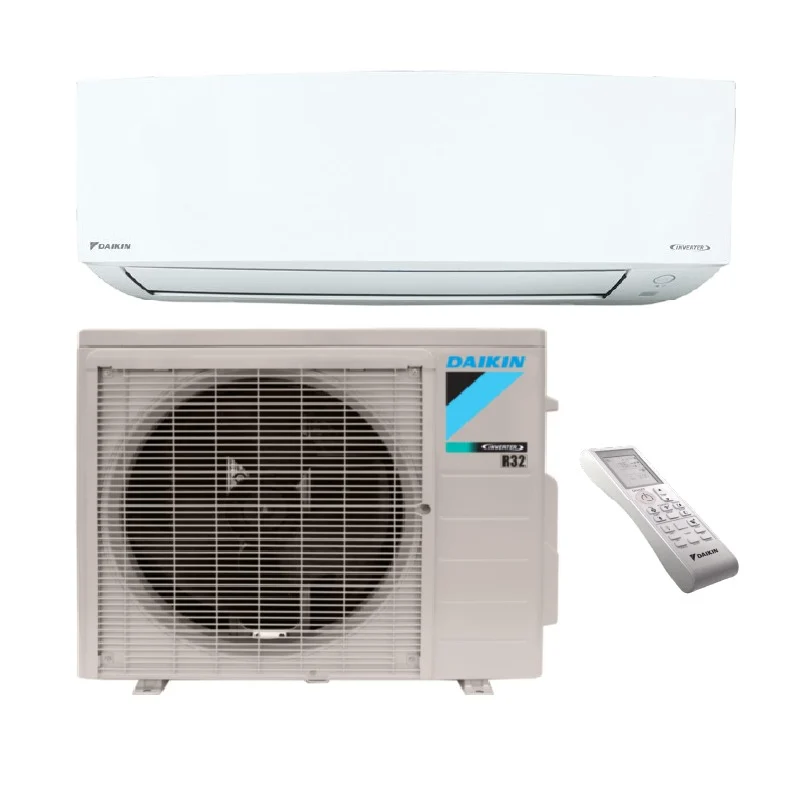

Daikin Entra R32 9,000 BTU (230V) Specs, Price & Review

Daikin Entra R32 9,000 BTU (230V) review summary

The Daikin Entra 9k puts one of the world's largest HVAC brands on a bedroom-sized budget - but read this first: Daikin has ENDED production of the Entra series, and the units selling now are closeout inventory. That is why a name-brand Daikin 9k lists near $1,180. Certified SEER2 18 / HSPF2 9 on R32, professional install, rated to a 5F operating floor.

Rated cooling

9,000BTU/hVerified - AHRI certificate

Rated heating

9,400BTU/hVerified - AHRI certificate

Daikin Entra R32 9,000 BTU (230V) best-fit use cases

Mild-climate buyers hiring an installer who want a major-brand unit with strong warranty coverage at a closeout price, and who are comfortable buying an end-of-production model while stock lasts.

Daikin Entra R32 9,000 BTU (230V) specifications

Manufacturer: Daikin
Brand: Daikin
Product line: ENTRA R32
Model number: FTXC09AXVJU indoor / RXC09AXVJU outdoor
Indoor unit model: FTXC09AXVJU
Outdoor unit model: RXC09AXVJU
Number of zones: 1
Max indoor units: not published
Rated cooling capacity: 9,000 BTU/hVerified - AHRI certificate
Rated heating capacity: 9,400 BTU/hVerified - AHRI certificate
Voltage: 208-230 VVerified - manufacturer technical document
MCA: 9.3 AVerified - manufacturer technical document
Maximum fuse or breaker size: 15 AVerified - manufacturer technical document
Breaker needed: not published
SEER2: 18 SEER2Verified - AHRI certificate
EER2: 11 EER2Verified - AHRI certificate
HSPF2 (Region 4): 9 HSPF2Verified - AHRI certificate
HSPF2 (Region 5): not published
COP: not published
COP at 47F: not published
COP at 5F: 2.2 COPVerified - AHRI directory
Minimum outdoor heating temperature: 5 FVerified - manufacturer product page
Minimum outdoor cooling temperature: 50 FVerified - manufacturer product page
Maximum outdoor temperature: 115 FVerified - manufacturer product page
Indoor noise range: Cooling 43/36/29/19 dBA; heating 42/35/29/25 dBAVerified - manufacturer technical document
Outdoor noise rating: 48 dBAVerified - manufacturer technical document
Indoor weight: 19.8 lbVerified - manufacturer technical document
Outdoor weight: 60 lbVerified - manufacturer technical document
Refrigerant: R32Verified - manufacturer technical document
Refrigerant charge: 26.4 ozVerified - manufacturer technical document
Manufacturer coverage: not published
Line-set size: 1/4 in liquid / 3/8 in suction
Included line-set length: not published
Maximum line-set length: 65.625 ftVerified - manufacturer technical document
Max line set per indoor: not published
Maximum elevation difference: 32.813 ftVerified - manufacturer technical document
Max height between indoor units: not published
Wi-Fi support: not published
Energy Star status: NoVerified - AHRI directory
AHRI certification number: 213895727Verified - AHRI certificate
Warranty: 10 years parts / 10 years compressor. Registered owner-occupied residential warranty is up to 10 years on all parts with online registration within 60 days; unregistered and commercial coverage is up to 5 years on all parts. Daikin does not state a separate compressor-only period in PWDDSSTH.
DIY installation status: Professional install
Retail price: $1,183.00
Installation type: Professional install
Available retailers: HVACDirect
Manual links: AHRI certificate 213895727 for RXC09AXVJU / FTXC09AXVJU, AHRI Directory public details for Daikin Entra R32 AXVJU pairings, Daikin ENTRA engineering manual linked from Daikin Comfort product page, Daikin FTXC09AXVJU Indoor Unit Submittal R32, Daikin R32 Split Series installation manual for FTXC/RXC AXVJU, Daikin ENTRA installation manual linked from Daikin Comfort product page, Daikin ENTRA Wall-Mounted Heat Pump System product page, Daikin RXC09AXVJU Air-Cooled Split Outdoor Unit Submittal R32, Daikin ENTRA R32 product brochure, Daikin ENTRA R32 product flyer, HVACDirect product page Daikin Entra R32 9,000 complete system, Daikin ENTRA service manual linked from Daikin Comfort product page, Daikin Limited Warranty PWDDSSTH for RXC/FTXC models
Specification sheet: not published
Last verified date: Jul 21, 2026

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect

$1,183 / Fresh price - checked Jul 21, 2026

Daikin Entra R32 9,000 BTU (230V) strengths

Daikin brand engineering and a 10-year all-parts warranty (compressor included) when you register - strong coverage for the price.
Genuine value: closeout pricing puts a major-brand 9k well below its usual cost.
Current R32 refrigerant; low 9.3 A minimum circuit ampacity.

Daikin Entra R32 9,000 BTU (230V) weaknesses

DISCONTINUED line: this is closeout stock. Confirm availability before planning around it, and weigh long-term parts support on an end-of-production model.
Mild-climate only: rated to a 5F floor, not a cold-climate heater.
SEER2 18 is mid-tier - efficiency-first buyers in cold regions get more from a Gree Vireo or similar.
Professional installation required (flared, evacuated line set).

Daikin Entra R32 9,000 BTU (230V) climate suitability

Minimum heating ambient: 5 FVerified - manufacturer product page
Rated heating at 5F: 4,600 BTU/hVerified - AHRI directory
Rated heating at 17F: 5,600 BTU/hVerified - AHRI directory
Rated heating at 47F: 9,400 BTU/hVerified - AHRI certificate

Daikin Entra R32 9,000 BTU (230V) electrical requirements

Voltage: not published
Voltage range: 208-230 VVerified - manufacturer technical document
Phase: 1Verified - manufacturer technical document
Frequency: 60 HzVerified - manufacturer technical document
MCA: 9.3 AVerified - manufacturer technical document
Breaker needed: not published
Maximum breaker size: 15 AVerified - manufacturer technical document
Maximum fuse size: 15 AVerified - manufacturer technical document
Maximum cooling current: not published
Maximum heating current: not published
Manufacturer wire notes: AWG14 stranded insulated interconnect wire between indoor and outdoor units; local code supersedes recommendation.Verified - manufacturer technical document

Daikin Entra R32 9,000 BTU (230V) installation considerations

Liquid line: 1/4 inVerified - manufacturer technical document
Suction line: 3/8 inVerified - manufacturer technical document
Precharged length: 32.813 ftVerified - manufacturer technical document
Included line-set length: not published
Maximum line-set length: 65.625 ftVerified - manufacturer technical document
Max line set per indoor: not published
Max height between indoor units: not published
Indoor dimensions: 30.3125 in W x 11.333 in H x 9.6875 in DVerified - manufacturer technical document
Outdoor dimensions: 26.5 in W x 21.6875 in H x 11.1875 in DVerified - manufacturer technical document
Indoor weight: 19.8 lbVerified - manufacturer technical document
Outdoor weight: 60 lbVerified - manufacturer technical document
Drain size: 5/8 inVerified - manufacturer technical document

Daikin Entra R32 9,000 BTU (230V) related systems and guides

Frequently asked questions

Can I install the Daikin Entra R32 9,000 BTU (230V) myself, or do I need a pro?: Daikin Entra R32 9,000 BTU (230V) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Daikin Entra R32 9,000 BTU (230V) keep heating in a cold winter?: The manufacturer publishes 4,600 BTU/h of heating output at 5F. Rated heating operation extends down to 5 F. Certified heating efficiency is 9 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Daikin Entra R32 9,000 BTU (230V) need?: Published electrical requirements: 208-230 V voltage, 9.3 A minimum circuit ampacity, and 15 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?: The published maximum line-set length is 65.625 ft, and the included line set comes pre-charged for 32.813 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the Daikin Entra R32 9,000 BTU (230V) carry?: The manufacturer publishes 10 years parts coverage and 10 years compressor coverage. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Daikin Entra R32 9,000 BTU (230V) data sources

Daikin Comfort Technologies: Daikin RXC09AXVJU Air-Cooled Split Outdoor Unit Submittal R32Verified - manufacturer technical document
Covers Frequency, Maximum fuse size, Minimum circuit ampacity, Phase, electrical_spec.rated_current_cooling_amps, electrical_spec.rated_current_heating_amps and more
Daikin Comfort Technologies: Daikin R32 Split Series Installation Manual for FTXC/RXC AXVJUVerified - manufacturer technical document
Covers Maximum breaker size, Manufacturer wire notes, installation_spec.line_connection_type, system.diy_status, system.installation_type
Daikin Comfort Technologies: Daikin FTXC09AXVJU Indoor Unit Submittal R32Verified - manufacturer technical document
Covers installation_spec.indoor_airflow_cfm, Indoor dimensions, installation_spec.indoor_gross_weight_lb, Indoor noise range, Indoor weight
AHRI: AHRI certificate 213895727 for RXC09AXVJU / FTXC09AXVJUVerified - AHRI certificate
Covers AHRI certification number, Rated cooling capacity, EER2, Rated heating capacity, HSPF2 (Region 4), Rated heating at 47F and more
AHRI: AHRI Directory public details for Daikin Entra R32 AXVJU pairingsVerified - AHRI directory
Covers COP at 5F, performance_spec.energy_star_cold_climate_designation, Energy Star status, Rated heating at 17F, Rated heating at 5F
Daikin Comfort Technologies: Daikin ENTRA Wall-Mounted Heat Pump System product pageVerified - manufacturer product page
Covers Minimum outdoor cooling temperature, Minimum outdoor heating temperature, performance_spec.max_ambient_heating_temp_f, Maximum outdoor temperature
HVACDirect: HVACDirect Daikin Entra 9,000 complete system page snapshotVerified - authorized distributor
Covers Retail price
Daikin Comfort Technologies: Daikin Limited Warranty PWDDSSTH for RXC/FTXC modelsVerified - secondary source
Covers Compressor warranty, Parts warranty, Warranty notes

Daikin Entra R32 9,000 BTU (230V) last updated

Jul 21, 2026
