ACiQ / ACiQ Extreme

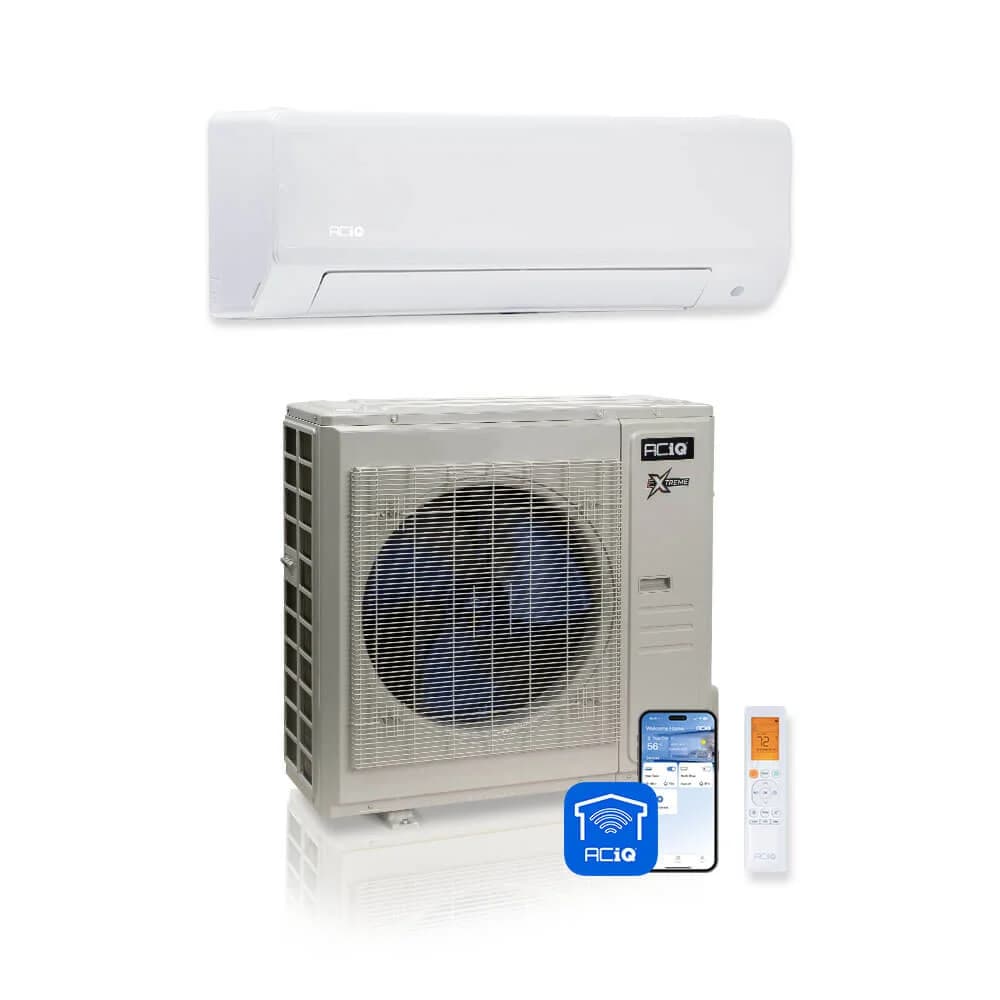

ACiQ Extreme 9k R-454B 208/230V Mini-Split
Extreme is ACiQ's flagship cold-climate line, and this 9k-class 230V unit shows why: 27.4 SEER2, 15.4 EER2, and 12.5 HSPF2 on R-454B, with ENERGY STAR certification and cold-climate designation. The heating curve is the headline - 12,000 BTU at 47F held flat to 12,000 BTU at 17F, then only a slight ease to 11,500 BTU at 5F. Capacity barely budges as the temperature plummets.
1 zoneProfessional installCurrent
Refrigerant generation
R-454B - current-generation refrigerant
Paid link
$1,500 / Fresh price - checked Jul 26, 2026
Need this installed?
Get installation quotes
Image: ACiQ
Data completeness: 93%
- Last sourced
- Jul 26, 2026
SplitAtlas score
8.8 / 10
Cooling efficiencyTop quartile
(27.4 SEER2) among <=9k systems
Heating efficiencyTop quartile
(12.5 HSPF2) among <=9k systems
Cold-weather performanceAbove average
(95.8% heat retained at 5F; -22 F heating floor) among <=9k systems
NoiseBelow average
(19.5 dBA indoor min / 56 dBA outdoor) among <=9k systems
WarrantyTop quartile
(7 yr parts / 12 yr compressor) across the catalogue
Feature setAbove average
(5 verified features) across the catalogue
Price-to-performanceBelow average
($1,500 median retail) among <=9k systems
Documentation & partsBelow average
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
Key ratings
Best-fit use cases
The pick for a bedroom or main room on 230V in a harsh winter climate where holding full heat output in deep cold is the whole point.
Where this system ranks
Buyer review snapshot
Best for / skip if
Best for
- Top efficiency shortlists; SEER2 is 27.4.
Install difficulty
Professional install
- Electrical: 230V; MCA 15 A; breaker/fuse 15 A.
- Line set: connection type not sourced; precharged 25 ft.
Alternatives
- Blueridge XS6 Max Efficiency 9,000 BTU R-454B 208/230V (BXS6A09WM0 / BXS6A09UC0)
8.9 score / 9k / SEER2 33.3 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $1,689.00, checked Jul 24, 2026
Availability and price context
- Verified current price: $1,499.99 at HVACDirect; availability in_stock; checked Jul 26, 2026.
Source date
- Model data sourced
- Jul 26, 2026
- Page reviewed
- Jul 26, 2026
- Source-backed records
- 3
- Newest source retrieved
- Jul 26, 2026
Warranty tiers
Warranty: 7 years parts and 12 years compressor as standard.
Strengths
- Holds full 12,000 BTU from 47F all the way to 17F, then still delivers 11,500 BTU at 5F - outstanding cold-weather output.
- Class-leading 27.4 SEER2 and 15.4 EER2, both ENERGY STAR certified and cold-climate designated.
Weaknesses
- Flagship efficiency and cold-climate engineering command the highest price in the ACiQ range.
- Even at the top of the line, it relies on a value-brand support network smaller than premium cold-climate names.
Climate suitability
- Minimum heating ambient
- -22 F[1]
- Rated heating at 5F
- 11,500 BTU/h[2]
- Rated heating at 17F
- 12,000 BTU/h[2]
- Rated heating at 47F
- 12,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- ACiQ
- Brand
- ACiQ
- Product line
- ACiQ Extreme
- Model number
- ACIQ-09W-HH-MD indoor / ACIQ-09ZPL-HP230C outdoor
- Indoor unit model
- ACIQ-09W-HH-MD
- Outdoor unit model
- ACIQ-09ZPL-HP230C
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 9,000 BTU/h[2]
- Rated heating capacity
- 12,000 BTU/h[2]
- Voltage
- 230 V[1]
- MCA
- 15 A[1]
- Maximum fuse or breaker size
- 15 A[1]
- Breaker needed
- not published
- SEER2
- 27.4 SEER2[2]
- EER2
- 15.4 EER2[2]
- HSPF2 (Region 4)
- 12.5 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.8 COP[2]
- Minimum outdoor heating temperature
- -22 F[1]
- Minimum outdoor cooling temperature
- -22 F[1]
- Maximum outdoor temperature
- 122 F[1]
- Indoor noise range
- 19.5 / 38 dB(A)[1]
- Outdoor noise rating
- 56 dBA[1]
- Indoor weight
- 29.98 lb[1]
- Outdoor weight
- 78.7 lb[1]
- Refrigerant
- R-454B[2]
- Refrigerant charge
- 35.2 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- Line set length is selected as an accessory on this HVACDirect system page.
- Maximum line-set length
- not published
- Max line set per indoor
- not published
- Maximum elevation difference
- not published
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 216032334[2]
- Warranty
- Standard: 7 yr parts / 12 yr compressor (published per-line terms with online registration). 12-year compressor / 7-year parts with online registration
- Install path
- Professional install
- Retail price
- $1,499.99
- Available retailers
- HVACDirect
- Manual links
- AHRI public directory record 216032334, ENERGY STAR exact check 216032334, 9,000 BTU ACiQ Extreme 27.4 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V HVACDirect installation resources listing, 9,000 BTU ACiQ Extreme 27.4 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V, HVACDirect exact affiliate offer aciq-extreme-9k-r454b-230v, 9,000 BTU ACiQ Extreme 27.4 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V HVACDirect product specification grid
- Specification sheet
- 9,000 BTU ACiQ Extreme 27.4 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V HVACDirect product specification grid
- Last sourced date
- Jul 26, 2026
Retail purchase context
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
Check price at HVACDirect
$1,500 / Fresh price - checked Jul 26, 2026
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 3/8 in[1]
- Line connection type
- not published
- Precharged length
- 25 ft[1]
- Included line-set length
- Line set length is selected as an accessory on this HVACDirect system page.
- Maximum line-set length
- not published
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 33.40 x 11.76 x 9.18 in[1]
- Outdoor dimensions
- 31.69 x 21.81 x 12.99 in[1]
- Indoor weight
- 29.98 lb[1]
- Outdoor weight
- 78.7 lb[1]
- Drain size
- not published
Related systems and guides
- More ACiQ systems
- ACiQ Essentials 9k
- ACiQ Standard 9k 115V
- ACiQ Essentials 9k 115V
- ACiQ Standard 9k 230V
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- ACiQ mini split review: is ACiQ any good?
- The best 9,000 BTU mini splits of 2026
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- The mini split defrost cycle, explained
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split remote not working
- Mini split Wi-Fi not connecting
- Mini split leaking water
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the ACiQ Extreme 9,000 BTU R-454B 208/230V (ACIQ-09W-HH-MD / ACIQ-09ZPL-HP230C) myself, or do I need a pro?
- ACiQ Extreme 9,000 BTU R-454B 208/230V (ACIQ-09W-HH-MD / ACIQ-09ZPL-HP230C) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the ACiQ Extreme 9,000 BTU R-454B 208/230V (ACIQ-09W-HH-MD / ACIQ-09ZPL-HP230C) keep heating in a cold winter?
- The manufacturer publishes 11,500 BTU/h of heating output at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 12.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the ACiQ Extreme 9,000 BTU R-454B 208/230V (ACIQ-09W-HH-MD / ACIQ-09ZPL-HP230C) need?
- Published electrical requirements: 230 V voltage, 15 A minimum circuit ampacity, and 15 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- What warranty does the ACiQ Extreme 9,000 BTU R-454B 208/230V (ACIQ-09W-HH-MD / ACIQ-09ZPL-HP230C) carry?
- The manufacturer publishes these warranty tiers: Standard: 7 yr parts / 12 yr compressor (published per-line terms with online registration). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
Data sources
ShowHide
- HVACDirect / ACiQ: 9,000 BTU ACiQ Extreme 27.4 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230VSourced - manufacturer product page
Covers Frequency, Maximum breaker size, Maximum fuse size, Minimum circuit ampacity, Phase, Voltage and more
- Air-Conditioning, Heating, and Refrigeration Institute: AHRI Appendix M1 public detail for ACIQ-09ZPL-HP230C / ACIQ-09W-HH-MDSourced - AHRI directory
Covers AHRI certification number, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity, HSPF2 (Region 4) and more
- ENERGY STAR: ENERGY STAR exact row check for AHRI 216032334Sourced - Energy Star listing
Covers Energy Star status
Last updated
Jul 26, 2026
