Della / Optima CloudAir Series
Della Optima CloudAir 9k R-454B 115V Mini-Split
The Optima CloudAir 9k on 115V is the same certified platform and ratings as the Optima 9k 115V, with CloudAir smart/WiFi controls added. It shares SEER2 23, EER2 13, HSPF2 9.5, and 10,000 BTU/h at 47F with 7,100 BTU/h at 5F. Pick between them on features and price rather than performance.
1 zoneProfessional install / DIY-marketedCurrent
Refrigerant generation
R-454B - current-generation refrigerant
Paid link
$845 / Fresh price - checked Jul 24, 2026
Need this installed?
Get installation quotes

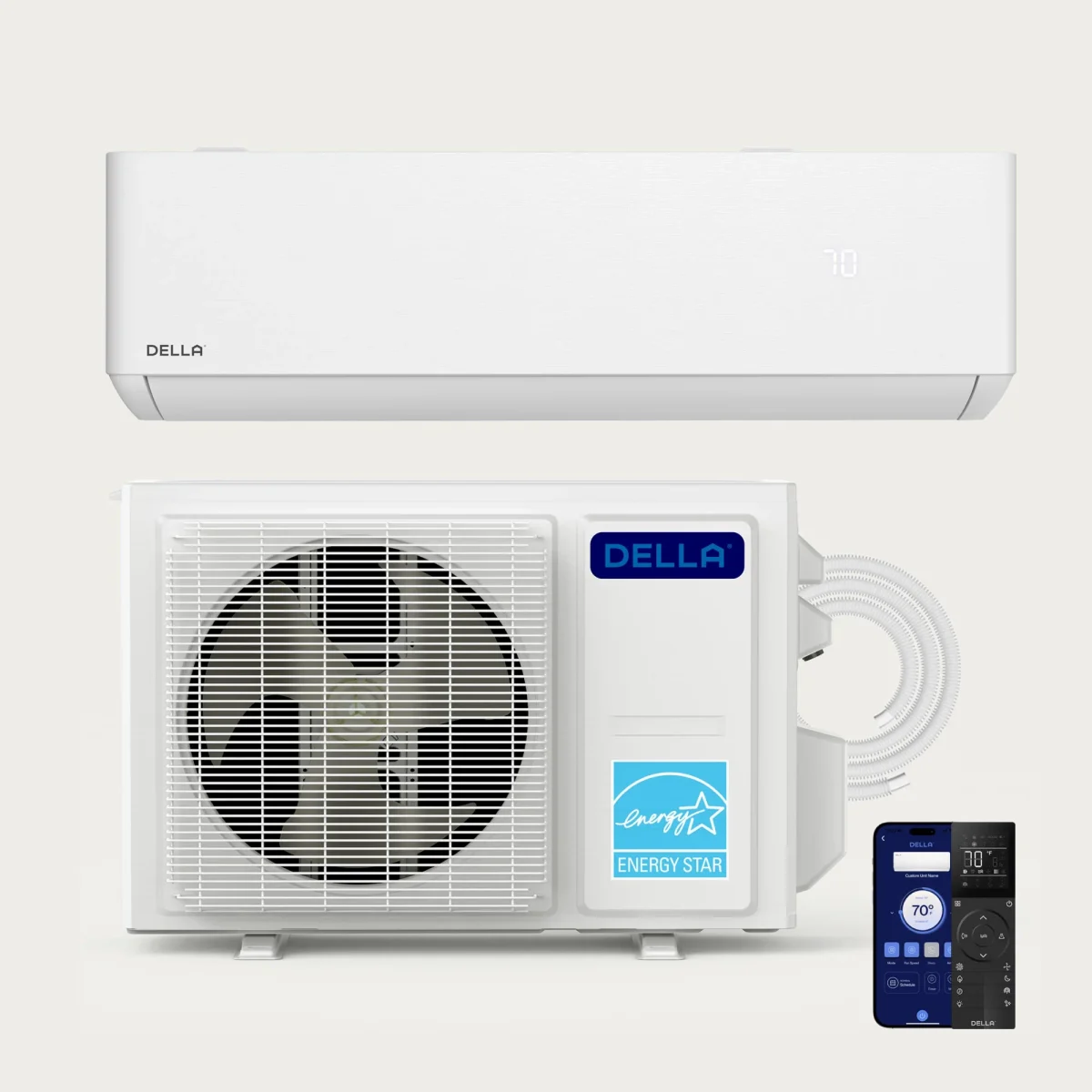

Image: Della
Data completeness: 93%
- Last sourced
- Jul 24, 2026
SplitAtlas score
7.8 / 10
Cooling efficiencyAbove average
(23.0 SEER2) among <=9k systems
Heating efficiencyBelow average
(9.5 HSPF2) among <=9k systems
Cold-weather performanceBelow average
(71% heat retained at 5F; -13 F heating floor) among <=9k systems
NoiseBottom quartile
(30 dBA indoor min / 50 dBA outdoor) among <=9k systems
Feature setAbove average
(5 verified features) across the catalogue
Price-to-performanceAbove average
($845 median retail) among <=9k systems
Documentation & partsBelow average
(3 manuals; spec sheet) across the catalogue
Key ratings
Buyer review snapshot
Install difficulty
Professional flared-line install
- Electrical: 115V; breaker/fuse 20 A.
- Line set: Flared line connections; precharged 25 ft; max 49 ft.
Alternatives
- Blueridge XS6 Max Efficiency 9,000 BTU R-454B 208/230V (BXS6A09WM0 / BXS6A09UC0)
8.9 score / 9k / SEER2 33.3 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $1,689.00, checked Jul 24, 2026
- Senville ELITE 9,000 BTU R-454B 208/230V (SENE-09EL-IHH / SENE-09EL-OH)
8.8 score / 9k / SEER2 33.3 / -22 F heating floor / 187-253V
Exact destination at Senville: $1,599.99, checked Jul 24, 2026
- ACiQ Extreme 9,000 BTU R-454B 208/230V (ACIQ-09W-HH-MD / ACIQ-09ZPL-HP230C)
8.8 score / 9k / SEER2 27.4 / -22 F heating floor / 230V
Exact destination at HVACDirect: $1,499.99, checked Jul 26, 2026
Availability and price context
- Verified current price: $844.96 at Della; availability in_stock; checked Jul 24, 2026.
Source date
- Model data sourced
- Jul 24, 2026
- Page reviewed
- Jul 24, 2026
- Source-backed records
- 4
- Newest source retrieved
- Jul 24, 2026
Strengths
- CloudAir connectivity layered on an efficient SEER2 23, EER2 13 platform.
- ENERGY STAR certified, so rebate eligibility carries over.
- Standard 115V circuit and low-GWP R-454B refrigerant.
Weaknesses
- Performance matches the non-CloudAir Optima 9k exactly, so only the smart controls justify a price premium.
- Heating eases to 7,100 BTU/h at 5F, a mild-climate lean in deep cold.
Climate suitability
- Minimum heating ambient
- -13 F[1]
- Rated heating at 5F
- 7,100 BTU/h[3]
- Rated heating at 17F
- 8,000 BTU/h[3]
- Rated heating at 47F
- 10,000 BTU/h[3]
Specifications
ShowHide
- Manufacturer
- Della
- Brand
- Della
- Product line
- Optima CloudAir Series
- Model number
- 048-C-TP-9K1V-C-IN indoor / 048-C-TP-9K1V-24S-OUT outdoor
- Indoor unit model
- 048-C-TP-9K1V-C-IN
- Outdoor unit model
- 048-C-TP-9K1V-24S-OUT
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 9,000 BTU/h[3]
- Rated heating capacity
- 10,000 BTU/h[3]
- Voltage
- 115 V[1]
- MCA
- not published - manufacturer specifies 20 A breaker
- Maximum fuse or breaker size
- 20 A[1]
- Breaker needed
- 20 A[1]
- SEER2
- 23 SEER2[3]
- EER2
- 13 EER2[3]
- HSPF2 (Region 4)
- 9.5 HSPF2[3]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.9 COP[3]
- Minimum outdoor heating temperature
- -13 F[1]
- Minimum outdoor cooling temperature
- not published
- Maximum outdoor temperature
- 131 F[1]
- Indoor noise range
- 30 - 43 dBA[2]
- Outdoor noise rating
- 50 dBA[2]
- Indoor weight
- 20.7 lb[1]
- Outdoor weight
- 52.7 lb[1]
- Refrigerant
- R-454B[3]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- Della sells this certified pair with selectable line-set kit lengths, including a no-line-set SKU; no fixed included line-set length applies.
- Maximum line-set length
- 49 ft[2]
- Max line set per indoor
- not published
- Maximum elevation difference
- 33 ft[2]
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- ENERGY STAR certified[4]
- AHRI certification number
- 218640156[3]
- Warranty
- not published
- Install path
- Professional install / DIY-marketed
- Marketing install label
- DIY-marketed
- Retail price
- $844.96
- Available retailers
- Della
- Manual links
- AHRI Appendix M1 public detail record 218640156, Optima CloudAir Series installation and operation guide, Optima CloudAir 9,000 BTU Della product-page specifications
- Specification sheet
- Optima CloudAir 9,000 BTU Della product-page specifications
- Last sourced date
- Jul 24, 2026
Retail purchase context
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
Check price at Della
$845 / Fresh price - checked Jul 24, 2026
Electrical requirements
ShowHide
- Voltage
- 115 V[1]
- Voltage range
- 115V[1]
- Phase
- 1[1]
- Frequency
- not published
- MCA
- not published - manufacturer specifies 20 A breaker
- Breaker needed
- 20 A[1]
- Maximum breaker size
- not published
- Maximum fuse size
- 20 A[1]
- Maximum cooling current
- not published
- Maximum heating current
- not published
- Manufacturer wire notes
- not published
Installation considerations
ShowHide
- Liquid line
- 1/4 in[2]
- Suction line
- 3/8 in[2]
- Line connection type
- Flared line connections[2]
- Precharged length
- 25 ft[2]
- Included line-set length
- Della sells this certified pair with selectable line-set kit lengths, including a no-line-set SKU; no fixed included line-set length applies.
- Maximum line-set length
- 49 ft[2]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 32.28 in W x 7.68 in H x 12.05 in D[1]
- Outdoor dimensions
- 31.88 in W x 21.61 in H x 12 in D[1]
- Indoor weight
- 20.7 lb[1]
- Outdoor weight
- 52.7 lb[1]
- Drain size
- not published
Related systems and guides
- More Della systems
- Optima Series 9k
- Della 9k model
- Della Optima Series 9k 115V
- Della Optima Pro Series 9k 230V
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- Della mini split review: is Della any good?
- The best 9,000 BTU mini splits of 2026
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- The mini split defrost cycle, explained
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split remote not working
- Mini split smells bad
- Mini split Wi-Fi not connecting
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the Della Optima CloudAir 9,000 BTU R-454B 115V (048-C-TP-9K1V-C-IN / 048-C-TP-9K1V-24S-OUT) myself, or do I need a pro?
- Della Optima CloudAir 9,000 BTU R-454B 115V (048-C-TP-9K1V-C-IN / 048-C-TP-9K1V-24S-OUT) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the Della Optima CloudAir 9,000 BTU R-454B 115V (048-C-TP-9K1V-C-IN / 048-C-TP-9K1V-24S-OUT) keep heating in a cold winter?
- The manufacturer publishes 7,100 BTU/h of heating output at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 9.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the Della Optima CloudAir 9,000 BTU R-454B 115V (048-C-TP-9K1V-C-IN / 048-C-TP-9K1V-24S-OUT) need?
- Published electrical requirements: 115 V voltage, not published - manufacturer specifies 20 A breaker minimum circuit ampacity, and 20 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 49 ft, and the included line set comes pre-charged for 25 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
