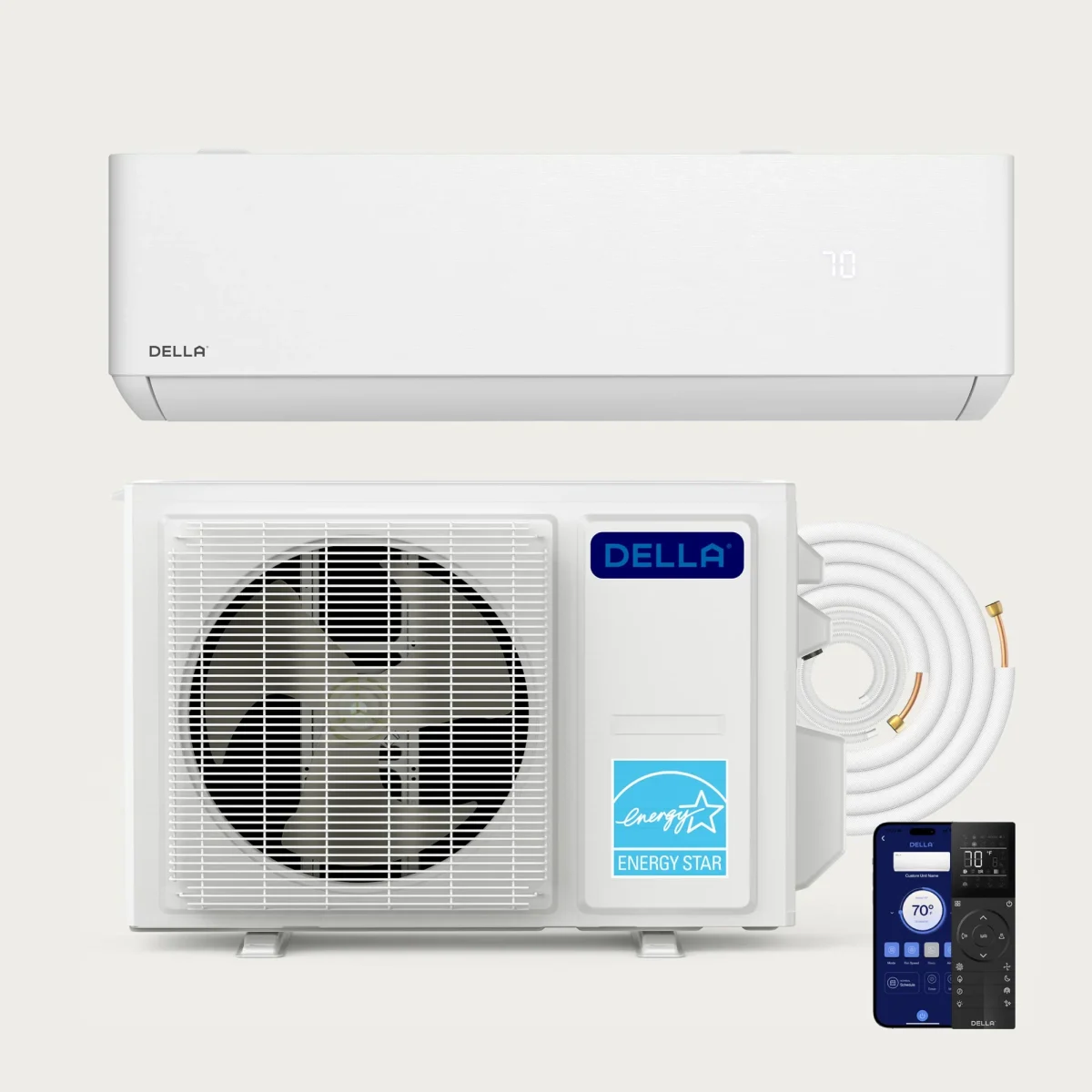

Della Optima Pro 24k R-454B 208/230V Mini-Split
The Optima Pro 24k is the flagship 2-ton single-zone unit, engineered to keep heating almost fully into the deep cold. It rates SEER2 22.5, EER2 11.7, and HSPF2 10, heating 24,000 BTU/h at 47F, again 24,000 BTU/h at 17F, and 22,400 BTU/h at 5F. It suits a large room in a demanding winter climate.
Refrigerant generation
R-454B - current-generation refrigerant
Paid link
$2,250 / Fresh price - checked Jul 24, 2026
Need this installed?
Get installation quotes
Image: Della
- Last sourced
- Jul 24, 2026
SplitAtlas score
8.2 / 10
(22.5 SEER2) among 24k systems
(10.0 HSPF2) among 24k systems
(93.3% heat retained at 5F; -22 F heating floor) among 24k systems
(32 dBA indoor min / 61 dBA outdoor) among 24k systems
(DIY-marketed; 25 ft precharged; 16.4 ft included line set) across the catalogue
(5 verified features) across the catalogue
($2,250 median retail) among 24k systems
(3 manuals; spec sheet) across the catalogue
Key ratings
Buyer review snapshot
Best for / skip if
Best for
- High-efficiency shortlists; SEER2 is 22.5.
Install difficulty
- Electrical: 230V; breaker/fuse 30 A.
- Line set: Flared line connections; precharged 25 ft; included 16.4 ft; max 65 ft.
Alternatives
- GREE Sapphire R32 24,000 BTU R-32 208/230V (SAP24HP230V1R32AH / SAP24HP230V1R32AO)
8.8 score / 22k / SEER2 27 / -22 F heating floor / 230V
Exact destination at HVACDirect: $4,318.00, checked Jul 24, 2026
- Blueridge XS3 High Efficiency 24,000 BTU R-454B 208/230V (BXAFA24WM0 / BXS3A24SC0)
8.8 score / 24k / SEER2 23 / -13 F heating floor / 230V
Exact destination at Alpine Home Air: $1,939.00, checked Jul 24, 2026
- Senville ELITE 24,000 BTU R-454B 208/230V (SENE-24EL-IHH / SENE-24EL-OH)
8.7 score / 24k / SEER2 25 / -22 F heating floor / 187-253V
Exact destination at Senville: $2,099.99, checked Jul 24, 2026
Availability and price context
- Verified current price: $2,249.96 at Della; availability out_of_stock; checked Jul 24, 2026.
Source date
- Model data sourced
- Jul 24, 2026
- Page reviewed
- Jul 24, 2026
- Source-backed records
- 4
- Newest source retrieved
- Jul 24, 2026
Model context
- Structured ratings
- Certification: ENERGY STAR certified. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -22 F.
Strengths
- Holds 22,400 BTU/h at 5F and a full 24,000 BTU/h at 17F, matching its 47F rating deep into the cold.
- ENERGY STAR certified with a solid HSPF2 10 for heating-season efficiency.
Weaknesses
- EER2 11.7 is the lowest among the Optima Pro units, so peak cooling efficiency softens at this size.
- Della's newer value-brand support footprint is thinner than that of legacy premium makers.
Climate suitability
- Minimum heating ambient
- -22 F[1]
- Rated heating at 5F
- 22,400 BTU/h[3]
- Rated heating at 17F
- 24,000 BTU/h[3]
- Rated heating at 47F
- 24,000 BTU/h[3]
Specifications
ShowHide
- Manufacturer
- Della
- Brand
- Della
- Product line
- Optima Pro Series
- Model number
- 048-TPH-24K2V-23S-IN indoor / 048-TPH-24K2V-23S-OUT outdoor
- Indoor unit model
- 048-TPH-24K2V-23S-IN
- Outdoor unit model
- 048-TPH-24K2V-23S-OUT
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 24,000 BTU/h[3]
- Rated heating capacity
- 24,000 BTU/h[3]
- Voltage
- 230 V[1]
- MCA
- not published - manufacturer specifies 30 A breaker
- Maximum fuse or breaker size
- 30 A[1]
- Breaker needed
- 30 A[1]
- SEER2
- 22.5 SEER2[3]
- EER2
- 11.7 EER2[3]
- HSPF2 (Region 4)
- 10 HSPF2[3]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.8 COP[3]
- Minimum outdoor heating temperature
- -22 F[1]
- Minimum outdoor cooling temperature
- not published
- Maximum outdoor temperature
- 131 F[1]
- Indoor noise range
- 32 - 49 dBA[2]
- Outdoor noise rating
- 61 dBA[2]
- Indoor weight
- 30.86 lb[1]
- Outdoor weight
- 108 lb[1]
- Refrigerant
- R-454B[3]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 5/8 in suction
- Included line-set length
- 16.4 ft[1]
- Maximum line-set length
- 65 ft[2]
- Max line set per indoor
- not published
- Maximum elevation difference
- 49 ft[2]
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- ENERGY STAR certified[4]
- AHRI certification number
- 217568640[3]
- Warranty
- not published
- Install path
- Professional install / DIY-marketed
- Marketing install label
- DIY-marketed
- Retail price
- $2,249.96
- Available retailers
- Della
- Manual links
- AHRI Appendix M1 public detail record 217568640, Optima Pro Series installation and operation guide, Optima Pro 24,000 BTU Della product-page specifications
- Specification sheet
- Optima Pro 24,000 BTU Della product-page specifications
- Last sourced date
- Jul 24, 2026
Retail purchase context
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
$2,250 / Fresh price - checked Jul 24, 2026
Electrical requirements
ShowHide
- Voltage
- 230 V[1]
- Voltage range
- 208/230V[1]
- Phase
- 1[1]
- Frequency
- not published
- MCA
- not published - manufacturer specifies 30 A breaker
- Breaker needed
- 30 A[1]
- Maximum breaker size
- not published
- Maximum fuse size
- 30 A[1]
- Maximum cooling current
- not published
- Maximum heating current
- not published
- Manufacturer wire notes
- not published
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 5/8 in[1]
- Line connection type
- Flared line connections[2]
- Precharged length
- 25 ft[2]
- Included line-set length
- 16.4 ft[1]
- Maximum line-set length
- 65 ft[2]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 43.19 in W x 13.06 in H x 8.75 in D[1]
- Outdoor dimensions
- 38.5 in W x 31.63 in H x 16.56 in D[1]
- Indoor weight
- 30.86 lb[1]
- Outdoor weight
- 108 lb[1]
- Drain size
- not published
Related systems and guides
- More Della systems
- Daikin comparison model
- Della 24k model
- Della Umbra Series 23k 230V
- Daikin 230 V option
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- Della mini split review: is Della any good?
- The best 24,000 BTU mini splits of 2026
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- The mini split defrost cycle, explained
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split remote not working
- One room won't heat or cool on a multi-zone mini split
- Mini split condensate pump problems
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the Della Optima Pro 24,000 BTU R-454B 208/230V (048-TPH-24K2V-23S-IN / 048-TPH-24K2V-23S-OUT) myself, or do I need a pro?
- Della Optima Pro 24,000 BTU R-454B 208/230V (048-TPH-24K2V-23S-IN / 048-TPH-24K2V-23S-OUT) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the Della Optima Pro 24,000 BTU R-454B 208/230V (048-TPH-24K2V-23S-IN / 048-TPH-24K2V-23S-OUT) keep heating in a cold winter?
- The manufacturer publishes 22,400 BTU/h of heating output at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 10 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the Della Optima Pro 24,000 BTU R-454B 208/230V (048-TPH-24K2V-23S-IN / 048-TPH-24K2V-23S-OUT) need?
- Published electrical requirements: 230 V voltage, not published - manufacturer specifies 30 A breaker minimum circuit ampacity, and 30 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 65 ft, and the included line set comes pre-charged for 25 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
