Della / Vita Series Multi-Zone

Della Vita 18k R-32 208/230V 2-Zone Mini-Split

Certified capacity
18,000 BTU/h[3]
SEER2
25 SEER2[3]
Heating floor
-13 F[1]
Voltage
230 V[2]
Install path
Professional install

The Della Vita 2-Zone 18k pairs two indoor heads with one 208/230V outdoor unit on current R-32 refrigerant. It posts a nominal SEER2 of 25, EER2 11.7, HSPF2 10, is ENERGY STAR certified and AHRI cold-climate designated.

Rated heating is 18,000 BTU at 47F, 14,000 at 17F and 14,000 at 5F - the same figure at both cold test points, below its 47F output. Professional installation required; dealer-quoted.

2 zonesProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

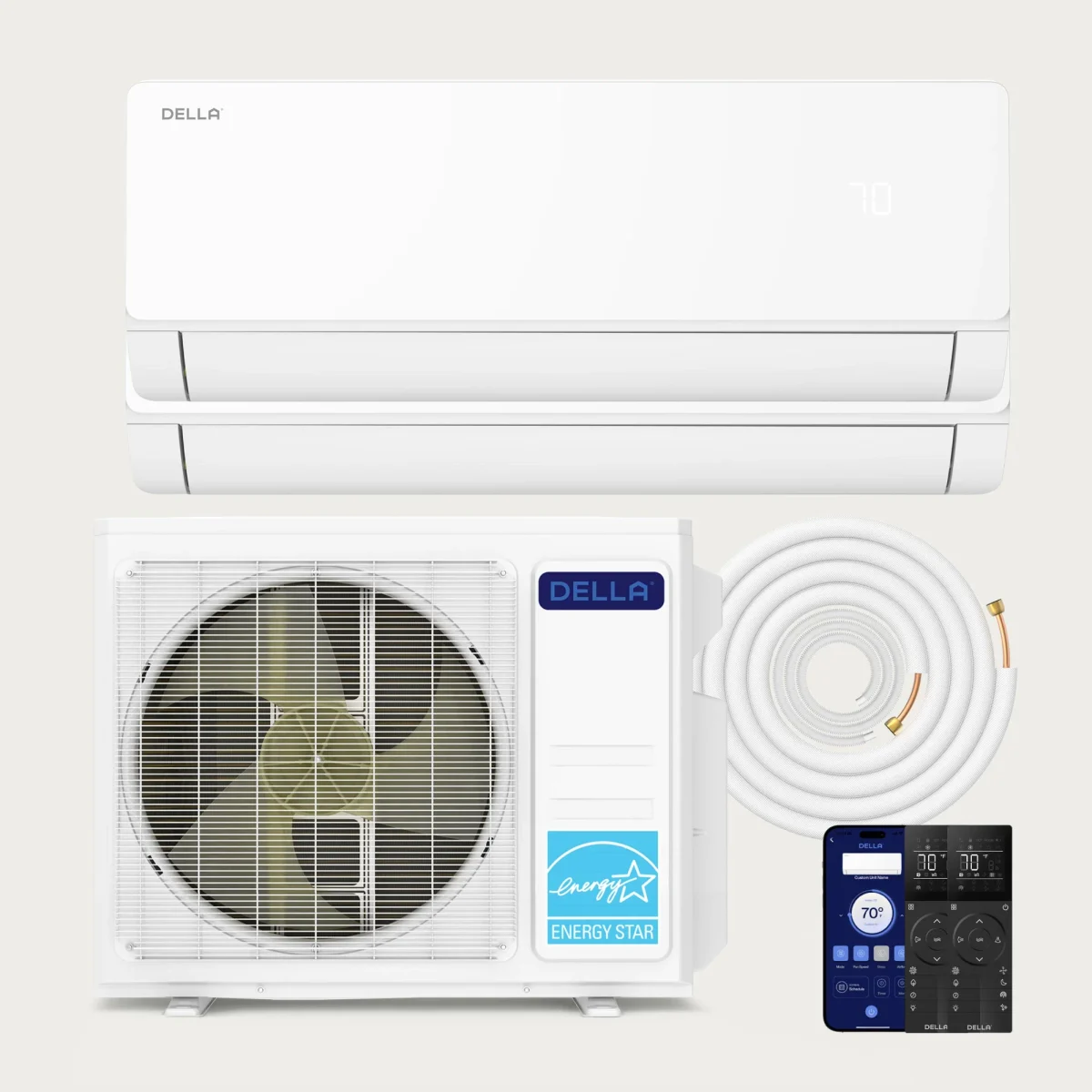

Della Vita Series Multi-Zone 2-Zone 18,000 BTU R-32 208/230V (048-TCQ-MODU-1D2) multi-zone mini-split heat pump indoor wall units and outdoor condenser

Image: Della

Data completeness: 89%
Last sourced
Jul 28, 2026

SplitAtlas score

8.6 / 10

Methodology
Cooling efficiencyTop quartile

(25.0 SEER2) among 18k systems

Heating efficiencyBelow average

(10.0 HSPF2) among 18k systems

Cold-weather performanceBelow average

(5F certified capacity: 77.8% of the 47F rating; -13 F heating floor) among 18k systems

Feature setTop quartile

(6 verified features) across the catalogue

Documentation & partsBelow average

(7 manuals; spec sheet) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

18,000BTU/hNon-Ducted Indoor Units[3]

Rated heating

18,000BTU/hNon-Ducted Indoor Units[3]

Buyer review snapshot

Best for / skip if

Best for

  • 2-zone projects in the 18k outdoor capacity class.
  • Top efficiency shortlists; SEER2 is 25.

Install difficulty

Professional flared-line install
  • Electrical: 230V; MCA 14 A; breaker/fuse 20 A.
  • Line set: Flared line connections; precharged 25 ft; max 131 ft.
  • 2-zone condenser; indoor-head matching and branch layout are part of the job.

Alternatives

Availability and price context

This system needs a professional install, so its real price is an installed quote that depends on your home. We don't link to a listing for this exact model; get installation quotes to price it.

Source date

Model data sourced
Jul 28, 2026
Page reviewed
Jul 28, 2026
Source-backed records
4
Newest source retrieved
Jul 28, 2026

Warranty tiers

No Base or Registered tier is established for scoring.

Review methodology

Model context

Install path
This is professional-install equipment; price it with an installed quote.
Structured ratings
Certification: ENERGY STAR certified, ENERGY STAR cold-climate certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-32. Minimum heating ambient: -13 F.

Strengths

  • Two zones with a certified nominal SEER2 25 / EER2 11.7 / HSPF2 10.
  • Value-priced certified two-zone from an online-focused brand.

Weaknesses

  • Rated heating falls to 14,000 BTU by 17F and holds there at 5F.
  • 18,000 BTU across two zones is modest per room; size each head.

Climate suitability

Minimum heating ambient
-13 F[1]
Certified heating at 5F
14,000 BTU/hNon-Ducted Indoor Units[3]
Rated heating at 17F
14,000 BTU/hNon-Ducted Indoor Units[3]
Rated heating at 47F
18,000 BTU/hNon-Ducted Indoor Units[3]

Specifications

Show
Manufacturer
Della
Brand
Della
Product line
Vita Series Multi-Zone
Model number
048-TCQ-MODU-1D2
Indoor unit model
Depends on the indoor units you choose
Outdoor unit model
048-TCQ-MODU-1D2
Number of zones
2
Max indoor units
2 units[2]
Rated cooling capacity
18,000 BTU/hNon-Ducted Indoor Units[3]
Rated heating capacity
18,000 BTU/hNon-Ducted Indoor Units[3]
Voltage
230 V[2]
MCA
14 A[2]
Maximum fuse or breaker size
20 A[2]
Breaker needed
not published
SEER2
25 SEER2Non-Ducted Indoor Units[3]
EER2
11.7 EER2Non-Ducted Indoor Units[3]
HSPF2 (Region 4)
10 HSPF2Non-Ducted Indoor Units[3]
HSPF2 (Region 5)
Varies by indoor-unit combination
COP
not published
COP at 47F
not published
COP at 5F
2 COPNon-Ducted Indoor Units[3]
Minimum outdoor heating temperature
-13 F[1]
Minimum outdoor cooling temperature
not published
Maximum outdoor temperature
131 F[1]
Indoor noise range
Depends on the indoor units you choose
Outdoor noise rating
56 dBA[2]
Indoor weight
Depends on the indoor units you choose
Outdoor weight
72.8 lb[2]
Refrigerant
R-32[3]
Refrigerant charge
42.3 oz[2]
Manufacturer coverage
not published
Line-set size
1/4 in per zone liquid / 3/8 in per zone suction
Included line-set length
Depends on the indoor units you choose
Maximum line-set length
131 ft[2]
Max line set per indoor
82 ft[2]
Maximum elevation difference
49 ft[2]
Max height between indoor units
not published
Wi-Fi support
Depends on the indoor units you choose
Energy Star status
ENERGY STAR certified[4]
AHRI certification number
218470992Non-Ducted Indoor Units[3]
Warranty
Della warranty terms vary by registration and installation context; product pages expose Warranty Registration / Warranty Policy links.
Install path
Professional install
Retail price
Installed quote only
Available retailers
not published
Manual links
AHRI public detail 218470992, Della 048-TCQ MODU Series Manual, ENERGY STAR exact row 218470992, Della Vita Series Multi-Zone installation manual for 048-TCQ-MODU-1D2, Della Vita Series Multi-Zone official product page example for 048-TCQ-MODU-1D2, Della Vita Series Multi-Zone manual technical tables for 048-TCQ-MODU-1D2
Specification sheet
Della Vita Series Multi-Zone manual technical tables for 048-TCQ-MODU-1D2
Last sourced date
Jul 28, 2026

Compatible indoor units

This is an outdoor unit. You choose its indoor heads separately - up to the maximum this condenser supports - and you can mix room sizes and styles across the zones. The models below are the heads this unit is documented to pair with.

  • Wall-mounted air handlers

    9k, 12k

    Model numbers
    • 9k: 048-TC-9K2VR-IN
    • 12k: 048-TC-12K2VR-IN

Sizing note: do not just add up the rooms. Multi-zone condensers have a maximum total connected capacity, and connecting more head capacity than the unit is rated for is a common installer mistake that hurts efficiency and comfort. Match total head capacity to the condenser's rating.

Electrical requirements

Show
Voltage
230 V[2]
Voltage range
208/230V[2]
Phase
1[2]
Frequency
60 Hz[2]
MCA
14 A[2]
Breaker needed
not published
Maximum breaker size
20 A[2]
Maximum fuse size
20 A[2]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
12 AWG[2]

Installation considerations

Show
Liquid line
1/4 in per zone[2]
Suction line
3/8 in per zone[2]
Line connection type
Flared line connections[2]
Precharged length
25 ft[2]
Included line-set length
Depends on the indoor units you choose
Maximum line-set length
131 ft[2]
Max line set per indoor
82 ft[2]
Max height between indoor units
not published
Indoor dimensions
Depends on the indoor units you choose
Outdoor dimensions
33.54 x 13.74 x 23.70 in[2]
Indoor weight
Depends on the indoor units you choose
Outdoor weight
72.8 lb[2]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Della Vita Series Multi-Zone 2-Zone 18,000 BTU R-32 208/230V (048-TCQ-MODU-1D2) myself, or do I need a pro?
Della Vita Series Multi-Zone 2-Zone 18,000 BTU R-32 208/230V (048-TCQ-MODU-1D2) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Della Vita Series Multi-Zone 2-Zone 18,000 BTU R-32 208/230V (048-TCQ-MODU-1D2) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 14,000 BTU/h of heating capacity at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 10 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Della Vita Series Multi-Zone 2-Zone 18,000 BTU R-32 208/230V (048-TCQ-MODU-1D2) need?
Published electrical requirements: 230 V voltage, 14 A minimum circuit ampacity, and 20 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length from the outdoor unit to one indoor head is 82 ft. The combined piping limit across all heads is 131 ft. The outdoor unit's factory charge covers up to 25 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
