Della / Vita Series Multi-Zone

Della Vita 28k R-32 208/230V 3-Zone Mini-Split

Certified capacity
28,000 BTU/h[3]
SEER2
22 SEER2[3]
Heating floor
-13 F[1]
Voltage
230 V[2]
Install path
Professional install

The Della Vita 3-Zone 28k runs three indoor heads off one 208/230V outdoor unit on current R-32 refrigerant. It posts a nominal SEER2 of 22, EER2 11.2, HSPF2 10, is ENERGY STAR certified and AHRI cold-climate designated.

Rated heating falls off in the cold, from 28,000 BTU at 47F to 22,000 at 17F and 21,000 at 5F. Professional installation required; dealer-quoted.

3 zonesProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

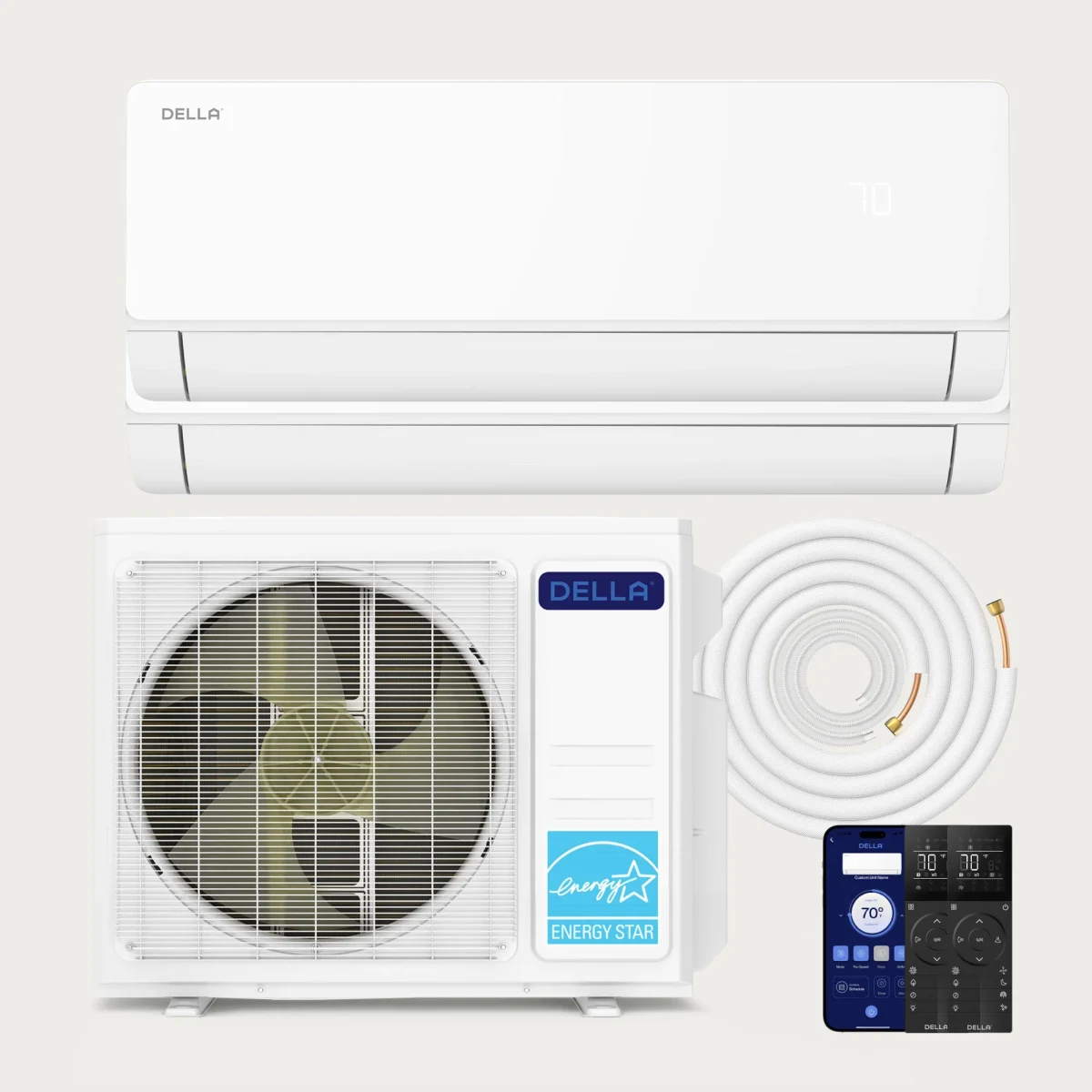

Della Vita Series Multi-Zone 3-Zone 28,000 BTU R-32 208/230V (048-TCQ-MODU-1D3) multi-zone mini-split heat pump indoor wall units and outdoor condenser

Image: Della

Data completeness: 89%
Last sourced
Jul 28, 2026

SplitAtlas score

8.3 / 10

Methodology
Cooling efficiencyAbove average

(22.0 SEER2) among 24k systems

Heating efficiencyAbove average

(10.0 HSPF2) among 24k systems

Cold-weather performanceBelow average

(75% heat retained at 5F; -13 F heating floor) among 24k systems

Feature setTop quartile

(6 verified features) across the catalogue

Documentation & partsBelow average

(7 manuals; spec sheet) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

28,000BTU/hNon-Ducted Indoor Units[3]

Rated heating

28,000BTU/hNon-Ducted Indoor Units[3]

Buyer review snapshot

Best for / skip if

Best for

  • 3-zone projects in the 30k outdoor capacity class.
  • High-efficiency shortlists; SEER2 is 22.

Install difficulty

Professional flared-line install
  • Electrical: 230V; MCA 16 A; breaker/fuse 25 A.
  • Line set: Flared line connections; precharged 25 ft; max 197 ft.
  • 3-zone condenser; indoor-head matching and branch layout are part of the job.

Availability and price context

We could not verify a current retail price for this model. We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-28.

Source date

Model data sourced
Jul 28, 2026
Page reviewed
Jul 28, 2026
Source-backed records
4
Newest source retrieved
Jul 28, 2026

Warranty tiers

Warranty: Della warranty terms vary by registration and installation context; product pages expose Warranty Registration / Warranty Policy links.

Review methodology

Model context

Install path
This is professional-install equipment; no verified current retail offer is attached.
Structured ratings
Certification: ENERGY STAR certified, ENERGY STAR cold-climate certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-32. Minimum heating ambient: -13 F.

Strengths

  • Three zones with a certified nominal SEER2 22 / EER2 11.2 / HSPF2 10.
  • Value-priced certified three-zone from an online-focused brand.

Weaknesses

  • Rated heating falls off in deep cold, down to 21,000 BTU at 5F.
  • 28,000 BTU across three zones is modest per room; size each head.

Climate suitability

Minimum heating ambient
-13 F[1]
Rated heating at 5F
21,000 BTU/hNon-Ducted Indoor Units[3]
Rated heating at 17F
22,000 BTU/hNon-Ducted Indoor Units[3]
Rated heating at 47F
28,000 BTU/hNon-Ducted Indoor Units[3]

Specifications

Show
Manufacturer
Della
Brand
Della
Product line
Vita Series Multi-Zone
Model number
048-TCQ-MODU-1D3
Indoor unit model
Indoor heads are selected separately on a multi-zone system
Outdoor unit model
048-TCQ-MODU-1D3
Number of zones
3
Max indoor units
3 units[2]
Rated cooling capacity
28,000 BTU/hNon-Ducted Indoor Units[3]
Rated heating capacity
28,000 BTU/hNon-Ducted Indoor Units[3]
Voltage
230 V[2]
MCA
16 A[2]
Maximum fuse or breaker size
25 A[2]
Breaker needed
not published
SEER2
22 SEER2Non-Ducted Indoor Units[3]
EER2
11.2 EER2Non-Ducted Indoor Units[3]
HSPF2 (Region 4)
10 HSPF2Non-Ducted Indoor Units[3]
HSPF2 (Region 5)
Certified per indoor-unit combination, not per outdoor unit
COP
not published
COP at 47F
not published
COP at 5F
2 COPNon-Ducted Indoor Units[3]
Minimum outdoor heating temperature
-13 F[1]
Minimum outdoor cooling temperature
not published
Maximum outdoor temperature
131 F[1]
Indoor noise range
Indoor heads are selected separately on a multi-zone system
Outdoor noise rating
61 dBA[2]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
97 lb[2]
Refrigerant
R-32[3]
Refrigerant charge
60 oz[2]
Manufacturer coverage
not published
Line-set size
1/4 in per zone liquid / 3/8 in per zone suction
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
197 ft[2]
Max line set per indoor
98 ft[2]
Maximum elevation difference
49 ft[2]
Max height between indoor units
not published
Wi-Fi support
Indoor heads are selected separately on a multi-zone system
Energy Star status
ENERGY STAR certified[4]
AHRI certification number
218470993Non-Ducted Indoor Units[3]
Warranty
Della warranty terms vary by registration and installation context; product pages expose Warranty Registration / Warranty Policy links.
Install path
Professional install
Retail price
We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-28.
Available retailers
not published
Manual links
AHRI public detail 218470993, Della 048-TCQ MODU Series Manual, ENERGY STAR exact row 218470993, Della Vita Series Multi-Zone installation manual for 048-TCQ-MODU-1D3, Della Vita Series Multi-Zone official product page example for 048-TCQ-MODU-1D3, HVACDirect exact-offer audit for 048-TCQ-MODU-1D3, Della Vita Series Multi-Zone manual technical tables for 048-TCQ-MODU-1D3
Specification sheet
Della Vita Series Multi-Zone manual technical tables for 048-TCQ-MODU-1D3
Last sourced date
Jul 28, 2026

Compatible indoor units

This is an outdoor unit. You choose its indoor heads separately - up to the maximum this condenser supports - and you can mix room sizes and styles across the zones. The models below are the heads this unit is documented to pair with.

  • Wall-mounted air handlers

    9k, 12k, 18k

    Model numbers
    • 9k: 048-TC-9K2VR-IN
    • 12k: 048-TC-12K2VR-IN
    • 18k: 048-TC-18K2VR-IN

Sizing note: do not just add up the rooms. Multi-zone condensers have a maximum total connected capacity, and connecting more head capacity than the unit is rated for is a common installer mistake that hurts efficiency and comfort. Match total head capacity to the condenser's rating.

Electrical requirements

Show
Voltage
230 V[2]
Voltage range
208/230V[2]
Phase
1[2]
Frequency
60 Hz[2]
MCA
16 A[2]
Breaker needed
not published
Maximum breaker size
25 A[2]
Maximum fuse size
25 A[2]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
12 AWG[2]

Installation considerations

Show
Liquid line
1/4 in per zone[2]
Suction line
3/8 in per zone[2]
Line connection type
Flared line connections[2]
Precharged length
25 ft[2]
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
197 ft[2]
Max line set per indoor
98 ft[2]
Max height between indoor units
not published
Indoor dimensions
Indoor heads are selected separately on a multi-zone system
Outdoor dimensions
36.50 x 14.96 x 27.52 in[2]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
97 lb[2]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Della Vita Series Multi-Zone 3-Zone 28,000 BTU R-32 208/230V (048-TCQ-MODU-1D3) myself, or do I need a pro?
Della Vita Series Multi-Zone 3-Zone 28,000 BTU R-32 208/230V (048-TCQ-MODU-1D3) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Della Vita Series Multi-Zone 3-Zone 28,000 BTU R-32 208/230V (048-TCQ-MODU-1D3) keep heating in a cold winter?
The manufacturer publishes 21,000 BTU/h of heating output at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 10 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Della Vita Series Multi-Zone 3-Zone 28,000 BTU R-32 208/230V (048-TCQ-MODU-1D3) need?
Published electrical requirements: 230 V voltage, 16 A minimum circuit ampacity, and 25 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 197 ft, and the included line set comes pre-charged for 25 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
