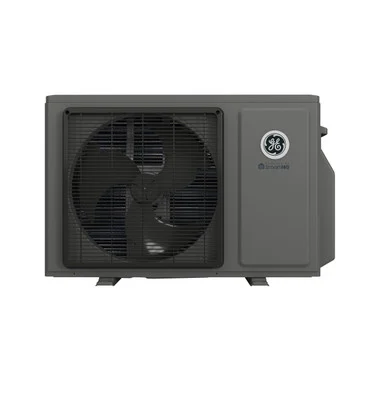

GE Appliances GE Caliber 24k R-454B 208/230V Mini-Split
This Caliber 24k is a single-zone 24,000 BTU cooling heat pump on 230V, using low-GWP R-454B. It rates 18 SEER2 with a full 12 EER2 and 9.5 HSPF2, and it is ENERGY STAR certified and cold-climate designated. Heating is strong at 24,000 BTU at 47F and 19,200 BTU down at 5F.
Refrigerant generation
R-454B - current-generation refrigerant
Need this installed?
Get installation quotes
Image: GE Appliances
- Last sourced
- Jul 27, 2026
SplitAtlas score
7.8 / 10
(18.0 SEER2) among 24k systems
(9.5 HSPF2) among 24k systems
(80% heat retained at 5F; -4 F heating floor) among 24k systems
(38 dBA indoor min / 61 dBA outdoor) among 24k systems
(10 yr parts / 10 yr compressor) across the catalogue
(6 verified features) across the catalogue
(8 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Key ratings
Best-fit use cases
Suited to a large open floor plan, great room, or finished basement in a cold climate that needs heavy heating and cooling from one head.
Buyer review snapshot
Install difficulty
- Electrical: 230V; MCA 20 A; breaker/fuse 30 A.
- Line set: connection type not sourced; max 165 ft.
Alternatives
- GREE Sapphire R32 24,000 BTU R-32 208/230V (SAP24HP230V1R32AH / SAP24HP230V1R32AO)
8.8 score / 22k / SEER2 27 / -22 F heating floor / 230V
Exact destination at HVACDirect: $4,318.00, checked Jul 24, 2026
- Blueridge XS3 High Efficiency 24,000 BTU R-454B 208/230V (BXAFA24WM0 / BXS3A24SC0)
8.8 score / 24k / SEER2 23 / -13 F heating floor / 230V
Exact destination at Alpine Home Air: $1,939.00, checked Jul 24, 2026
- Senville ELITE 24,000 BTU R-454B 208/230V (SENE-24EL-IHH / SENE-24EL-OH)
8.7 score / 24k / SEER2 25 / -22 F heating floor / 187-253V
Exact destination at Senville: $2,099.99, checked Jul 24, 2026
Availability and price context
We could not verify a current retail price for this model. We could not find a published consumer price for this model when we last checked on 2026-07-27.
Source date
- Model data sourced
- Jul 27, 2026
- Page reviewed
- Jul 27, 2026
- Source-backed records
- 3
- Newest source retrieved
- Jul 27, 2026
Warranty tiers
Warranty: 5 years parts and no separate compressor term published as standard; 10 years parts and no separate compressor term published if the system is registered.
Model context
- Structured ratings
- Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -4 F.
Strengths
- Full 12 EER2 holds peak efficiency at a larger capacity
- Cold-climate designated with heavy 19,200 BTU heat at 5F
- ENERGY STAR certified
Weaknesses
- 18 SEER2 reflects the usual efficiency drop at bigger sizes
- Louder head, bottoming out at 38 dB(A)
Climate suitability
- Minimum heating ambient
- -4 F[1]
- Rated heating at 5F
- 19,200 BTU/h[2]
- Rated heating at 17F
- 14,400 BTU/h[2]
- Rated heating at 47F
- 24,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- GE Appliances
- Brand
- GE Appliances
- Product line
- GE Caliber
- Model number
- GS24WB2BEA indoor / 1G24CB2BEA outdoor
- Indoor unit model
- GS24WB2BEA
- Outdoor unit model
- 1G24CB2BEA
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 24,000 BTU/h[2]
- Rated heating capacity
- 24,000 BTU/h[2]
- Voltage
- 230 V[1]
- MCA
- 20 A[1]
- Maximum fuse or breaker size
- 30 A[1]
- Breaker needed
- not published
- SEER2
- 18 SEER2[2]
- EER2
- 12 EER2[2]
- HSPF2 (Region 4)
- 9.5 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.8 COP[2]
- Minimum outdoor heating temperature
- -4 F[1]
- Minimum outdoor cooling temperature
- not published
- Maximum outdoor temperature
- not published
- Indoor noise range
- 54/50/47/44/38 dB(A)[1]
- Outdoor noise rating
- 61 dBA[1]
- Indoor weight
- 34.863 lb[1]
- Outdoor weight
- 120.475 lb[1]
- Refrigerant
- R-454B[2]
- Refrigerant charge
- 67 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 1/2 in suction
- Included line-set length
- not published
- Maximum line-set length
- 165 ft[1]
- Max line set per indoor
- not published
- Maximum elevation difference
- 100 ft[1]
- Max height between indoor units
- not published
- Wi-Fi support
- not published
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 217124728[2]
- Warranty
- Standard: 5 yr parts / no separate compressor term (limited parts warranty); Best case: 10 yr parts / no separate compressor term (registered limited parts warranty). 5-year limited parts warranty; 10-year registered limited parts warranty with registration.
- Install path
- Professional install
- Retail price
- We could not find a published consumer price for this model when we last checked on 2026-07-27.
- Available retailers
- not published
- Manual links
- AHRI public directory record 217124728, ENERGY STAR exact check 217124728, 1G24CB2BEA / GS24WB2BEA GE installation instructions, 1G24CB2BEA GE Appliances Air & Water product page, GS24WB2BEA GE Appliances Air & Water product page, HVACDirect exact search 1G24CB2BEA / GS24WB2BEA, 1G24CB2BEA / GS24WB2BEA GE specification guide or submittal, 1G24CB2BEA / GS24WB2BEA GE warranty
- Specification sheet
- 1G24CB2BEA / GS24WB2BEA GE specification guide or submittal
- Last sourced date
- Jul 27, 2026
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 1/2 in[1]
- Line connection type
- not published
- Precharged length
- not published
- Included line-set length
- not published
- Maximum line-set length
- 165 ft[1]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 44.5 in W x 13.5 in H x 9.125 in D[1]
- Outdoor dimensions
- 40.375 in W x 32.125 in H x 14.625 in D[1]
- Indoor weight
- 34.863 lb[1]
- Outdoor weight
- 120.475 lb[1]
- Drain size
- 5/8 in[1]
Related systems and guides
- More GE Appliances systems
- GE Appliances sibling model
- GE Appliances 24k model
- GE Appliances 230 V option
- GE Appliances 230 V option
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- The best 24,000 BTU mini splits of 2026
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- R-32 vs R-454B: the mini split refrigerant change explained
- What size mini split do I need for a garage?
- Mini splits for a workshop or shop
- Mini splits for high or vaulted ceilings
- Mini splits for a pole barn or metal building
- Mini split remote not working
- Mini split Wi-Fi not connecting
- Your mini split is showing a refrigerant leak code
- One room won't heat or cool on a multi-zone mini split
- Mini split smells bad
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the GE Appliances Caliber 24,000 BTU R-454B 208/230V (GS24WB2BEA / 1G24CB2BEA) myself, or do I need a pro?
- GE Appliances Caliber 24,000 BTU R-454B 208/230V (GS24WB2BEA / 1G24CB2BEA) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the GE Appliances Caliber 24,000 BTU R-454B 208/230V (GS24WB2BEA / 1G24CB2BEA) keep heating in a cold winter?
- The manufacturer publishes 19,200 BTU/h of heating output at 5F. Rated heating operation extends down to -4 F. Certified heating efficiency is 9.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the GE Appliances Caliber 24,000 BTU R-454B 208/230V (GS24WB2BEA / 1G24CB2BEA) need?
- Published electrical requirements: 230 V voltage, 20 A minimum circuit ampacity, and 30 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 165 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
- What warranty does the GE Appliances Caliber 24,000 BTU R-454B 208/230V (GS24WB2BEA / 1G24CB2BEA) carry?
- The manufacturer publishes these warranty tiers: Standard: 5 yr parts / no separate compressor term (limited parts warranty); Best case: 10 yr parts / no separate compressor term (registered limited parts warranty). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
