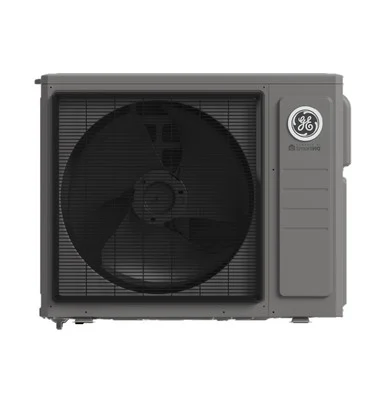

GE Appliances Endure Multi 24k R-454B 208/230V 3-Zone Mini-Split
The GE Endure Multi 3-zone brings the line's cold-climate design to three rooms from one 208/230V outdoor unit on R-454B, ENERGY STAR certified and AHRI cold-climate designated. Its certified nominal SEER2 is 23 (EER2 12.2, HSPF2 10.5), the strongest efficiency in the Endure line - and as always that nominal depends on the heads you attach.
Heating is rated 25000 BTU at 47F, 17000 at 17F, and 22800 at 5F, holding roughly 91 percent of its 47F output at 5F. GE Appliances is a Haier-owned brand and this is the same hardware as the Haier Arctic Multi, installed by professional dealers and priced by quote.
Refrigerant generation
R-454B - current-generation refrigerant
Need this installed?
Get installation quotes
Image: GE Appliances
- Last sourced
- Jul 29, 2026
SplitAtlas score
8.9 / 10
(23.0 SEER2) among 24k systems
(10.5 HSPF2) among 24k systems
(91.2% heat retained at 5F; -22 F heating floor) among 24k systems
(10 yr parts / 10 yr compressor) across the catalogue
(7 verified features) across the catalogue
(8 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Key ratings
Buyer review snapshot
Best for / skip if
Best for
- 3-zone projects in the 24k outdoor capacity class.
- High-efficiency shortlists; SEER2 is 23.
Install difficulty
- Electrical: 230V; MCA 21 A; breaker/fuse 30 A.
- Line set: connection type not sourced; precharged 100 ft; max 197 ft.
- 3-zone condenser; indoor-head matching and branch layout are part of the job.
Alternatives
- ACiQ Multi-Zone Extreme Series 3-Zone 27,000 BTU R-454B 208/230V (ACIQ-27Z-HH-M4C)
9.0 score / 27k / SEER2 23 / -22 F heating floor / 230V
Exact destination at HVACDirect: $3,499.99, checked Jul 29, 2026
Availability and price context
We could not verify a current retail price for this model. GE Appliances multi-zone systems are sold through professional installation channels, so we link to contractor quotes rather than a retail price.
Source date
- Model data sourced
- Jul 29, 2026
- Page reviewed
- Jul 29, 2026
- Source-backed records
- 4
- Newest source retrieved
- Jul 29, 2026
Warranty tiers
Warranty: 5 years parts and no separate compressor term published as standard; 10 years parts and no separate compressor term published if the system is registered.
Model context
- Structured ratings
- Certification: ENERGY STAR certified and ENERGY STAR cold-climate certified. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -22 F.
Strengths
- Cold-climate designated with strong 5F heat: 22800 of its 25000 BTU 47F output.
- Best Endure-line efficiency: certified SEER2 23 / EER2 12.2 / HSPF2 10.5, ENERGY STAR certified.
- Three zones from one outdoor unit and a single 208/230V circuit on current R-454B.
Weaknesses
- Professional dealer installation required; not DIY, and priced by quote only.
- The 17F certified rating (17000 BTU) sits below the 5F point; the curve is tuned to 5F.
- Three-zone total capacity is shared; size to the condenser, not three full rooms.
Climate suitability
- Minimum heating ambient
- -22 F[2]
- Rated heating at 5F
- 22,800 BTU/hNon-Ducted Indoor Units[3]
- Rated heating at 17F
- 17,000 BTU/hNon-Ducted Indoor Units[3]
- Rated heating at 47F
- 25,000 BTU/hNon-Ducted Indoor Units[3]
Specifications
ShowHide
- Manufacturer
- GE Appliances
- Brand
- GE Appliances
- Product line
- Endure Multi
- Model number
- 3G24ED2BEA
- Indoor unit model
- Indoor heads are selected separately on a multi-zone system
- Outdoor unit model
- 3G24ED2BEA
- Number of zones
- 3
- Max indoor units
- 3 units[1]
- Rated cooling capacity
- 24,000 BTU/hNon-Ducted Indoor Units[3]
- Rated heating capacity
- 25,000 BTU/hNon-Ducted Indoor Units[3]
- Voltage
- 230 V[1]
- MCA
- 21 A[1]
- Maximum fuse or breaker size
- 30 A[1]
- Breaker needed
- not published
- SEER2
- 23 SEER2Non-Ducted Indoor Units[3]
- EER2
- 12.2 EER2Non-Ducted Indoor Units[3]
- HSPF2 (Region 4)
- 10.5 HSPF2Non-Ducted Indoor Units[3]
- HSPF2 (Region 5)
- Certified per indoor-unit combination, not per outdoor unit
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.8 COPNon-Ducted Indoor Units[3]
- Minimum outdoor heating temperature
- -22 F[2]
- Minimum outdoor cooling temperature
- 14 F[2]
- Maximum outdoor temperature
- 115 F[2]
- Indoor noise range
- Indoor heads are selected separately on a multi-zone system
- Outdoor noise rating
- 57 dBA[1]
- Indoor weight
- Indoor heads are selected separately on a multi-zone system
- Outdoor weight
- 130 lb[1]
- Refrigerant
- R-454BNon-Ducted Indoor Units[3]
- Refrigerant charge
- 71 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in; 1/2 in adapter listed suction
- Included line-set length
- Indoor heads are selected separately on a multi-zone system
- Maximum line-set length
- 197 ft[1]
- Max line set per indoor
- 82 ft[2]
- Maximum elevation difference
- 50 ft[1]
- Max height between indoor units
- not published
- Wi-Fi support
- Indoor heads are selected separately on a multi-zone system
- Energy Star status
- ENERGY STAR certified[4]
- AHRI certification number
- 217009765Non-Ducted Indoor Units[3]
- Warranty
- Standard: 5 yr parts / no separate compressor term (limited parts warranty); Best case: 10 yr parts / no separate compressor term (registered limited parts warranty). 5-year limited parts warranty; 10-year registered limited parts warranty with registration.
- Install path
- Professional install
- Retail price
- GE Appliances multi-zone systems are sold through professional installation channels, so we link to contractor quotes rather than a retail price.
- Available retailers
- not published
- Manual links
- AHRI public detail for 3G24ED2BEA, ENERGY STAR exact AHRI rows for 3G24ED2BEA, 3G24ED2BEA GE Appliances installation instructions, 3G24ED2BEA GE Appliances Air & Water product page, Lead-gen/no-retail audit for 3G24ED2BEA, 3G24ED2BEA GE Appliances specification guide, 3G24ED2BEA GE Appliances Endure Multi submittal, 3G24ED2BEA GE Appliances warranty
- Specification sheet
- 3G24ED2BEA GE Appliances specification guide
- Last sourced date
- Jul 29, 2026
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 3/8 in; 1/2 in adapter listed[2]
- Line connection type
- not published
- Precharged length
- 100 ft[2]
- Included line-set length
- Indoor heads are selected separately on a multi-zone system
- Maximum line-set length
- 197 ft[1]
- Max line set per indoor
- 82 ft[2]
- Max height between indoor units
- not published
- Indoor dimensions
- Indoor heads are selected separately on a multi-zone system
- Outdoor dimensions
- 37.1875 x 15.8125 x 30.125 in[1]
- Indoor weight
- Indoor heads are selected separately on a multi-zone system
- Outdoor weight
- 130 lb[1]
- Drain size
- not published
Related systems and guides
- More GE Appliances systems
- GE Appliances sibling model
- GREE 24k model
- GE Appliances sibling model
- GE Appliances GE Caliber 24k 230V
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- The best 24,000 BTU mini splits of 2026
- The best multi-zone mini splits of 2026
- The best 3-zone mini splits of 2026
- How to size a multi-zone mini split
- Not every multi-zone condenser lets you mix head types
- How much does a multi-zone mini split cost?
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- One room won't heat or cool on a multi-zone mini split
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split remote not working
- Mini split Wi-Fi not connecting
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the GE Appliances Endure Multi 3-Zone 24,000 BTU R-454B 208/230V (3G24ED2BEA) myself, or do I need a pro?
- GE Appliances Endure Multi 3-Zone 24,000 BTU R-454B 208/230V (3G24ED2BEA) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the GE Appliances Endure Multi 3-Zone 24,000 BTU R-454B 208/230V (3G24ED2BEA) keep heating in a cold winter?
- The manufacturer publishes 22,800 BTU/h of heating output at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 10.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the GE Appliances Endure Multi 3-Zone 24,000 BTU R-454B 208/230V (3G24ED2BEA) need?
- Published electrical requirements: 230 V voltage, 21 A minimum circuit ampacity, and 30 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 197 ft, and the included line set comes pre-charged for 100 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
- What warranty does the GE Appliances Endure Multi 3-Zone 24,000 BTU R-454B 208/230V (3G24ED2BEA) carry?
- The manufacturer publishes these warranty tiers: Standard: 5 yr parts / no separate compressor term (limited parts warranty); Best case: 10 yr parts / no separate compressor term (registered limited parts warranty). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
Data sources
ShowHide
- GE Appliances Air & Water: 3G24ED2BEA GE Appliances Endure Multi product pageSourced - manufacturer product page
Covers Frequency, Maximum breaker size, Maximum fuse size, Minimum circuit ampacity, Phase, Voltage and more
- GE Appliances Air & Water: 3G24ED2BEA GE Appliances Endure Multi submittalSourced - manufacturer technical document
Covers electrical_spec.guaranteed_voltage_range, Precharged length, Suction line size, Max line set per indoor, Minimum outdoor cooling temperature, Minimum outdoor heating temperature and more
- Air-Conditioning, Heating, and Refrigeration Institute: AHRI Appendix M1 public detail for 3G24ED2BEASourced - AHRI directory
Covers AHRI certification number, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity, HSPF2 (Region 4) and more
- ENERGY STAR: ENERGY STAR product database exact AHRI rows for 3G24ED2BEASourced - secondary source
Covers performance_spec.energy_star_cold_climate, Energy Star status
