GREE Free Match 36k R-32 208/230V 4-Zone Mini-Split

Certified capacity
36,000 BTU/h[2]
SEER2
21 SEER2[2]
Heating floor
-22 F[1]
Voltage
230 V[1]
Install path
Professional install

The Gree Free Match 4-Zone 36k (MUL36) pairs four indoor heads with a larger 208/230V outdoor unit rated 36,000 BTU cooling and 36,000 BTU heating at 47F, giving each zone more capacity headroom than the 30k. It is part of Gree's standard "Multi R32" line on greecomfort.com, carries a certified nominal SEER2 of 21, EER2 12, and HSPF2 10, is ENERGY STAR certified, and is AHRI cold-climate designated.

This condenser is stocked and purchasable at retail rather than dealer-only. From Gree, the world's largest AC manufacturer; current R-32 refrigerant and professional installation required.

4 zonesProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

Dealer-installation warranty note

GREE online purchases have a manufacturer-published warranty path, but buyers should keep purchase and installation documents and use a licensed HVAC contractor for diagnosis and claims.

Installation condition: Warranty claims for online/retail purchases must be completed by a contractor after an on-site diagnosis, with required documentation such as purchase receipt or installation invoice and data-plate photos.

Dealer path: GREE distributor path for distributor purchases; GREE online warranty claim form for equipment purchased online, Home Depot, or Lowes; GREE Select dealer installation and registration for the 10-year extended warranty.

Paid link

$5,075 / Fresh price - checked Jul 28, 2026

Check price at HVACDirect

This system's warranty depends on licensed installation — get quotes from installers in your area.

Get installation quotes
Error Codes

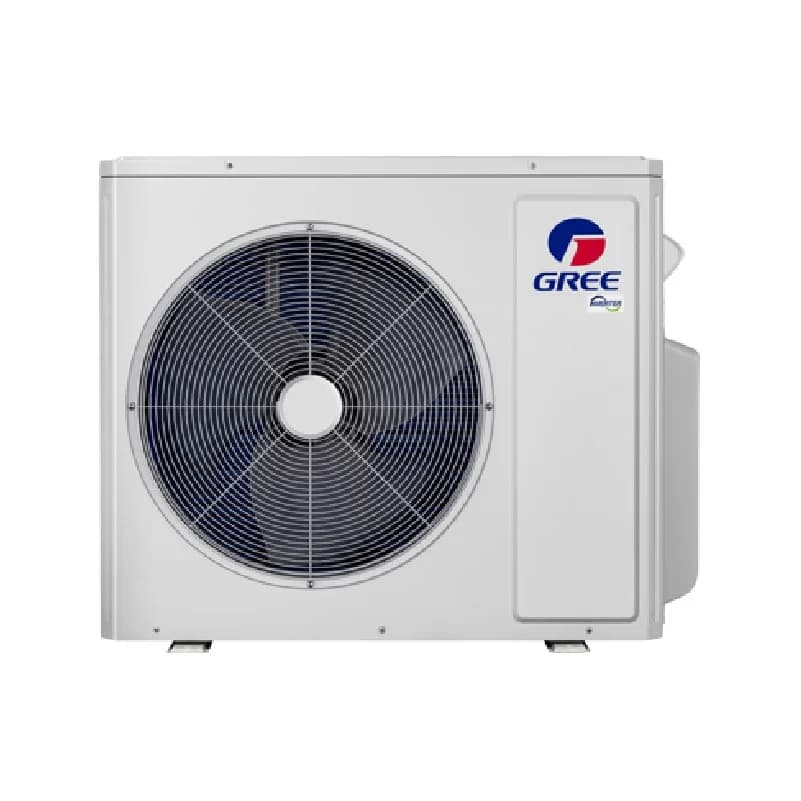

GREE Free Match 4-Zone 36,000 BTU R-32 208/230V (MUL36HP230V1R32AO) mini-split heat pump outdoor condenser

Image: HVACDirect

Data completeness: 100%
Last sourced
Jul 28, 2026

SplitAtlas score

8.6 / 10

Methodology
Cooling efficiencyAbove average

(21.0 SEER2) among 36k systems

Heating efficiencyAbove average

(10.0 HSPF2) among 36k systems

Cold-weather performanceTop quartile

(100% heat retained at 5F; -22 F heating floor) among 36k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Feature setTop quartile

(6 verified features) across the catalogue

Price-to-performanceBottom quartile

($5,075 median retail) across the catalogue

Documentation & partsTop quartile

(11 manuals; spec sheet; parts channel) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

Key ratings

Rated cooling

36,000BTU/hNon-Ducted Indoor Units[2]

Rated heating

36,000BTU/hNon-Ducted Indoor Units[2]

Buyer review snapshot

Best for / skip if

Best for

  • 4-zone projects in the 36k outdoor capacity class.

Install difficulty

Professional flared-line install
  • Electrical: 230V; MCA 30 A; breaker/fuse 35 A.
  • Line set: Flared line connections; precharged 131 ft; max 263 ft.
  • 4-zone condenser; indoor-head matching and branch layout are part of the job.

Alternatives

Availability and price context

  • Verified current price: $5,075.00 at HVACDirect; availability in_stock; checked Jul 28, 2026. Dealer-installation condition: Warranty claims for online/retail purchases must be completed by a contractor after an on-site diagnosis, with required documentation such as purchase receipt or installation invoice and data-plate photos..

Purchase channel policy

GREE publishes an online/retail warranty-claim path for equipment purchased online, Home Depot, or Lowes rather than treating online purchase as a warranty voidance.

Warranty impact
Online purchase changes the claim path: routine parts use GREE's online claim form, while compressor failures and refrigerant leaks require tech-support confirmation before the online claim.
Installation condition
Warranty claims for online/retail purchases must be completed by a contractor after an on-site diagnosis, with required documentation such as purchase receipt or installation invoice and data-plate photos.
Authorized channel
GREE distributor path for distributor purchases; GREE online warranty claim form for equipment purchased online, Home Depot, or Lowes; GREE Select dealer installation and registration for the 10-year extended warranty.

GREE online purchases have a manufacturer-published warranty path, but buyers should keep purchase and installation documents and use a licensed HVAC contractor for diagnosis and claims.

Compare online-purchase warranty rules by brand

Source: GREE Comfort: How Does the GREE Warranty Work? Coverage, Claims, and 10-Year Extension Guide; retrieved Aug 15, 2026.

Source date

Model data sourced
Jul 28, 2026
Page reviewed
Jul 28, 2026
Source-backed records
4
Newest source retrieved
Jul 28, 2026

Warranty tiers

Warranty: 5 years parts and 7 years compressor as standard.

Review methodology

Model context

Structured ratings
Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-32. Minimum heating ambient: -22 F.
Installation context
Multi-zone low-load behavior depends on the indoor heads and how many zones are calling at once.

Strengths

  • Purchasable, stocked equipment (a priced condenser you can buy), not dealer-only, on current R-32 refrigerant.
  • Certified nominal SEER2 21 / EER2 12 / HSPF2 10, ENERGY STAR certified.
  • 36,000 BTU across four zones gives larger rooms more capacity headroom than the 30k.
  • AHRI cold-climate designated and backed by the world's largest AC manufacturer.

Weaknesses

  • Professional installation required - equipment you buy, not a DIY self-install kit.
  • Five rooms need the 5-zone MUL42; two or three rooms are better matched to a smaller, cheaper condenser.
  • A strong value buy, but scores a bit below premium inverter brands such as Mitsubishi, Daikin, or LG.

Climate suitability

Minimum heating ambient
-22 F[1]
Rated heating at 5F
36,000 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 17F
36,000 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 47F
36,000 BTU/hNon-Ducted Indoor Units[2]

Specifications

Show
Manufacturer
GREE
Brand
GREE
Product line
Free Match
Model number
MUL36HP230V1R32AO
Indoor unit model
Indoor heads are selected separately on a multi-zone system
Outdoor unit model
MUL36HP230V1R32AO
Number of zones
4
Max indoor units
4 units[1]
Rated cooling capacity
36,000 BTU/hNon-Ducted Indoor Units[2]
Rated heating capacity
36,000 BTU/hNon-Ducted Indoor Units[2]
Voltage
230 V[1]
MCA
30 A[1]
Maximum fuse or breaker size
35 A[1]
Breaker needed
not published
SEER2
21 SEER2Non-Ducted Indoor Units[2]
EER2
12 EER2Non-Ducted Indoor Units[2]
HSPF2 (Region 4)
10 HSPF2Non-Ducted Indoor Units[2]
HSPF2 (Region 5)
Certified per indoor-unit combination, not per outdoor unit
COP
not published
COP at 47F
not published
COP at 5F
2.1 COPNon-Ducted Indoor Units[2]
Minimum outdoor heating temperature
-22 F[1]
Minimum outdoor cooling temperature
-22 F[1]
Maximum outdoor temperature
118 F[1]
Indoor noise range
Indoor heads are selected separately on a multi-zone system
Outdoor noise rating
59 dBA[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
173.1 lb[1]
Refrigerant
R-32[2]
Refrigerant charge
95.256 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in x 4 liquid / 3/8 in x 4 suction
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
263 ft[1]
Max line set per indoor
82 ft[1]
Maximum elevation difference
82 ft[1]
Max height between indoor units
82.02 ft[1]
Wi-Fi support
Indoor heads are selected separately on a multi-zone system
Energy Star status
ENERGY STAR certified[3]
AHRI certification number
215218916Non-Ducted Indoor Units[2]
Warranty
Standard: 5 yr parts / 7 yr compressor (eligible residential system). Standard residential GREE mini-split coverage is 5 years parts and 7 years compressor for eligible post-2021 systems.
Install path
Professional install
Retail price
$5,075.00
Available retailers
HVACDirect
Manual links
AHRI public detail 215218916, GREE Multi R32 sales brochure, ENERGY STAR exact row 215218916, GREE Multi R32 extended ratings, GREE Multi R32 installation/service manual, GREE Multi R32 current official product page, GREE Multi R32 owner manual, GREE Multi R32 parts manual, HVACDirect exact-offer audit for MUL36HP230V1R32AO, MUL36HP230V1R32AO GREE Free Match submittal, GREE DFS warranty statement for units installed after 2021-12-31
Specification sheet
MUL36HP230V1R32AO GREE Free Match submittal
Last sourced date
Jul 28, 2026

Retail purchase context

Dealer-installation warranty note

GREE online purchases have a manufacturer-published warranty path, but buyers should keep purchase and installation documents and use a licensed HVAC contractor for diagnosis and claims.

Installation condition: Warranty claims for online/retail purchases must be completed by a contractor after an on-site diagnosis, with required documentation such as purchase receipt or installation invoice and data-plate photos.

Dealer path: GREE distributor path for distributor purchases; GREE online warranty claim form for equipment purchased online, Home Depot, or Lowes; GREE Select dealer installation and registration for the 10-year extended warranty.

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Dealer-installation warranty note

GREE online purchases have a manufacturer-published warranty path, but buyers should keep purchase and installation documents and use a licensed HVAC contractor for diagnosis and claims.

Check price at HVACDirect

$5,075 / Fresh price - checked Jul 28, 2026

Compatible indoor units

This is an outdoor unit. You choose its indoor heads separately - up to the maximum this condenser supports - and you can mix room sizes and styles across the zones. The models below are the heads this unit is documented to pair with.

  • Concealed ducteds

    9k, 12k, 18k, 24k, 30k, 36k

    Model numbers
    • 9k: DUC09HP230V1R32AH
    • 12k: DUC12HP230V1R32AH
    • 18k: DUC18HP230V1R32AH
    • 24k: DUC24HP230V1R32AH
    • 30k: DUC30HP230V1R32AH
    • 36k: DUC36HP230V1R32AH

  • Four-way ceiling cassettes

    9k, 12k, 18k, 24k, 30k, 36k

    Model numbers
    • 9k: CAS09HP230V1R32AH
    • 12k: CAS12HP230V1R32AH
    • 18k: CAS18HP230V1R32AH
    • 24k: CAS24HP230V1R32AH
    • 30k: CAS30HP230V1R32AH
    • 36k: CAS36HP230V1R32AH

  • One-way ceiling cassettes

    9k, 12k, 18k, 20k

    Model numbers
    • 9k: OWC09HP230V1R32AH
    • 12k: OWC12HP230V1R32AH
    • 18k: OWC18HP230V1R32AH
    • 20k: OWC20HP230V1R32AH

  • Wall-mounteds

    9k, 12k, 18k, 24k, 30k

    Model numbers
    • 9k: ENV09HP230V1R32AH
    • 9k: SAP09HP230V1R32AH
    • 12k: ENV12HP230V1R32AH
    • 12k: SAP12HP230V1R32AH
    • 18k: ENV18HP230V1R32AH
    • 18k: LIV18HP230V1R32AH
    • 18k: SAP18HP230V1R32AH
    • 24k: ENV24HP230V1R32AH
    • 24k: SAP24HP230V1R32AH
    • 30k: LIV30HP230V1R32AH

Sizing note: do not just add up the rooms. Multi-zone condensers have a maximum total connected capacity, and connecting more head capacity than the unit is rated for is a common installer mistake that hurts efficiency and comfort. Match total head capacity to the condenser's rating.

Parts and filters

Fits GREE Free Match 4-Zone 36,000 BTU R-32 208/230V (MUL36HP230V1R32AO). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

compressor

Compressor and fittings

Fits
GREE Free Match 4-Zone 36,000 BTU R-32 208/230V (MUL36HP230V1R32AO)
OEM part number
009001061164
Fit note
Fits MUL36HP230V1R32AO. GREE publishes this orderable outdoor-unit part number in the Multi R32 parts manual. No HVACDirect exact 009001061164 product page was verified, so no offer is attached.
Source
GREE Multi R32 Parts Manual, MUL36HP230V1R32AO outdoor unit parts list, page p. 10 (27 Compressor and Fittings 1 009001061164)

outdoor-fan-motor

Brushless DC outdoor fan motor

Fits
GREE Free Match 4-Zone 36,000 BTU R-32 208/230V (MUL36HP230V1R32AO)
OEM part number
15010406011801
Fit note
Fits MUL36HP230V1R32AO. GREE publishes this orderable outdoor-unit part number in the Multi R32 parts manual. No HVACDirect exact 15010406011801 product page was verified, so no offer is attached.
Source
GREE Multi R32 Parts Manual, MUL36HP230V1R32AO outdoor unit parts list, page p. 10 (3 Brushless DC Motor 1 15010406011801)

outdoor-fan-blade

Axial flow fan

Fits
GREE Free Match 4-Zone 36,000 BTU R-32 208/230V (MUL36HP230V1R32AO)
OEM part number
1043410000501
Fit note
Fits MUL36HP230V1R32AO. GREE publishes this orderable outdoor-unit part number in the Multi R32 parts manual. No HVACDirect exact 1043410000501 product page was verified, so no offer is attached.
Source
GREE Multi R32 Parts Manual, MUL36HP230V1R32AO outdoor unit parts list, page p. 10 (31 Axial Flow Fan 1 1043410000501)

main-control-board

Outdoor main board

Fits
GREE Free Match 4-Zone 36,000 BTU R-32 208/230V (MUL36HP230V1R32AO)
OEM part number
300027063950
Fit note
Fits MUL36HP230V1R32AO. GREE publishes this orderable outdoor-unit part number in the Multi R32 parts manual. No HVACDirect exact 300027063950 product page was verified, so no offer is attached.
Source
GREE Multi R32 Parts Manual, MUL36HP230V1R32AO outdoor unit parts list, page p. 10 (8 Main Board 1 300027063950)

electrical-filter-board

Electrical filter board

Fits
GREE Free Match 4-Zone 36,000 BTU R-32 208/230V (MUL36HP230V1R32AO)
OEM part number
300020060104
Fit note
Fits MUL36HP230V1R32AO. GREE publishes this orderable outdoor-unit part number in the Multi R32 parts manual. No HVACDirect exact 300020060104 product page was verified, so no offer is attached.
Source
GREE Multi R32 Parts Manual, MUL36HP230V1R32AO outdoor unit parts list, page p. 10 (9 Filter Board 1 300020060104)
Replacement Parts & Filters

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
30 A[1]
Breaker needed
not published
Maximum breaker size
35 A[1]
Maximum fuse size
35 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in x 4[1]
Suction line
3/8 in x 4[1]
Line connection type
Flared line connections[1]
Precharged length
131 ft[1]
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
263 ft[1]
Max line set per indoor
82 ft[1]
Max height between indoor units
82.02 ft[1]
Indoor dimensions
Indoor heads are selected separately on a multi-zone system
Outdoor dimensions
40-10/64 x 32-33/64 x 16-52/64 in[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
173.1 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the GREE Free Match 4-Zone 36,000 BTU R-32 208/230V (MUL36HP230V1R32AO) myself, or do I need a pro?
GREE Free Match 4-Zone 36,000 BTU R-32 208/230V (MUL36HP230V1R32AO) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the GREE Free Match 4-Zone 36,000 BTU R-32 208/230V (MUL36HP230V1R32AO) keep heating in a cold winter?
The manufacturer publishes 36,000 BTU/h of heating output at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 10 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the GREE Free Match 4-Zone 36,000 BTU R-32 208/230V (MUL36HP230V1R32AO) need?
Published electrical requirements: 230 V voltage, 30 A minimum circuit ampacity, and 35 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 263 ft, and the included line set comes pre-charged for 131 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the GREE Free Match 4-Zone 36,000 BTU R-32 208/230V (MUL36HP230V1R32AO) carry?
The manufacturer publishes these warranty tiers: Standard: 5 yr parts / 7 yr compressor (eligible residential system). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. GREE Comfort: GREE Free Match official technical documents for MUL36HP230V1R32AOSourced - manufacturer technical document

    Covers Frequency, electrical_spec.guaranteed_voltage_range, Maximum breaker size, Maximum fuse size, Minimum circuit ampacity, Phase and more

  2. Air-Conditioning, Heating, and Refrigeration Institute: AHRI public detail 215218916Sourced - AHRI directory

    Covers AHRI certification number, performance_spec.cold_climate_designation, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity and more

  3. U.S. Environmental Protection Agency ENERGY STAR: ENERGY STAR exact row check for AHRI 215218916Sourced - Energy Star listing

    Covers Energy Star status

  4. GREE Comfort: GREE DFS warranty statement for units installed after 2021-12-31Sourced - manufacturer technical document

    Covers Legacy compressor warranty value, Legacy warranty value, Standard compressor warranty, Standard warranty conditions, Standard parts warranty, Warranty notes

Last updated

Jul 28, 2026
