GREE / Livo GEN4

GREE Livo GEN4 30k R-410A 208/230V Mini-Split

Certified capacity
30,000 BTU/h[2]
SEER2
20 SEER2[2]
Heating floor
-13 F[3]
Voltage
208/230V[1]
Install path
Professional install

This is the outgoing R-410A generation of the Livo 30k, certifying SEER2 20 against the R-32 version's 22. R-410A is phasing down under the AIM Act, which means refrigerant cost rises over the life of the system for any future repair - on a unit you keep a decade that is a real number. The R-32 Livo 30k is the same product in the current refrigerant and is the better buy unless this one is discounted enough to fund that risk.

1 zoneProfessional installLegacy

This system's warranty depends on licensed installation — get quotes from installers in your area.

Get installation quotes
Error Codes

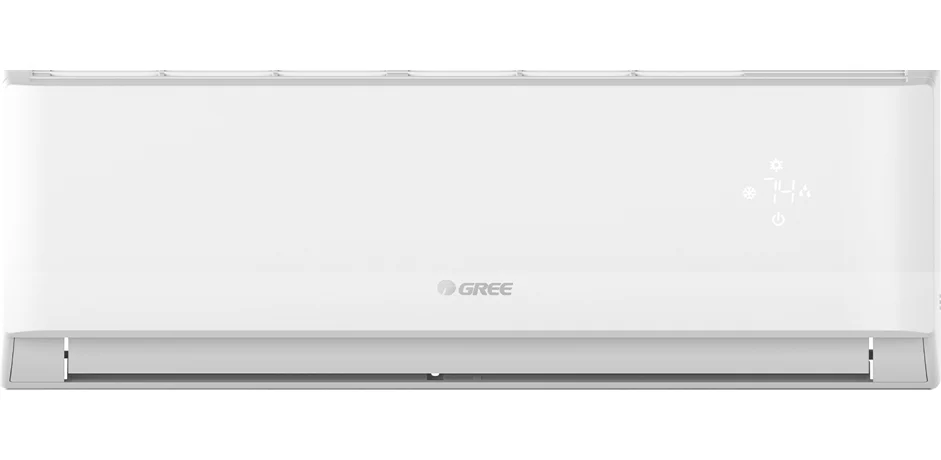

GREE Livo GEN4 30,000 BTU R-410A 208/230V (4LIV30HP230V1AH / 4LIV30HP230V1AO)

Image: GREE

Data completeness: 97%
Last sourced
Jul 24, 2026

SplitAtlas score

7.7 / 10

Methodology
Cooling efficiencyBelow average

(20.0 SEER2) among 36k systems

Heating efficiencyBottom quartile

(8.5 HSPF2) among 36k systems

Cold-weather performanceAbove average

(5F certified capacity: 77.3% of the 47F rating; -13 F heating floor) among 36k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Feature setBottom quartile

(2 verified features) across the catalogue

Documentation & partsTop quartile

(11 manuals; spec sheet; parts channel) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

30,000BTU/h[2]

Rated heating

30,000BTU/h[2]

Buyer review snapshot

Best for / skip if

Skip if

  • You are shopping for a current-generation recommendation; catalog lifecycle is LEGACY.

Install difficulty

Professional flared-line install
  • Electrical: 208/230V; MCA 20 A; breaker/fuse 30 A.
  • Line set: Flared line connections; precharged 25 ft; max 131 ft.

Alternatives

Availability and price context

This system needs a professional install, and its warranty depends on who installs it. Its real price is an installed quote that depends on your home, so get installation quotes to price it.

Purchase channel policy

GREE publishes an online/retail warranty-claim path for equipment purchased online, Home Depot, or Lowes rather than treating online purchase as a warranty voidance.

Warranty impact
Online purchase changes the claim path: routine parts use GREE's online claim form, while compressor failures and refrigerant leaks require tech-support confirmation before the online claim.
Installation condition
Warranty claims for online/retail purchases must be completed by a contractor after an on-site diagnosis, with required documentation such as purchase receipt or installation invoice and data-plate photos.
Authorized channel
GREE distributor path for distributor purchases; GREE online warranty claim form for equipment purchased online, Home Depot, or Lowes; GREE offers a 10-year extended warranty through GREE Select dealers, with registration.

GREE online purchases have a manufacturer-published warranty path, but buyers should keep purchase and installation documents and use a licensed HVAC contractor for diagnosis and claims.

Compare online-purchase warranty rules by brand

Source: GREE Comfort: How Does the GREE Warranty Work? Coverage, Claims, and 10-Year Extension Guide; retrieved Aug 15, 2026.

Source date

Model data sourced
Jul 24, 2026
Page reviewed
Jul 23, 2026
Source-backed records
4
Newest source retrieved
Jul 24, 2026

Warranty tiers

Base
5 yr parts / 7 yr compressor - eligible residential system

The score uses Base. Additional published terms are shown for reference and not counted in the score.

Review methodology

Strengths

  • Same familiar Livo platform at large capacity.

Weaknesses

  • R-410A is phasing down - future service costs will rise.
  • SEER2 20 against the R-32 version's 22.
  • The current-refrigerant Livo 30k is a direct replacement.

Climate suitability

Minimum heating ambient
-13 F[3]
Certified heating at 5F
23,200 BTU/h[2]
Rated heating at 17F
24,000 BTU/h[2]
Rated heating at 47F
30,000 BTU/h[2]

Specifications

Show
Manufacturer
GREE
Brand
GREE
Product line
Livo GEN4
Model number
4LIV30HP230V1AH indoor / 4LIV30HP230V1AO outdoor
Indoor unit model
4LIV30HP230V1AH
Outdoor unit model
4LIV30HP230V1AO
Number of zones
1
Max indoor units
not published
Rated cooling capacity
30,000 BTU/h[2]
Rated heating capacity
30,000 BTU/h[2]
Voltage
208/230V[1]
MCA
20 A[1]
Maximum fuse or breaker size
30 A[1]
Breaker needed
not published
SEER2
20 SEER2[2]
EER2
11.25 EER2[2]
HSPF2 (Region 4)
8.5 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
1.81 COP[2]
Minimum outdoor heating temperature
-13 F[3]
Minimum outdoor cooling temperature
-4 F[3]
Maximum outdoor temperature
122 F[3]
Indoor noise range
37-56 dB(A)[1]
Outdoor noise rating
not published
Indoor weight
44.1 lb[1]
Outdoor weight
113.6 lb[1]
Refrigerant
R-410A[2]
Refrigerant charge
not published
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 5/8 in suction
Included line-set length
GREE professional single-zone systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
131 ft[1]
Max line set per indoor
not published
Maximum elevation difference
82 ft[1]
Max height between indoor units
not published
Wi-Fi support
supported[1]
Energy Star status
Not ENERGY STAR certified[2]
AHRI certification number
210278969[2]
Warranty
Base: 5 yr parts / 7 yr compressor (eligible residential system). Score uses Base.. Standard residential GREE single-zone mini-split warranty is 5 years parts and 7 years compressor for eligible units.
Install path
Professional install
Retail price
Installed quote only
Available retailers
not published
Manual links
AHRI public detail 4LIV30HP230V1AO / 4LIV30HP230V1AH, ENERGY STAR exact row lookup for 4LIV30HP230V1AO / 4LIV30HP230V1AH, GREE Livo GEN4 extended ratings, GREE Livo GEN4 installation/owner manual, GREE current Livo GEN4 product/catalog page, GREE Livo GEN4 owner manual, GREE Livo GEN4 sales brochure, GREE Livo GEN4 service manual, GREE Livo GEN4 30k submittal, GREE DFS warranty statement for units installed after 2021-12-31
Specification sheet
GREE Livo GEN4 30k submittal
Last sourced date
Jul 24, 2026

Parts and filters

Fits GREE Livo GEN4 30,000 BTU R-410A 208/230V (4LIV30HP230V1AH / 4LIV30HP230V1AO). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

filter-washable

Indoor washable filter assembly

Fits
GREE Livo GEN4 30,000 BTU R-410A 208/230V (4LIV30HP230V1AH / 4LIV30HP230V1AO)
OEM part number
1112210602
Filter care
Washable. Wash with clean water or use a duster, then shade-dry every 1 to 3 months. No replacement interval or condition is published for this reusable filter.
Fit note
Fits 4LIV30HP230V1AH / 4LIV30HP230V1AO. GREE publishes this filter assembly as Part No. 1112210602 in the official model-specific parts manual; confirm the indoor model before ordering.
Source
GREE Livo GEN4 Parts Manual, 4LIV30HP230V1AH parts list, page p. 49 (3 Filter Sub-Assy 1 1112210602)

remote-control

Wireless remote controller - YAP1F7F

Fits
GREE Livo GEN4 30,000 BTU R-410A 208/230V (4LIV30HP230V1AH / 4LIV30HP230V1AO)
OEM part number
YAP1F7F
Fit note
Fits 4LIV30HP230V1AH / 4LIV30HP230V1AO. GREE publishes YAP1F7F in the model submittal; no HVACDirect exact replacement remote page was verified, so order through GREE/distributor parts support by indoor model and remote code. The GEN4 service manual uses a different remote-family description, so confirm YAP1F7F against the indoor serial before ordering.
Source
GREE Livo GEN4 30,000 BTU R-410A 208/230V (4LIV30HP230V1AH / 4LIV30HP230V1AO) Submittal, Controller options, page p. 1 (YAP1F7F)

wired-controller

XE71 wired wall controller

Fits
GREE Livo GEN4 30,000 BTU R-410A 208/230V (4LIV30HP230V1AH / 4LIV30HP230V1AO)
OEM part number
XE71
Fit note
Fits 4LIV30HP230V1AH / 4LIV30HP230V1AO where the GREE submittal lists the XE71 wired controller option. HVACDirect was verified as a live exact GREE XE71 product page on 2026-08-01; its retailer model/SKU is MC20700970.
Source
GREE Livo GEN4 30,000 BTU R-410A 208/230V (4LIV30HP230V1AH / 4LIV30HP230V1AO) Submittal, Controller options, page p. 1 (XE71)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect

line-set-installation-kit

25 ft flared line-set installation kit - 1/4 x 5/8

Fits
GREE Livo GEN4 30,000 BTU R-410A 208/230V (4LIV30HP230V1AH / 4LIV30HP230V1AO)
Fit note
Fits 4LIV30HP230V1AH / 4LIV30HP230V1AO by the 1/4 x 5/8 flared line-set dimensions in the GREE submittal. The HVACDirect page was verified live on 2026-08-01 as an exact-dimension 25 ft install-kit page, not a GREE OEM exact-part listing.
Source
GREE Livo GEN4 30,000 BTU R-410A 208/230V (4LIV30HP230V1AH / 4LIV30HP230V1AO) Submittal, Refrigerant pipe connections, page p. 1 (Connections in 1/4 - 5/8)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect
Find this model's filterReplacement Parts & Filters

Electrical requirements

Show
Voltage
not published
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
20 A[1]
Breaker needed
not published
Maximum breaker size
30 A[1]
Maximum fuse size
30 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
5/8 in[1]
Line connection type
Flared line connections[1]
Precharged length
25 ft[1]
Included line-set length
GREE professional single-zone systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
131 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
53-3/16 x 12-13/16 x 9-15/16 in[1]
Outdoor dimensions
39-3/8 x 29-3/8 x 16-13/16 in[1]
Indoor weight
44.1 lb[1]
Outdoor weight
113.6 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the GREE Livo GEN4 30,000 BTU R-410A 208/230V (4LIV30HP230V1AH / 4LIV30HP230V1AO) myself, or do I need a pro?
GREE Livo GEN4 30,000 BTU R-410A 208/230V (4LIV30HP230V1AH / 4LIV30HP230V1AO) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the GREE Livo GEN4 30,000 BTU R-410A 208/230V (4LIV30HP230V1AH / 4LIV30HP230V1AO) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 23,200 BTU/h of heating capacity at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 8.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the GREE Livo GEN4 30,000 BTU R-410A 208/230V (4LIV30HP230V1AH / 4LIV30HP230V1AO) need?
Published electrical requirements: 208/230V voltage, 20 A minimum circuit ampacity, and 30 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 131 ft. The outdoor unit's factory charge covers up to 25 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
What warranty does the GREE Livo GEN4 30,000 BTU R-410A 208/230V (4LIV30HP230V1AH / 4LIV30HP230V1AO) carry?
The manufacturer publishes these warranty tiers: Base: 5 yr parts / 7 yr compressor (eligible residential system). Score uses Base.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. GREE Comfort: GREE Livo GEN4 30k submittalSourced - manufacturer technical document

    Covers Frequency, electrical_spec.indoor_mca_amps, Maximum breaker size, Maximum fuse size, Minimum circuit ampacity, Phase and more

  2. Air-Conditioning, Heating, and Refrigeration Institute: AHRI public detail for 4LIV30HP230V1AO / 4LIV30HP230V1AHSourced - AHRI directory

    Covers AHRI certification number, performance_spec.cold_climate_designation, Rated cooling capacity, COP at 5F, EER2, Energy Star status and more

  3. GREE Comfort: GREE current Vireo GEN3 product/catalog pageSourced - manufacturer product page

    Covers Minimum outdoor cooling temperature, Minimum outdoor heating temperature, performance_spec.max_ambient_heating_temp_f, Maximum outdoor temperature

  4. GREE Comfort: GREE DFS warranty statement for units installed after 2021-12-31Sourced - manufacturer technical document

    Covers Legacy compressor warranty value, Legacy warranty value, Base compressor warranty, Base warranty conditions, Base parts warranty, Warranty notes

Last updated

Jul 23, 2026
