GE Appliances / GE Endure

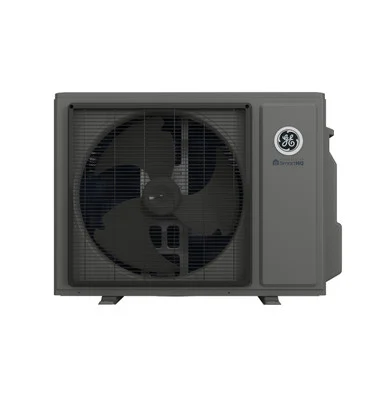

GE Appliances GE Endure 30k R-454B 208/230V Mini-Split
The Endure 30k is a premium big-room head, a single-zone 30,000 BTU cooling heat pump on 230V using low-GWP R-454B. It rates 20 SEER2, 11.2 EER2, and 9.5 HSPF2, and it is ENERGY STAR certified and cold-climate designated. It is a heating heavyweight, producing 31,000 BTU at 47F and 25,800 BTU at 5F.
Refrigerant generation
R-454B - current-generation refrigerant
Need this installed?
Get installation quotes
Image: GE Appliances
- Last sourced
- Jul 27, 2026
SplitAtlas score
8.2 / 10
(20.0 SEER2) among 36k systems
(9.5 HSPF2) among 36k systems
(83.2% heat retained at 5F; -22 F heating floor) among 36k systems
(38 dBA indoor min / 72 dBA outdoor) among 36k systems
(10 yr parts / 10 yr compressor) across the catalogue
(6 verified features) across the catalogue
(8 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Key ratings
Best-fit use cases
Built for a large great room, open main floor, or shop in a cold climate that needs heavy, sustained heating from one premium single-zone head.
Buyer review snapshot
Install difficulty
- Electrical: 230V; MCA 25 A; breaker/fuse 40 A.
- Line set: connection type not sourced; max 165 ft.
Alternatives
- Senville AURA 33,000 BTU R-454B 208/230V (SENA-33HF-IGG / SENA-33HF-OG)
8.7 score / 33k / SEER2 19.5 / -22 F heating floor / 187-253V
Exact destination at Senville: $2,199.99, checked Jul 24, 2026
- Blueridge XS5 All Climate Plus 33,000 BTU R-454B 208/230V (BXAFA33WM0 / BXS5A33UC0)
8.5 score / 33k / SEER2 19.5 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $2,619.00, checked Jul 24, 2026
- Blueridge XS2 Core 30,000 BTU R-454B 208/230V (BXS2A30WM0 / BXS2A30SC0)
8.3 score / 30k / SEER2 22.3 / -13 F heating floor / 230V
Exact destination at Alpine Home Air: $1,999.00, checked Jul 24, 2026
Availability and price context
We could not verify a current retail price for this model. We could not find a published consumer price for this model when we last checked on 2026-07-27.
Source date
- Model data sourced
- Jul 27, 2026
- Page reviewed
- Jul 27, 2026
- Source-backed records
- 4
- Newest source retrieved
- Jul 27, 2026
Warranty tiers
Warranty: 5 years parts and no separate compressor term published as standard; 10 years parts and no separate compressor term published if the system is registered.
Model context
- Structured ratings
- Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -22 F.
Strengths
- Huge cold-weather heat output, 25,800 BTU at 5F
- Cold-climate designated and ENERGY STAR certified
- 20 SEER2 is middling for a head this size; the heat output is the reason to buy it
Weaknesses
- 11.2 EER2 is below the line's typical 12.0 peak-load mark
- Loud under load, with a 38 dB(A) floor
Climate suitability
- Minimum heating ambient
- -22 F[2]
- Rated heating at 5F
- 25,800 BTU/h[3]
- Rated heating at 17F
- 21,000 BTU/h[3]
- Rated heating at 47F
- 31,000 BTU/h[3]
Specifications
ShowHide
- Manufacturer
- GE Appliances
- Brand
- GE Appliances
- Product line
- GE Endure
- Model number
- GS30WB2BEA indoor / 1G3036ED2BEA outdoor
- Indoor unit model
- GS30WB2BEA
- Outdoor unit model
- 1G3036ED2BEA
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 30,000 BTU/h[3]
- Rated heating capacity
- 31,000 BTU/h[3]
- Voltage
- 230 V[1]
- MCA
- 25 A[2]
- Maximum fuse or breaker size
- 40 A[2]
- Breaker needed
- not published
- SEER2
- 20 SEER2[3]
- EER2
- 11.2 EER2[3]
- HSPF2 (Region 4)
- 9.5 HSPF2[3]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.8 COP[3]
- Minimum outdoor heating temperature
- -22 F[2]
- Minimum outdoor cooling temperature
- 23 F[2]
- Maximum outdoor temperature
- 115 F[2]
- Indoor noise range
- 55/53/49/43/38 dB(A)[1]
- Outdoor noise rating
- 72 dBA[2]
- Indoor weight
- 46.337 lb[1]
- Outdoor weight
- 165.42 lb[1]
- Refrigerant
- R-454B[3]
- Refrigerant charge
- 109.4 oz[2]
- Manufacturer coverage
- not published
- Line-set size
- 3/8 in liquid / 5/8 in suction
- Included line-set length
- not published
- Maximum line-set length
- 165 ft[2]
- Max line set per indoor
- not published
- Maximum elevation difference
- 100 ft[2]
- Max height between indoor units
- not published
- Wi-Fi support
- not published
- Energy Star status
- ENERGY STAR certified[4]
- AHRI certification number
- 217465735[3]
- Warranty
- Standard: 5 yr parts / no separate compressor term (limited parts warranty); Best case: 10 yr parts / no separate compressor term (registered limited parts warranty). 5-year limited parts warranty; 10-year registered limited parts warranty with registration.
- Install path
- Professional install
- Retail price
- We could not find a published consumer price for this model when we last checked on 2026-07-27.
- Available retailers
- not published
- Manual links
- AHRI public directory record 217465735, ENERGY STAR exact check 217465735, 1G3036ED2BEA / GS30WB2BEA GE installation instructions, 1G3036ED2BEA GE Appliances Air & Water product page, GS30WB2BEA GE Appliances Air & Water product page, HVACDirect exact search 1G3036ED2BEA / GS30WB2BEA, 1G3036ED2BEA / GS30WB2BEA GE specification guide or submittal, 1G3036ED2BEA / GS30WB2BEA GE warranty
- Specification sheet
- 1G3036ED2BEA / GS30WB2BEA GE specification guide or submittal
- Last sourced date
- Jul 27, 2026
Installation considerations
ShowHide
- Liquid line
- 3/8 in[1]
- Suction line
- 5/8 in[1]
- Line connection type
- not published
- Precharged length
- not published
- Included line-set length
- not published
- Maximum line-set length
- 165 ft[2]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 51.8 in W x 14.4 in H x 10.8 in D[1]
- Outdoor dimensions
- 43.13 in W x 33.06 in H x 19.88 in D[2]
- Indoor weight
- 46.337 lb[1]
- Outdoor weight
- 165.42 lb[1]
- Drain size
- not published
Related systems and guides
- More GE Appliances systems
- Fujitsu 30k model
- GREE comparison model
Previous generation
- GE Appliances 230 V option
- GE Altitude 32.4k
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- The mini split defrost cycle, explained
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- R-32 vs R-454B: the mini split refrigerant change explained
- What size mini split do I need for a garage?
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split remote not working
- Your mini split is showing a refrigerant leak code
- Mini split leaking water
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the GE Appliances Endure 30,000 BTU R-454B 208/230V (GS30WB2BEA / 1G3036ED2BEA) myself, or do I need a pro?
- GE Appliances Endure 30,000 BTU R-454B 208/230V (GS30WB2BEA / 1G3036ED2BEA) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the GE Appliances Endure 30,000 BTU R-454B 208/230V (GS30WB2BEA / 1G3036ED2BEA) keep heating in a cold winter?
- The manufacturer publishes 25,800 BTU/h of heating output at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 9.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the GE Appliances Endure 30,000 BTU R-454B 208/230V (GS30WB2BEA / 1G3036ED2BEA) need?
- Published electrical requirements: 230 V voltage, 25 A minimum circuit ampacity, and 40 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 165 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
- What warranty does the GE Appliances Endure 30,000 BTU R-454B 208/230V (GS30WB2BEA / 1G3036ED2BEA) carry?
- The manufacturer publishes these warranty tiers: Standard: 5 yr parts / no separate compressor term (limited parts warranty); Best case: 10 yr parts / no separate compressor term (registered limited parts warranty). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
Data sources
ShowHide
- GE Appliances Air & Water: 1G3036ED2BEA / GS36WB2BEA GE Appliances product pagesSourced - manufacturer product page
Covers Frequency, Phase, Voltage, Voltage range, Indoor dimensions, Indoor noise range and more
- GE Appliances Air & Water: GE Endure Single Zone specification guide derived highwall valuesSourced - manufacturer technical document
Covers Maximum fuse size, Minimum circuit ampacity, Maximum elevation difference, Maximum line-set length, Outdoor dimensions, Outdoor noise rating and more
- Air-Conditioning, Heating, and Refrigeration Institute: AHRI Appendix M1 public detail for 1G3036ED2BEA / GS30WB2BEASourced - AHRI directory
Covers AHRI certification number, performance_spec.cold_climate_designation, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity and more
- ENERGY STAR: ENERGY STAR exact row check for AHRI 217465735Sourced - Energy Star listing
Covers Energy Star status
