GREE Livo 36k Concealed Ducted R-32 208/230V Mini-Split

Certified capacity
33,600 BTU/h[2]
SEER2
20 SEER2[2]
Heating floor
-13 F[1]
Voltage
230 V[1]
Install path
Professional install

The largest ducted head here: 33,600 BTU cooling and 34,000 heating against a 36k badge, certifying at 20 SEER2 with 8.5 HSPF2 and rated to -13F.

Oddly, it certifies better than the 30k version of the same line (20 against 18.5), so if you are choosing between the two large Livo ducted heads on efficiency alone, the bigger one wins. Size to the actual load, though - an oversized ducted system short-cycles, dehumidifies poorly, and wears itself out faster than a right-sized one.

1 zoneProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

This system's warranty depends on licensed installation — get quotes from installers in your area.

Get installation quotes
Error Codes

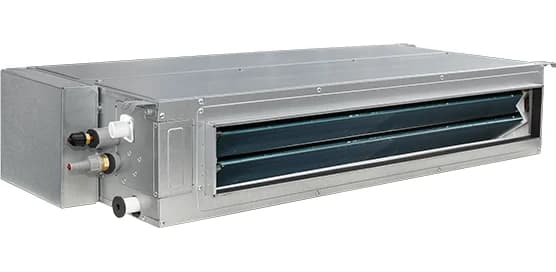

GREE concealed slim duct indoor unit for R32 mini-split systems.

Image: GREE Comfort official All-Match Slim Duct R32 product page

Data completeness: 100%
Last sourced
Aug 2, 2026

SplitAtlas score

7.8 / 10

Methodology
Cooling efficiencyBelow average

(20.0 SEER2) among 36k systems

Heating efficiencyBottom quartile

(8.5 HSPF2) among 36k systems

Cold-weather performanceBelow average

(70% heat retained at 5F; -13 F heating floor) among 36k systems

NoiseAbove average

(-45 dBA indoor min / 62 dBA outdoor) among 36k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Feature setBelow average

(4 verified features) across the catalogue

Documentation & partsTop quartile

(6 manuals; spec sheet; 57 error-code rows) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

33,600BTU/h[2]

Rated heating

34,000BTU/h[2]

Buyer review snapshot

Install difficulty

Professional flared-line install
  • Electrical: 230V; MCA 24 A; breaker/fuse 35 A.
  • Line set: Flared line connections; precharged 25 ft; max 131 ft.

Alternatives

Availability and price context

We could not verify a current retail price for this model. This model is sold through dealers, so we link to contractor quotes rather than a retail price.

Purchase channel policy

GREE publishes an online/retail warranty-claim path for equipment purchased online, Home Depot, or Lowes rather than treating online purchase as a warranty voidance.

Warranty impact
Online purchase changes the claim path: routine parts use GREE's online claim form, while compressor failures and refrigerant leaks require tech-support confirmation before the online claim.
Installation condition
Warranty claims for online/retail purchases must be completed by a contractor after an on-site diagnosis, with required documentation such as purchase receipt or installation invoice and data-plate photos.
Authorized channel
GREE distributor path for distributor purchases; GREE online warranty claim form for equipment purchased online, Home Depot, or Lowes; GREE Select dealer installation and registration for the 10-year extended warranty.

GREE online purchases have a manufacturer-published warranty path, but buyers should keep purchase and installation documents and use a licensed HVAC contractor for diagnosis and claims.

Compare online-purchase warranty rules by brand

Source: GREE Comfort: How Does the GREE Warranty Work? Coverage, Claims, and 10-Year Extension Guide; retrieved Aug 15, 2026.

Source date

Model data sourced
Aug 2, 2026
Page reviewed
Aug 2, 2026
Source-backed records
4
Newest source retrieved
Aug 2, 2026

Warranty tiers

Warranty: 5 years parts and 7 years compressor as standard.

Review methodology

Model context

Structured ratings
Certification: ENERGY STAR certified. Refrigerant: current low-GWP R-32. Minimum heating ambient: -13 F.

Strengths

  • 20 SEER2, better than the 30k Livo ducted head despite the larger capacity.
  • 34,000 BTU of heating from a completely concealed unit.

Weaknesses

  • The 36k badge overstates it - certified cooling is 33,600 BTU.
  • -13F low-ambient rating, well short of the smaller GREE R-32 lines.
  • A low-static head at this capacity has essentially no margin for duct design error.

Climate suitability

Minimum heating ambient
-13 F[1]
Rated heating at 5F
23,800 BTU/h[2]
Rated heating at 17F
27,200 BTU/h[2]
Rated heating at 47F
34,000 BTU/h[2]

Specifications

Show
Manufacturer
GREE
Brand
GREE
Product line
Livo R32
Model number
DUC36HP230V1R32AH indoor / LIV36HP230V1R32AO outdoor
Indoor unit model
DUC36HP230V1R32AH
Outdoor unit model
LIV36HP230V1R32AO
Number of zones
1
Max indoor units
not published
Rated cooling capacity
33,600 BTU/h[2]
Rated heating capacity
34,000 BTU/h[2]
Voltage
230 V[1]
MCA
24 A[1]
Maximum fuse or breaker size
35 A[1]
Breaker needed
not published
SEER2
20 SEER2[2]
EER2
11.95 EER2[2]
HSPF2 (Region 4)
8.5 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
not published
Minimum outdoor heating temperature
-13 F[1]
Minimum outdoor cooling temperature
-4 F[1]
Maximum outdoor temperature
122 F[1]
Indoor noise range
39-45 dB(A)[1]
Outdoor noise rating
62 dBA[1]
Indoor weight
94.8 lb[1]
Outdoor weight
122.4 lb[1]
Refrigerant
R-32[2]
Refrigerant charge
56.4 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 5/8 in suction
Included line-set length
GREE professional single-zone cassette and ducted systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
131 ft[1]
Max line set per indoor
not published
Maximum elevation difference
82 ft[1]
Max height between indoor units
not published
Wi-Fi support
not supported[1]
Energy Star status
Not ENERGY STAR certified[2]
AHRI certification number
215415559[2]
Warranty
Standard: 5 yr parts / 7 yr compressor (eligible residential system). Standard residential GREE mini-split coverage is 5 years parts and 7 years compressor for eligible post-2021 systems.
Install path
Professional install
Retail price
This model is sold through dealers, so we link to contractor quotes rather than a retail price.
Available retailers
not published
Manual links
AHRI Active row 215415559, All Match Slim Duct R32 service/installation manual, GREE All Match Slim Duct R32 official product page, All Match Slim Duct R32 owner manual, DUC36HP230V1R32AH / LIV36HP230V1R32AO All Match Slim Duct R32 submittal, GREE DFS warranty statement for units installed after 2021-12-31
Specification sheet
DUC36HP230V1R32AH / LIV36HP230V1R32AO All Match Slim Duct R32 submittal
Last sourced date
Aug 2, 2026

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
24 A[1]
Breaker needed
not published
Maximum breaker size
35 A[1]
Maximum fuse size
35 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
Interconnecting wire size AWG 14 / 4; main power wire per local code.[1]

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
5/8 in[1]
Line connection type
Flared line connections[1]
Precharged length
25 ft[1]
Included line-set length
GREE professional single-zone cassette and ducted systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
131 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
52-3/4 x 25-25/32 x 10-15/64 in[1]
Outdoor dimensions
39-3/8 x 15-13/16 x 29-3/8 in[1]
Indoor weight
94.8 lb[1]
Outdoor weight
122.4 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the GREE Livo R32 36,000 BTU Concealed Ducted R-32 208/230V (DUC36HP230V1R32AH / LIV36HP230V1R32AO) myself, or do I need a pro?
GREE Livo R32 36,000 BTU Concealed Ducted R-32 208/230V (DUC36HP230V1R32AH / LIV36HP230V1R32AO) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the GREE Livo R32 36,000 BTU Concealed Ducted R-32 208/230V (DUC36HP230V1R32AH / LIV36HP230V1R32AO) keep heating in a cold winter?
The manufacturer publishes 23,800 BTU/h of heating output at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 8.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the GREE Livo R32 36,000 BTU Concealed Ducted R-32 208/230V (DUC36HP230V1R32AH / LIV36HP230V1R32AO) need?
Published electrical requirements: 230 V voltage, 24 A minimum circuit ampacity, and 35 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 131 ft, and the included line set comes pre-charged for 25 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the GREE Livo R32 36,000 BTU Concealed Ducted R-32 208/230V (DUC36HP230V1R32AH / LIV36HP230V1R32AO) carry?
The manufacturer publishes these warranty tiers: Standard: 5 yr parts / 7 yr compressor (eligible residential system). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
