Midea / Midea Easy Pro Extreme Heat
Midea Easy Pro Extreme Heat 24k R-454B 208/230V Mini-Split
The 2-ton Extreme Heat pushes serious numbers: certified heating of 29,000 BTU at 47F, 22,200 BTU at 17F and 24,200 BTU at 5F on R-454B. Efficiency reads 21.0 SEER2 and 13.0 EER2, but the standout is the 13.5 HSPF2 - unusually high for a head this large. It is built to carry a big cold-climate load without flinching.
1 zoneProfessional installCurrent
Refrigerant generation
R-454B - current-generation refrigerant
Need this installed?
Get installation quotes

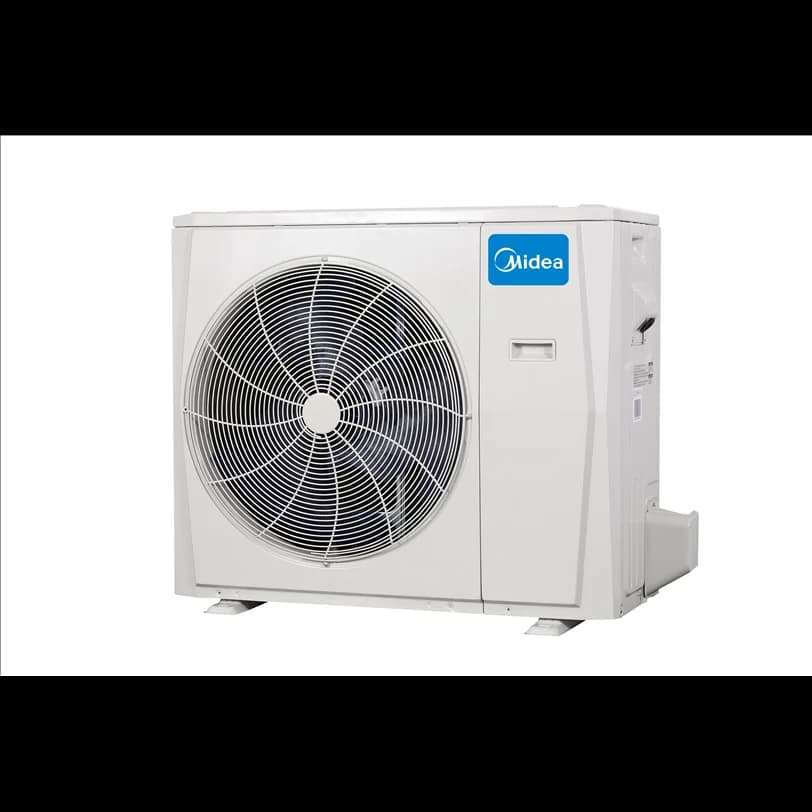

Image: Famous Supply
-ok_MAIN1.png){kind=link}
Data completeness: 100%
- Last sourced
- Jul 27, 2026
SplitAtlas score
8.9 / 10
Cooling efficiencyBelow average
(21.0 SEER2) among 24k systems
Heating efficiencyTop 10%
(13.5 HSPF2) among 24k systems
Cold-weather performanceAbove average
(5F certified capacity: 83.4% of the 47F rating; -22 F heating floor) among 24k systems
WarrantyTop 10%
(12 yr parts / 12 yr compressor) across the catalogue
Feature setAbove average
(5 verified features) across the catalogue
Documentation & partsBelow average
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Key ratings
Buyer review snapshot
Install difficulty
Professional install
- Electrical: 230V.
- Line set: connection type not sourced; max 213 ft.
Availability and price context
This system needs a professional install, so its real price is an installed quote that depends on your home. We don't link to a listing for this exact model; get installation quotes to price it.
Source date
- Model data sourced
- Jul 27, 2026
- Page reviewed
- Jul 27, 2026
- Source-backed records
- 4
- Newest source retrieved
- Sep 14, 2026
Warranty tiers
- Base
- 5 yr parts / 7 yr compressor - base coverage
- Registered
- 12 yr parts / 12 yr compressor - online registration at mideacomfort.us within 60 days of installation
The score uses Registered. Additional published terms are shown for reference and not counted in the score.
Model context
- Structured ratings
- Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -22 F.
Strengths
- Enormous low-temperature heat: 24,200 BTU certified at 5F, above its 17F figure.
- 13.5 HSPF2 is excellent for a 2-ton unit, keeping seasonal heating costs in check.
- ENERGY STAR certified, cold-climate designated, low-GWP R-454B.
Weaknesses
- 21.0 SEER2 is on the low side for the family, so summer efficiency is only fair.
- Big capacity demands careful sizing plus a full 230V professional install.
Climate suitability
- Minimum heating ambient
- -22 F[1]
- Certified heating at 5F
- 24,200 BTU/h[2]
- Rated heating at 17F
- 22,200 BTU/h[2]
- Rated heating at 47F
- 29,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- Midea
- Brand
- Midea
- Product line
- Midea Easy Pro Extreme Heat
- Model number
- MSEHU-H24B-2A indoor / MO1HS-H24B-2A outdoor
- Indoor unit model
- MSEHU-H24B-2A
- Outdoor unit model
- MO1HS-H24B-2A
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 24,000 BTU/h[2]
- Rated heating capacity
- 29,000 BTU/h[2]
- Voltage
- 230 V[1]
- MCA
- Not published for this model
- Maximum fuse or breaker size
- Not published for this model
- Breaker needed
- not published
- SEER2
- 21 SEER2[2]
- EER2
- 13 EER2[2]
- HSPF2 (Region 4)
- 13.5 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 2.34 COP[2]
- Minimum outdoor heating temperature
- -22 F[1]
- Minimum outdoor cooling temperature
- -13 F[1]
- Maximum outdoor temperature
- 122 F[1]
- Indoor noise range
- Not published for this model
- Outdoor noise rating
- 53 dBA[1]
- Indoor weight
- Not published for this model
- Outdoor weight
- Not published for this model
- Refrigerant
- R-454B[2]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- Not published for this model liquid / Not published for this model suction
- Included line-set length
- Professional installations use separately selected line sets
- Maximum line-set length
- 213 ft[1]
- Max line set per indoor
- not published
- Maximum elevation difference
- Not published for this model
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 215471383[2]
- Warranty
- Base: 5 yr parts / 7 yr compressor (base coverage); Registered: 12 yr parts / 12 yr compressor (online registration at mideacomfort.us within 60 days of installation). Score uses Registered.. 12-year extended warranty listed for Midea single-zone systems; terms apply
- Install path
- Professional install
- Retail price
- Installed quote only
- Available retailers
- not published
- Manual links
- ENERGY STAR exact check 215471383, Easy Pro Extreme Heat installation documentation listing, Easy Pro Extreme Heat high-wall indoor product page, Midea Single-Zone Extreme Heat Pump, AHRI Appendix M1 public detail 215471383
- Specification sheet
- AHRI Appendix M1 public detail 215471383
- Last sourced date
- Jul 27, 2026
Electrical requirements
ShowHide
- Voltage
- 230 V[1]
- Voltage range
- 208/230V[1]
- Phase
- 1[1]
- Frequency
- 60 Hz[1]
- MCA
- Not published for this model
- Breaker needed
- not published
- Maximum breaker size
- Not published for this model
- Maximum fuse size
- Not published for this model
- Maximum cooling current
- not published
- Maximum heating current
- not published
- Manufacturer wire notes
- not published
Installation considerations
ShowHide
- Liquid line
- Not published for this model
- Suction line
- Not published for this model
- Line connection type
- not published
- Precharged length
- not published
- Included line-set length
- Professional installations use separately selected line sets
- Maximum line-set length
- 213 ft[1]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- Not published for this model
- Outdoor dimensions
- Not published for this model
- Indoor weight
- Not published for this model
- Outdoor weight
- Not published for this model
- Drain size
- not published
Related systems and guides
- More Midea systems
- Midea Easy Pro 24k R-454B 208/230V Mini-Split
- Midea Elevate 24k R-454B 208/230V Mini-Split
- Midea Advantage High-Heat 24k R-454B 208/230V 4-Zone Mini-Split
- Midea Elevate High Heat 24k R-454B 208/230V Mini-Split
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- Midea mini split review: is Midea any good?
- The best 24,000 BTU mini splits of 2026
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- The mini split defrost cycle, explained
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split remote not working
- Your mini split is showing a refrigerant leak code
- Mini split Wi-Fi not connecting
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the Midea Easy Pro Extreme Heat 24,000 BTU R-454B 208/230V (MSEHU-H24B-2A / MO1HS-H24B-2A) myself, or do I need a pro?
- Midea Easy Pro Extreme Heat 24,000 BTU R-454B 208/230V (MSEHU-H24B-2A / MO1HS-H24B-2A) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the Midea Easy Pro Extreme Heat 24,000 BTU R-454B 208/230V (MSEHU-H24B-2A / MO1HS-H24B-2A) keep heating in a cold winter?
- The AHRI/ENERGY STAR certification lists 24,200 BTU/h of heating capacity at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 13.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the Midea Easy Pro Extreme Heat 24,000 BTU R-454B 208/230V (MSEHU-H24B-2A / MO1HS-H24B-2A) need?
- Published electrical requirements: 230 V voltage. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 213 ft. Measure the planned routing before ordering.
- What warranty does the Midea Easy Pro Extreme Heat 24,000 BTU R-454B 208/230V (MSEHU-H24B-2A / MO1HS-H24B-2A) carry?
- The manufacturer publishes these warranty tiers: Base: 5 yr parts / 7 yr compressor (base coverage); Registered: 12 yr parts / 12 yr compressor (online registration at mideacomfort.us within 60 days of installation). Score uses Registered.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
