MRCOOL DIY 5th Gen 48k 6-Zone Mini-Split

Certified capacity
Varies by indoor-unit combination
SEER2
Varies by indoor-unit combination
Heating floor
-13 F[4]
Voltage
208/230V[1]
Install path
DIY install

The DIY 6-Zone 48k is the large-home end of the self-install line: up to six indoor heads on one 208-230V condenser, 48,000 BTU nominal. It exists for homes that need many zones from a single outdoor location - the case where multiple single-zone systems become impractical.

6 zonesDIY installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

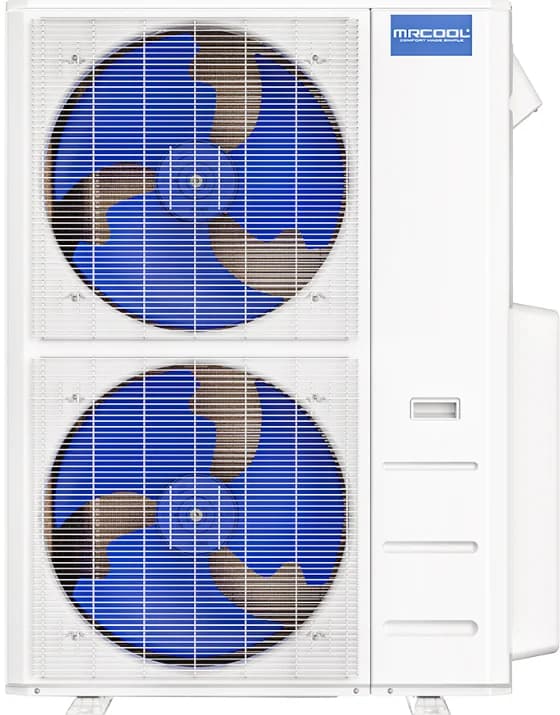

MRCOOL DIY 5th Gen Multi-Zone 48k 6-zone outdoor condenser

Image: MRCOOL

Data completeness: 97%
Last sourced
Aug 17, 2026

SplitAtlas score

not yet rated - data incomplete

Methodology
  • scored 2 of 9 applicable categories, need at least 5

Key ratings

Rated cooling

Varies by indoor-unit combination

Rated heating

Varies by indoor-unit combination

Best-fit use cases

A larger home that needs six zones from one outdoor location and one circuit, where the single-condenser simplicity outweighs the part-load efficiency cost of putting everything on one compressor.

Buyer review snapshot

Install difficulty

DIY multi-zone with planning load
  • Electrical: 208/230V; MCA 40 A; breaker/fuse 45 A.
  • Line set: Quick-connect line connections; max 221 ft.
  • 6-zone condenser; indoor-head matching and branch layout are part of the job.

Availability and price context

  • Last seen at HVACDirect on Jul 20, 2026: $3,228.00. Open the listing for today's price.
  • Sold at Amazon. Open the listing for today's price and stock.

Source date

Model data sourced
Aug 17, 2026
Page reviewed
Jul 20, 2026
Source-backed records
5
Newest source retrieved
Aug 17, 2026

Review methodology

Strengths

  • Up to six zones from one condenser - maximum coverage from a single outdoor unit and circuit.
  • DIY Quick Connect line sets; 5/7-year warranty that does not disclaim self-installation.
  • R-454B; rated operation down to -13F.

Weaknesses

  • No certified combination SEER2 (multi-zone; see the page).
  • 40 A minimum circuit ampacity - a serious electrical load that many panels will need evaluated before install.
  • Six line sets and six heads is a major install; realistically pro territory for most owners even though the equipment is DIY-capable.
  • Part-load efficiency penalty is greatest with six zones on one compressor - a home that rarely runs all zones may do better on two smaller condensers.
  • Respect the connectable-capacity limit; do not sum six rooms.

Climate suitability

Minimum heating ambient
-13 F[4]
Certified heating at 5F
Varies by indoor-unit combination
Rated heating at 17F
Varies by indoor-unit combination
Rated heating at 47F
Varies by indoor-unit combination

Specifications

Show
Manufacturer
MRCOOL
Brand
MRCOOL
Product line
DIY 5th Gen Multi-Zone
Model number
DIY-MULTI6-48HP230D-O
Indoor unit model
Depends on the indoor units you choose
Outdoor unit model
DIY-MULTI6-48HP230D-O
Number of zones
6
Max indoor units
6 units[1]
Rated cooling capacity
Varies by indoor-unit combination
Rated heating capacity
Varies by indoor-unit combination
Voltage
208/230V[1]
MCA
40 A[1]
Maximum fuse or breaker size
45 A[1]
Breaker needed
not published
SEER2
Varies by indoor-unit combination
EER2
Varies by indoor-unit combination
HSPF2 (Region 4)
Varies by indoor-unit combination
HSPF2 (Region 5)
Varies by indoor-unit combination
COP
not published
COP at 47F
not published
COP at 5F
not published
Minimum outdoor heating temperature
-13 F[4]
Minimum outdoor cooling temperature
-13 F[4]
Maximum outdoor temperature
122 F[4]
Indoor noise range
Depends on the indoor units you choose
Outdoor noise rating
64 dBA[1]
Indoor weight
Depends on the indoor units you choose
Outdoor weight
223.77 lb[1]
Refrigerant
R-454B[1]
Refrigerant charge
148.15 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in liquid / (3/8 x4), (1/2 x2) suction
Included line-set length
Depends on the indoor units you choose
Maximum line-set length
221 ft[4]
Max line set per indoor
75 ft[4]
Maximum elevation difference
33 ft[4]
Max height between indoor units
24 ft[4]
Wi-Fi support
Depends on the indoor units you choose
Energy Star status
not published
AHRI certification number
Varies by indoor-unit combination
Warranty
not published
Install path
DIY install
Retail price
last seen at HVACDirect on Jul 20, 2026: $3,228.00
Available retailers
HVACDirect, Amazon
Manual links
AHRI certificate for DIY-MULTI6-48HP230D-O, MRCOOL DIY Series Multi-Zone Mini-Split System Installation & Owner's Manual, MRCOOL R-454B Compatibility, MRCOOL DIY 5th Gen Multi-Zone 48k 6-Zone Outdoor Unit MRCOOL support article, MRCOOL DIY 5th Gen Multi-Zone brochure
Specification sheet
MRCOOL DIY 5th Gen Multi-Zone brochure
Last sourced date
Aug 17, 2026

Retail purchase context

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect

Reference-only price

Last seen at HVACDirect on Jul 20, 2026: $3,228

Check price on Amazon

Compatible indoor units

This is an outdoor unit. You choose its indoor heads separately - up to the maximum this condenser supports - and you can mix room sizes and styles across the zones. The models below are the heads this unit is documented to pair with.

  • Multi-position air handlers

    24k, 36k

    Model numbers
    • 24k: DIY-24-HP-MUAH-230D25-O
    • 36k: DIY-36-HP-MUAH-230D25-O

  • One-way ceiling cassettes

    6k, 9k, 12k, 18k

    Model numbers
    • 6k: DIYCASSETTE06HP-230D25-O
    • 9k: DIYCASSETTE09HP-230D25-O
    • 12k: DIYCASSETTE12HP-230D25-O
    • 18k: DIYCASSETTE18HP-230D25-O

  • Wall-mounteds

    6k, 9k, 12k, 18k, 24k, 36k

    Model numbers
    • 6k: DIY-06-HP-WMAH-230D25-O
    • 9k: DIY-09-HP-WMAH-230D25-O
    • 12k: DIY-12-HP-WMAH-230D25-O
    • 18k: DIY-18-HP-WMAH-230D25-O
    • 24k: DIY-24-HP-WMAH-230D25-O
    • 36k: DIY-36-HP-WMAH-230D25-O

Sizing note: do not just add up the rooms. Multi-zone condensers have a maximum total connected capacity, and connecting more head capacity than the unit is rated for is a common installer mistake that hurts efficiency and comfort. Match total head capacity to the condenser's rating.

Parts and filters

Fits MRCOOL DIY 5th Gen Multi-Zone 48k 6-Zone Outdoor Unit. Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.
