Panasonic 24k R-32 208/230V 4-Zone Mini-Split

Certified capacity
24,000 BTU/h[4]
SEER2
24 SEER2[4]
Heating floor
-15 F[2]
Voltage
230 V[2]
Install path
Professional install

The Panasonic Multi-Zone 4-Zone 24k (CU-4Z24BBUC) runs four heads on one R-32 outdoor unit with strong deep-cold heating. It carries a certified SEER2 24, EER2 13.45, and HSPF2 11.4, and is rated at 24,000 BTU cooling.

It is certified at 32,000 BTU of heating at 17F and 27,000 BTU at 5F, both well above its 24,000 BTU 47F rating - strong deep-cold capacity. It is ENERGY STAR certified and AHRI cold-climate designated.

Dealer-quoted; professional installation required.

4 zonesProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

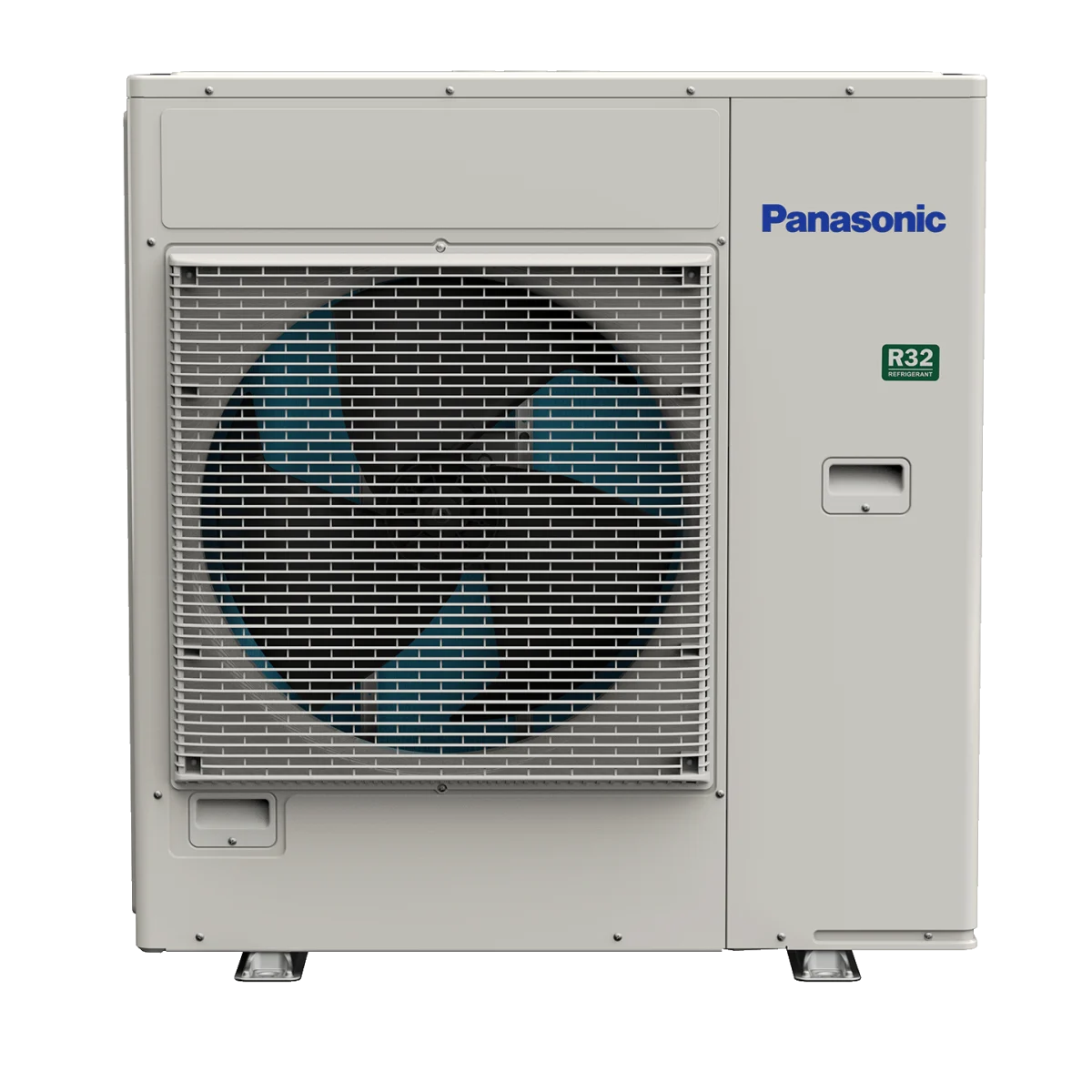

Panasonic Multi-Zone 4-Zone 24,000 BTU R-32 208/230V (CU-4Z24BBUC)

Image: Panasonic

Data completeness: 92%
Last sourced
Jul 28, 2026

SplitAtlas score

9.3 / 10

Methodology
Cooling efficiencyTop 10%

(24.0 SEER2) among 24k systems

Heating efficiencyTop quartile

(11.4 HSPF2) among 24k systems

Cold-weather performanceTop 10%

(5F certified capacity: 100% of the 47F rating; -15 F heating floor) among 24k systems

Feature setTop quartile

(6 verified features) across the catalogue

Documentation & partsBottom quartile

(7 manuals) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

24,000BTU/hNon-Ducted Indoor Units[4]

Rated heating

24,000BTU/hNon-Ducted Indoor Units[4]

Buyer review snapshot

Best for / skip if

Best for

  • 4-zone projects in the 24k outdoor capacity class.
  • High-efficiency shortlists; SEER2 is 24.

Install difficulty

Professional flared-line install
  • Electrical: 230V; MCA 30 A; breaker/fuse 45 A.
  • Line set: Flared line connections; precharged 147.6 ft; max 229.6 ft.
  • 4-zone condenser; indoor-head matching and branch layout are part of the job.

Availability and price context

This system needs a professional install, so its real price is an installed quote that depends on your home. We don't link to a listing for this exact model; get installation quotes to price it.

Source date

Model data sourced
Jul 28, 2026
Page reviewed
Jul 28, 2026
Source-backed records
5
Newest source retrieved
Jul 28, 2026

Review methodology

Model context

Install path
This is professional-install equipment; price it with an installed quote.
Structured ratings
Certification: ENERGY STAR certified, ENERGY STAR cold-climate certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-32. Minimum heating ambient: -15 F.

Strengths

  • Certified at 32,000 BTU at 17F and 27,000 BTU at 5F, both above the 47F 24,000 rating.
  • Certified SEER2 24 / EER2 13.45 / HSPF2 11.4, on current R-32 refrigerant.
  • Premium Panasonic inverter build with four zones on one outdoor unit.

Weaknesses

  • 24,000 BTU across four zones is modest per room - size each head.
  • Multi-zone part-load penalty when one zone runs alone.

Climate suitability

Minimum heating ambient
-15 F[2]
Certified heating at 5F
27,000 BTU/hNon-Ducted Indoor Units[4]
Rated heating at 17F
32,000 BTU/hNon-Ducted Indoor Units[4]
Rated heating at 47F
24,000 BTU/hNon-Ducted Indoor Units[4]

Specifications

Show
Manufacturer
Panasonic
Brand
Panasonic
Product line
Multi-Zone
Model number
CU-4Z24BBUC
Indoor unit model
Depends on the indoor units you choose
Outdoor unit model
CU-4Z24BBUC
Number of zones
4
Max indoor units
4 units[3]
Rated cooling capacity
24,000 BTU/hNon-Ducted Indoor Units[4]
Rated heating capacity
24,000 BTU/hNon-Ducted Indoor Units[4]
Voltage
230 V[2]
MCA
30 A[2]
Maximum fuse or breaker size
45 A[2]
Breaker needed
not published
SEER2
24 SEER2Non-Ducted Indoor Units[4]
EER2
13.45 EER2Non-Ducted Indoor Units[4]
HSPF2 (Region 4)
11.4 HSPF2Non-Ducted Indoor Units[4]
HSPF2 (Region 5)
Varies by indoor-unit combination
COP
not published
COP at 47F
not published
COP at 5F
1.85 COPNon-Ducted Indoor Units[4]
Minimum outdoor heating temperature
-15 F[2]
Minimum outdoor cooling temperature
14 F[2]
Maximum outdoor temperature
115 F[2]
Indoor noise range
Depends on the indoor units you choose
Outdoor noise rating
55 dBA[2]
Indoor weight
Depends on the indoor units you choose
Outdoor weight
179 lb[2]
Refrigerant
R-32[4]
Refrigerant charge
127.8 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in per indoor-unit port liquid / 3/8 in per indoor-unit port suction
Included line-set length
Depends on the indoor units you choose
Maximum line-set length
229.6 ft[1]
Max line set per indoor
82 ft[1]
Maximum elevation difference
49.2 ft[1]
Max height between indoor units
49.2 ft[1]
Wi-Fi support
Depends on the indoor units you choose
Energy Star status
ENERGY STAR certified[5]
AHRI certification number
216441721Non-Ducted Indoor Units[4]
Warranty
not published
Install path
Professional install
Retail price
Installed quote only
Available retailers
not published
Manual links
AHRI public detail 216441721, ENERGY STAR exact row 216441721, Panasonic CU-4Z24BBUC / CU-5Z36BBUC installation instructions, Panasonic Mini-Split Heat Pumps catalog, Panasonic Multi-Zone official product page for CU-4Z24BBUC, CU-4Z24BBUC Panasonic Multi-Zone outdoor submittal
Specification sheet
not published
Last sourced date
Jul 28, 2026

Electrical requirements

Show
Voltage
230 V[2]
Voltage range
208/230V[2]
Phase
1[2]
Frequency
60 Hz[2]
MCA
30 A[2]
Breaker needed
not published
Maximum breaker size
45 A[2]
Maximum fuse size
45 A[2]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
Outdoor power supply minimum AWG12; indoor/outdoor connection cable minimum AWG16[1]

Installation considerations

Show
Liquid line
1/4 in per indoor-unit port[1]
Suction line
3/8 in per indoor-unit port[1]
Line connection type
Flared line connections[2]
Precharged length
147.6 ft[1]
Included line-set length
Depends on the indoor units you choose
Maximum line-set length
229.6 ft[1]
Max line set per indoor
82 ft[1]
Max height between indoor units
49.2 ft[1]
Indoor dimensions
Depends on the indoor units you choose
Outdoor dimensions
37-1/32 x 13-13/32 x 39-11/32 in[3]
Indoor weight
Depends on the indoor units you choose
Outdoor weight
179 lb[2]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Panasonic Multi-Zone 4-Zone 24,000 BTU R-32 208/230V (CU-4Z24BBUC) myself, or do I need a pro?
Panasonic Multi-Zone 4-Zone 24,000 BTU R-32 208/230V (CU-4Z24BBUC) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Panasonic Multi-Zone 4-Zone 24,000 BTU R-32 208/230V (CU-4Z24BBUC) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 27,000 BTU/h of heating capacity at 5F. Rated heating operation extends down to -15 F. Certified heating efficiency is 11.4 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Panasonic Multi-Zone 4-Zone 24,000 BTU R-32 208/230V (CU-4Z24BBUC) need?
Published electrical requirements: 230 V voltage, 30 A minimum circuit ampacity, and 45 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length from the outdoor unit to one indoor head is 82 ft. The combined piping limit across all heads is 229.6 ft. The outdoor unit's factory charge covers up to 147.6 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.

Data sources

Show
  1. Panasonic Corporation of North America: Panasonic CU-4Z24BBUC / CU-5Z36BBUC installation instructionsSourced - secondary source

    Covers brand.dealer_installation_policy, Manufacturer wire notes, Liquid line size, Maximum elevation difference, Maximum line-set length, Precharged length and more

  2. Panasonic Corporation of North America: CU-4Z24BBUC Panasonic Multi-Zone outdoor submittalSourced - manufacturer technical document

    Covers Frequency, Maximum breaker size, Maximum fuse size, Minimum circuit ampacity, Phase, Voltage and more

  3. Panasonic Corporation of North America: Panasonic Multi-Zone official product page for CU-4Z24BBUCSourced - manufacturer product page

    Covers Outdoor dimensions, Max indoor units, performance_spec.maximum_cooling_btu, performance_spec.maximum_heating_btu_at_47f, product_line.name

  4. Air-Conditioning, Heating, and Refrigeration Institute: AHRI public detail 216441721Sourced - AHRI directory

    Covers AHRI certification number, performance_spec.cold_climate_designation, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity and more

  5. U.S. Environmental Protection Agency ENERGY STAR: ENERGY STAR exact row check for AHRI 216441721Sourced - Energy Star listing

    Covers performance_spec.energy_star_cold_climate, Energy Star status
