Pioneer Quantum Ultra 12k R-454B 208/230V Mini-Split
The Quantum Ultra 12k is the best-balanced system in Pioneer's catalog: SEER2 24 - the highest in the Ultra line - with -13F rated heating. For a large bedroom or living room in a normal climate there is little reason to spend up to Hyperformance, which buys deep cold you may never use. Against the Diamante Pro 12k the gap is four SEER2 points and nine degrees, which is the clearest upgrade case in the range.
Refrigerant generation
R-454B - current-generation refrigerant
Paid link
$1,058 / Fresh price - checked Jul 24, 2026
Need this installed?
Get installation quotes

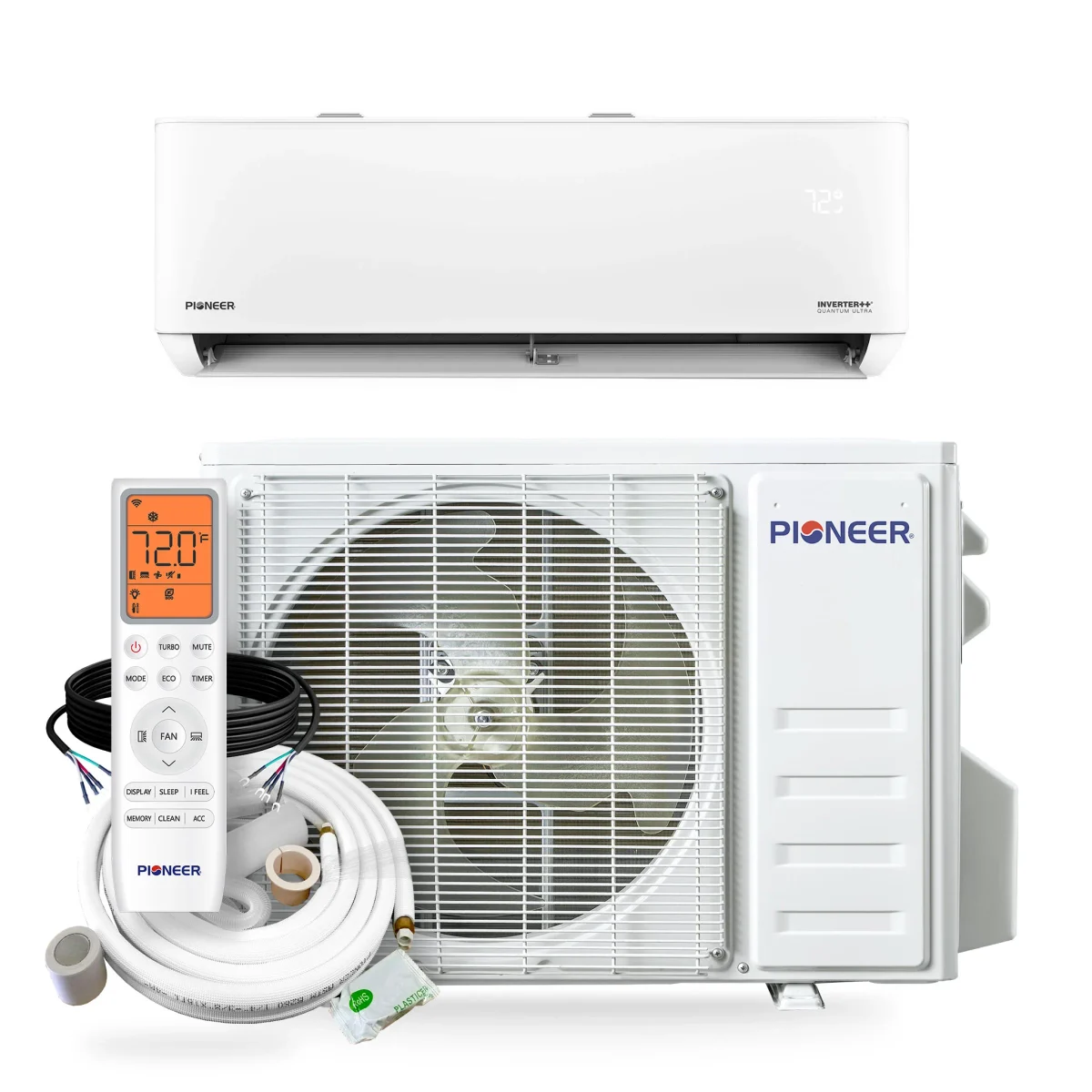

Image: Pioneer
- Last sourced
- Jul 24, 2026
SplitAtlas score
8.3 / 10
(24.0 SEER2) among 12k systems
(10.0 HSPF2) among 12k systems
(72.2% heat retained at 5F; -13 F heating floor) among 12k systems
(30 dBA indoor min / 52 dBA outdoor) among 12k systems
(6 verified features) across the catalogue
($1,058 median retail) among 12k systems
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
Key ratings
Buyer review snapshot
Best for / skip if
Best for
- High-efficiency shortlists; SEER2 is 24.
Install difficulty
- Electrical: 230V; breaker/fuse 15 A.
- Line set: connection type not sourced; max 50 ft.
Alternatives
- Daikin ATMOSPHERA 12,000 BTU R-32 208/230V (FTXM12WVJU9 / RXM12WVJU9)
9.0 score / 12k / SEER2 25.2 / -13 F heating floor / 208/230V
Exact destination at HVACDirect: $2,848.00, checked Jul 23, 2026
- Blueridge XS6 Max Efficiency 12,000 BTU R-454B 208/230V (BXS6A12WM0 / BXS6A12UC0)
8.9 score / 12k / SEER2 29.4 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $1,979.00, checked Jul 24, 2026
- Senville ELITE 12,000 BTU R-454B 208/230V (SENE-12EL-IHH / SENE-12EL-OH)
8.9 score / 12k / SEER2 29.4 / -22 F heating floor / 187-253V
Exact destination at Senville: $1,699.99, checked Jul 24, 2026
Availability and price context
- Verified current price: $1,058.00 at Pioneer; availability in_stock; checked Jul 24, 2026.
Source date
- Model data sourced
- Jul 24, 2026
- Page reviewed
- Jul 23, 2026
- Source-backed records
- 5
- Newest source retrieved
- Jul 24, 2026
Warranty tiers
Warranty: Up to 10-year Pioneer warranty for registered eligible Quantum Ultra systems.
Model context
- Structured ratings
- Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -13 F.
Strengths
- SEER2 24, the highest in the Quantum Ultra line.
- -13F rated heating covers most US winters.
- Current R-454B refrigerant.
Weaknesses
- Hyperformance 12k reaches -22F at SEER2 25 for genuine deep cold.
- Thin dealer network compared with premium brands.
Climate suitability
- Minimum heating ambient
- -13 F[2]
- Rated heating at 5F
- 9,100 BTU/h[4]
- Rated heating at 17F
- 10,000 BTU/h[4]
- Rated heating at 47F
- 12,600 BTU/h[4]
Specifications
ShowHide
- Manufacturer
- Pioneer
- Brand
- Pioneer
- Product line
- Quantum Ultra
- Model number
- WT012GLSI24HLG indoor / YN012GLSI24RPG outdoor
- Indoor unit model
- WT012GLSI24HLG
- Outdoor unit model
- YN012GLSI24RPG
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 12,000 BTU/h[4]
- Rated heating capacity
- 12,600 BTU/h[4]
- Voltage
- 230 V[1]
- MCA
- not published - manufacturer specifies 15 A breaker
- Maximum fuse or breaker size
- 15 A[1]
- Breaker needed
- 15 A[1]
- SEER2
- 24 SEER2[4]
- EER2
- 13 EER2[4]
- HSPF2 (Region 4)
- 10 HSPF2[4]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 2.1 COP[4]
- Minimum outdoor heating temperature
- -13 F[2]
- Minimum outdoor cooling temperature
- 5 F[2]
- Maximum outdoor temperature
- 131 F[2]
- Indoor noise range
- 46/44/36/32/30 dB(A)[2]
- Outdoor noise rating
- 52 dBA[1]
- Indoor weight
- 23.1 lb[1]
- Outdoor weight
- 58.4 lb[1]
- Refrigerant
- R-454B[4]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- Pioneer full-set product page offers no-kit plus multiple 10/16/25/33/50 ft line-set variants; no single included line-set length applies to the certified system pair.
- Maximum line-set length
- 50 ft[2]
- Max line set per indoor
- not published
- Maximum elevation difference
- 33 ft[2]
- Max height between indoor units
- not published
- Wi-Fi support
- supported[3]
- Energy Star status
- ENERGY STAR certified[5]
- AHRI certification number
- 217048751[4]
- Warranty
- Up to 10-year Pioneer warranty for registered eligible Quantum Ultra systems.
- Install path
- Professional install
- Retail price
- $1,058.00
- Available retailers
- Pioneer
- Manual links
- WYT012GLSI24RL AHRI certificate, WYT012GLSI24RL EnergyGuide, WYT24 installation manual, WYT24 service manual, WYT012GLSI24RL submittal sheet, WYT24 technical brochure
- Specification sheet
- WYT012GLSI24RL submittal sheet
- Last sourced date
- Jul 24, 2026
Retail purchase context
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
$1,058 / Fresh price - checked Jul 24, 2026
Electrical requirements
ShowHide
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 3/8 in[1]
- Line connection type
- not published
- Precharged length
- not published
- Included line-set length
- Pioneer full-set product page offers no-kit plus multiple 10/16/25/33/50 ft line-set variants; no single included line-set length applies to the certified system pair.
- Maximum line-set length
- 50 ft[2]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 36-1/2 x 7-5/8 x 12 in[1]
- Outdoor dimensions
- 31-7/8 x 12 x 21-5/8 in[1]
- Indoor weight
- 23.1 lb[1]
- Outdoor weight
- 58.4 lb[1]
- Drain size
- not published
Related systems and guides
- More Pioneer systems
- Pioneer 12k model
- Pioneer sibling model
- Pioneer sibling model
- Pioneer Quantum Ultra 12k 230V
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- Pioneer mini split review: is Pioneer any good?
- The best 12,000 BTU mini splits of 2026
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- The mini split defrost cycle, explained
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- Pioneer mini split not cooling
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split lights blinking
- Mini split short cycling
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the Pioneer Quantum Ultra 12,000 BTU R-454B 208/230V (WT012GLSI24HLG / YN012GLSI24RPG) myself, or do I need a pro?
- Pioneer Quantum Ultra 12,000 BTU R-454B 208/230V (WT012GLSI24HLG / YN012GLSI24RPG) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the Pioneer Quantum Ultra 12,000 BTU R-454B 208/230V (WT012GLSI24HLG / YN012GLSI24RPG) keep heating in a cold winter?
- The manufacturer publishes 9,100 BTU/h of heating output at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 10 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the Pioneer Quantum Ultra 12,000 BTU R-454B 208/230V (WT012GLSI24HLG / YN012GLSI24RPG) need?
- Published electrical requirements: 230 V voltage, not published - manufacturer specifies 15 A breaker minimum circuit ampacity, and 15 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 50 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
