ACiQ / Multi-Zone Extreme Series

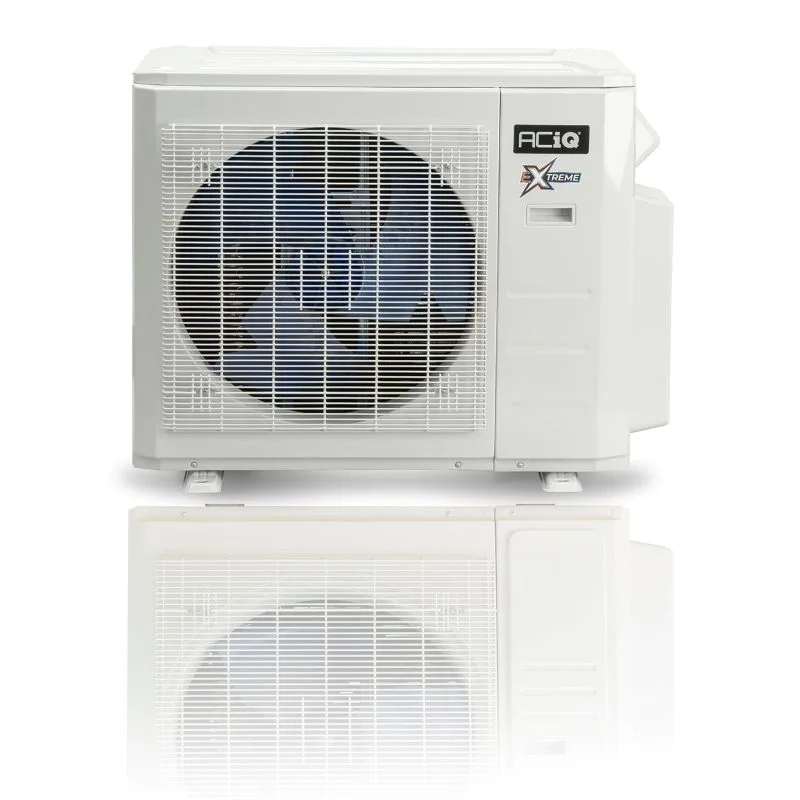

ACiQ Extreme 27k R-454B 208/230V 3-Zone Mini-Split
The ACiQ Multi-Zone Extreme Series 3-Zone 27k is the top-line hyper-heat build on R-454B with three heads on one 208/230V outdoor unit. It is stocked/purchasable, a priced condenser you can buy rather than a dealer quote, with professional installation still required.
Certified numbers are SEER2 23, EER2 12.5, HSPF2 10.5, and it is ENERGY STAR certified and AHRI cold-climate designated. Cooling capacity is 27000 BTU.
Heating rises in the deep cold - 27000 BTU at 47F, up to 30000 at 17F (above the 47F figure), then 27000 at 5F.
Refrigerant generation
R-454B - current-generation refrigerant
Paid link
$3,500 / Fresh price - checked Jul 29, 2026
Need this installed?
Get installation quotes
Image: HVACDirect
- Last sourced
- Jul 29, 2026
SplitAtlas score
9.0 / 10
(23.0 SEER2) among 24k systems
(10.5 HSPF2) among 24k systems
(100% heat retained at 5F; -22 F heating floor) among 24k systems
(7 yr parts / 12 yr compressor) across the catalogue
(6 verified features) across the catalogue
($3,500 median retail) among 24k systems
(9 manuals; spec sheet; 44 error-code rows) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
Key ratings
Buyer review snapshot
Best for / skip if
Best for
- 3-zone projects in the 24k outdoor capacity class.
- High-efficiency shortlists; SEER2 is 23.
Install difficulty
- Electrical: 230V; MCA 30 A; breaker/fuse 35 A.
- Line set: connection type not sourced; precharged 24.6 ft; max 262.4 ft.
- 3-zone condenser; indoor-head matching and branch layout are part of the job.
Availability and price context
- Verified current price: $3,499.99 at HVACDirect; availability In Stock - 270 Ready to Ship; checked Jul 29, 2026.
Source date
- Model data sourced
- Jul 29, 2026
- Page reviewed
- Jul 29, 2026
- Source-backed records
- 5
- Newest source retrieved
- Jul 29, 2026
Warranty tiers
Warranty: 7 years parts and 12 years compressor as standard.
Model context
- Install path
- This is professional-install equipment; retail offer context is shown separately from installation labor.
- Structured ratings
- Certification: ENERGY STAR certified, ENERGY STAR cold-climate certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -22 F.
- Installation context
- Multi-zone low-load behavior depends on the indoor heads and how many zones are calling at once.
Strengths
- Heating rises in the cold - 30000 BTU at 17F, above the 27000 at 47F.
- Certified SEER2 23 / EER2 12.5 / HSPF2 10.5.
- Stocked/purchasable, a priced R-454B condenser you can buy.
Weaknesses
- Top-line pricing over the Standard and Essentials series.
Climate suitability
- Minimum heating ambient
- -22 F[1]
- Rated heating at 5F
- 27,000 BTU/hNon-Ducted Indoor Units[3]
- Rated heating at 17F
- 30,000 BTU/hNon-Ducted Indoor Units[3]
- Rated heating at 47F
- 27,000 BTU/hNon-Ducted Indoor Units[3]
Specifications
ShowHide
- Manufacturer
- ACiQ
- Brand
- ACiQ
- Product line
- Multi-Zone Extreme Series
- Model number
- ACIQ-27Z-HH-M4C
- Indoor unit model
- Indoor heads are selected separately on a multi-zone system
- Outdoor unit model
- ACIQ-27Z-HH-M4C
- Number of zones
- 3
- Max indoor units
- 3 units[2]
- Rated cooling capacity
- 27,000 BTU/hNon-Ducted Indoor Units[3]
- Rated heating capacity
- 27,000 BTU/hNon-Ducted Indoor Units[3]
- Voltage
- 230 V[1]
- MCA
- 30 A[1]
- Maximum fuse or breaker size
- 35 A[1]
- Breaker needed
- not published
- SEER2
- 23 SEER2Non-Ducted Indoor Units[3]
- EER2
- 12.5 EER2Non-Ducted Indoor Units[3]
- HSPF2 (Region 4)
- 10.5 HSPF2Non-Ducted Indoor Units[3]
- HSPF2 (Region 5)
- Certified per indoor-unit combination, not per outdoor unit
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 2 COPNon-Ducted Indoor Units[3]
- Minimum outdoor heating temperature
- -22 F[1]
- Minimum outdoor cooling temperature
- -22 F[1]
- Maximum outdoor temperature
- 122 F[1]
- Indoor noise range
- Indoor heads are selected separately on a multi-zone system
- Outdoor noise rating
- 61 dBA[1]
- Indoor weight
- Indoor heads are selected separately on a multi-zone system
- Outdoor weight
- 168.43 lb[1]
- Refrigerant
- R-454B[3]
- Refrigerant charge
- 120.63 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 4 x 1/4 in liquid / 3 x 3/8 in + 1 x 1/2 in suction
- Included line-set length
- Indoor heads are selected separately on a multi-zone system
- Maximum line-set length
- 262.4 ft[1]
- Max line set per indoor
- 114.8 ft[1]
- Maximum elevation difference
- 49.2 ft[1]
- Max height between indoor units
- ACiQ R-454B submittal extraction for this outdoor-only condenser did not publish a universal indoor-to-indoor height limit; selected indoor configuration governs.
- Wi-Fi support
- Indoor heads are selected separately on a multi-zone system
- Energy Star status
- ENERGY STAR certified[4]
- AHRI certification number
- 216032364Non-Ducted Indoor Units[3]
- Warranty
- Standard: 7 yr parts / 12 yr compressor (published per-line ACiQ registration terms). 12-year compressor / 7-year parts warranty with ACiQ registration terms.
- Install path
- Professional install
- Retail price
- $3,499.99
- Available retailers
- HVACDirect
- Manual links
- AHRI public detail 216032364, ACiQ R454B Multi-Zone Compatibility Chart, ENERGY STAR exact lookup 216032364, ACiQ multi-zone installation and owner manual, ACiQ Multi-Zone Extreme Series official category for ACIQ-27Z-HH-M4C, HVACDirect exact condenser listing for ACIQ-27Z-HH-M4C, HVACDirect exact-offer audit for ACIQ-27Z-HH-M4C, ACiQ multi-zone service manual, ACiQ ACIQ-27Z-HH-M4C non-ducted multi-zone submittal
- Specification sheet
- ACiQ ACIQ-27Z-HH-M4C non-ducted multi-zone submittal
- Last sourced date
- Jul 29, 2026
Retail purchase context
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
$3,500 / Fresh price - checked Jul 29, 2026
Compatible indoor units
This is an outdoor unit. You choose its indoor heads separately - up to the maximum this condenser supports - and you can mix room sizes and styles across the zones. The models below are the heads this unit is documented to pair with.
Ceiling cassette air handlers
9k, 12k, 18k, 24k
Model numbers
- 9k: ACiQ-09CC-HH-MC
- 12k: ACiQ-12CC-HH-MC
- 18k: ACiQ-18CC-HH-MC
- 24k: ACiQ-24CC-HH-MC
Concealed duct air handlers
9k, 12k, 18k, 24k
Model numbers
- 9k: ACiQ-09CD-HH-MC
- 12k: ACiQ-12CD-HH-MC
- 18k: ACiQ-18CD-HH-MC
- 24k: ACiQ-24CD-HH-MC
Ducted air handlers
18k, 24k, 30k
Model numbers
- 18k: ACiQ-18AHB-HH-MB
- 24k: ACiQ-24AHB-HH-MB
- 30k: ACiQ-30AHB-HH-MB
Floor console / floor-ceiling air handlers
9k, 12k, 18k, 24k
Model numbers
- 9k: ACiQ-09FM-HH-MD
- 12k: ACiQ-12FM-HH-MD
- 18k: ACiQ-18FM-HH-MD
- 24k: ACiQ-24FM-HH-MD
Slim ceiling cassette air handlers
18k
Model numbers
- 18k: SCC-18-HH-MB
Wall-mounted air handlers
6k, 9k, 12k, 18k, 24k
Model numbers
- 6k: ACiQ-06W-HH-MD
- 9k: ACiQ-09W-HH-MD
- 12k: ACiQ-12W-HH-MD
- 18k: ACiQ-18W-HH-MD
- 24k: ACiQ-24W-HH-MD
Sizing note: do not just add up the rooms. Multi-zone condensers have a maximum total connected capacity, and connecting more head capacity than the unit is rated for is a common installer mistake that hurts efficiency and comfort. Match total head capacity to the condenser's rating.
Installation considerations
ShowHide
- Liquid line
- 4 x 1/4 in[1]
- Suction line
- 3 x 3/8 in + 1 x 1/2 in[1]
- Line connection type
- not published
- Precharged length
- 24.6 ft[1]
- Included line-set length
- Indoor heads are selected separately on a multi-zone system
- Maximum line-set length
- 262.4 ft[1]
- Max line set per indoor
- 114.8 ft[1]
- Max height between indoor units
- ACiQ R-454B submittal extraction for this outdoor-only condenser did not publish a universal indoor-to-indoor height limit; selected indoor configuration governs.
- Indoor dimensions
- Indoor heads are selected separately on a multi-zone system
- Outdoor dimensions
- 37.24 x 16.14 x 31.89 in[1]
- Indoor weight
- Indoor heads are selected separately on a multi-zone system
- Outdoor weight
- 168.43 lb[1]
- Drain size
- not published
