ACiQ / ACiQ Standard Base

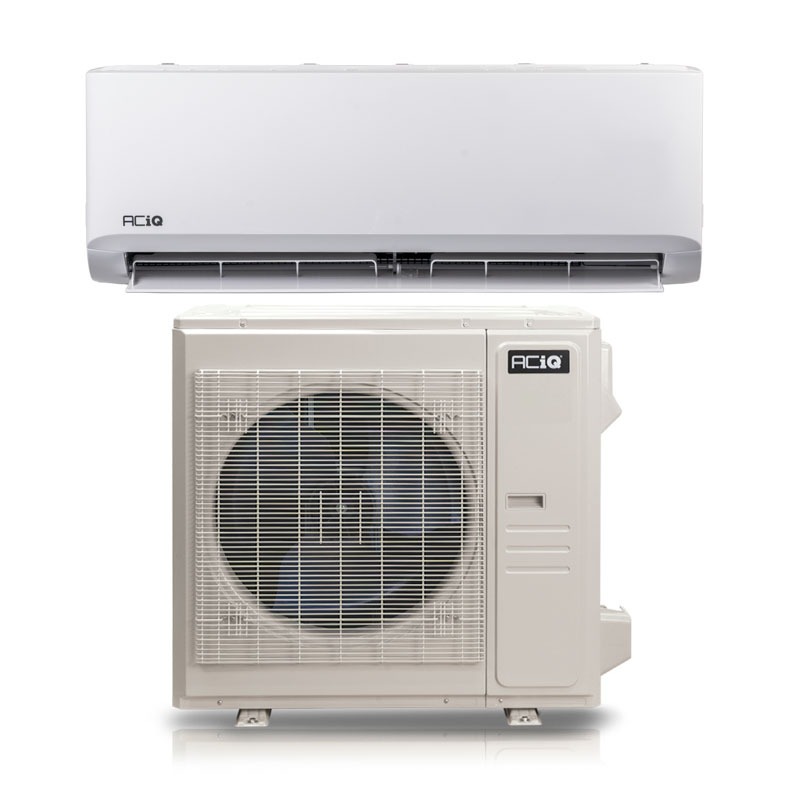

ACiQ Standard Base 9k R-454B 115V Mini-Split
Standard Base is ACiQ's R-454B value tier, and this 9,000 BTU, 115V unit steps efficiency up to 21.5 SEER2 and 12.5 EER2 with a 9 HSPF2. It earns ENERGY STAR certification, which can open the door to rebates. Heating runs 10,000 BTU at 47F, 8,000 BTU at 17F, and 6,500 BTU at 5F - fine for milder winters but tapering meaningfully in deep cold, and this particular unit is not cold-climate designated.
Refrigerant generation
R-454B - current-generation refrigerant
Paid link
$910 / Fresh price - checked Jul 26, 2026
Need this installed?
Get installation quotes
Image: HVACDirect
- Last sourced
- Jul 26, 2026
SplitAtlas score
7.6 / 10
(21.5 SEER2) among <=9k systems
(9.0 HSPF2) among <=9k systems
(65% heat retained at 5F; 5 F heating floor) among <=9k systems
(7 yr parts / 12 yr compressor) across the catalogue
(4 verified features) across the catalogue
($910 median retail) among <=9k systems
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
Key ratings
Buyer review snapshot
Install difficulty
- Electrical: 115V; MCA 18 A; breaker/fuse 20 A.
- Line set: connection type not sourced; precharged 25 ft.
Alternatives
- Blueridge XS6 Max Efficiency 9,000 BTU R-454B 208/230V (BXS6A09WM0 / BXS6A09UC0)
8.9 score / 9k / SEER2 33.3 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $1,689.00, checked Jul 24, 2026
- Senville ELITE 9,000 BTU R-454B 208/230V (SENE-09EL-IHH / SENE-09EL-OH)
8.8 score / 9k / SEER2 33.3 / -22 F heating floor / 187-253V
Exact destination at Senville: $1,599.99, checked Jul 24, 2026
- Daikin ATMOSPHERA 9,000 BTU R-32 208/230V (FTXM09WVJU9 / RXM09WVJU9)
8.8 score / 9k / SEER2 27.4 / -13 F heating floor / 208/230V
Exact destination at HVACDirect: $2,428.00, checked Jul 23, 2026
Availability and price context
- Verified current price: $909.99 at HVACDirect; availability in_stock; checked Jul 26, 2026.
Source date
- Model data sourced
- Jul 26, 2026
- Page reviewed
- Jul 26, 2026
- Source-backed records
- 3
- Newest source retrieved
- Jul 26, 2026
Warranty tiers
Warranty: 7 years parts and 12 years compressor as standard.
Strengths
- ENERGY STAR certified, so it may qualify for utility or program rebates that the Essentials tier can't.
- Strong 12.5 EER2 and 21.5 SEER2 make it an efficient cooler on a convenient 115V circuit.
Weaknesses
- Heat falls to 6,500 BTU at 5F and it lacks a cold-climate rating, so severe winters will outrun it.
- As a value house brand, its dealer and support coverage is lighter than Mitsubishi or Daikin.
Climate suitability
- Minimum heating ambient
- 5 F[1]
- Rated heating at 5F
- 6,500 BTU/h[2]
- Rated heating at 17F
- 8,000 BTU/h[2]
- Rated heating at 47F
- 10,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- ACiQ
- Brand
- ACiQ
- Product line
- ACiQ Standard Base
- Model number
- ACIQ-09W-HP115C indoor / ACIQ-09Z-HP115C outdoor
- Indoor unit model
- ACIQ-09W-HP115C
- Outdoor unit model
- ACIQ-09Z-HP115C
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 9,000 BTU/h[2]
- Rated heating capacity
- 10,000 BTU/h[2]
- Voltage
- 115 V[1]
- MCA
- 18 A[1]
- Maximum fuse or breaker size
- 20 A[1]
- Breaker needed
- not published
- SEER2
- 21.5 SEER2[2]
- EER2
- 12.5 EER2[2]
- HSPF2 (Region 4)
- 9 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.96 COP[2]
- Minimum outdoor heating temperature
- 5 F[1]
- Minimum outdoor cooling temperature
- 5 F[1]
- Maximum outdoor temperature
- 122 F[1]
- Indoor noise range
- not published
- Outdoor noise rating
- 52.5 dBA[1]
- Indoor weight
- not published
- Outdoor weight
- 62.17 lb[1]
- Refrigerant
- R-454B[2]
- Refrigerant charge
- 20.8 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- Line set length is selected as an accessory on this HVACDirect system page.
- Maximum line-set length
- not published
- Max line set per indoor
- not published
- Maximum elevation difference
- not published
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 216032325[2]
- Warranty
- Standard: 7 yr parts / 12 yr compressor (published per-line terms with online registration). 12-year compressor / 7-year parts with online registration
- Install path
- Professional install
- Retail price
- $909.99
- Available retailers
- HVACDirect
- Manual links
- AHRI public directory record 216032325, ENERGY STAR exact check 216032325, 9,000 BTU 24.5 SEER2 ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi - 115V - R454B HVACDirect installation resources listing, 9,000 BTU 24.5 SEER2 ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi - 115V - R454B, HVACDirect exact affiliate offer aciq-standard-base-9k-r454b-115v, 9,000 BTU 24.5 SEER2 ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi - 115V - R454B HVACDirect product specification grid
- Specification sheet
- 9,000 BTU 24.5 SEER2 ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi - 115V - R454B HVACDirect product specification grid
- Last sourced date
- Jul 26, 2026
Retail purchase context
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
$910 / Fresh price - checked Jul 26, 2026
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 3/8 in[1]
- Line connection type
- not published
- Precharged length
- 25 ft[1]
- Included line-set length
- Line set length is selected as an accessory on this HVACDirect system page.
- Maximum line-set length
- not published
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- not published
- Outdoor dimensions
- 30.12 x 21.85 x 11.93 in[1]
- Indoor weight
- not published
- Outdoor weight
- 62.17 lb[1]
- Drain size
- not published
Related systems and guides
- More ACiQ systems
- ACiQ 230 V option
- ACiQ Standard Base 9k
- ACiQ 9k model
- Blueridge DS1 DIY Core 9k 115V
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- ACiQ mini split review: is ACiQ any good?
- The best 9,000 BTU mini splits of 2026
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- R-32 vs R-454B: the mini split refrigerant change explained
- Mini split for a hot upstairs
- Mini splits for an ADU or tiny home
- Mini split vs baseboard heat
- Mini split remote not working
- Mini split Wi-Fi not connecting
- Your mini split is showing a refrigerant leak code
- Mini split making loud noise
- Mini split weak airflow
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the ACiQ Standard Base 9,000 BTU R-454B 115V (ACIQ-09W-HP115C / ACIQ-09Z-HP115C) myself, or do I need a pro?
- ACiQ Standard Base 9,000 BTU R-454B 115V (ACIQ-09W-HP115C / ACIQ-09Z-HP115C) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the ACiQ Standard Base 9,000 BTU R-454B 115V (ACIQ-09W-HP115C / ACIQ-09Z-HP115C) keep heating in a cold winter?
- The manufacturer publishes 6,500 BTU/h of heating output at 5F. Rated heating operation extends down to 5 F. Certified heating efficiency is 9 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the ACiQ Standard Base 9,000 BTU R-454B 115V (ACIQ-09W-HP115C / ACIQ-09Z-HP115C) need?
- Published electrical requirements: 115 V voltage, 18 A minimum circuit ampacity, and 20 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- What warranty does the ACiQ Standard Base 9,000 BTU R-454B 115V (ACIQ-09W-HP115C / ACIQ-09Z-HP115C) carry?
- The manufacturer publishes these warranty tiers: Standard: 7 yr parts / 12 yr compressor (published per-line terms with online registration). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
Data sources
ShowHide
- HVACDirect / ACiQ: 9,000 BTU 24.5 SEER2 ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi - 115V - R454BSourced - manufacturer product page
Covers Frequency, Maximum breaker size, Maximum fuse size, Minimum circuit ampacity, Phase, Voltage and more
- Air-Conditioning, Heating, and Refrigeration Institute: AHRI Appendix M1 public detail for ACIQ-09Z-HP115C / ACIQ-09W-HP115CSourced - AHRI directory
Covers AHRI certification number, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity, HSPF2 (Region 4) and more
- ENERGY STAR: ENERGY STAR exact row check for AHRI 216032325Sourced - Energy Star listing
Covers Energy Star status
