ACiQ / ACiQ Standard

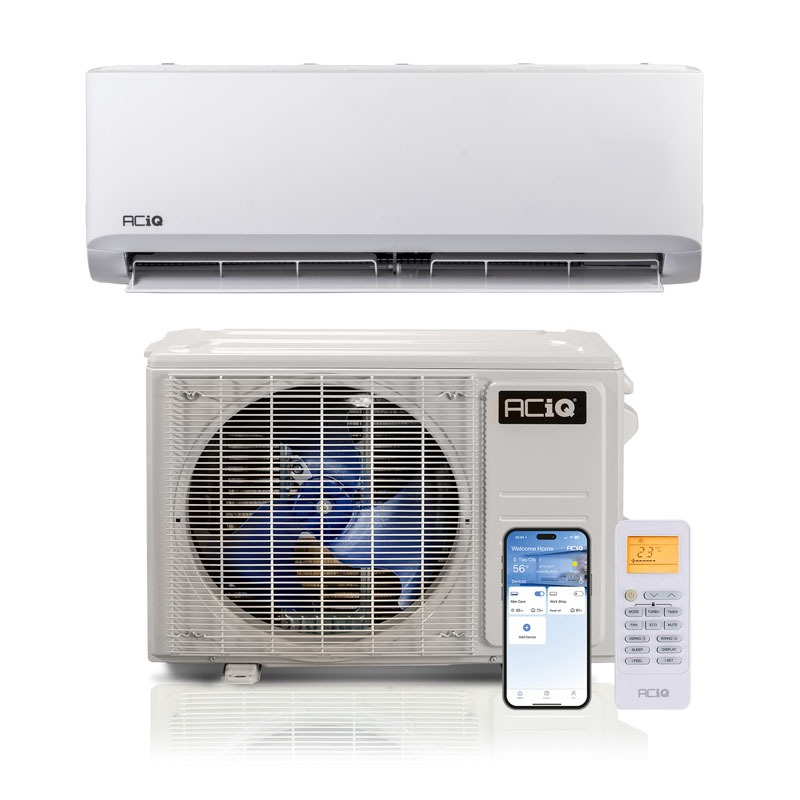

ACiQ Standard 9k R-454B 208/230V Mini-Split
The 230V Standard 9k pushes seasonal heating efficiency to a remarkable 13 HSPF2, alongside 24.6 SEER2 and 14.7 EER2 on R-454B. It is ENERGY STAR certified and cold-climate designated.
Heating comes in at 10,000 BTU at 47F, 9,300 BTU at 17F, and 8,200 BTU at 5F, so it holds most of its capacity well into the cold. This is one of the most efficient small zones ACiQ offers.
Refrigerant generation
R-454B - current-generation refrigerant
Paid link
$980 / Fresh price - checked Jul 26, 2026
Need this installed?
Get installation quotes
Image: HVACDirect
- Last sourced
- Jul 26, 2026
SplitAtlas score
8.7 / 10
(24.6 SEER2) among <=9k systems
(13.0 HSPF2) among <=9k systems
(82% heat retained at 5F; -4 F heating floor) among <=9k systems
(7 yr parts / 12 yr compressor) across the catalogue
(5 verified features) across the catalogue
($980 median retail) among <=9k systems
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
Key ratings
Buyer review snapshot
Best for / skip if
Best for
- High-efficiency shortlists; SEER2 is 24.6.
Install difficulty
- Electrical: 230V; MCA 12 A; breaker/fuse 15 A.
- Line set: connection type not sourced; precharged 25 ft.
Alternatives
- Blueridge XS6 Max Efficiency 9,000 BTU R-454B 208/230V (BXS6A09WM0 / BXS6A09UC0)
8.9 score / 9k / SEER2 33.3 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $1,689.00, checked Jul 24, 2026
- Senville ELITE 9,000 BTU R-454B 208/230V (SENE-09EL-IHH / SENE-09EL-OH)
8.8 score / 9k / SEER2 33.3 / -22 F heating floor / 187-253V
Exact destination at Senville: $1,599.99, checked Jul 24, 2026
- Daikin ATMOSPHERA 9,000 BTU R-32 208/230V (FTXM09WVJU9 / RXM09WVJU9)
8.8 score / 9k / SEER2 27.4 / -13 F heating floor / 208/230V
Exact destination at HVACDirect: $2,428.00, checked Jul 23, 2026
Availability and price context
- Verified current price: $979.99 at HVACDirect; availability in_stock; checked Jul 26, 2026.
Source date
- Model data sourced
- Jul 26, 2026
- Page reviewed
- Jul 26, 2026
- Source-backed records
- 3
- Newest source retrieved
- Jul 26, 2026
Warranty tiers
Warranty: 7 years parts and 12 years compressor as standard.
Strengths
- HSPF2 of 13 is exceptional, translating to very low seasonal heating costs.
- ENERGY STAR certified and cold-climate designated, holding 9,300 BTU at 17F and 8,200 BTU at 5F.
Weaknesses
- Premium efficiency comes at a higher price than the Essentials and Base tiers.
- Even a top ACiQ unit leans on a value-brand support network that's smaller than Mitsubishi's or Daikin's.
Climate suitability
- Minimum heating ambient
- -4 F[1]
- Rated heating at 5F
- 8,200 BTU/h[2]
- Rated heating at 17F
- 9,300 BTU/h[2]
- Rated heating at 47F
- 10,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- ACiQ
- Brand
- ACiQ
- Product line
- ACiQ Standard
- Model number
- ACIQ-09WS-HP230C indoor / ACIQ-09ZS-HP230C outdoor
- Indoor unit model
- ACIQ-09WS-HP230C
- Outdoor unit model
- ACIQ-09ZS-HP230C
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 9,000 BTU/h[2]
- Rated heating capacity
- 10,000 BTU/h[2]
- Voltage
- 230 V[1]
- MCA
- 12 A[1]
- Maximum fuse or breaker size
- 15 A[1]
- Breaker needed
- not published
- SEER2
- 24.6 SEER2[2]
- EER2
- 14.7 EER2[2]
- HSPF2 (Region 4)
- 13 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 2.33 COP[2]
- Minimum outdoor heating temperature
- -4 F[1]
- Minimum outdoor cooling temperature
- -4 F[1]
- Maximum outdoor temperature
- 122 F[1]
- Indoor noise range
- not published
- Outdoor noise rating
- 52.5 dBA[1]
- Indoor weight
- not published
- Outdoor weight
- 67.68 lb[1]
- Refrigerant
- R-454B[2]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- Line set length is selected as an accessory on this HVACDirect system page.
- Maximum line-set length
- not published
- Max line set per indoor
- not published
- Maximum elevation difference
- not published
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 216980867[2]
- Warranty
- Standard: 7 yr parts / 12 yr compressor (published per-line terms with online registration). 12-year compressor / 7-year parts with online registration
- Install path
- Professional install
- Retail price
- $979.99
- Available retailers
- HVACDirect
- Manual links
- AHRI public directory record 216980867, ENERGY STAR exact check 216980867, 9,000 BTU ACiQ Standard 24.6 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V HVACDirect installation resources listing, 9,000 BTU ACiQ Standard 24.6 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V, HVACDirect exact affiliate offer aciq-standard-9k-r454b-230v, 9,000 BTU ACiQ Standard 24.6 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V HVACDirect product specification grid
- Specification sheet
- 9,000 BTU ACiQ Standard 24.6 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V HVACDirect product specification grid
- Last sourced date
- Jul 26, 2026
Retail purchase context
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
$980 / Fresh price - checked Jul 26, 2026
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 3/8 in[1]
- Line connection type
- not published
- Precharged length
- 25 ft[1]
- Included line-set length
- Line set length is selected as an accessory on this HVACDirect system page.
- Maximum line-set length
- not published
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- not published
- Outdoor dimensions
- 30.12 x 21.85 x 11.93 in[1]
- Indoor weight
- not published
- Outdoor weight
- 67.68 lb[1]
- Drain size
- not published
Comparable models
Related systems and guides
- More ACiQ systems
- ACiQ 9k model
- ACiQ 9k model
- ACiQ 230 V option
- ACiQ 9k model
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- ACiQ mini split review: is ACiQ any good?
- The best 9,000 BTU mini splits of 2026
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- R-32 vs R-454B: the mini split refrigerant change explained
- Mini split for a hot upstairs
- Mini splits for an ADU or tiny home
- Mini splits for a pole barn or metal building
- Mini split remote not working
- Mini split Wi-Fi not connecting
- Your mini split is showing a refrigerant leak code
- Mini split making loud noise
- One room won't heat or cool on a multi-zone mini split
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the ACiQ Standard 9,000 BTU R-454B 208/230V (ACIQ-09WS-HP230C / ACIQ-09ZS-HP230C) myself, or do I need a pro?
- ACiQ Standard 9,000 BTU R-454B 208/230V (ACIQ-09WS-HP230C / ACIQ-09ZS-HP230C) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the ACiQ Standard 9,000 BTU R-454B 208/230V (ACIQ-09WS-HP230C / ACIQ-09ZS-HP230C) keep heating in a cold winter?
- The manufacturer publishes 8,200 BTU/h of heating output at 5F. Rated heating operation extends down to -4 F. Certified heating efficiency is 13 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the ACiQ Standard 9,000 BTU R-454B 208/230V (ACIQ-09WS-HP230C / ACIQ-09ZS-HP230C) need?
- Published electrical requirements: 230 V voltage, 12 A minimum circuit ampacity, and 15 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- What warranty does the ACiQ Standard 9,000 BTU R-454B 208/230V (ACIQ-09WS-HP230C / ACIQ-09ZS-HP230C) carry?
- The manufacturer publishes these warranty tiers: Standard: 7 yr parts / 12 yr compressor (published per-line terms with online registration). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
Data sources
ShowHide
- HVACDirect / ACiQ: 9,000 BTU ACiQ Standard 24.6 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230VSourced - manufacturer product page
Covers Frequency, Maximum breaker size, Maximum fuse size, Minimum circuit ampacity, Phase, Voltage and more
- Air-Conditioning, Heating, and Refrigeration Institute: AHRI Appendix M1 public detail for ACIQ-09ZS-HP230C / ACIQ-09WS-HP230CSourced - AHRI directory
Covers AHRI certification number, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity, HSPF2 (Region 4) and more
- ENERGY STAR: ENERGY STAR exact row check for AHRI 216980867Sourced - Energy Star listing
Covers Energy Star status
