ACiQ / ACiQ Standard

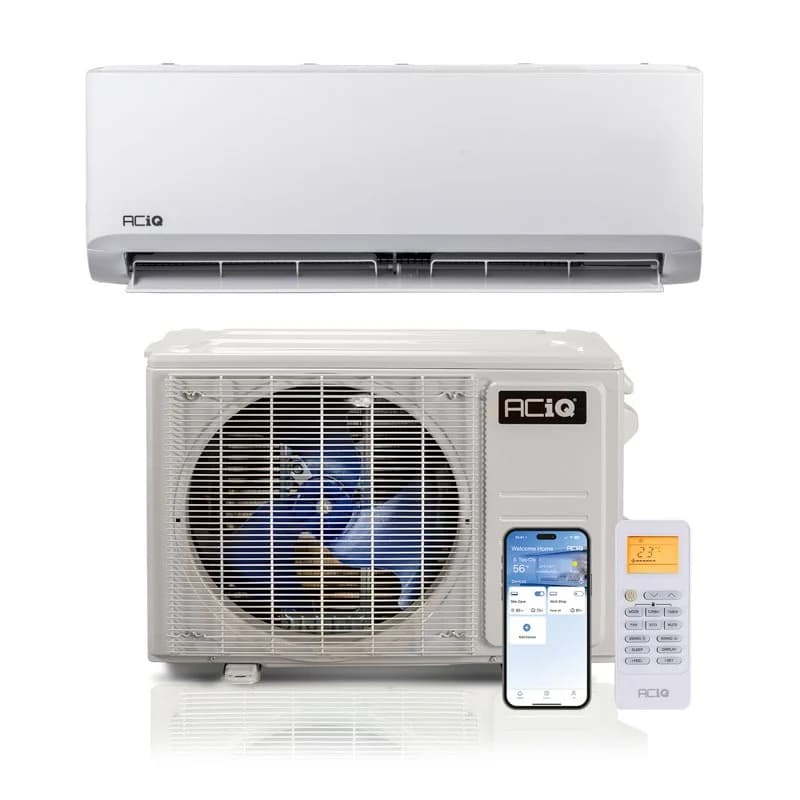

ACiQ Standard 9k R-454B 115V Mini-Split
The Standard tier is where ACiQ's R-454B efficiency really climbs, and this 9,000 BTU, 115V unit is a standout: 24.5 SEER2, 15 EER2, and 10.7 HSPF2. It is both ENERGY STAR certified and AHRI cold-climate designated. Heating holds well - 10,000 BTU at 47F, 9,400 BTU at 17F, and 7,300 BTU at 5F - making it a genuinely high-performing small zone on ordinary 115V power.
Refrigerant generation
R-454B - current-generation refrigerant
Paid link
$960 / Checked Jul 26, 2026
Need this installed?
Get installation quotes
Image: HVACDirect
- Last sourced
- Jul 26, 2026
SplitAtlas score
8.6 / 10
(24.5 SEER2) among <=9k systems
(10.7 HSPF2) among <=9k systems
(5F certified capacity: 73% of the 47F rating; -13 F heating floor) among <=9k systems
(17.5 dBA indoor min / 53 dBA outdoor) among <=9k systems
(7 yr parts / 12 yr compressor) across the catalogue
(5 verified features) across the catalogue
($960 median retail) among <=9k systems
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
Key ratings
Buyer review snapshot
Install difficulty
- Electrical: 115V; MCA 18 A; breaker/fuse 20 A.
- Line set: connection type not sourced; precharged 25 ft.
Alternatives
- Blueridge XS6 Max Efficiency 9,000 BTU R-454B 208/230V (BXS6A09WM0 / BXS6A09UC0)
8.9 score / 9k / SEER2 33.3 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $1,689.00, checked Jul 24, 2026
- Senville ELITE 9,000 BTU R-454B 208/230V (SENE-09EL-IHH / SENE-09EL-OH)
8.9 score / 9k / SEER2 33.3 / -22 F heating floor / 187-253V
Exact destination at Senville: $1,599.99, checked Jul 24, 2026
- Blueridge XS5 All Climate Plus 9,000 BTU R-454B 208/230V (BXAFA09WM0 / BXS5A09UC0)
8.7 score / 9k / SEER2 27.4 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $1,359.00, checked Jul 24, 2026
Availability and price context
- Last seen at HVACDirect on Jul 26, 2026: $959.99. Open the listing for today's price.
Source date
- Model data sourced
- Jul 26, 2026
- Page reviewed
- Jul 26, 2026
- Source-backed records
- 3
- Newest source retrieved
- Jul 26, 2026
Warranty tiers
- Registered
- 7 yr parts / 12 yr compressor - published per-line terms with online registration
The score uses Registered. Additional published terms are shown for reference and not counted in the score.
Strengths
- Excellent efficiency across the board, with a 15 EER2 that's exceptional for a 115V 9k unit.
- ENERGY STAR certified and cold-climate designated, keeping 9,400 BTU at 17F for dependable winter heat.
- Buyable direct from HVACDirect, with online pricing and ordering.
Weaknesses
- Low-temp output does step down to 7,300 BTU at 5F, softer than the flagship Extreme line in the deepest cold.
- Value-brand backing means a thinner service network than premium cold-climate competitors.
Climate suitability
- Minimum heating ambient
- -13 F[1]
- Certified heating at 5F
- 7,300 BTU/h[2]
- Rated heating at 17F
- 9,400 BTU/h[2]
- Rated heating at 47F
- 10,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- ACiQ
- Brand
- ACiQ
- Product line
- ACiQ Standard
- Model number
- ACIQ-09WS-HP115C indoor / ACIQ-09ZS-HP115C outdoor
- Indoor unit model
- ACIQ-09WS-HP115C
- Outdoor unit model
- ACIQ-09ZS-HP115C
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 9,000 BTU/h[2]
- Rated heating capacity
- 10,000 BTU/h[2]
- Voltage
- 115 V[1]
- MCA
- 18 A[1]
- Maximum fuse or breaker size
- 20 A[1]
- Breaker needed
- not published
- SEER2
- 24.5 SEER2[2]
- EER2
- 15 EER2[2]
- HSPF2 (Region 4)
- 10.7 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 2.2 COP[2]
- Minimum outdoor heating temperature
- -13 F[1]
- Minimum outdoor cooling temperature
- -13 F[1]
- Maximum outdoor temperature
- 122 F[1]
- Indoor noise range
- 17.5 / 44 dB(A)[1]
- Outdoor noise rating
- 53 dBA[1]
- Indoor weight
- 26.01 lb[1]
- Outdoor weight
- 70.11 lb[1]
- Refrigerant
- R-454B[2]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- Line set length is selected as an accessory on this HVACDirect system page.
- Maximum line-set length
- not published
- Max line set per indoor
- not published
- Maximum elevation difference
- not published
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 216980865[2]
- Warranty
- Registered: 7 yr parts / 12 yr compressor (published per-line terms with online registration). Score uses Registered.. 12-year compressor / 7-year parts with online registration
- Install path
- Professional install
- Retail price
- $959.99
- Available retailers
- HVACDirect
- Manual links
- AHRI public directory record 216980865, ENERGY STAR exact check 216980865, 9,000 BTU ACiQ Standard 24.5 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 115V HVACDirect installation resources listing, 9,000 BTU ACiQ Standard 24.5 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 115V, 9,000 BTU ACiQ Standard 24.5 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 115V HVACDirect product specification grid
- Specification sheet
- 9,000 BTU ACiQ Standard 24.5 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 115V HVACDirect product specification grid
- Last sourced date
- Jul 26, 2026
Retail purchase context
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
$960 / Checked Jul 26, 2026
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 3/8 in[1]
- Line connection type
- not published
- Precharged length
- 25 ft[1]
- Included line-set length
- Line set length is selected as an accessory on this HVACDirect system page.
- Maximum line-set length
- not published
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 31.57 x 11.61 x 7.87 in[1]
- Outdoor dimensions
- 30.12 x 21.85 x 11.93 in[1]
- Indoor weight
- 26.01 lb[1]
- Outdoor weight
- 70.11 lb[1]
- Drain size
- not published
